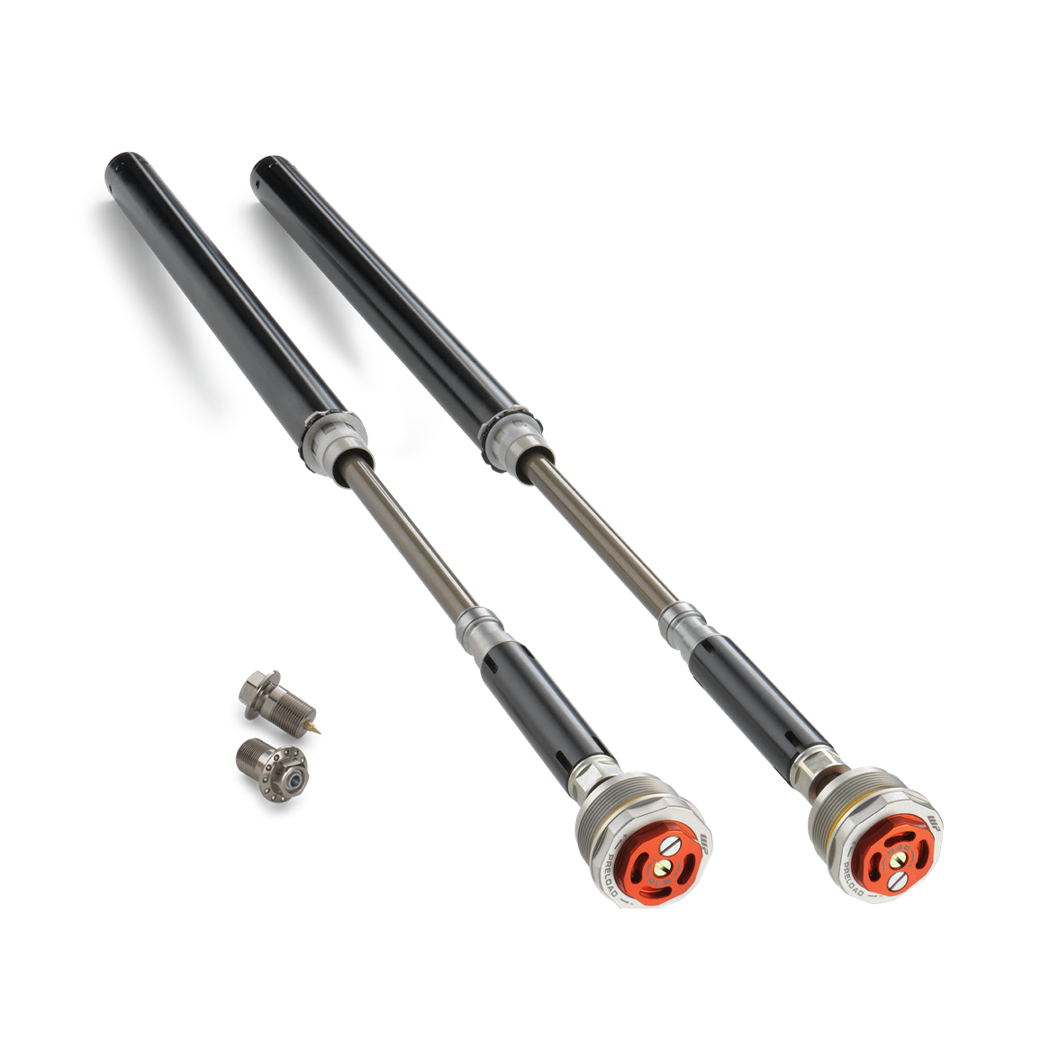

WP Suspension XACT PRO 7500 Cartridge - 50SX/TC50/MC50
The WP XACT PRO 7500 Cartridge is a premium fork cartridge upgrade built for 50cc KTM, Husqvarna, and GASGAS mini motocross models. Its open cartridge design uses WP Cone Valve Technology to improve front-end feel, traction, and bottoming resistance while keeping the fork smooth, controlled, and fully serviceable.
The CONE VALVE technology improves the turbulence-free oil flow through the damping piston by using a conical valve. This results in a much better response and a lower initial breakaway torque.
Due to the increased oil volume in the damping system, the OPEN CARTRIDGE technology enables optimized heat dissipation with reduced friction. This ensures constant damping performance despite increased stress.
Key Features
- Open cartridge design with WP Cone Valve Technology
- Adjustable compression and rebound damping
- Adjustable spring preload
- Low-friction materials and premium coatings for smooth fork action
- Fully serviceable design
- Designed for KTM, Husqvarna, and GASGAS 50cc mini models
Technical Specs
| Part Number | A400C102Z003220 |
|---|---|
| Product | WP XACT PRO 7500 Cartridge |
| Design | Open Cartridge |
| Technology | Cone Valve Technology |
| Length | 685 mm |
| Weight | 1,142 g |
| Stroke | 169.6 mm |
| Piston | 23 mm |
| Spring Options | 1.8 / 2.0 / 2.2 N/mm |
| Spring Length | 330 mm |
| Springs | Springs not included |
| Recommended Oil Type | SAE 4 |
| Items Delivered | Cartridge, sticker, and tools |
| Accessories | Red anodized protective ring set |
| Compatible Shock | Can be combined with WP shock A400C402X113220 |
Fitment
| Brand | Model | Year |
|---|---|---|
| KTM | 50 SX | 2026+ |
| Husqvarna | TC 50 | 2026+ |
| GASGAS | MC 50 | 2026+ |
| KTM | SX-E 5 | Confirm fitment |
| Husqvarna | EE 5 | Confirm fitment |
| GASGAS | MC-E 5 | Confirm fitment |
Fitment Note: Listed fitment is based on currently available model information. For 2026 and newer models, please contact us before ordering to confirm compatibility with your specific bike.
```
