Sirris Shock - R46 Trail Tune - LSC

Sale price$899.00
Sold out

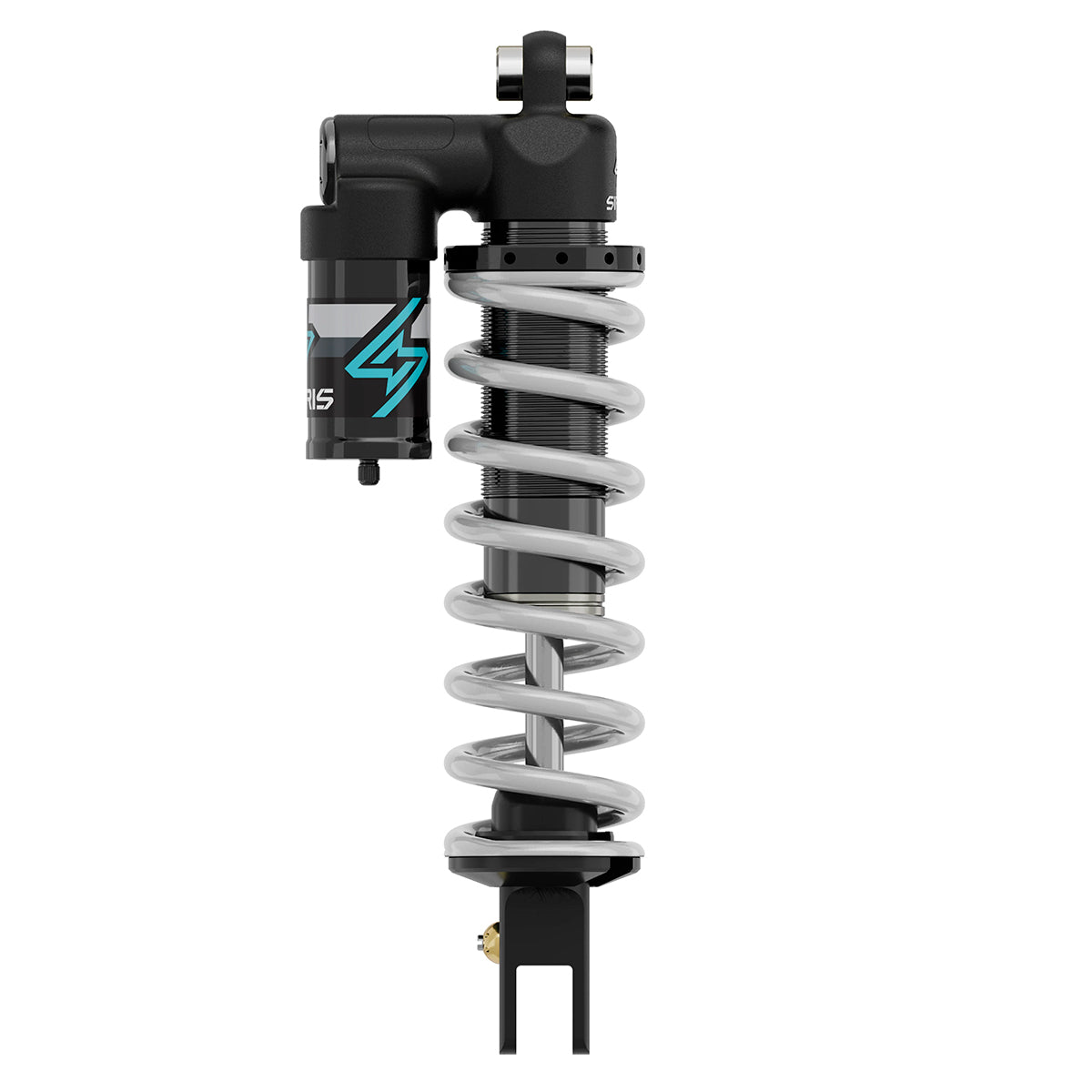

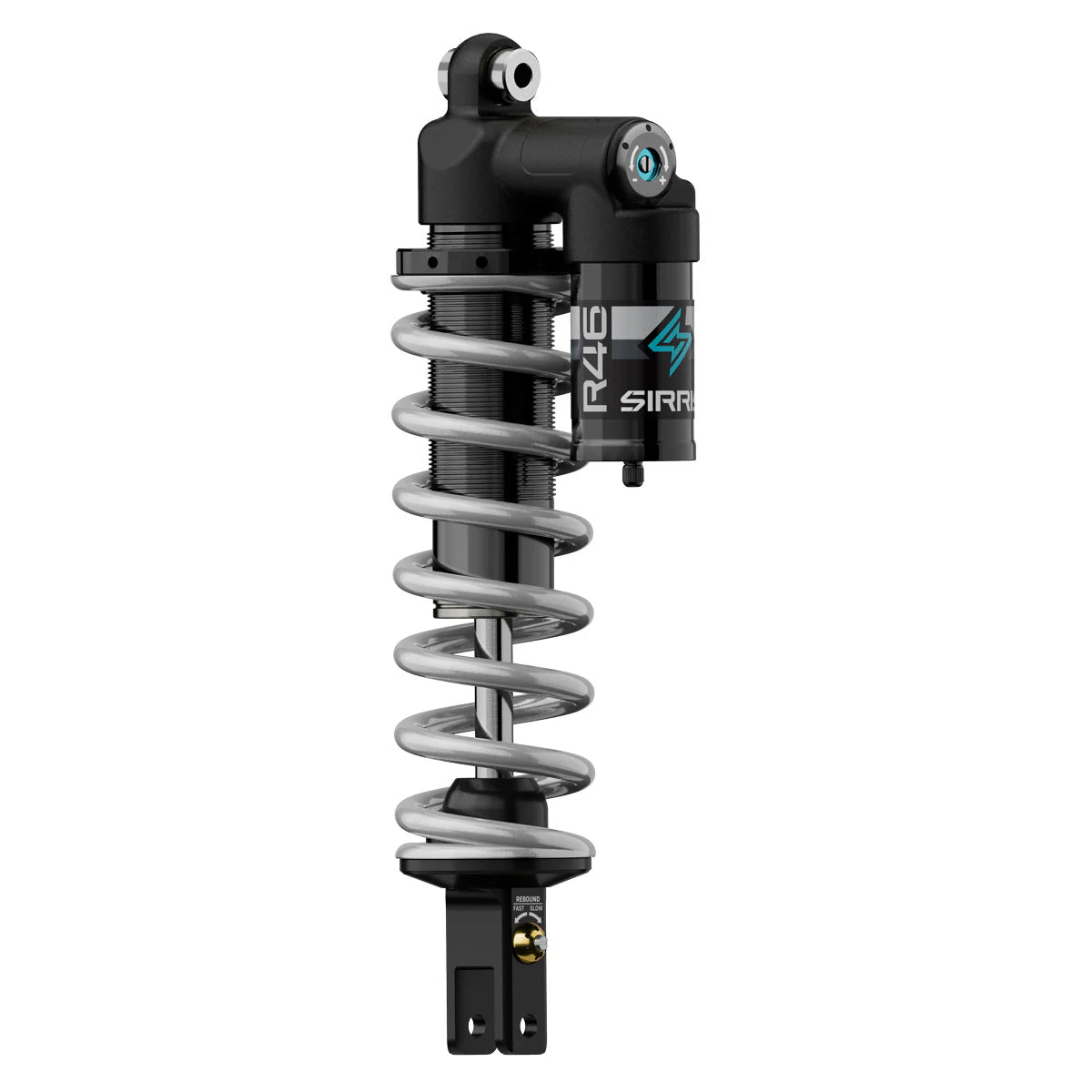

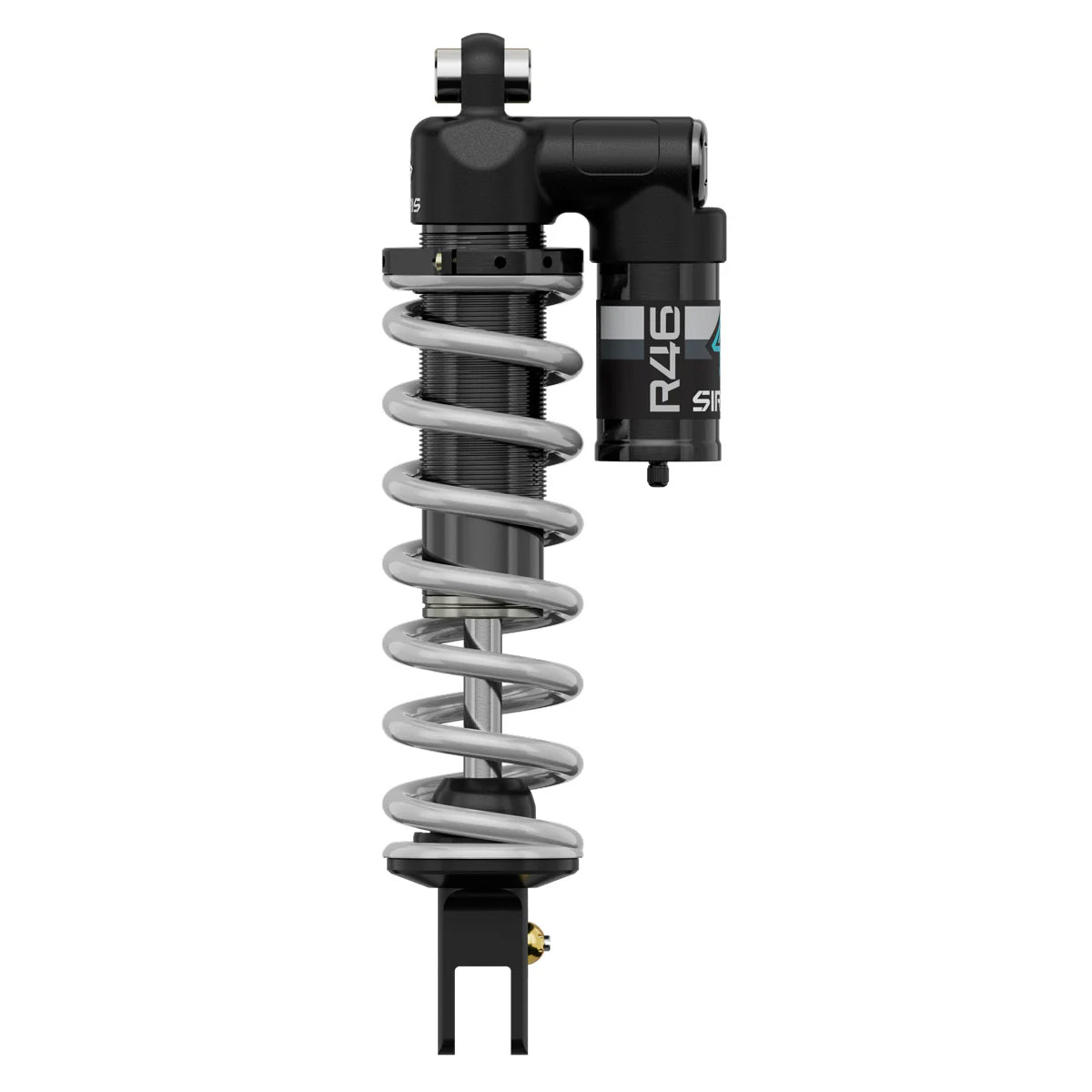

The R46 Shock for Surron Ultra Bee is here

THE PERFECT PAIR. Pressure balanced. Fully adjustable. Optimized for E-Moto. Revolutionize your bike’s potential with harmonized suspension performance front and back. The ultimate suspension package is here.

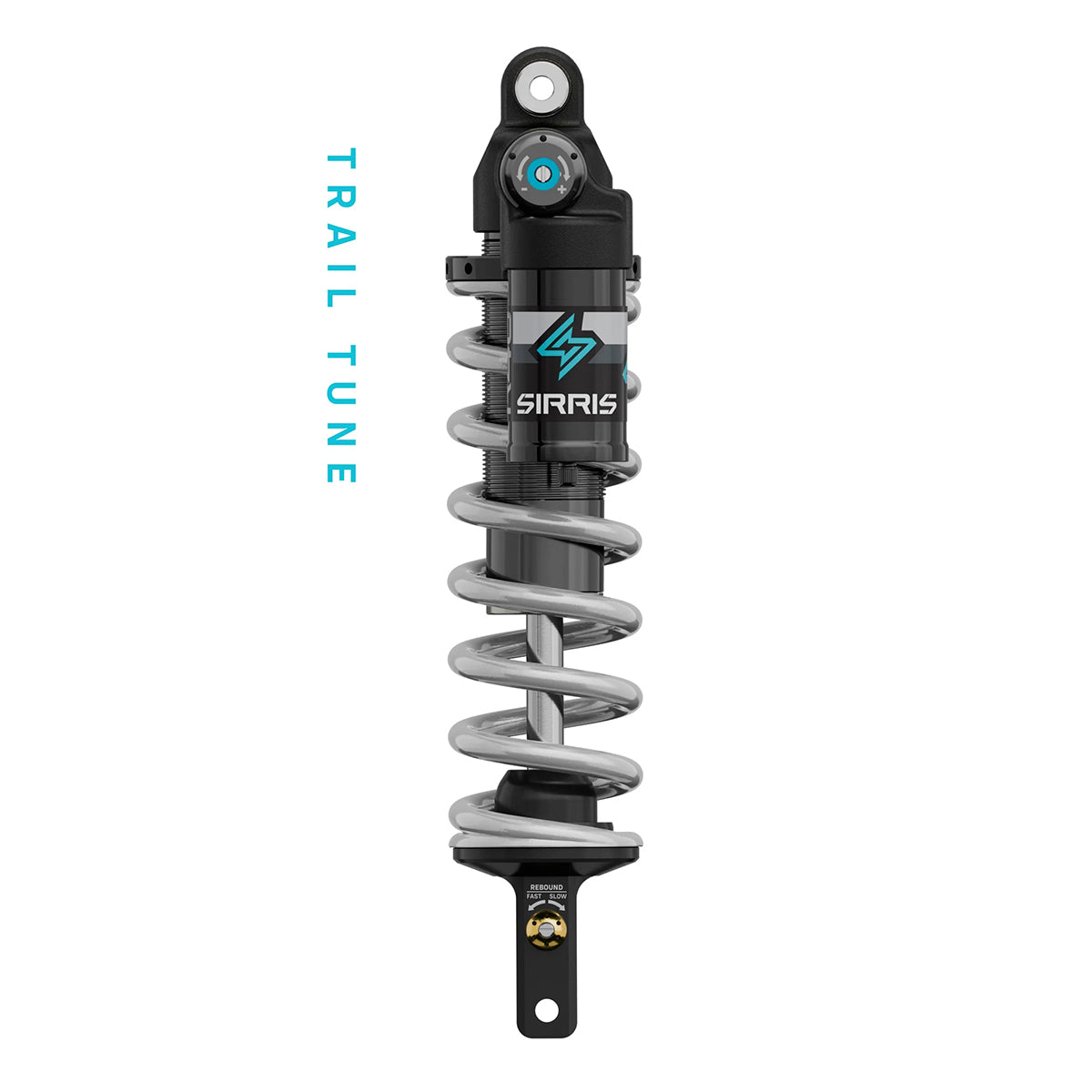

Trail Tune is a very versatile and aggressive tune that is sporty and supportive, designed to go fast over a wide variety of terrain.

RIDER WEIGHT SPECS:

Sirris offers six weight ranges to choose from when selecting your Trail Tune R46 shock. (Listed weight ranges are rider weight without riding gear on. 15 pounds of riding gear is calculated into the weight ranges)

130 lbs - 160 lbs (Light ships with 75 N/mm spring)
160 lbs - 210 lbs (Medium ships with 85 N/mm spring)
210 lbs - 230 lbs (Heavy ships with 90 N/mm spring)
230 lbs - 250 lbs (X Heavy ships with 95 N/mm spring)
250 lbs - 280 lbs (XX Heavy ships with 105 N/mm spring)
280 lbs - 350 lbs (XXX Heavy ships with 115 N/mm spring)

PRODUCT SPECS:

Architecture
Piggyback, steel spring

Stroke
85 mm

Length
320 mm

Weight
3.9 lbs / 1.76 kg without spring

Piston
High flow Ø46 mm, CNC 6061 billet aluminum, type 3 hard anodized coating

Piston band
Hard band

Shaft
Ø16 mm OD chrome-plated, induction hardened steel, hollow, Ø 5.5 mm ID

Shock body
Seamless 6061 aluminum, type 3 hard anodized coating, ACME thread

Spring retainer
Seamless 6061 aluminum, type 3 hard anodized coating, ACME thread, with locking feature, manual adjust

Bottom out
MCU bumper

Top out
Rubber bumper

Damping
Tunable compression and rebound

Reservoir
Pressurized with floating piston

Adjusters
External compression and rebound adjustment

Seals
NBR
