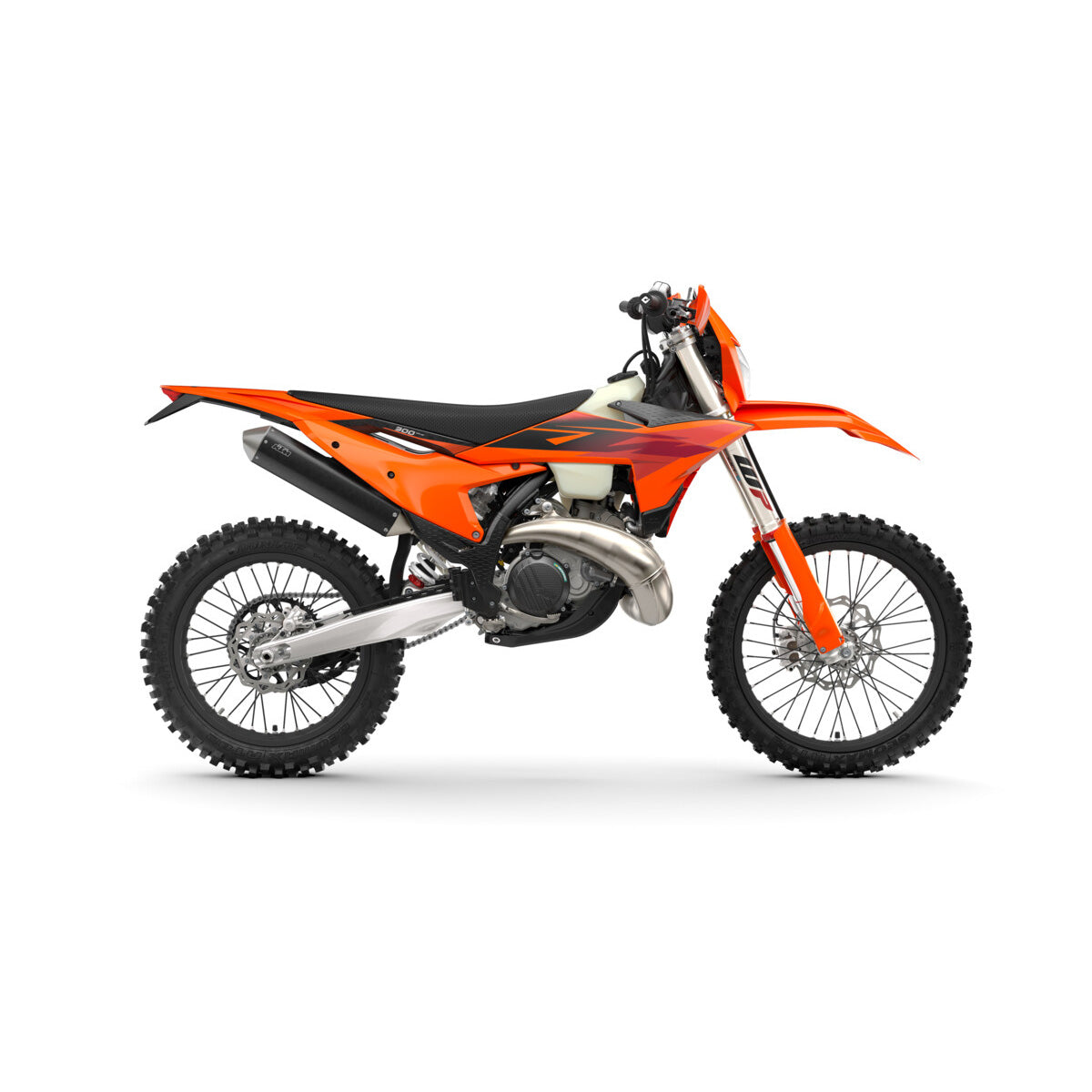

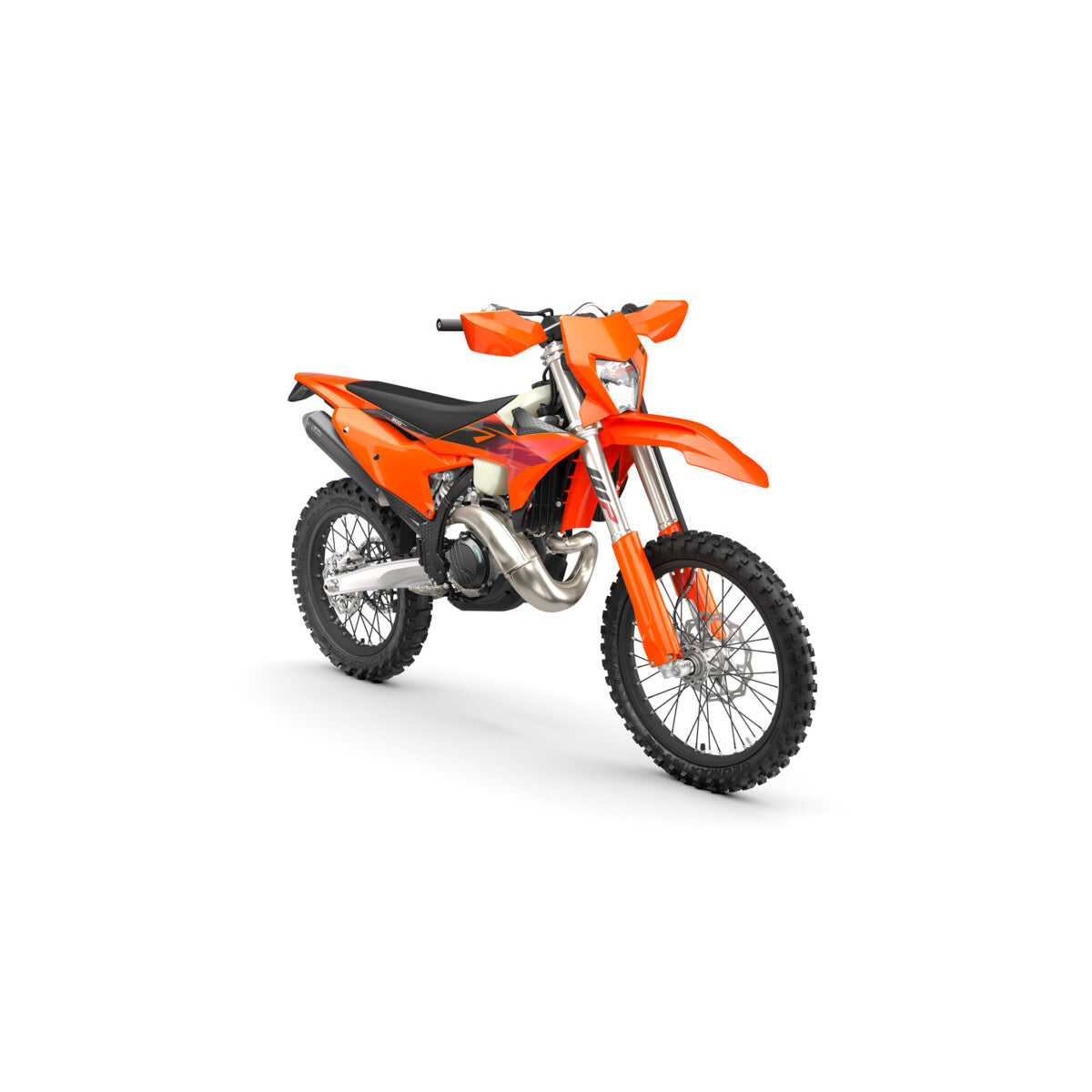

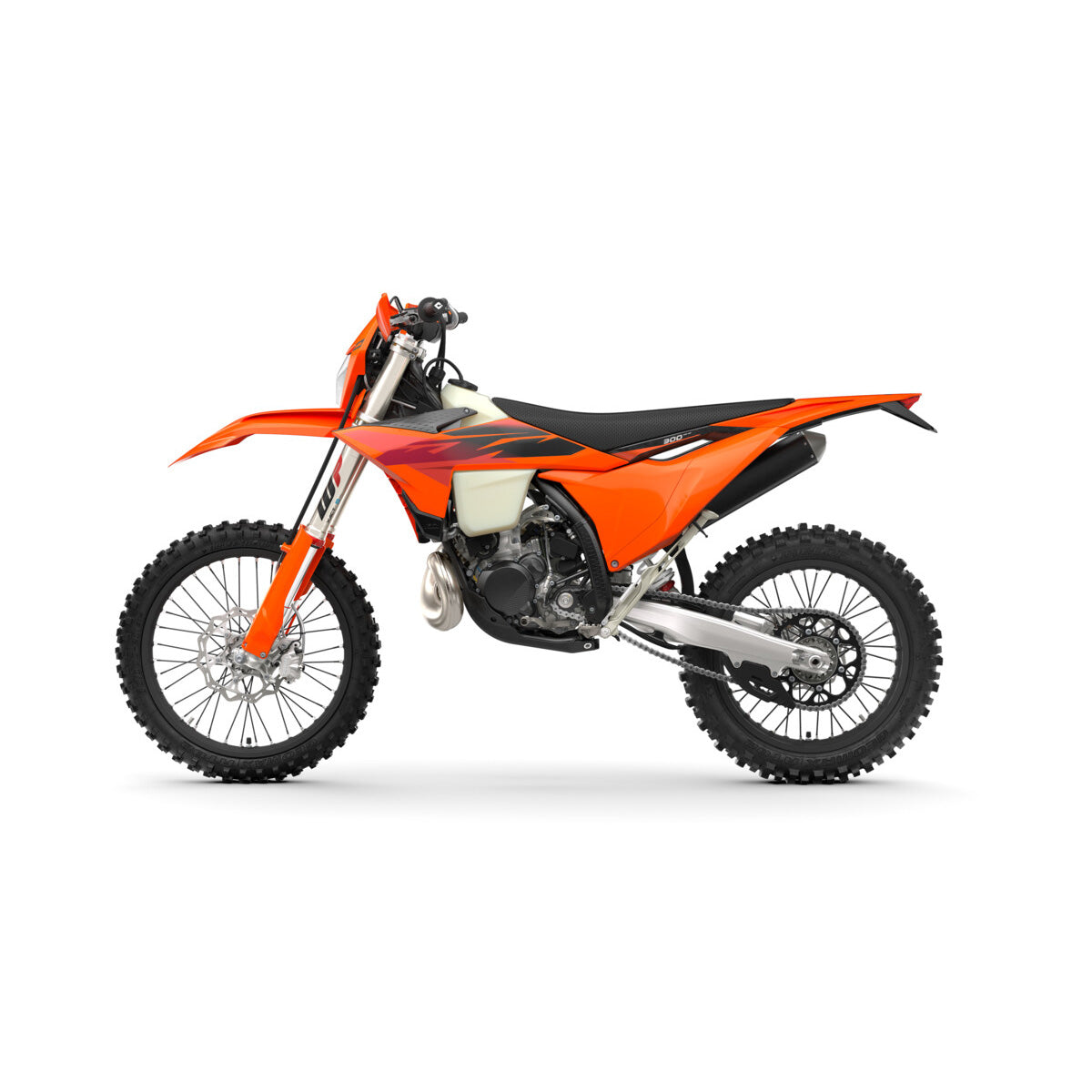

2027 KTM 300 XC-W
*Offers are updated monthly. Contact Kurt for the latest information and full details. Don't miss out on our latest deals.
*Plus freight: $690. Closed-course competition use only.
LEGENDARY ENDURO
The KTM 300 XC-W maintains legendary status as the undisputed King of enduro. Not only does it have the most recognized title at the sharp end of hard enduro, it continues to set the standard for 2-stroke enduro performance across every terrain and condition. Its enduro-tuned 293 cc engine with electronic power valve and 39 mm Keihin EFI system with electronically regulated oil injection deliver instant throttle response and optimal power with unmatched ease of use. A chromoly steel frame, hollow die-cast swingarm, WP XACT Closed Cartridge fork, and WP XPLOR PDS rear shock provide the chassis performance that has defined this machine for decades. An optional map select switch allows riders to change engine character to suit any terrain. Brembo brakes, GIANT rims, Dunlop AT82 tires, LED headlight, and composite skid plate complete the most legendary enduro package available.
Technical Specifications
Engine
| Engine Type | Single Cylinder, 2-Stroke |
| Displacement | 293.15 cc |
| Bore / Stroke | 72 / 72 mm |
| Fuel System | Keihin EFI, Throttle Body Ø 39 mm |
| Engine Management | Vitesco Technologies EMS |
| Transmission | 6-Speed, Wide Ratio |
| Primary Ratio | 26:72 |
| Final Drive | 14:45 |
| Clutch | Wet Multi-Disc DDS-Clutch, Brembo Hydraulics |
| Lubrication | Electronically Regulated Oil Pump |
| Cooling | Liquid Cooled |
| Starter | Electric Starter / Lithium-Ion 12.8V 2Ah |
Chassis
| Frame | Central Double-Cradle-Type 25CrMo4 Steel |
| Subframe | Aluminum Reinforced Polyamide |
| Front Suspension | WP XACT Closed Cartridge USD, Ø 48 mm |
| Rear Suspension | WP XPLOR Shock with PDS |
| Suspension Travel (Front/Rear) | 300 / 310 mm / 11.8 / 12.2 in |
| Front/Rear Brakes | Disc Brake Ø 260 / 220 mm — Brembo |
| Front/Rear Rims | 1.60 x 21" / 2.15 x 18" Giant |
| Front/Rear Tires | 80/100-21" / 110/100-18" Dunlop AT82 |
| Chain | 520 X-Ring |
| Handlebar | Neken, Aluminum Ø 28/22 mm |
| Steering Head Angle | 26.1° |
| Triple Clamp Offset | 22 mm |
| Wheelbase | 1,489 ± 10 mm / 58.6 ± 0.4 in |
| Ground Clearance | 347 mm / 13.6 in |
| Seat Height | 963 mm / 37.9 in |
| Tank Capacity | 9 L / 2.37 gal |
| Weight (Without Fuel) | 104.4 kg / 230.1 lb |
| Silencer | Aluminum |
