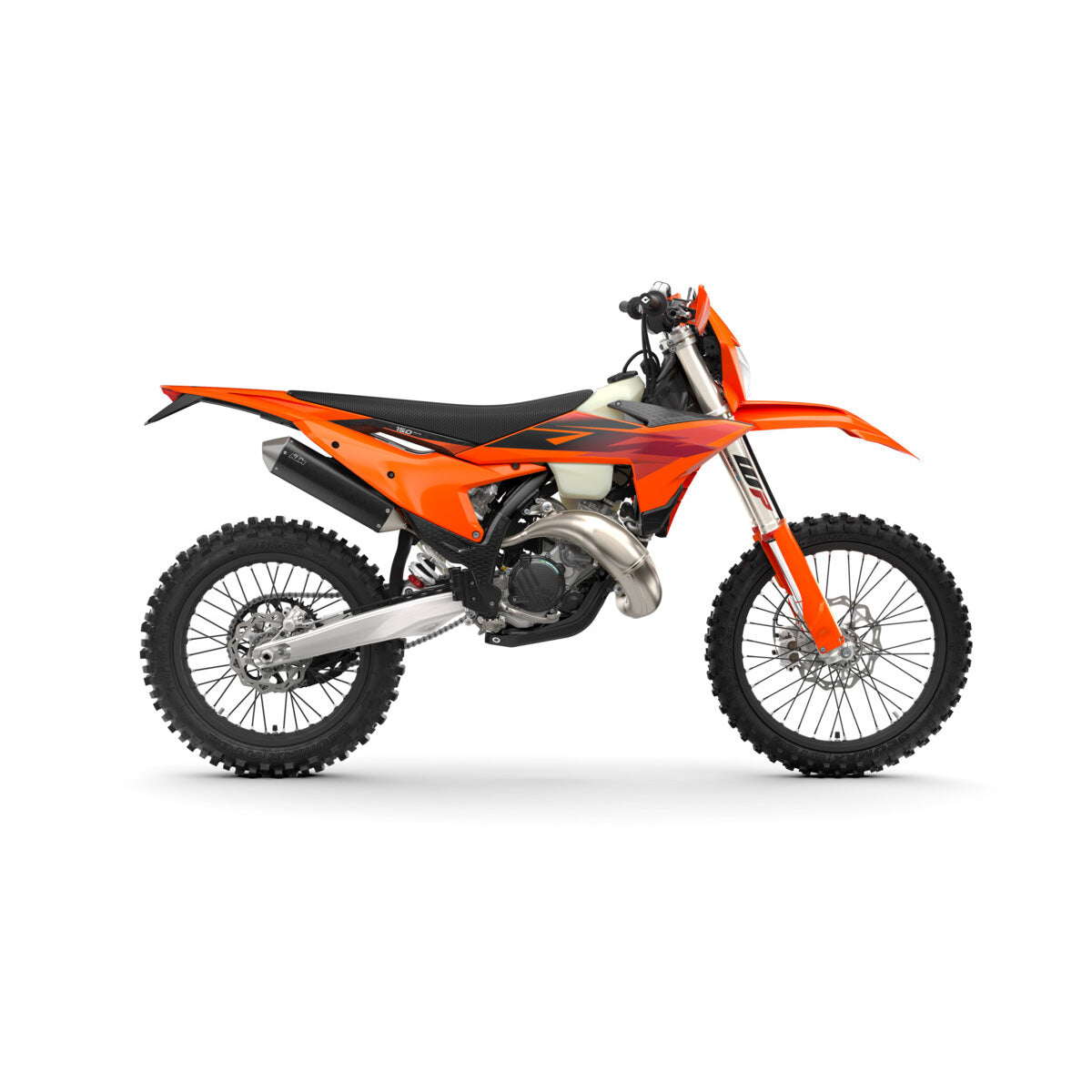

2027 KTM 150 XC-W
*Offers are updated monthly. Contact Kurt for the latest information and full details. Don't miss out on our latest deals.
*Plus freight: $690. Closed-course competition use only.
LIMITLESS
The KTM 150 XC-W has earned its place on the hallowed XC-W rostrum. Featuring the same level of equipment as the rest of the KTM Enduro range, it packs a chromoly steel frame, hollow die-cast swingarm, WP XACT Closed Cartridge fork, and WP XPLOR PDS rear shock into a lightweight, agile package built for enduro racing. Its enduro-tuned 2-stroke engine with electronic power valve delivers exhilarating power across the entire rpm range, while the 39 mm Keihin EFI system with electronically regulated oil injection ensures a perfect fuel-oil mix under any condition. An ultra-bright LED headlight, Brembo brakes, GIANT rims with CNC-machined hubs, Dunlop AT82 tires, and a composite skid plate round out this high-specification enduro machine.
Technical Specifications
Engine
| Engine Type | Single Cylinder, 2-Stroke |
| Displacement | 143.99 cc |
| Bore / Stroke | 58 / 54.5 mm |
| Fuel System | Keihin EFI, Throttle Body Ø 39 mm |
| Engine Management | Vitesco Technologies EMS |
| Transmission | 6-Speed, Wide Ratio |
| Primary Ratio | 23:73 |
| Final Drive | 13:50 |
| Clutch | Wet Multi-Disc DS-Clutch, Brembo Hydraulics |
| Lubrication | Electronically Regulated Oil Pump |
| Cooling | Liquid Cooled |
| Starter | Electric Starter / Lithium-Ion 12.8V 2Ah |
Chassis
| Frame | Central Double-Cradle-Type 25CrMo4 Steel |
| Subframe | Aluminum Reinforced Polyamide |
| Front Suspension | WP XACT Closed Cartridge USD, Ø 48 mm |
| Rear Suspension | WP XPLOR Shock with PDS |
| Suspension Travel (Front/Rear) | 300 / 310 mm / 11.8 / 12.2 in |
| Front/Rear Brakes | Disc Brake Ø 260 / 220 mm — Brembo |
| Front/Rear Rims | 1.60 x 21" / 2.15 x 18" Giant |
| Front/Rear Tires | 80/100-21" / 110/100-18" Dunlop AT82 |
| Chain | 520 X-Ring |
| Handlebar | Neken, Aluminum Ø 28/22 mm |
| Steering Head Angle | 26.1° |
| Triple Clamp Offset | 22 mm |
| Wheelbase | 1,489 ± 10 mm / 58.6 ± 0.4 in |
| Ground Clearance | 347 mm / 13.6 in |
| Seat Height | 963 mm / 37.9 in |
| Tank Capacity | 9 L / 2.37 gal |
| Weight (Without Fuel) | 96.4 kg / 212.5 lb |
| Silencer | Aluminum |
