2027 KTM 125 XC
*Offers are updated monthly. Contact Kurt for the latest information and full details. Don't miss out on our latest deals.
*Plus freight: $690 | Closed-course competition use only.
HERE COMES THE 'BRAAAP!'
The 2027 KTM 125 XC is the lightest and most exciting bike in the XC line-up, delivering a raw 2-stroke riding experience backed by the latest EFI technology. Its compact, powerful engine with electronic power valve delivers crisp, responsive power across every terrain. XC-specific features including offroad gearing, a large-capacity 9-liter fuel tank, side stand, handguards, and skid plate make it ready to race from the gate. Add WP XACT suspension, Brembo brakes, and Dunlop AT82 tires and you have the most complete 125cc cross-country machine available.
Technical Specifications
Engine
| Engine Type | Single Cylinder, 2-Stroke |
| Displacement | 124.8 cc |
| Bore / Stroke | 54 / 54.5 mm |
| Fuel System | Keihin EFI, Throttle Body Ø 39 mm |
| Ignition | Vitesco Technologies EMS |
| Transmission | 6-Speed |
| Primary Ratio | 23:73 |
| Final Drive | 13:51 |
| Clutch | Wet Multi-Disc DS-Clutch, Brembo Hydraulics |
| Cooling | Liquid Cooling |
| Starter | Electric Starter / Lithium-Ion 12.8V 2Ah |
| Lubrication | Premix 40:1 |
| Silencer | Aluminum |
Chassis
| Frame | Central Double-Cradle-Type 25CrMo4 Steel |
| Subframe | Aluminum Reinforced Polyamide |

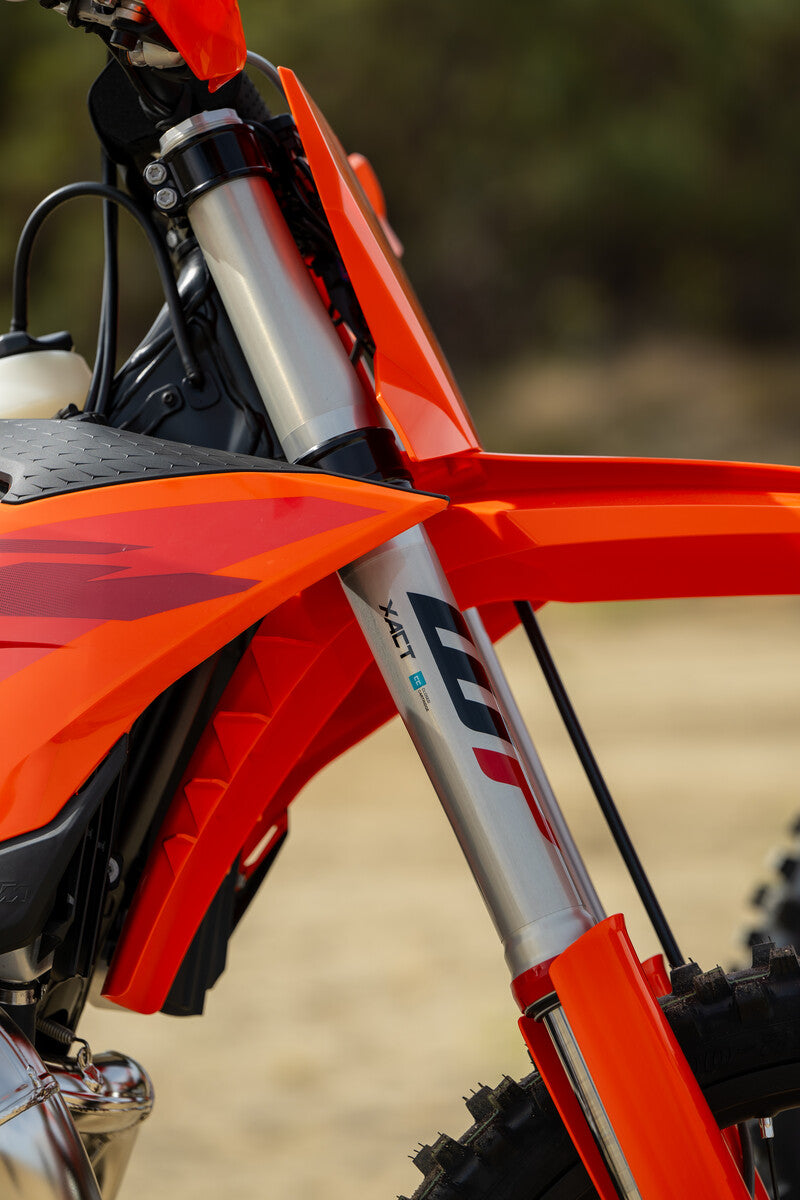

| Front Suspension | WP XACT Closed Cartridge Fork, Ø 48 mm |

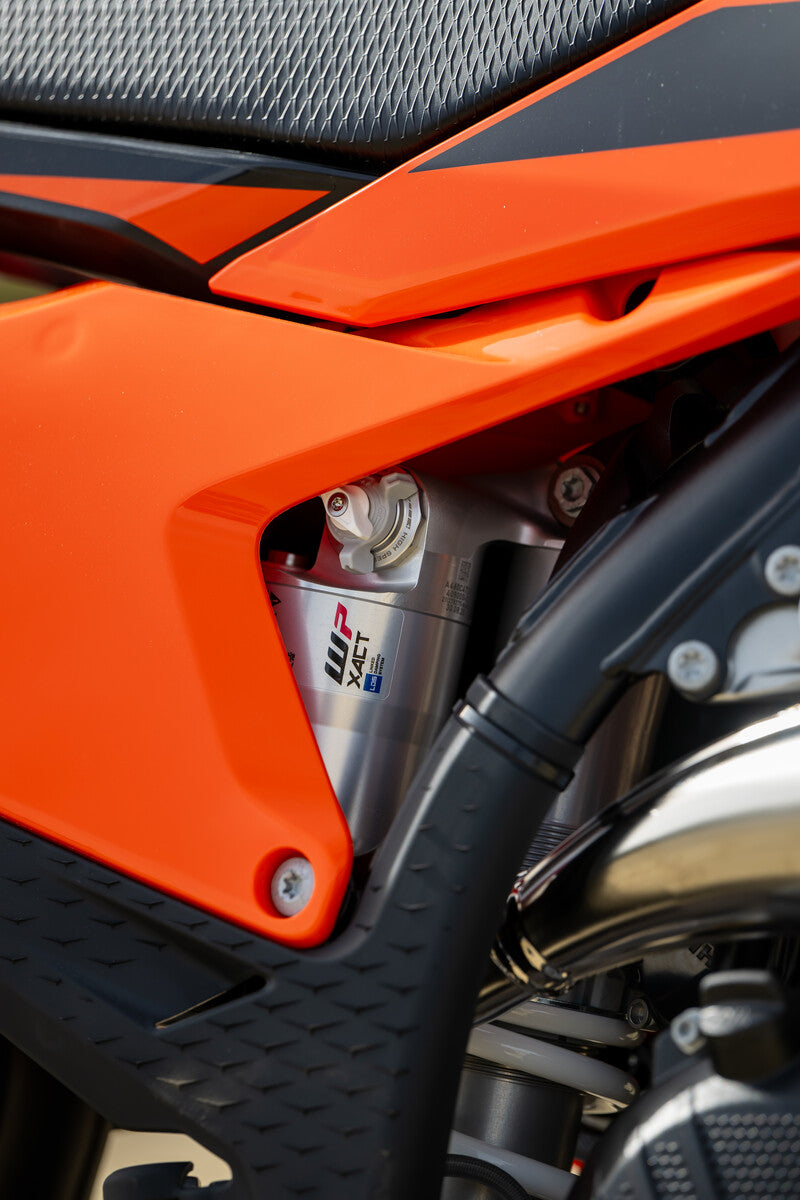

| Rear Suspension | WP XACT Monoshock with Linkage |
| Suspension Travel (Front/Rear) | 300 / 300 mm / 11.81 / 11.81 in |
| Front/Rear Brakes | Disc Brake 260 mm / 220 mm — Brembo |
| Front/Rear Rims | 1.60 x 21" / 2.15 x 18" GIANT |
| Front/Rear Tires | 80/100-21" / 110/100-18" Dunlop AT82 |
| Chain | 520 X-Ring |
| Handlebar | Neken, Aluminum Ø 28/22 mm |
| Steering Head Angle | 26.1° |
| Triple Clamp Offset | 22 mm |
| Wheelbase | 1,493 mm ± 10 mm / 58.7 ± 0.4 in |
| Ground Clearance | 359 mm / 14.1 in |
| Seat Height | 954 mm / 37.5 in |
| Tank Capacity | 9 L / 2.37 gal |
| Weight (Without Fuel) | 94.8 kg / 208.9 lb |
2027 KTM 125 XC
Sale price$8,499.00
Regular price (/)
