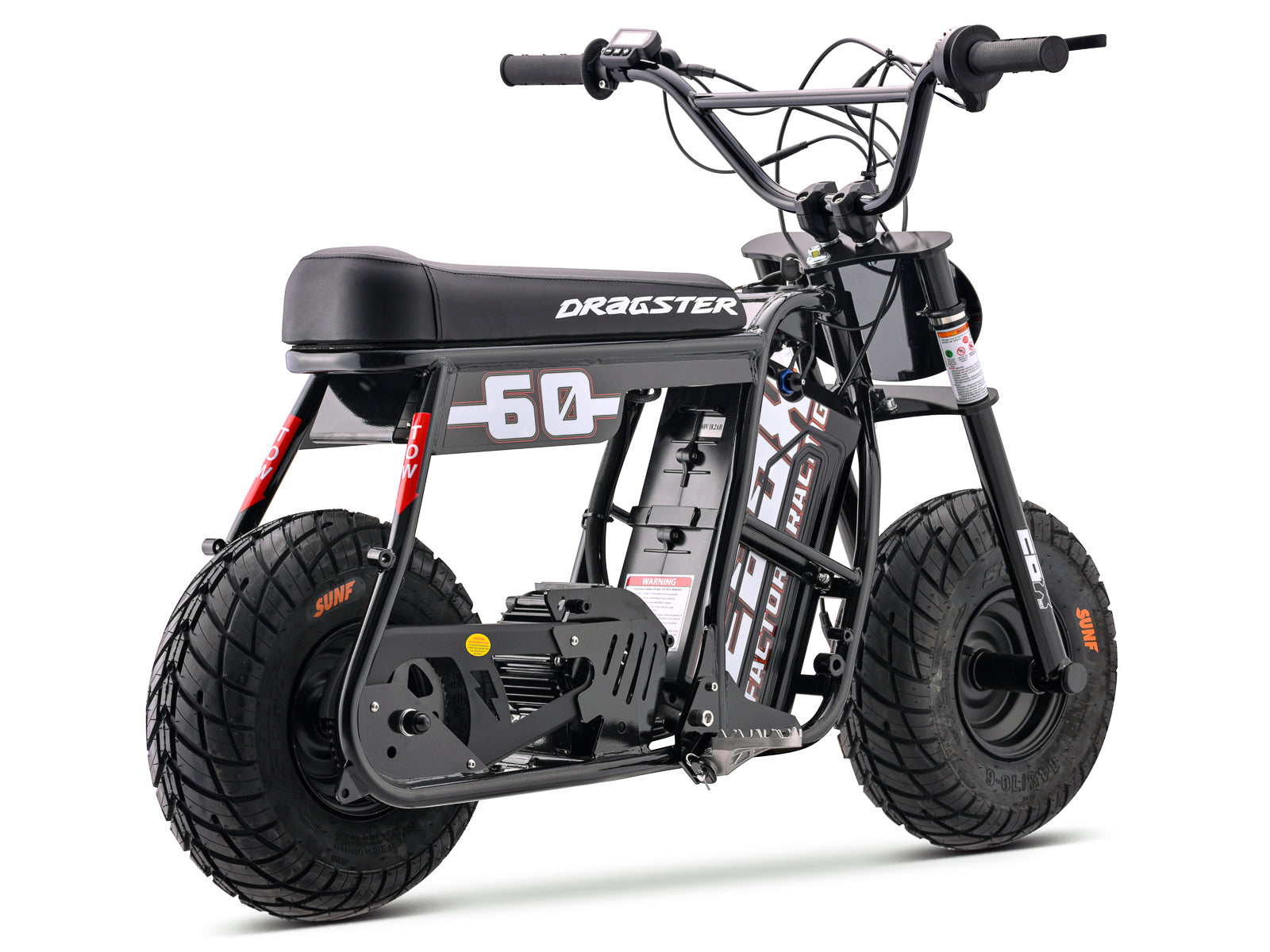

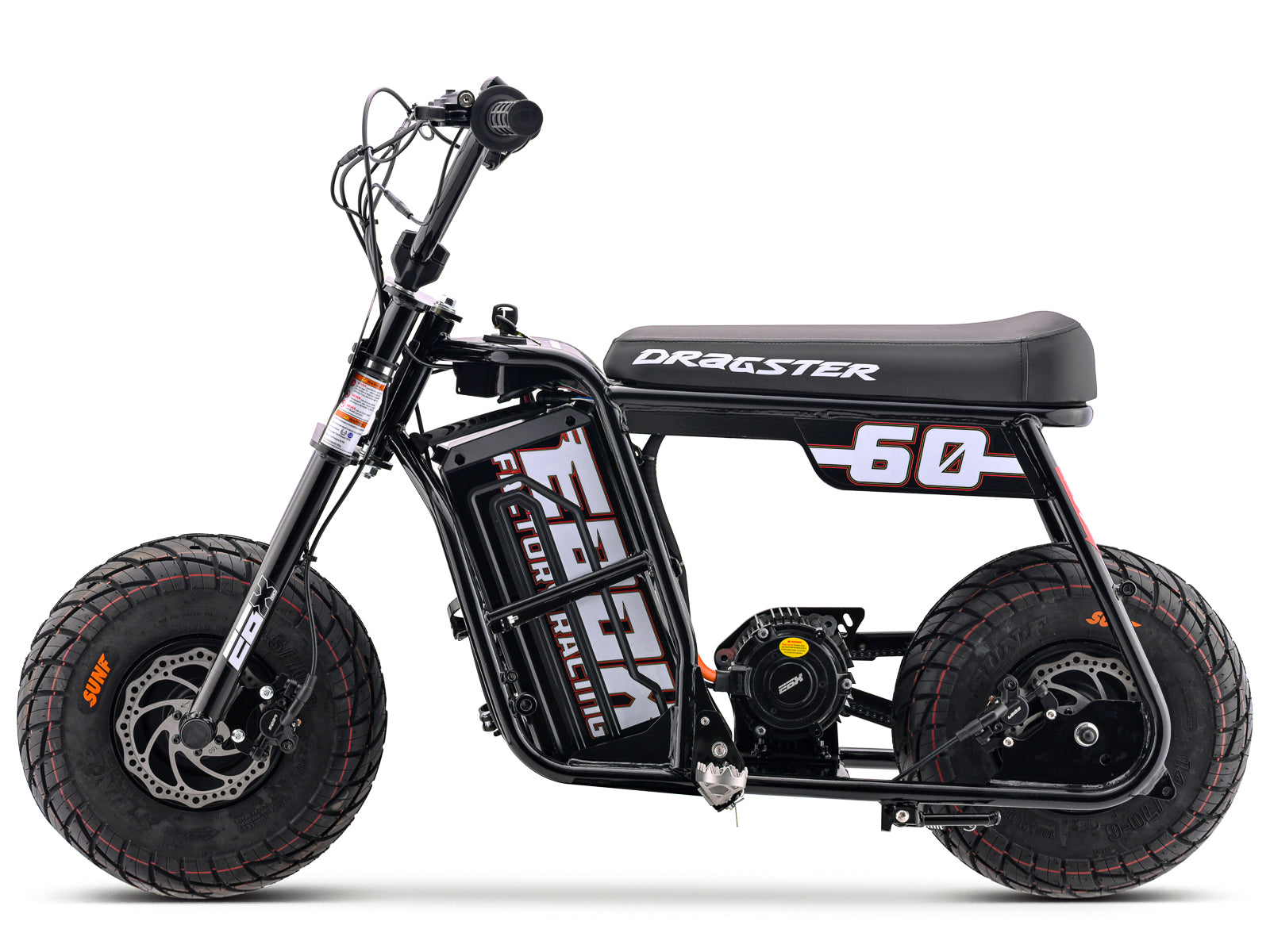

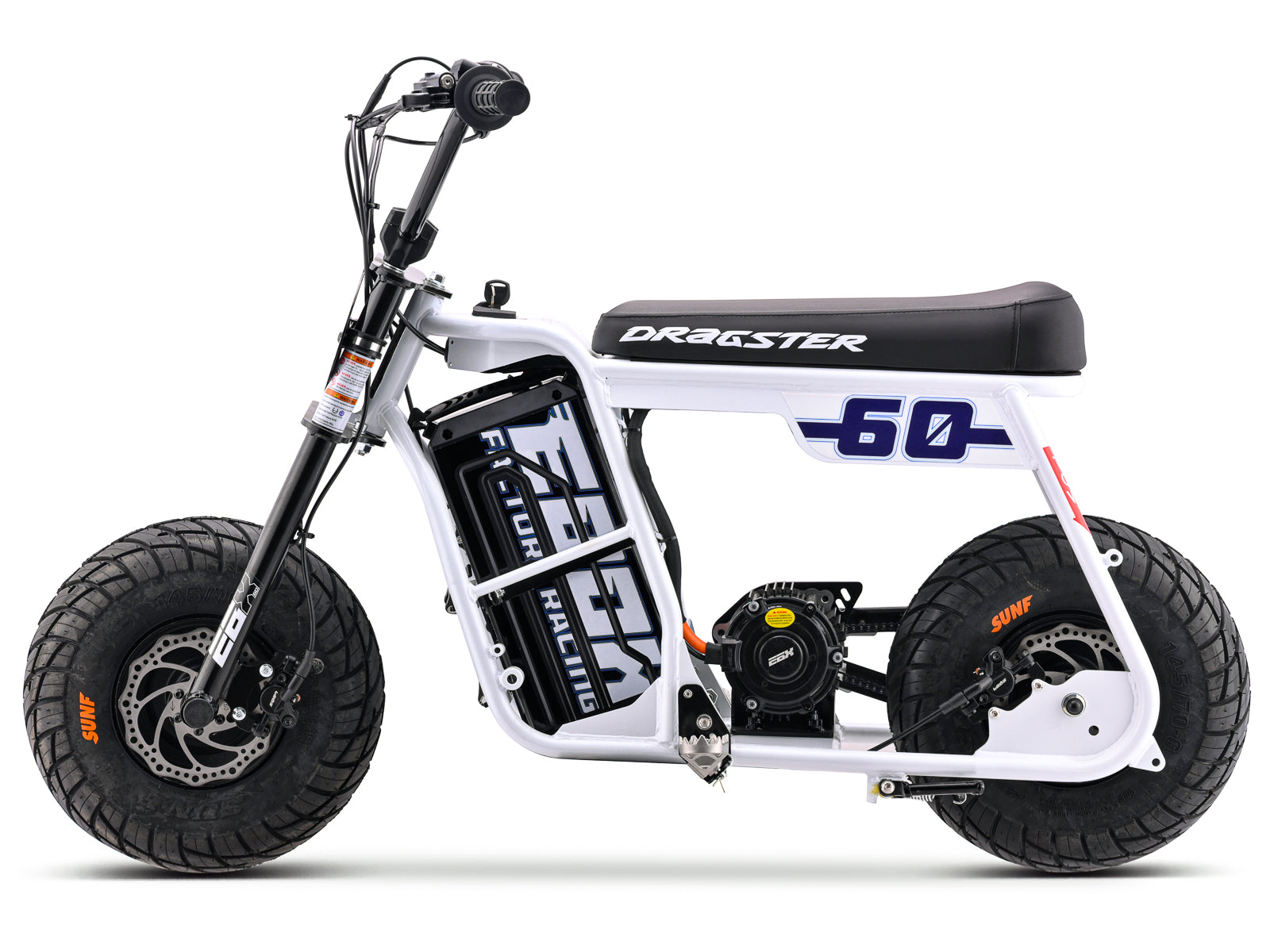

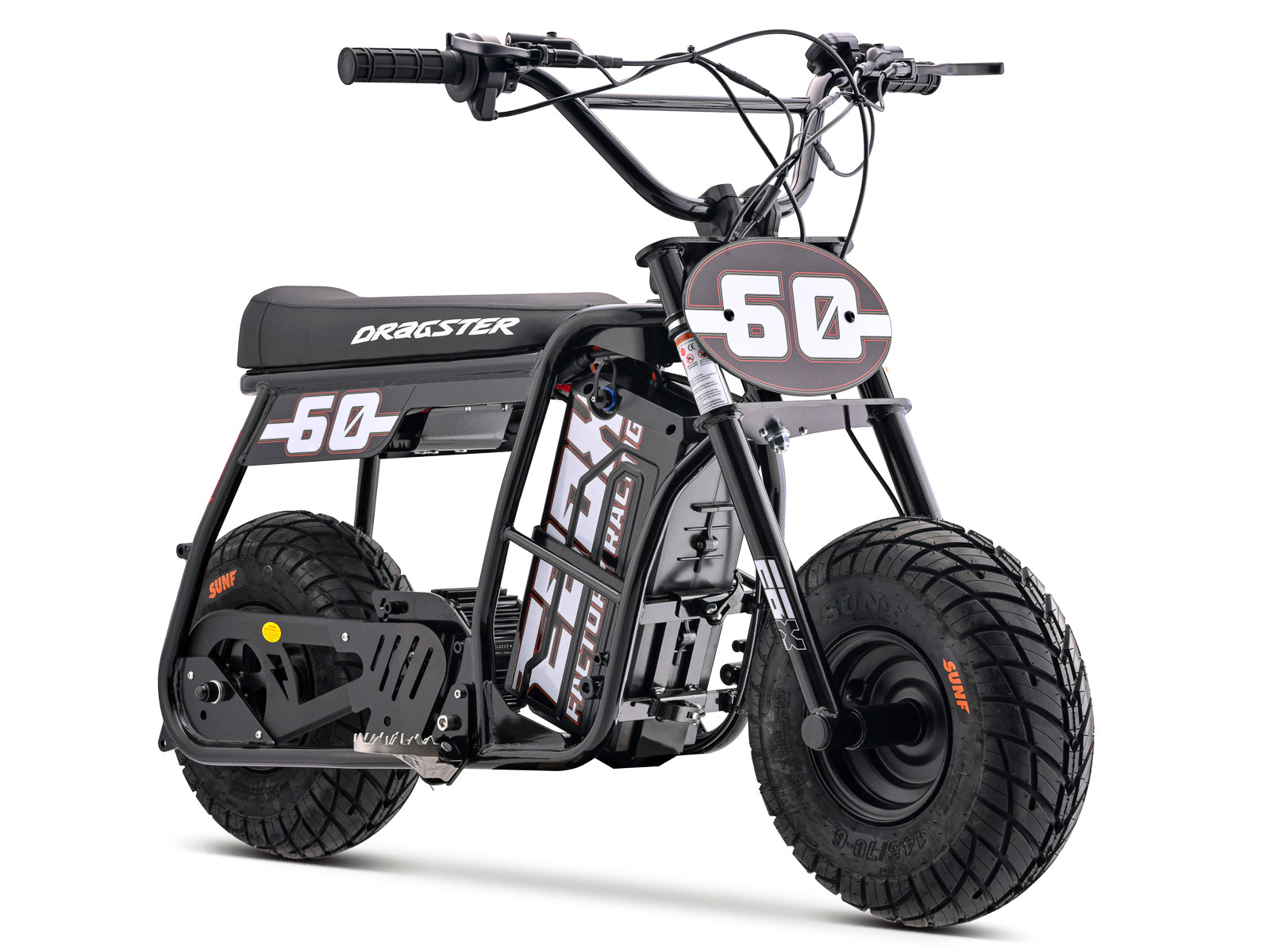

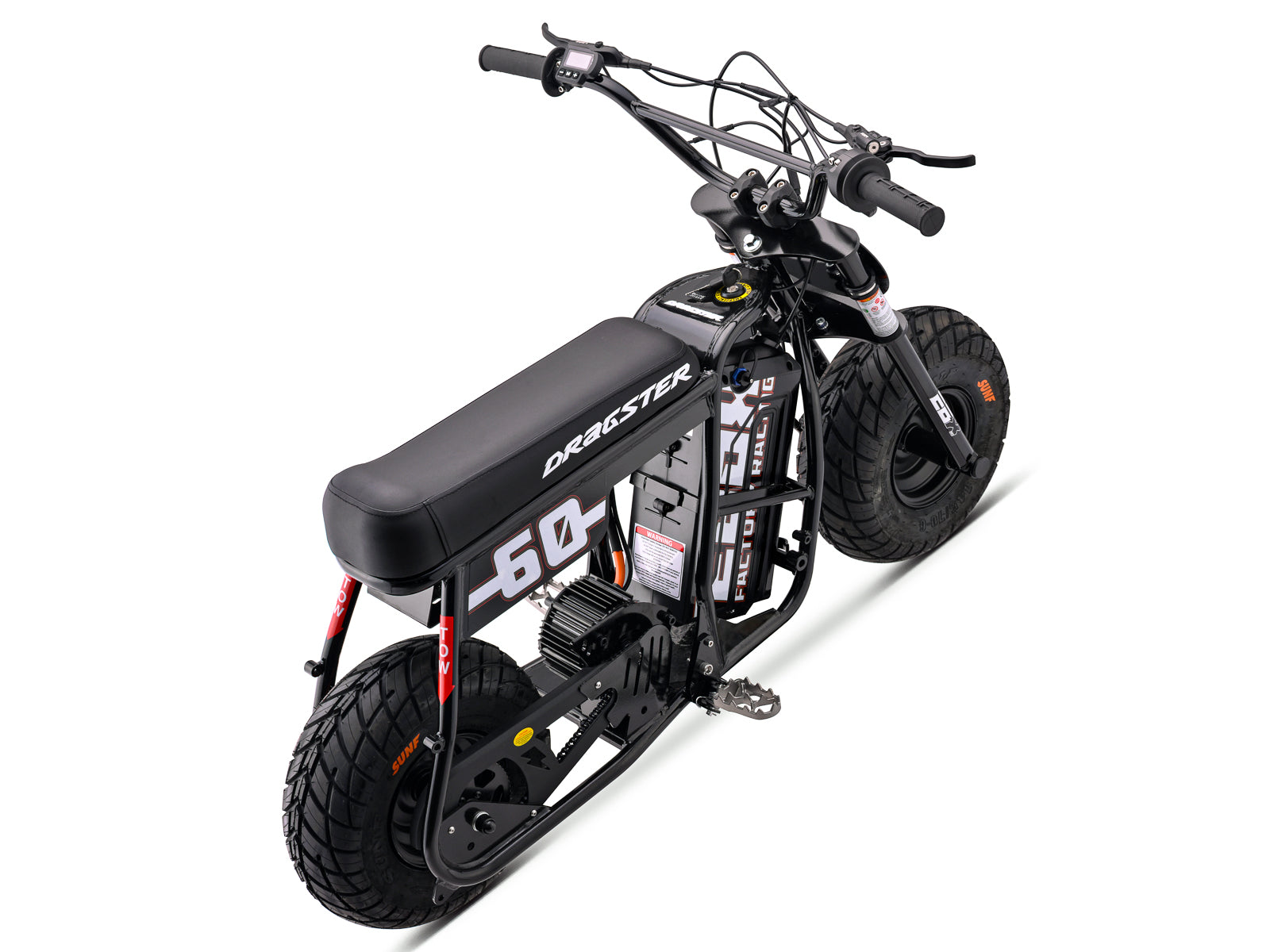

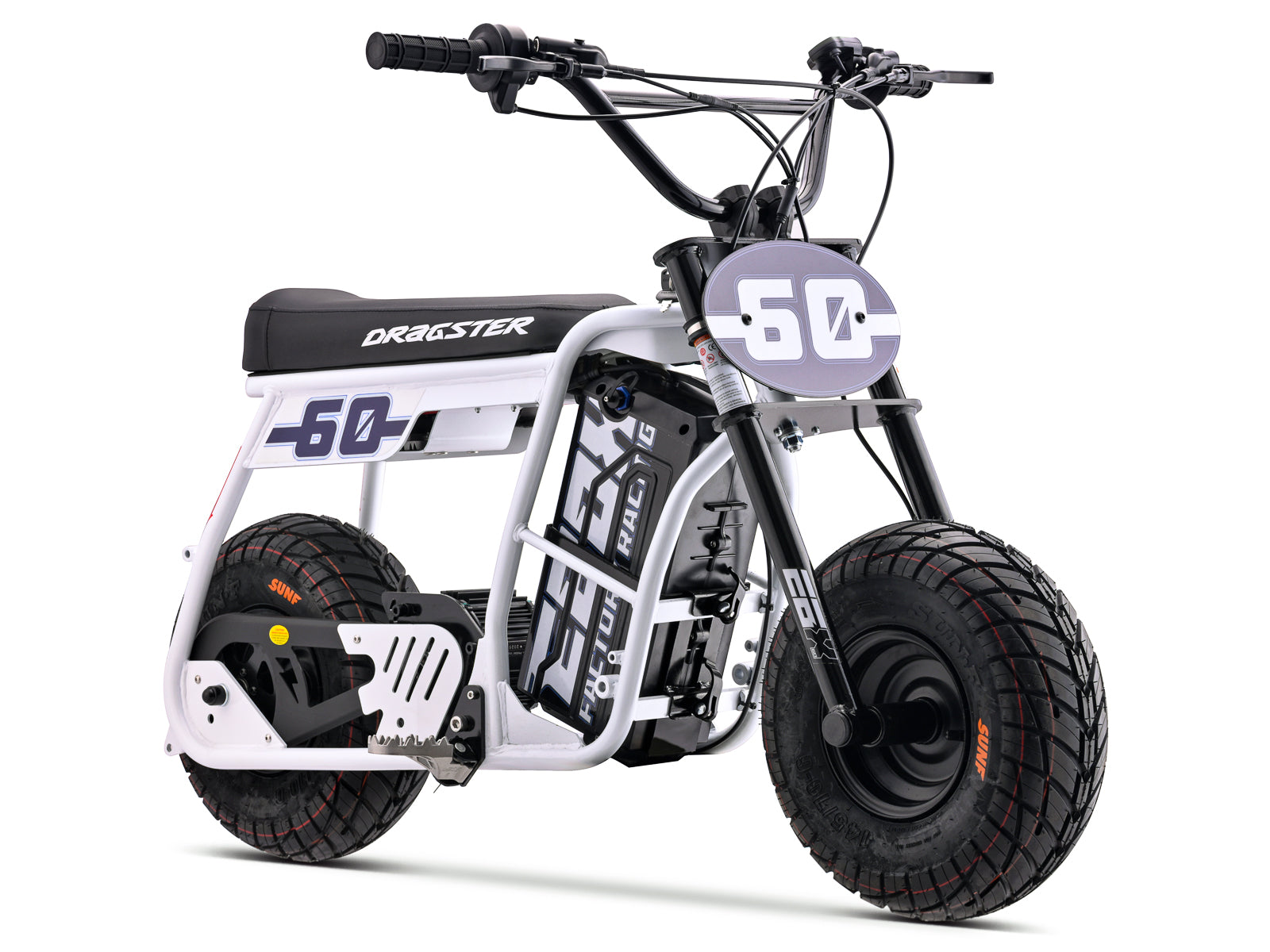

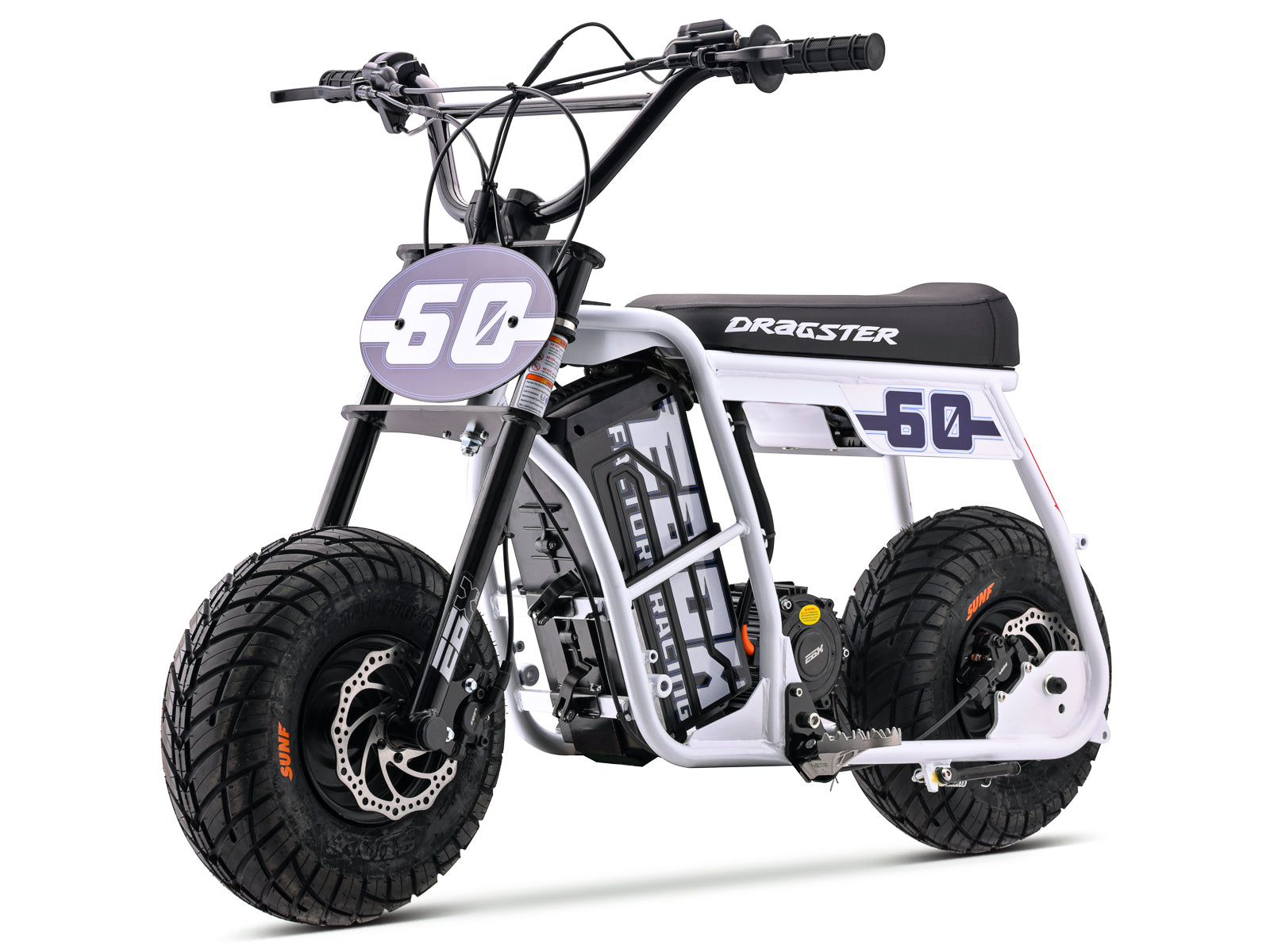

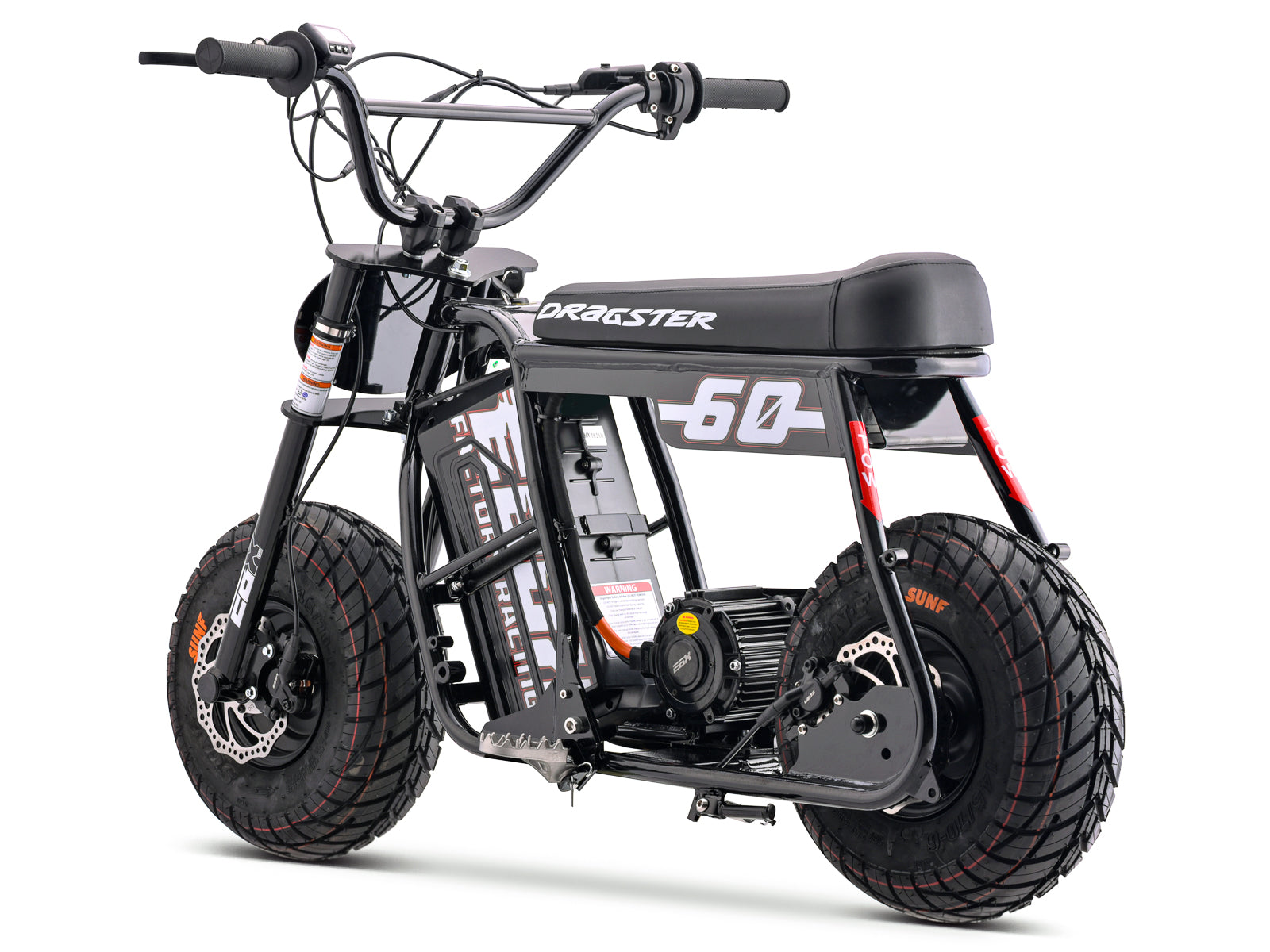

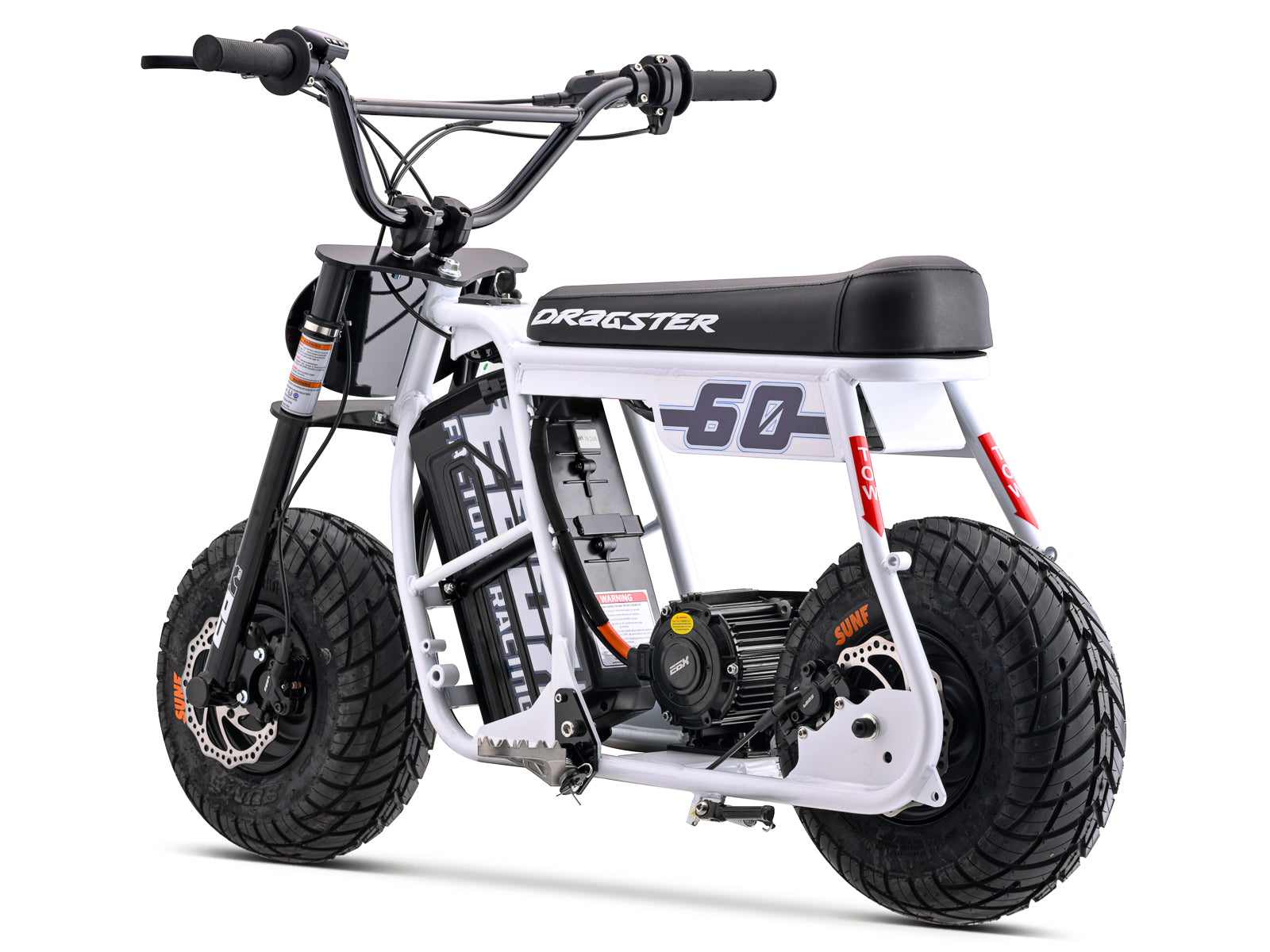

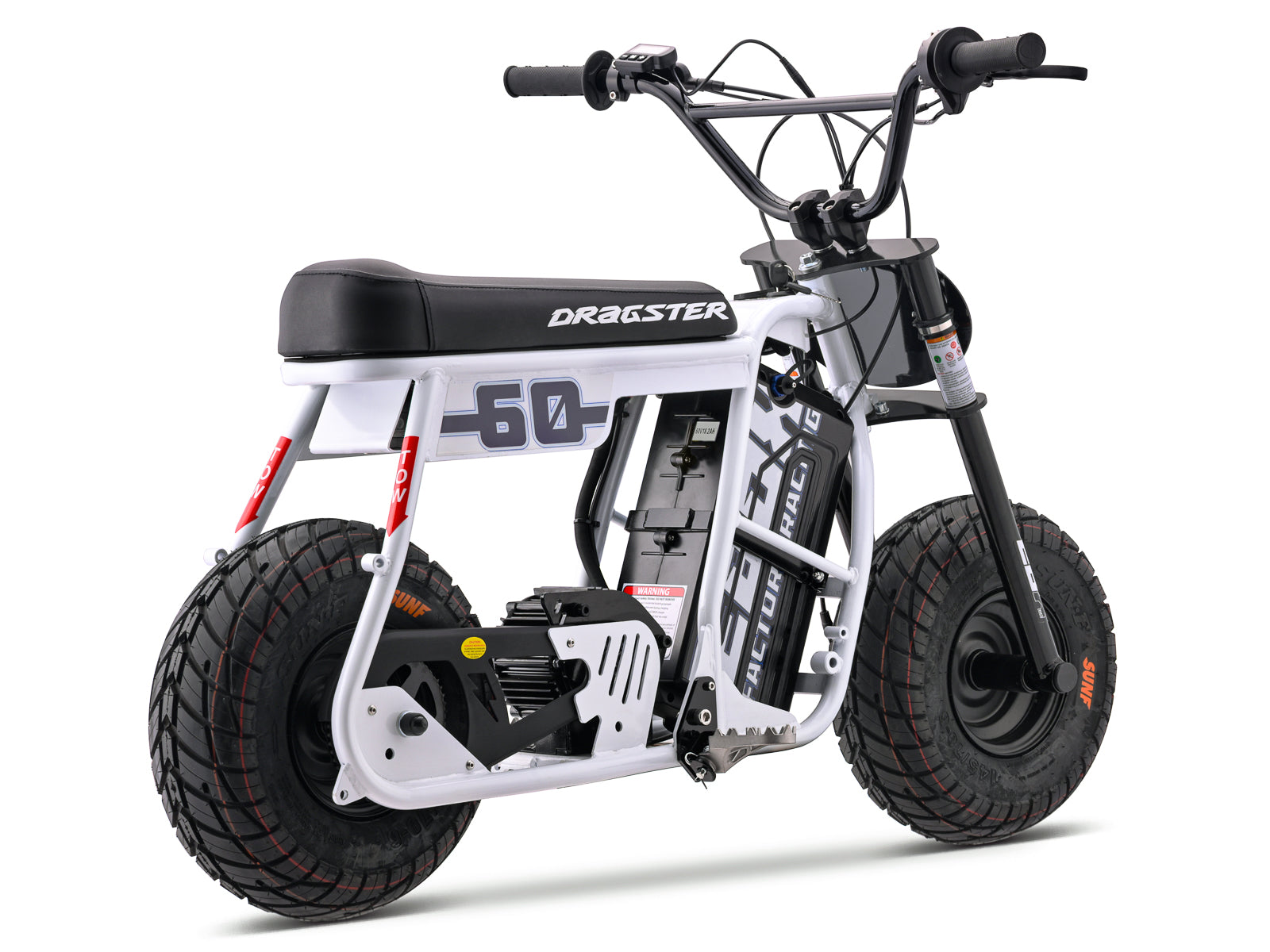

THE EBX Dragster is FINALLY HERE! In a world full of limp, slow, plastic failures, comes a truly HARDCORE electric minibike with more steeze than should be legal in such a miniature package. Featuring insane top speeds of up to 55 mph, the EBX is now delivered with a SERIOUS safety warning: Do Not Ride if You are Easily Frightened. Choose from 3 ballistic powertrains and multiple mind-blowing colourways. Fully re-engineered and reconsidered with a temperature protected PMSM encoder motor, 80 Amp Fardriver controller, bigger batteries, bigger brakes and 3-mode smart TFT colour display. Other exciting features are available such as bronze inverted suspension forks, an integrated LED headlight and luxury suede printed seats. The EBX range firmly cements the Dragster as the “Ultimate Wheelie Weapon” and King of the streets.
Technical Specifications
Frame & Chassis
| Frame Type |
Full duplex |
| Fork |
Rigid High Tensile |
| Bar Risers |
Cast alloy 36mm rise Ø22.2 |
| Wheelbase |
882 mm |
| Ground Clearance |
120 mm |
| Seat Height |
585 mm |
| Bar Height |
810 mm |
| Bike Weight |
42.5 kg (94lbs) |
| Max Load |
100 kg |
| Handlebar |
High Tensile 2 Piece 29.5" x 7" |
| Seat |
Dragster seat |
Wheels, Tyres & Brakes
| Front Wheel Size |
6" |
| Rear Wheel Size |
6" |
| Front Tyre |
145/70-6 SUNF fast SM tyres |
| Rear Tyre |
145/70-6 SUNF fast SM tyres |
| Front Brake |
Hydraulic Disc (Right lever) e-moto brakes |
| Front Disc |
Wavey rotor 160mm, 6 bolt 48mm BCD |
| Rear Brake |
Hydraulic Disc (Left lever) e-moto brakes |
| Rear Disc |
Wavey rotor 160mm, 6 bolt 48mm BCD |
Motor & Powertrain
| Motor |
60V EBX PMSM motor with temp feedback and encoder |
| Rated Power |
3.3 kW |
| Peak Power |
3.7 kW (5 hp) |
| Max RPM |
7,500 |
| Gearing |
Front 10T, Rear 55T |
| Chain |
219H 108L |
| Controller |
80 Amp Fardriver controller |
| Throttle |
SURRON style full twist |
| Display |
TFT odometer display with 3 speed modes and fault code analysis software |
Battery & Charging
| Battery |
60V (not specified Ah in source - typically high-capacity for range) |
| Connectors |
Automotive connectors with sealed wiring harness |
| Charger |
AC 100-240V |
| Charge Time |
5-6 hours |
| Range |
21-25 miles (35-40 km) |
| Top Speed |
45 mph (72 km/h) |
Additional Features
| Waterproof Rating |
IP54 |
| Other |
USB A + C charging port |
| Warranty |
EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information |
