Amflow TL Carbon All-Terrain Electric Touring Bike
An SUV e-bike built for every scenario. The Amflow TL Carbon brings agility on the trail, smoothness in the city and stability on loaded tours, with a 6.4lb full-carbon frame, FOX full suspension and 125N-m of Avinox power.
- 6.4lb full-carbon frame, complete bike from 49.8lb
- Avinox M2 Drive Unit: 110N-m nominal, 125N-m peak, 250W rated
- 800Wh removable battery, up to 106mi range; expandable to 1280Wh with the optional 480Wh secondary battery
- FOX full suspension co-developed for the TL platform: 120mm front / 105mm rear

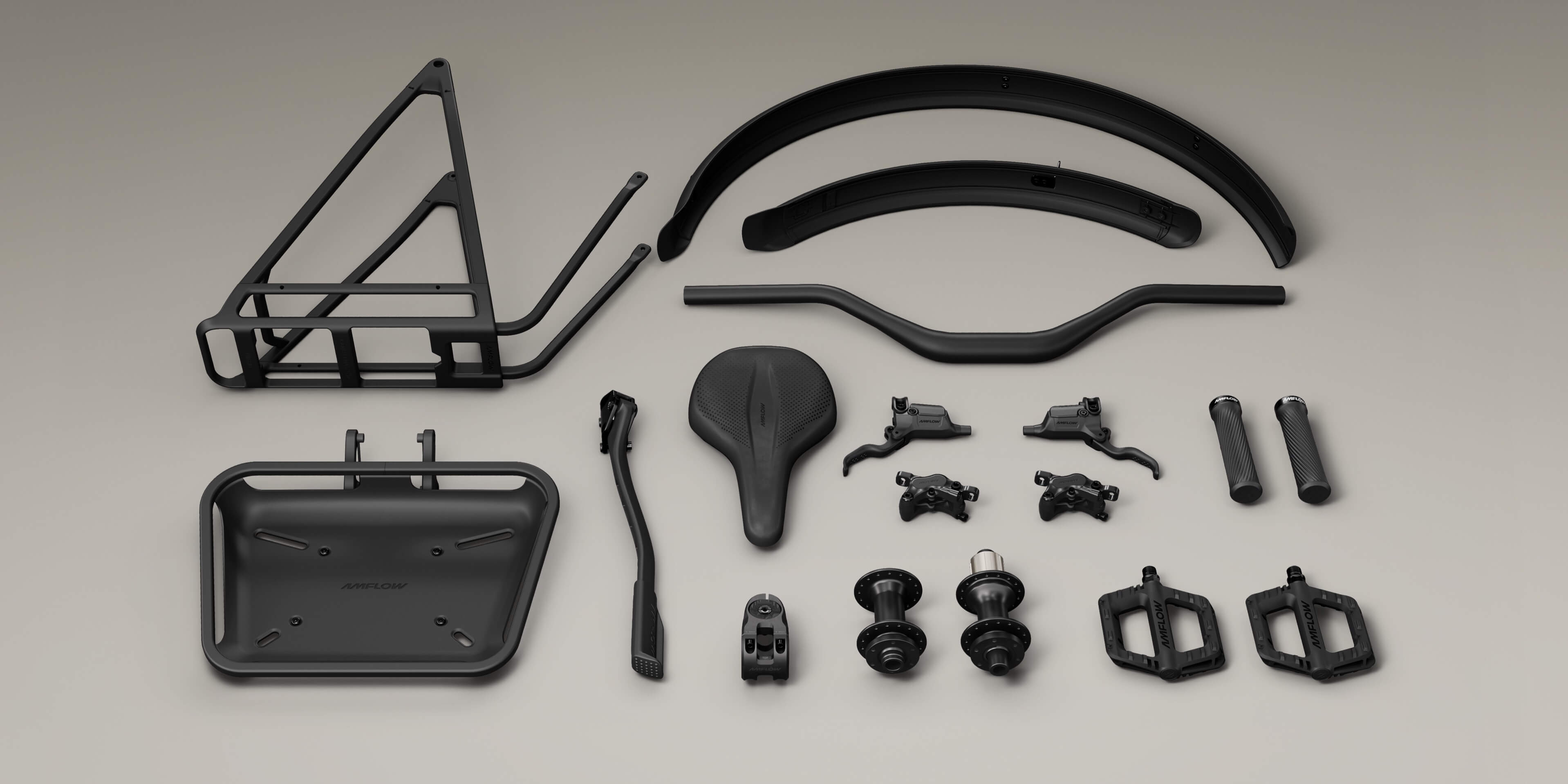

- 440lb total weight capacity with MIK HD rear rack, mudguards and kickstand as standard
- Apple Find My tracking, offline navigation and smart heart-rate control via the Avinox Ride app
Specifications

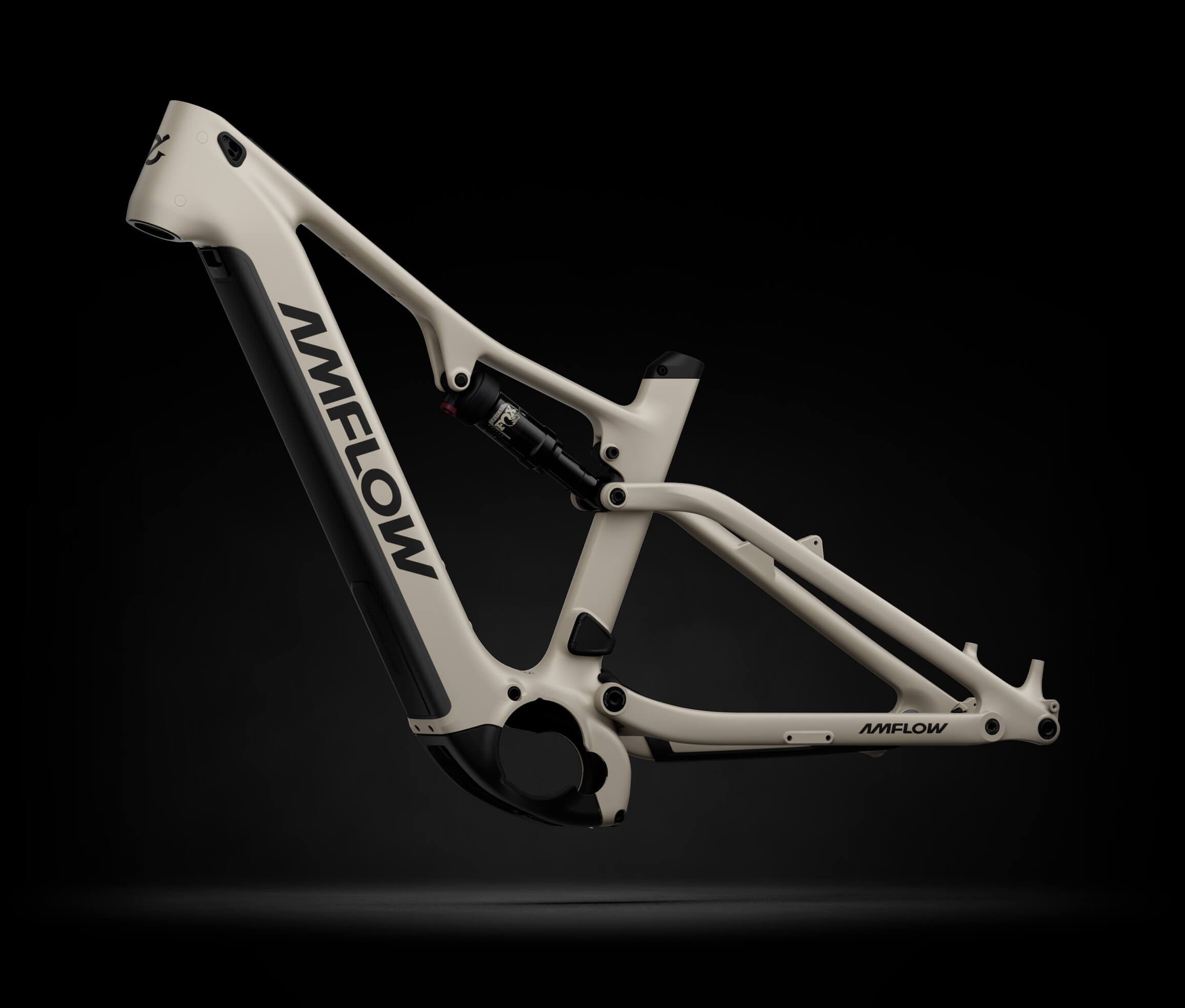

| Frame | Amflow TL Carbon Frame, Silica Beige, full suspension, removable battery |
| Drive Unit | Avinox M2 - nominal 110N-m, peak 125N-m |
| Battery | Avinox RS800 800Wh removable |
| Charger | Avinox 4A / 168W |
| Display | Avinox DPC100 2-inch OLED Control Display |
| Fork | FOX AWL Sport, 120mm, RAIL 2.0 damper |
| Rear Shock | FOX FLOAT Rhythm, 190x45mm, Amflow TL tuned |
| Drivetrain | TRP E.A.S.I. RD-T7010E-L electronic derailleur, 10-speed 11-43T |
| Brakes | Tektro TKD173 4-piston hydraulic disc, 180mm rotors |
| Wheels/Tires | Amflow HTA-25 27.5in, Maxxis Crossmark II 27.5x2.35 (29in compatible) |
| Sizes | S, M, L, XL |
| Complete Bike Weight | 49.8lb / 22.6kg (size M) |
Amflow has not announced US pricing for the TL Carbon yet. Contact us to reserve one.
Size Chart
Use rider height as your starting point. Where two sizes overlap, reach is the better guide - a longer reach suits a more stretched, aggressive position, a shorter reach suits a more upright one. Riding style, inseam and arm length all matter, so we recommend a fitting in-store before you commit.
| Frame Size | Rider Height | Rider Height (ft/in) | Frame |
|---|---|---|---|
| S | 155 - 175 cm | 5'1" - 5'9" | S/M frame |
| M | 155 - 175 cm | 5'1" - 5'9" | S/M frame |
| L | 175 - 190 cm | 5'9" - 6'3" | L/XL frame |
| XL | 175 - 190 cm | 5'9" - 6'3" | L/XL frame |
The TL Carbon is built on two frames: S and M share the S/M frame, L and XL share the L/XL frame. Reach and stack are identical within a pair; effective reach and effective stack (P and Q) differ with the cockpit and seat setup.
Maximum system weight approx. 200 kg / 440 lb, including the bike, rider (up to 125 kg / 276 lb) and rack loads.

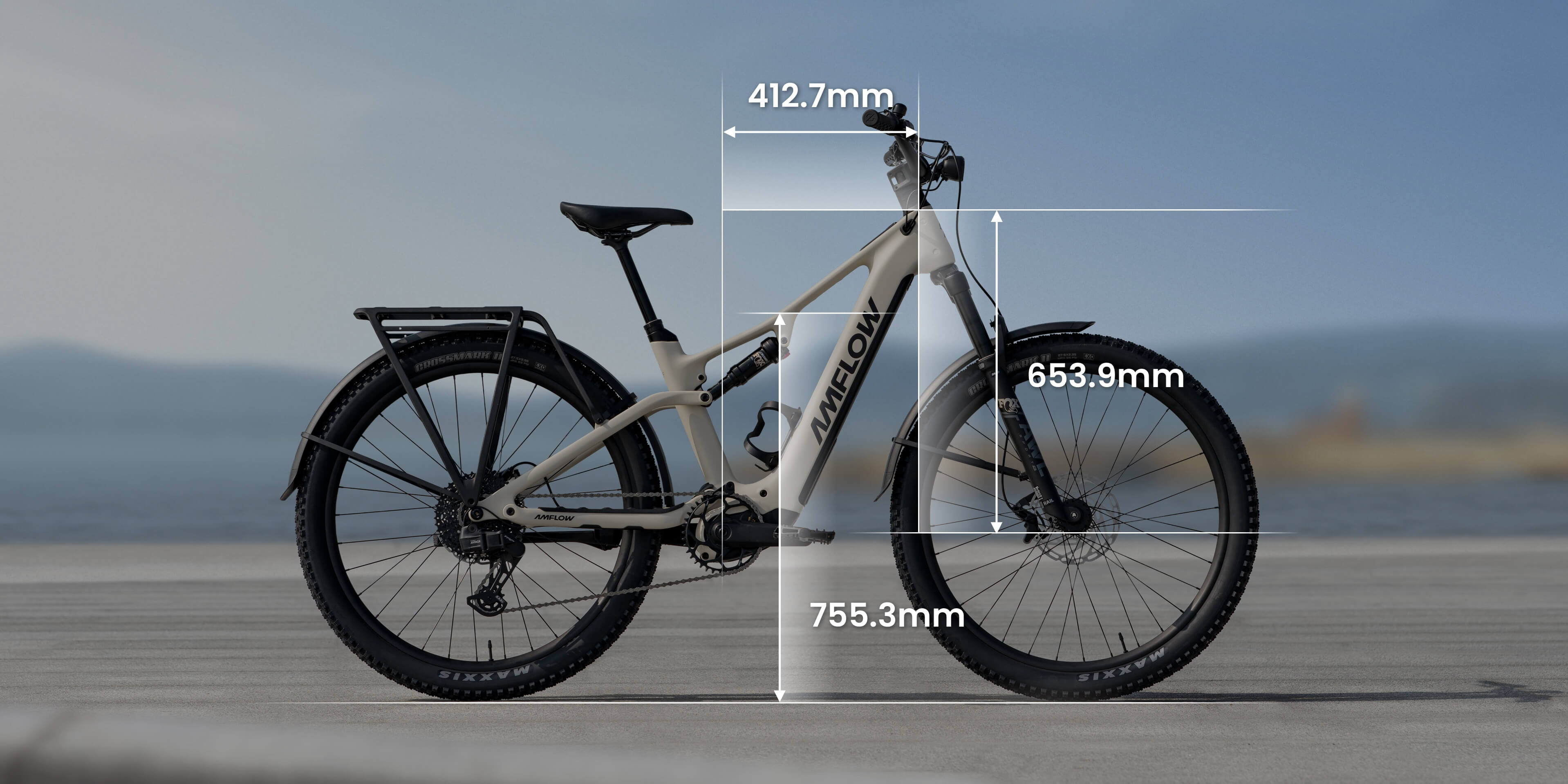

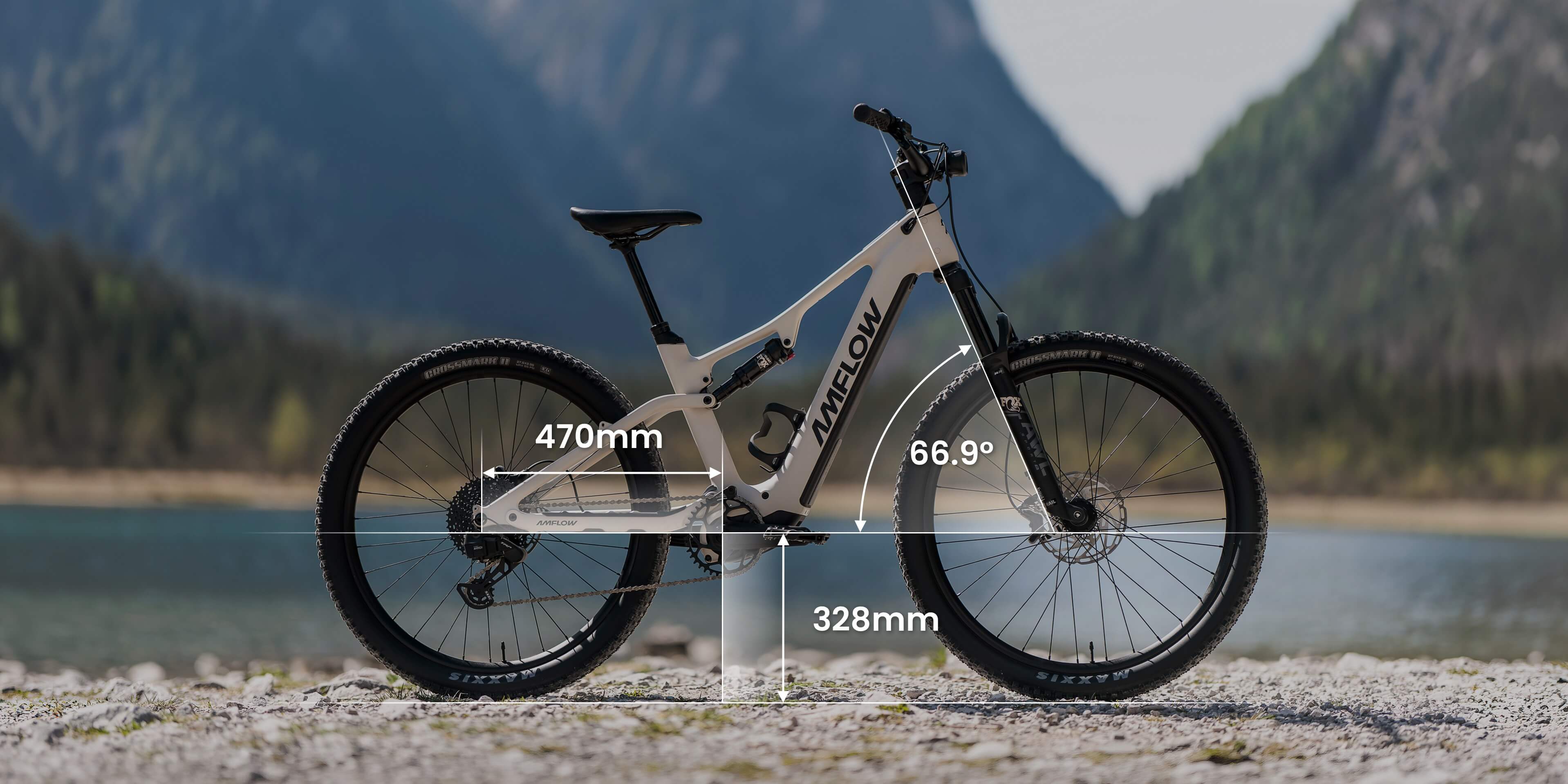

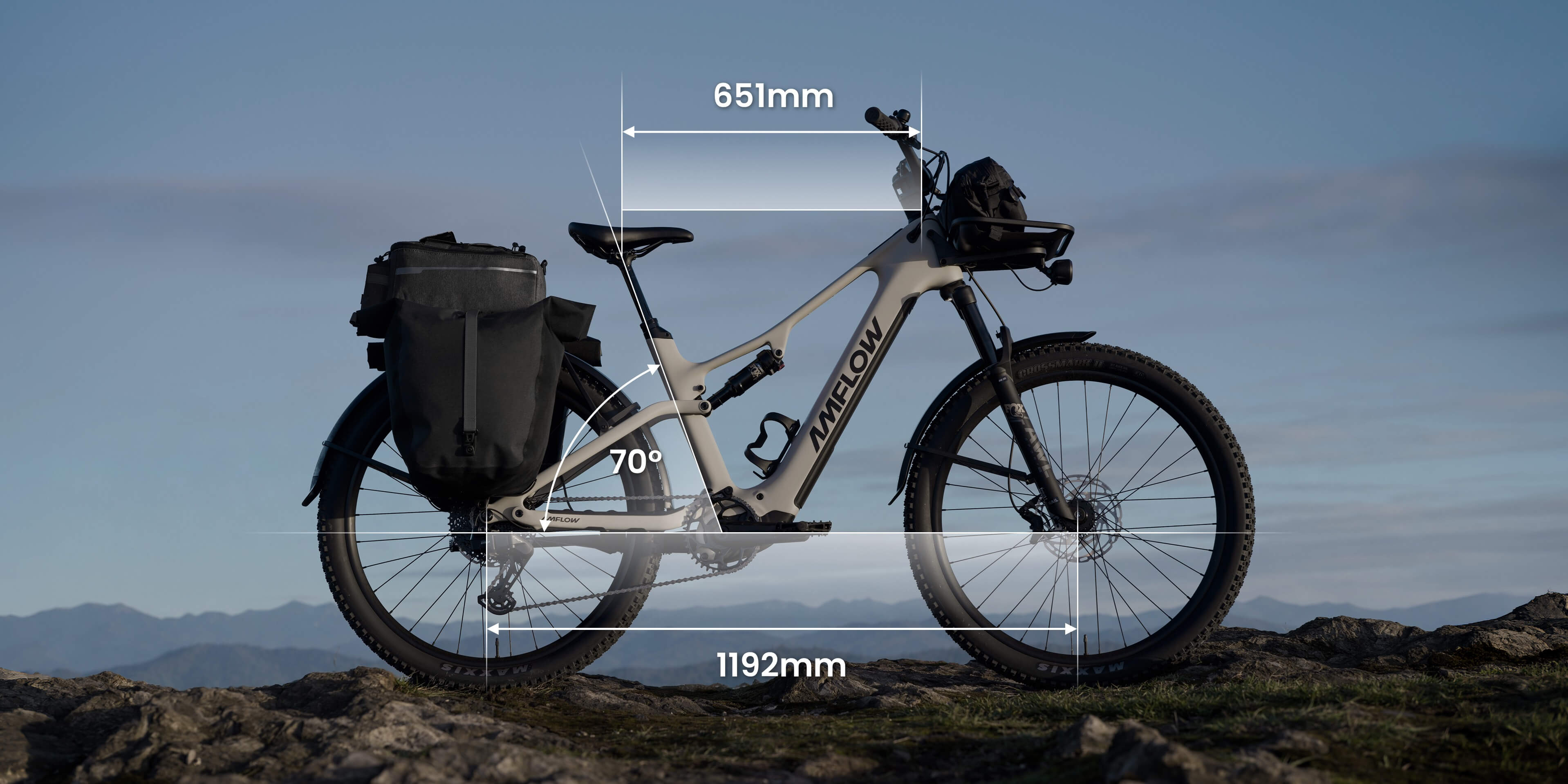

Frame Geometry
| Measurement | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Reach | 375.3mm | 375.3mm | 412.7mm | 412.7mm |
| B | Stack Height | 628.4mm | 628.4mm | 653.9mm | 653.9mm |
| C | Standover Height | 750.5mm | 750.5mm | 755.3mm | 755.3mm |
| D | Front Center | 674mm | 674mm | 722mm | 722mm |
| E | Fork Length | 545mm | 545mm | 545mm | 545mm |
| F | Wheelbase | 1144mm | 1144mm | 1192mm | 1192mm |
| G | Chainstay Length | 470mm | 470mm | 470mm | 470mm |
| H | Bottom Bracket Drop | 32mm | 32mm | 32mm | 32mm |
| I | Bottom Bracket Height | 328mm | 328mm | 328mm | 328mm |
| J | Effective Top Tube Length | 603.2mm | 603.2mm | 651mm | 651mm |
| K | Head Tube Angle | 66.9° | 66.9° | 66.9° | 66.9° |
| L | Head Tube Length | 120mm | 120mm | 148mm | 148mm |
| M | Actual Seat Tube Angle | 67.8° | 67.8° | 67.8° | 67.8° |
| N | Effective Seat Tube Angle | 70° | 70° | 70° | 70° |
| O | Seat Tube Height | 412.8mm | 412.8mm | 447.6mm | 447.6mm |
| P | Effective Reach | 309.8mm | 324.9mm | 347.2mm | 362.3mm |
| Q | Effective Stack | 775.73mm | 797.33mm | 801.23mm | 822.83mm |
Geometry figures are Amflow published values in the default setting. Head tube angle, bottom bracket height and chainstay length are adjustable.
