Amflow PX Carbon PRO Electric Mountain Bike
Available through WMR sales. Call, email, or visit our Stuart showroom for pricing, availability, and purchase options.

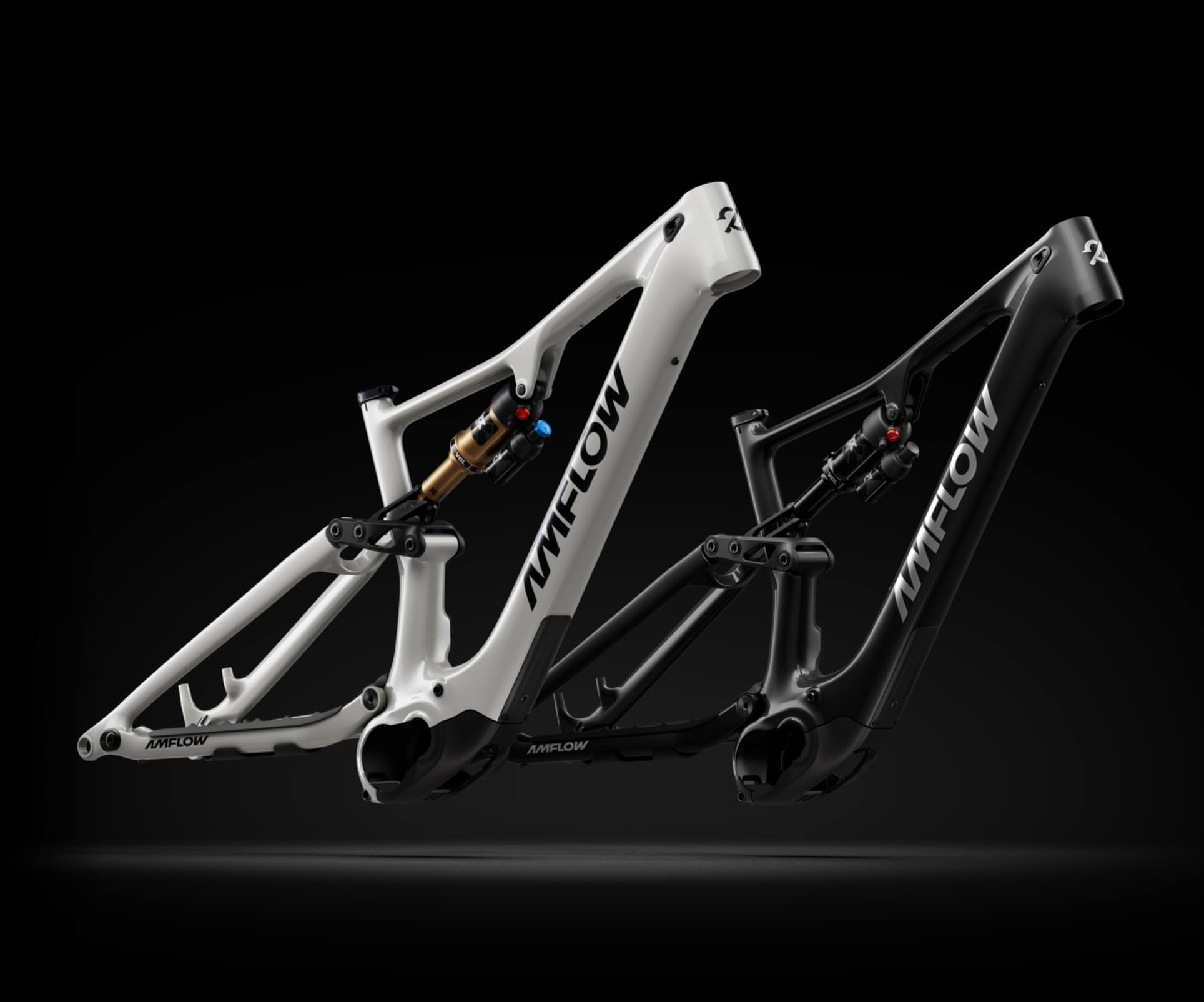

Light yet limitless. The flagship PX build pairs the 2.4kg ultra-light carbon frame with FOX Factory suspension, SRAM X0 Eagle Transmission and Amflow carbon wheels for the sharpest version of the platform.
- Avinox M2S Drive Unit: 130N-m nominal, 150N-m peak, as quiet as 45dBA

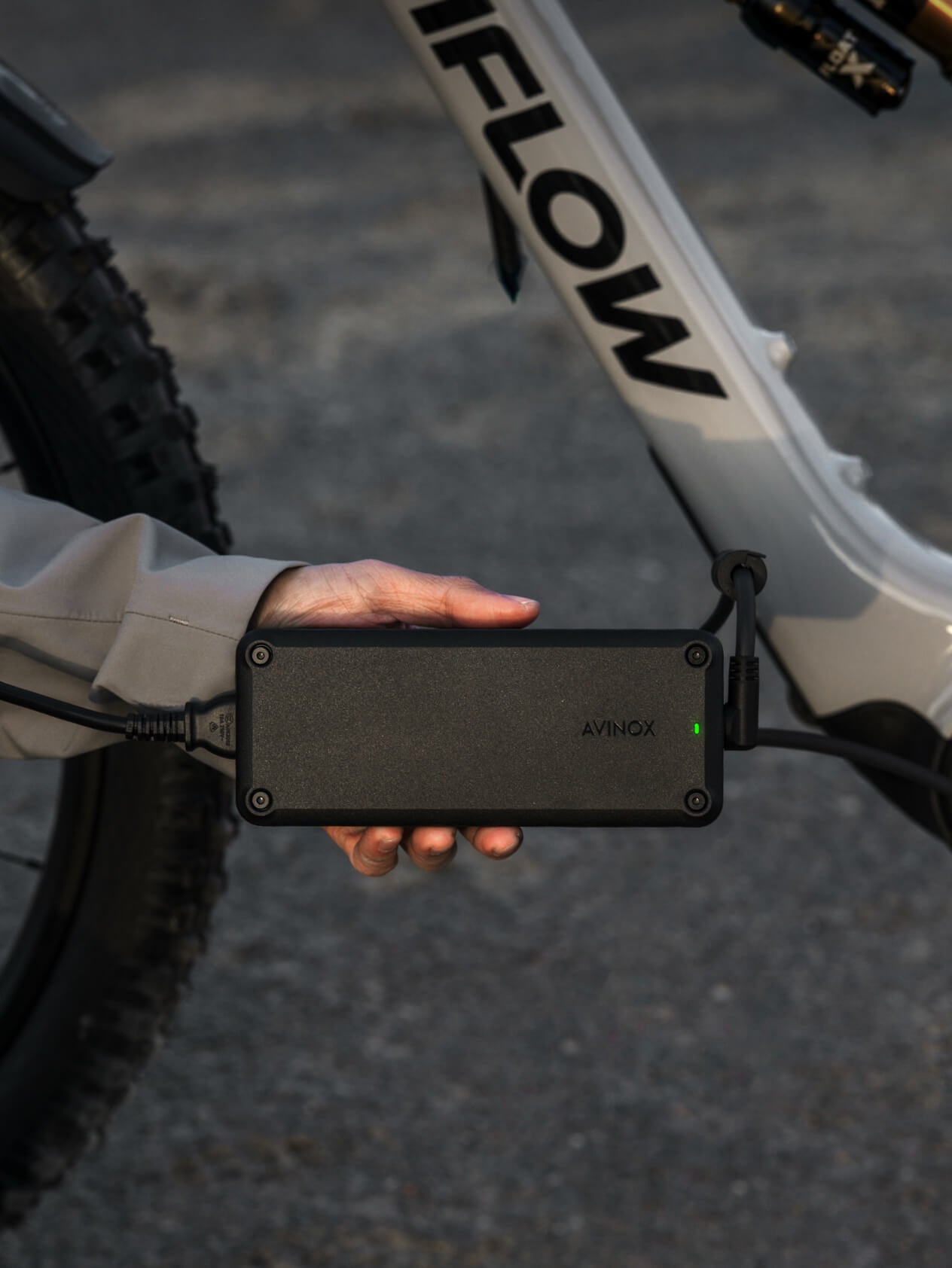

- 700Wh integrated battery with 508W fast charging (3x faster than the 168W charger)
- Complete bike weight 20.6kg (45.4lb) in size M
- FOX 36 Factory fork with GRIP X2 damper and FOX Float X Factory shock
- SRAM X0 Eagle Transmission with AXS Pod Rocker controller and XS-1295 10-52T cassette
- Amflow XMC-30 carbon mullet wheelset, 29in front / 27.5in rear
- Up to 40 geometry configurations via adjustable headset cups, BB height and chainstay length
- Free IoT service included
Specifications
| Frame | Amflow PX Carbon Pro Frame, Moonstone Gray, approx. 2.4kg |
| Drive Unit | Avinox M2S - nominal 130N-m, peak 150N-m, 2.59kg |
| Battery | Avinox 700Wh integrated |
| Charger | Avinox Fast Charger 12A / 508W |
| Display | Avinox 2-inch OLED Control Display |
| Fork | FOX 36 Factory, 160mm, GRIP X2 damper |
| Rear Shock | FOX Float X Factory, 210x55mm |
| Drivetrain | SRAM X0 Eagle Transmission, XS-1295 10-52T |
| Brakes | Magura Gustav Pro 4-piston, 203mm rotors |
| Wheels | Amflow XMC-30 carbon mullet |
| Tires | Schwalbe Magic Mary Radial 29x2.5 front / Schwalbe Albert Radial 27.5x2.5 rear |
| Handlebar | Amflow Enduro Carbon, 800mm |
| Head Tube Angle | 64.2 degrees (5-position adjustable) |
| Sizes | M, L, XL, XXL |
| Complete Bike Weight | 20.6kg / 45.4lb (size M, tubeless) |
Size Chart
Use rider height as your starting point. Where two sizes overlap, reach is the better guide - a longer reach suits a more stretched, aggressive position, a shorter reach suits a more upright one. Riding style, inseam and arm length all matter, so we recommend a fitting in-store before you commit.
| Frame Size | Rider Height | Rider Height (ft/in) |
|---|---|---|
| M | 162 - 178 cm | 5'4" - 5'10" |
| L | 170 - 185 cm | 5'7" - 6'1" |
| XL | 175 - 191 cm | 5'9" - 6'3" |
| XXL | 185 - 201 cm | 6'1" - 6'7" |
Maximum system weight 125 kg / 276 lb (rider, bike and everything carried).
Frame Geometry
| Measurement | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A | Reach | 455mm | 478mm | 503mm | 528mm |
| B | Stack Height | 622.1mm | 632.2mm | 645.9mm | 659mm |
| C | Standover Height | 780mm | 785mm | 790mm | 795mm |
| D | Front Center | 793.1mm | 820.9mm | 852mm | 883.9mm |
| E | Fork Length | 570mm | 570mm | 570mm | 570mm |
| F | Wheelbase | 1231.3mm | 1259.1mm | 1290.2mm | 1322.1mm |
| G | Chainstay Length | 438/451mm | 438/451mm | 438/451mm | 438/451mm |
| H | Bottom Bracket Drop | 10.5/23.7mm | 10.5/23.7mm | 10.5/23.7mm | 10.5/23.7mm |
| I | Bottom Bracket Height | 345.5mm | 345.5mm | 345.5mm | 345.5mm |
| J | Effective Top Tube Length | 586.9mm | 619.7mm | 642.8mm | 672.2mm |
| K | Head Tube Angle | 64.2° | 64.2° | 64.2° | 64.2° |
| L | Head Tube Length | 109mm | 120mm | 135mm | 150mm |
| M | Actual Seat Tube Angle | 72° | 72° | 72° | 72° |
| N | Effective Seat Tube Angle | 78° | 78° | 78° | 77.7° |
| O | Seat Tube Height | 415mm | 427mm | 447mm | 466mm |
Geometry figures are Amflow published values in the default setting. Head tube angle, bottom bracket height and chainstay length are adjustable.
Amflow PX Carbon PRO Electric Mountain Bike
Sale price$10,199.00
Regular price (/)
