Amflow PX Carbon Electric Mountain Bike
Available through WMR sales. Call, email, or visit our Stuart showroom for pricing, availability, and purchase options.

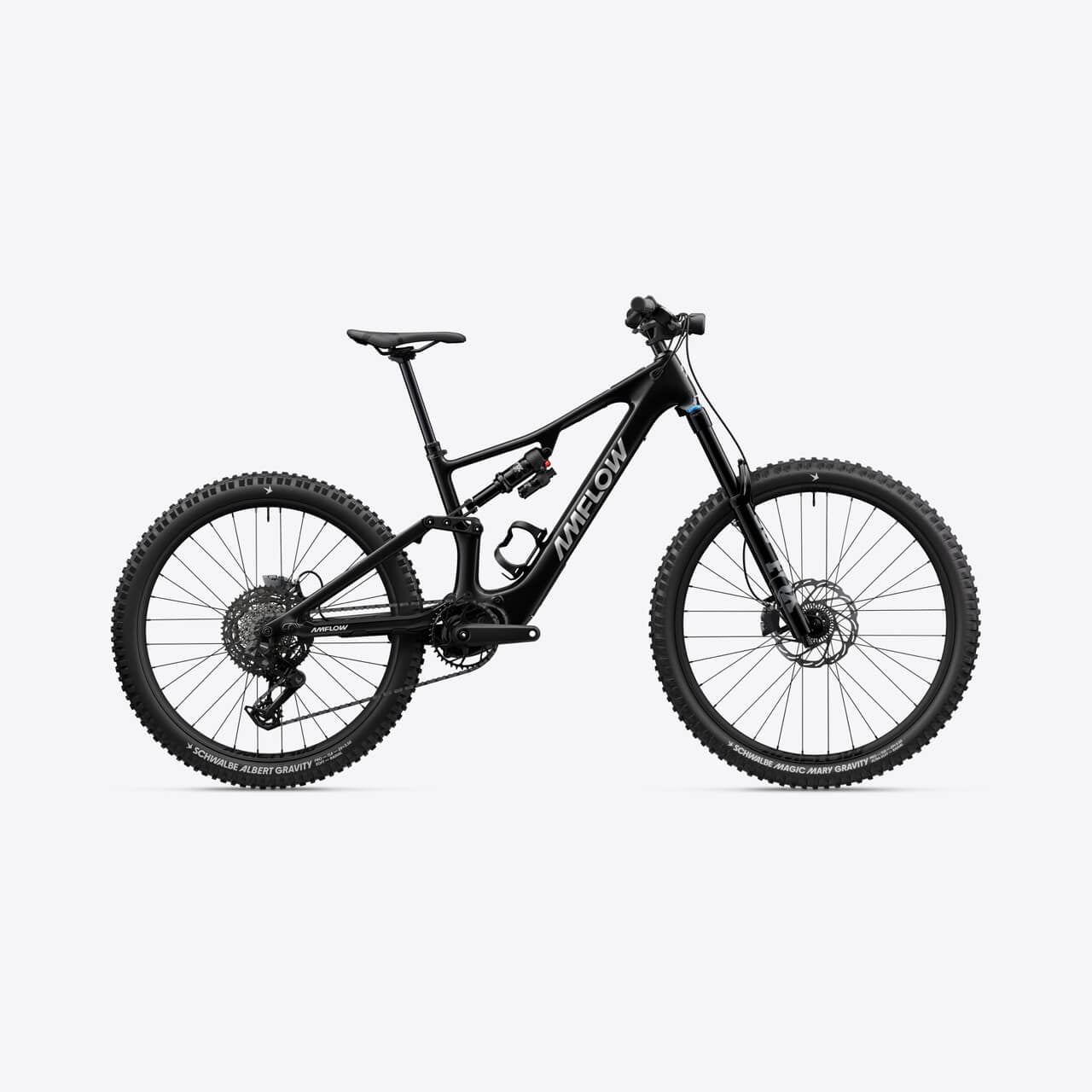

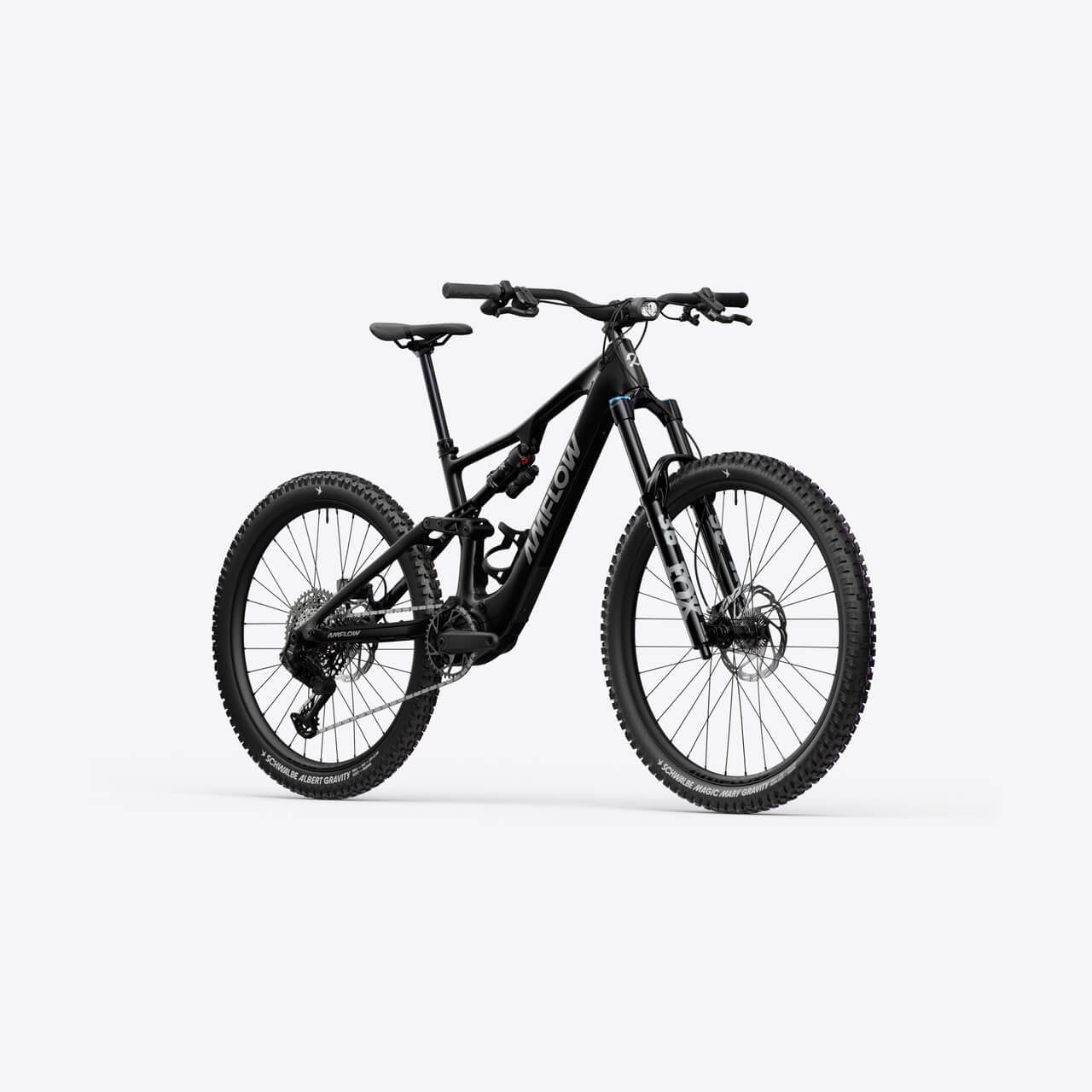

The PX platform in its Phantom Black build. A 2.4kg ultra-light carbon frame, the 150N-m Avinox M2S drive and a 700Wh battery, tuned for precise, effortless handling on any trail.

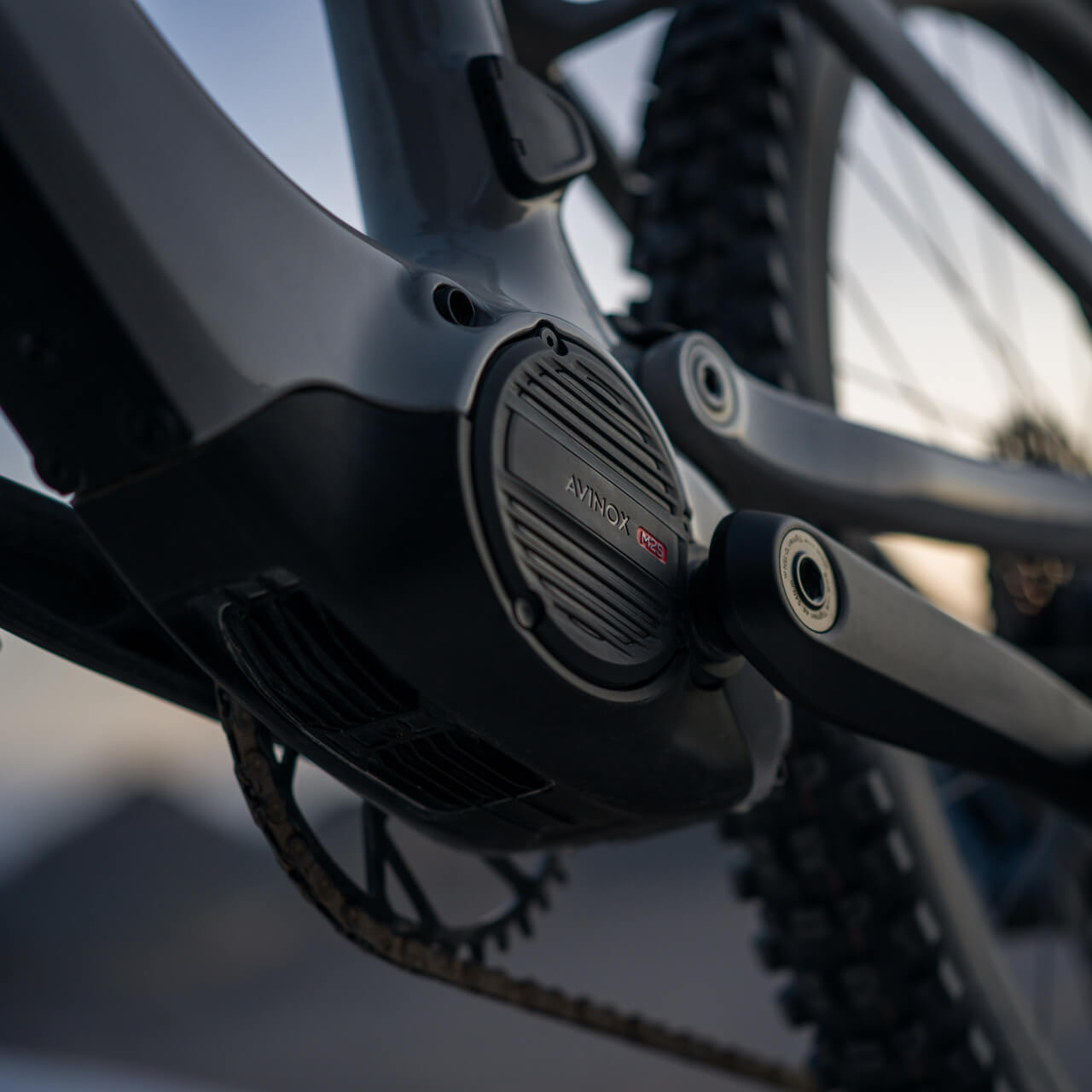

- Avinox M2S Drive Unit: 130N-m nominal, 150N-m peak, as quiet as 45dBA
- 700Wh integrated battery with 508W fast charging

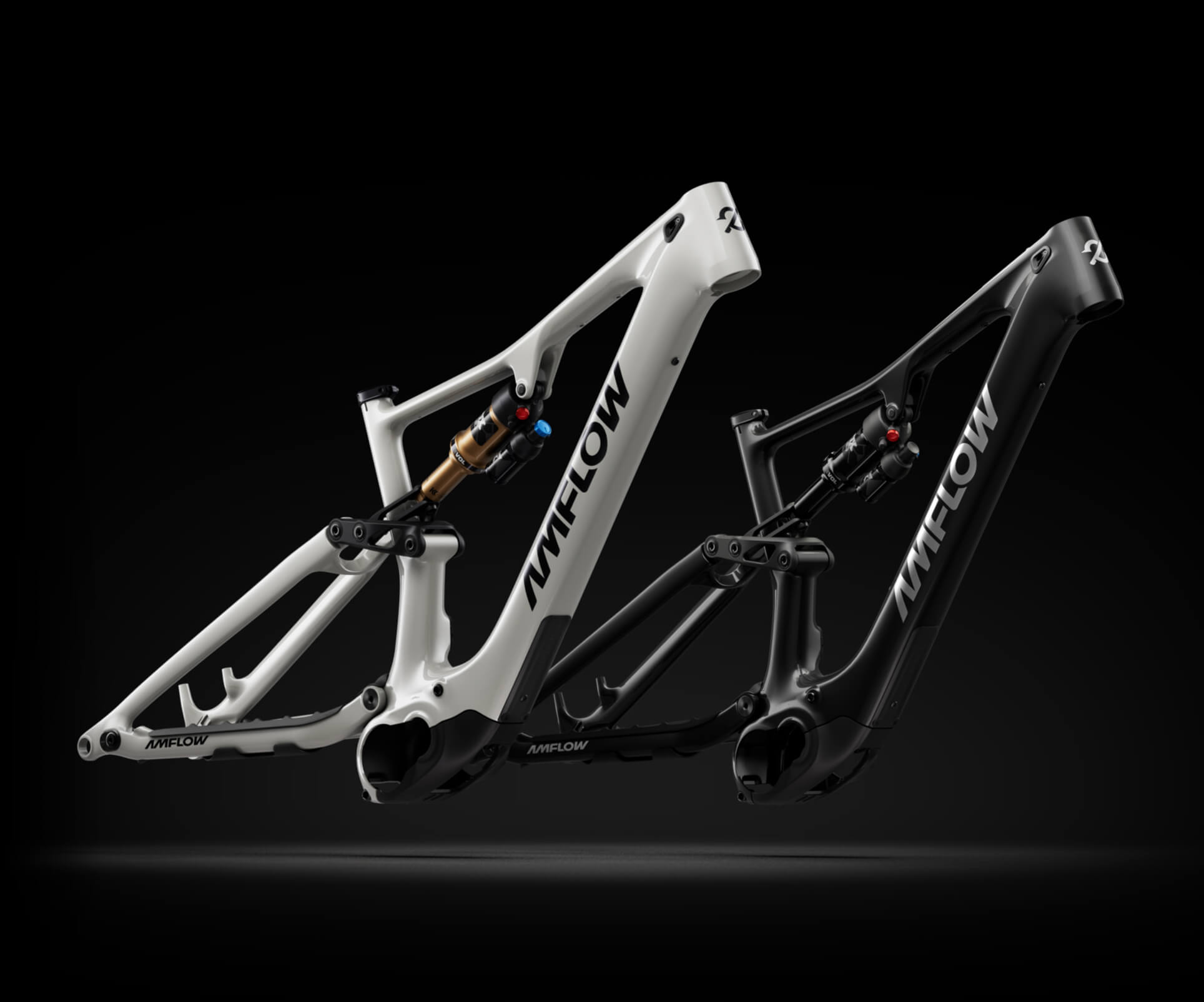

- Approx. 2.4kg ultra-light carbon frame

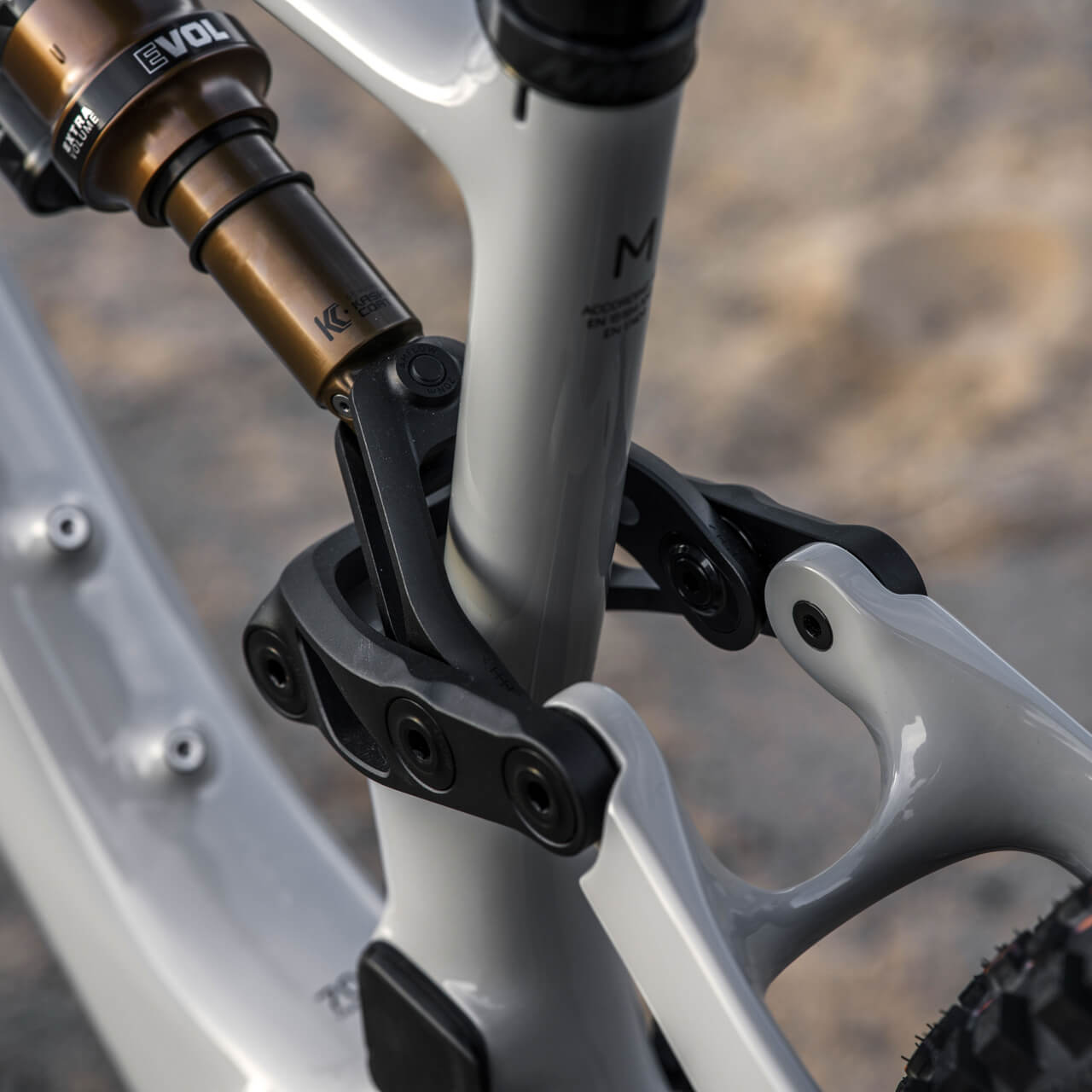

- FOX 36 Performance fork (160mm, GRIP damper) and FOX Float X Performance shock
- SRAM S1000 Eagle Transmission with XS-1270 10-52T cassette
- Magura Gustav Pro 4-piston brakes with 203mm rotors
- Amflow XMA-30 alloy mullet wheelset, 29in front / 27.5in rear
- Up to 40 geometry configurations
Specifications
| Frame | Amflow PX Carbon Frame, Phantom Black, approx. 2.4kg |
| Drive Unit | Avinox M2S - nominal 130N-m, peak 150N-m, 2.59kg |
| Battery | Avinox 700Wh integrated |

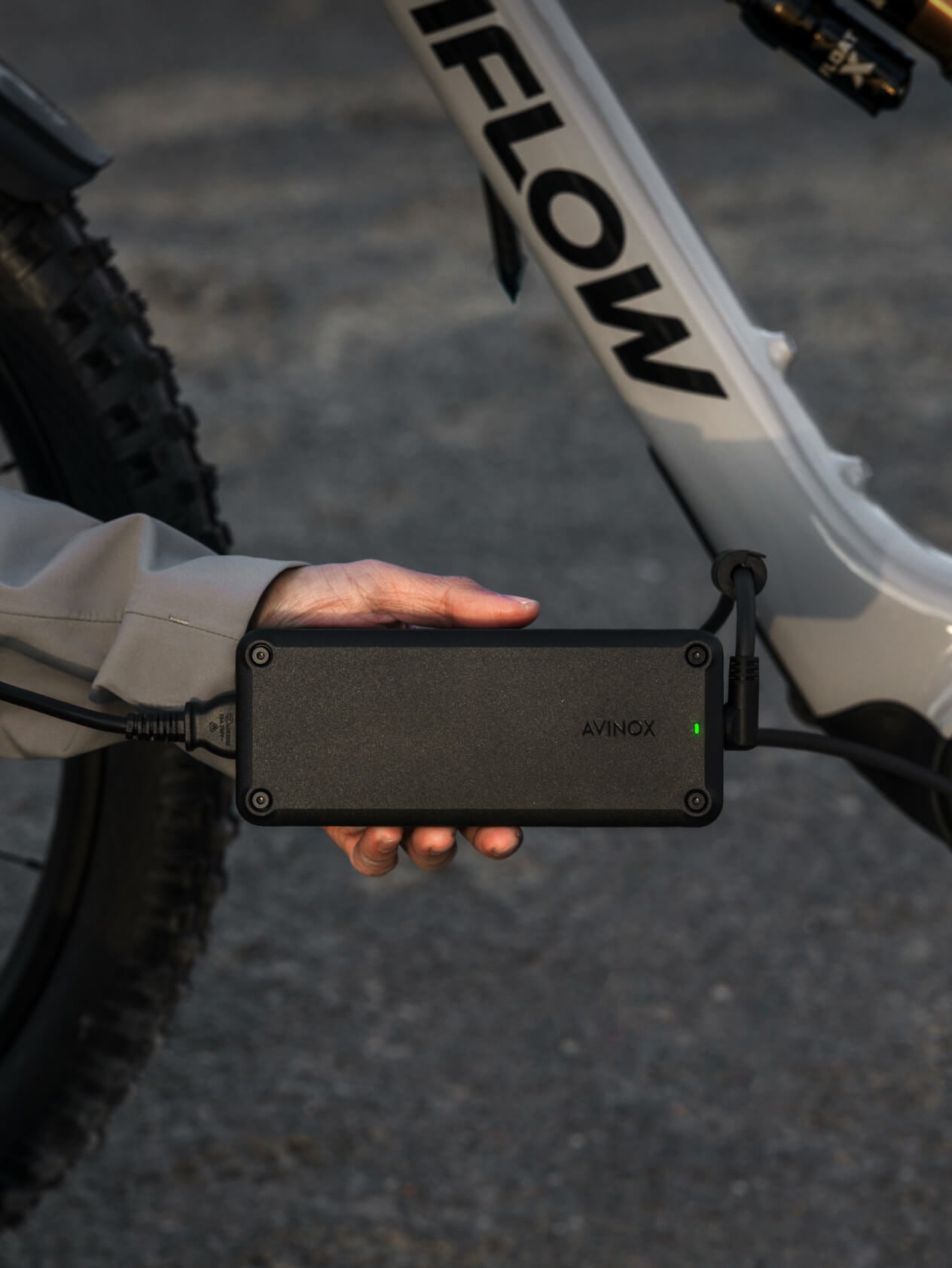

| Charger | Avinox Fast Charger 12A / 508W |

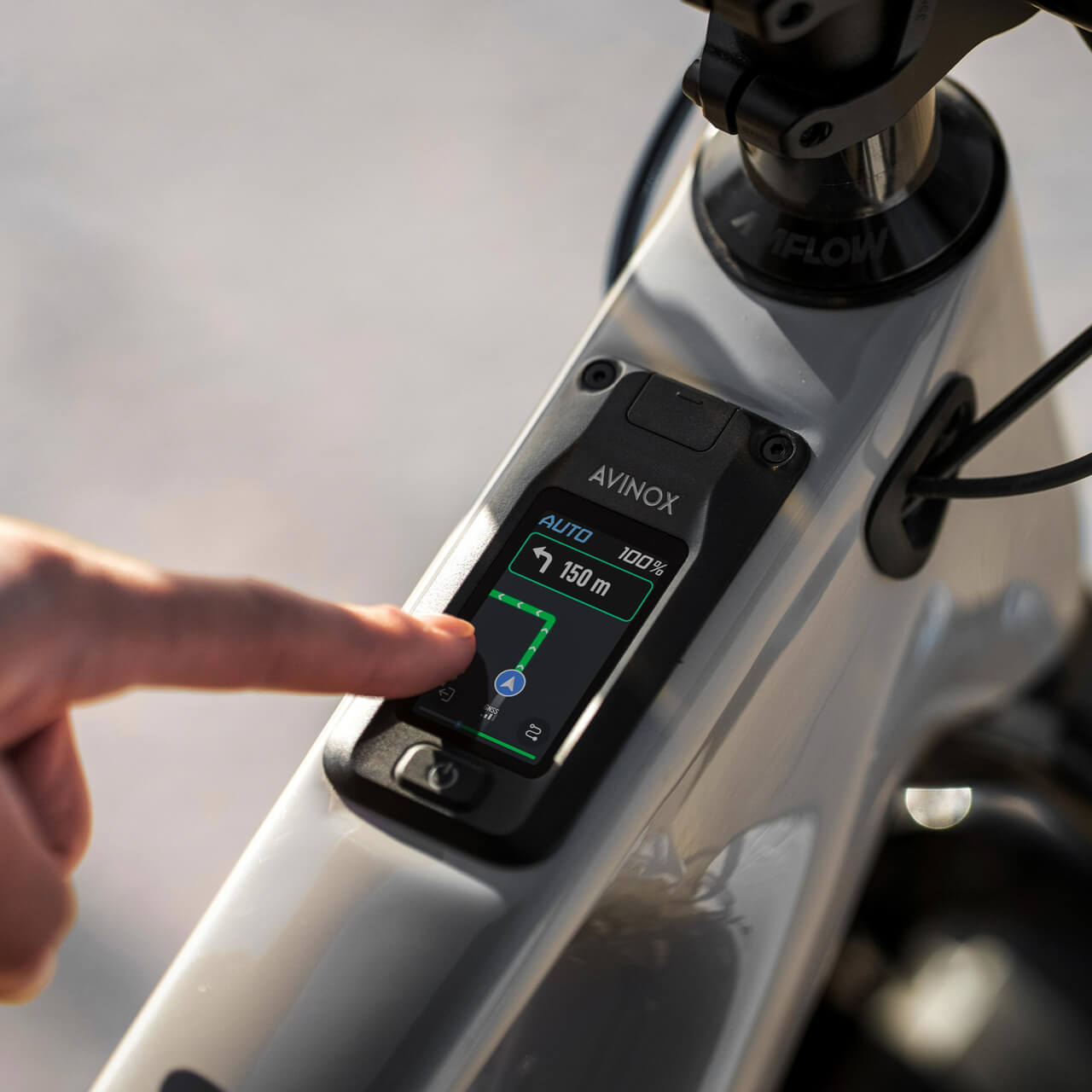

| Display | Avinox 2-inch OLED Control Display |

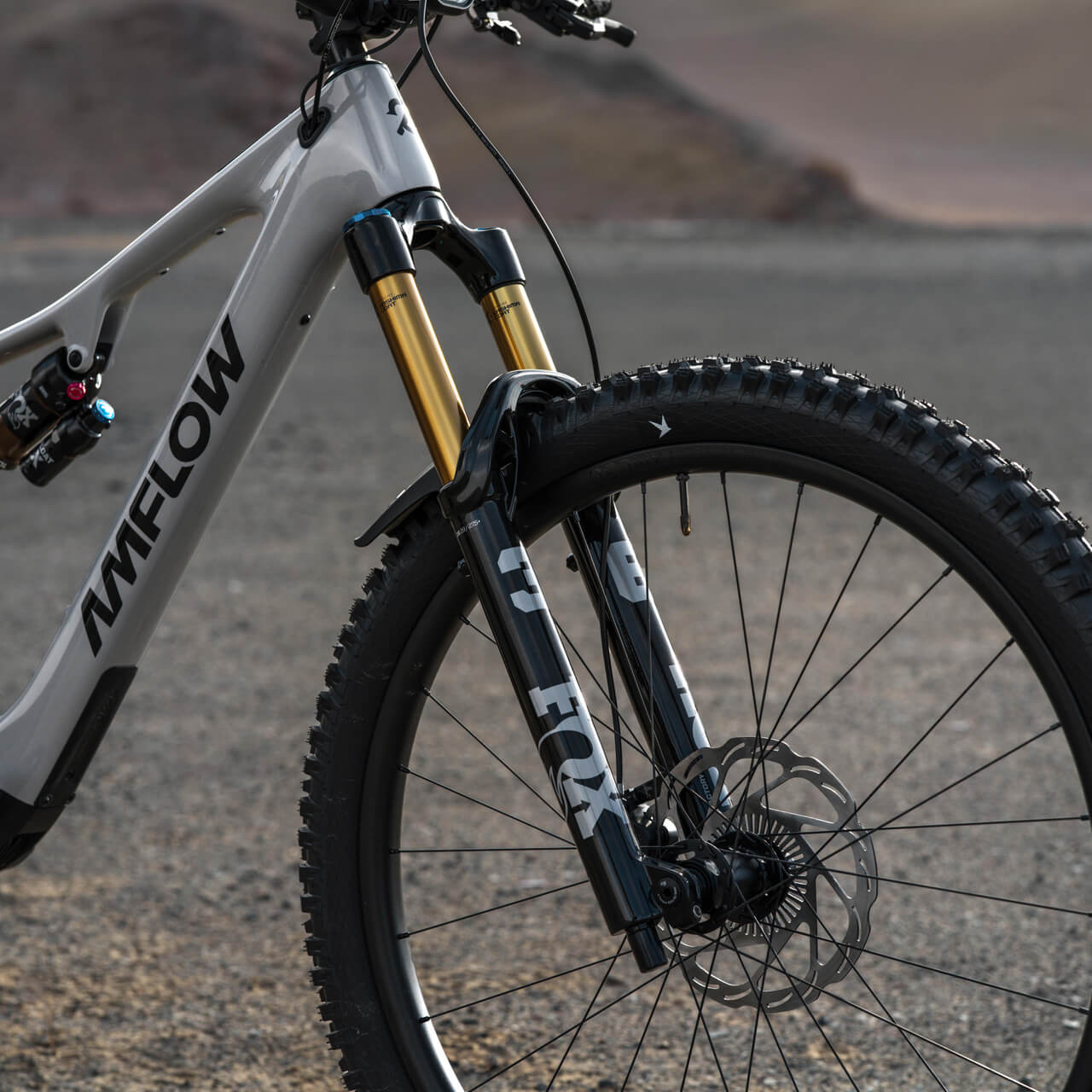

| Fork | FOX 36 Performance, 160mm, GRIP damper |
| Rear Shock | FOX Float X Performance, 210x55mm |
| Drivetrain | SRAM S1000 Eagle Transmission, XS-1270 10-52T |
| Brakes | Magura Gustav Pro 4-piston, 203mm rotors |
| Wheels | Amflow XMA-30 alloy mullet |
| Tires | Schwalbe Magic Mary Radial 29x2.5 front / Schwalbe Albert Radial 27.5x2.5 rear |
| Handlebar | Amflow Enduro Alloy, 800mm |
| Head Tube Angle | 64.2 degrees (5-position adjustable) |
| Sizes | M, L, XL, XXL |
IoT Nano SIM card sold separately on this trim.
Size Chart
Use rider height as your starting point. Where two sizes overlap, reach is the better guide - a longer reach suits a more stretched, aggressive position, a shorter reach suits a more upright one. Riding style, inseam and arm length all matter, so we recommend a fitting in-store before you commit.
| Frame Size | Rider Height | Rider Height (ft/in) |
|---|---|---|
| M | 162 - 178 cm | 5'4" - 5'10" |
| L | 170 - 185 cm | 5'7" - 6'1" |
| XL | 175 - 191 cm | 5'9" - 6'3" |
| XXL | 185 - 201 cm | 6'1" - 6'7" |
Maximum system weight 125 kg / 276 lb (rider, bike and everything carried).
Frame Geometry
| Measurement | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A | Reach | 455mm | 478mm | 503mm | 528mm |
| B | Stack Height | 622.1mm | 632.2mm | 645.9mm | 659mm |
| C | Standover Height | 780mm | 785mm | 790mm | 795mm |
| D | Front Center | 793.1mm | 820.9mm | 852mm | 883.9mm |
| E | Fork Length | 570mm | 570mm | 570mm | 570mm |
| F | Wheelbase | 1231.3mm | 1259.1mm | 1290.2mm | 1322.1mm |
| G | Chainstay Length | 438/451mm | 438/451mm | 438/451mm | 438/451mm |
| H | Bottom Bracket Drop | 10.5/23.7mm | 10.5/23.7mm | 10.5/23.7mm | 10.5/23.7mm |
| I | Bottom Bracket Height | 345.5mm | 345.5mm | 345.5mm | 345.5mm |
| J | Effective Top Tube Length | 586.9mm | 619.7mm | 642.8mm | 672.2mm |
| K | Head Tube Angle | 64.2° | 64.2° | 64.2° | 64.2° |
| L | Head Tube Length | 109mm | 120mm | 135mm | 150mm |
| M | Actual Seat Tube Angle | 72° | 72° | 72° | 72° |
| N | Effective Seat Tube Angle | 78° | 78° | 78° | 77.7° |
| O | Seat Tube Height | 415mm | 427mm | 447mm | 466mm |
Geometry figures are Amflow published values in the default setting. Head tube angle, bottom bracket height and chainstay length are adjustable.
Amflow PX Carbon Electric Mountain Bike
Sale price$7,999.00
Regular price (/)
