Amflow PR Carbon PRO Electric Mountain Bike
Available through WMR sales. Call, email, or visit our Stuart showroom for pricing, availability, and purchase options.
Master the peak. The PR Carbon Pro adds the 150N-m Avinox M2S drive, FOX 36 Performance fork and Magura Gustav Pro brakes to the swappable-battery PR platform.
- Avinox M2S Drive Unit: 130N-m nominal, 150N-m peak, as quiet as 45dBA

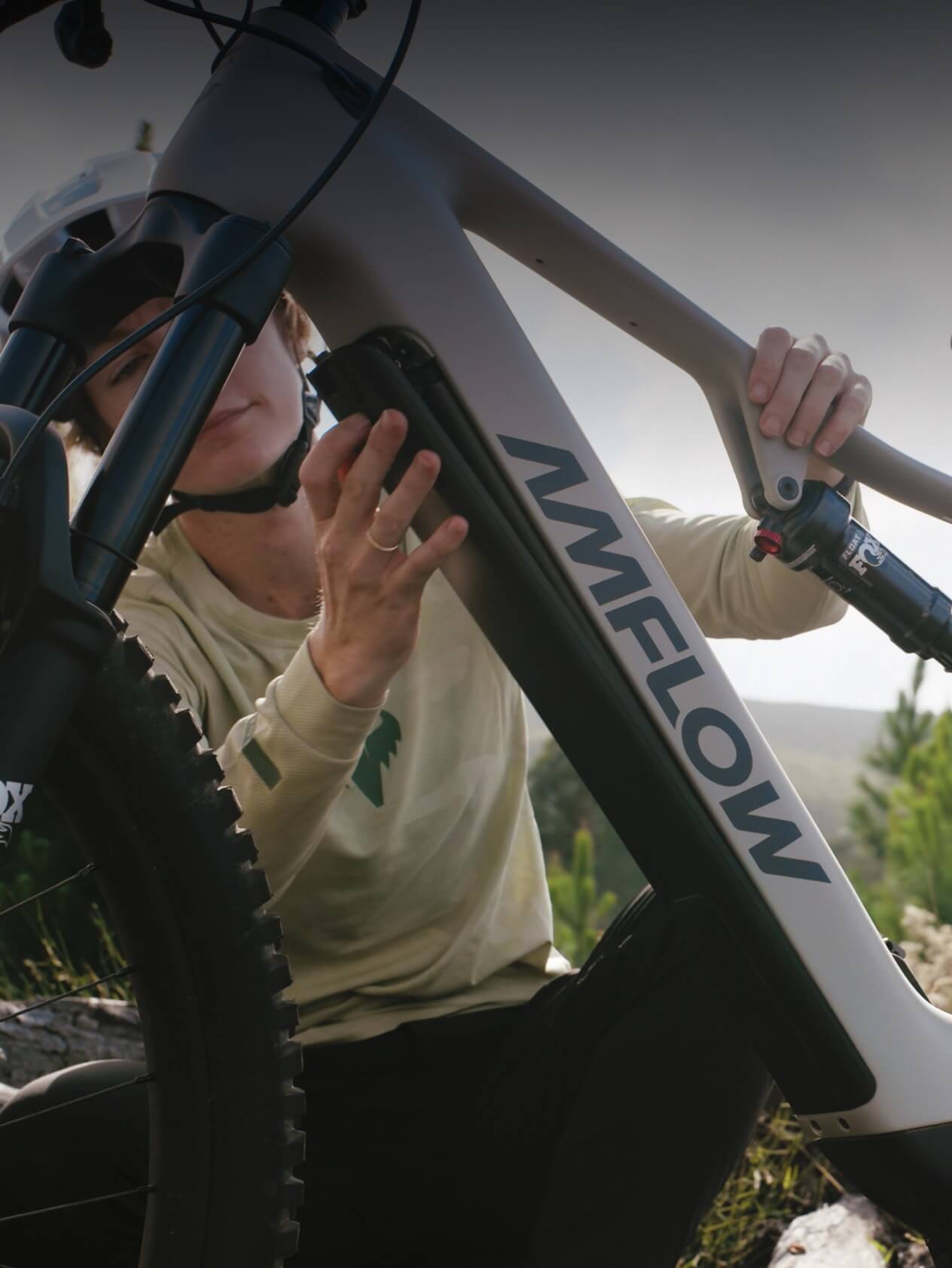

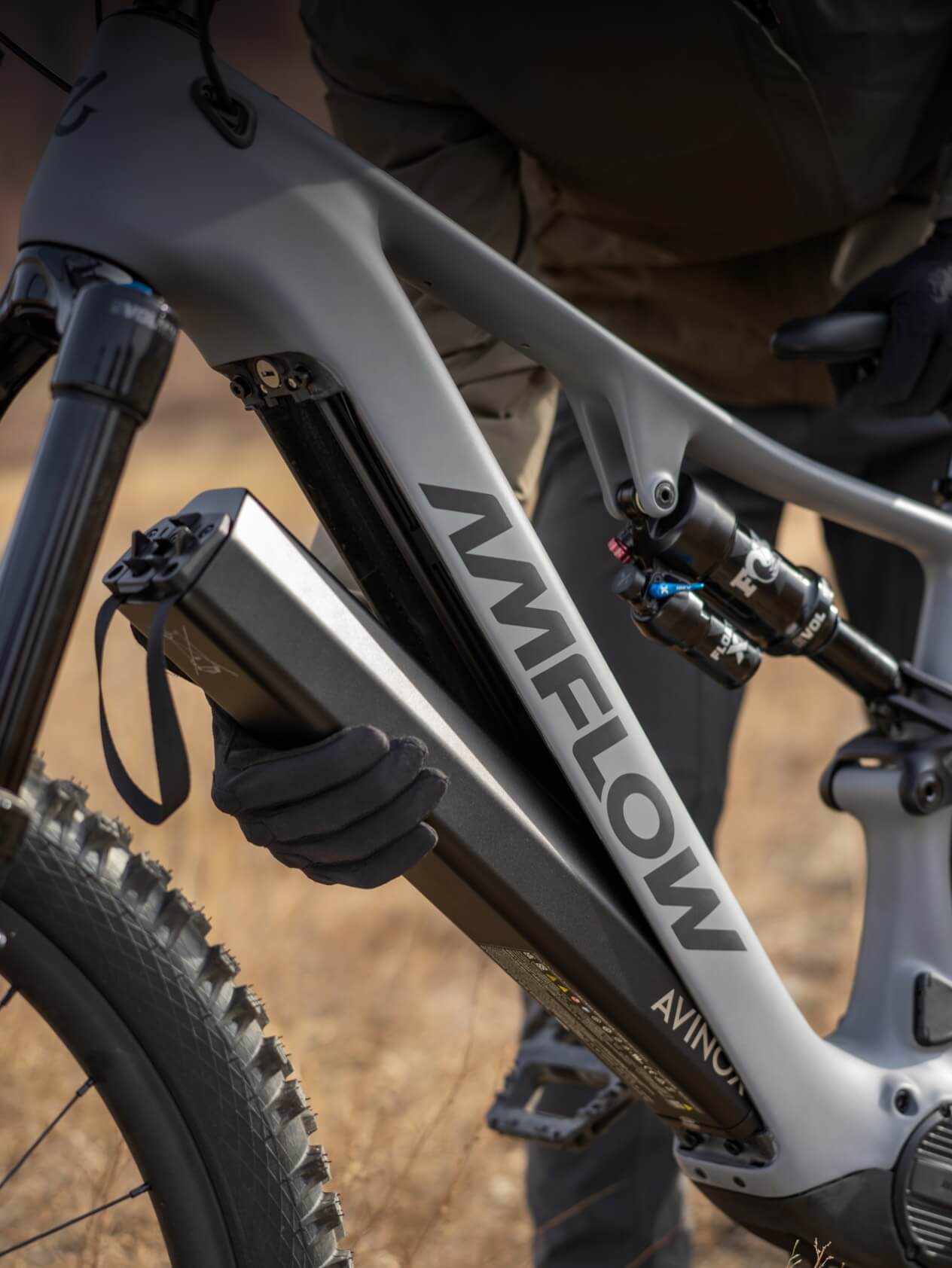

- 800Wh removable battery with slide-rail design, Battery Lock and 508W fast charging

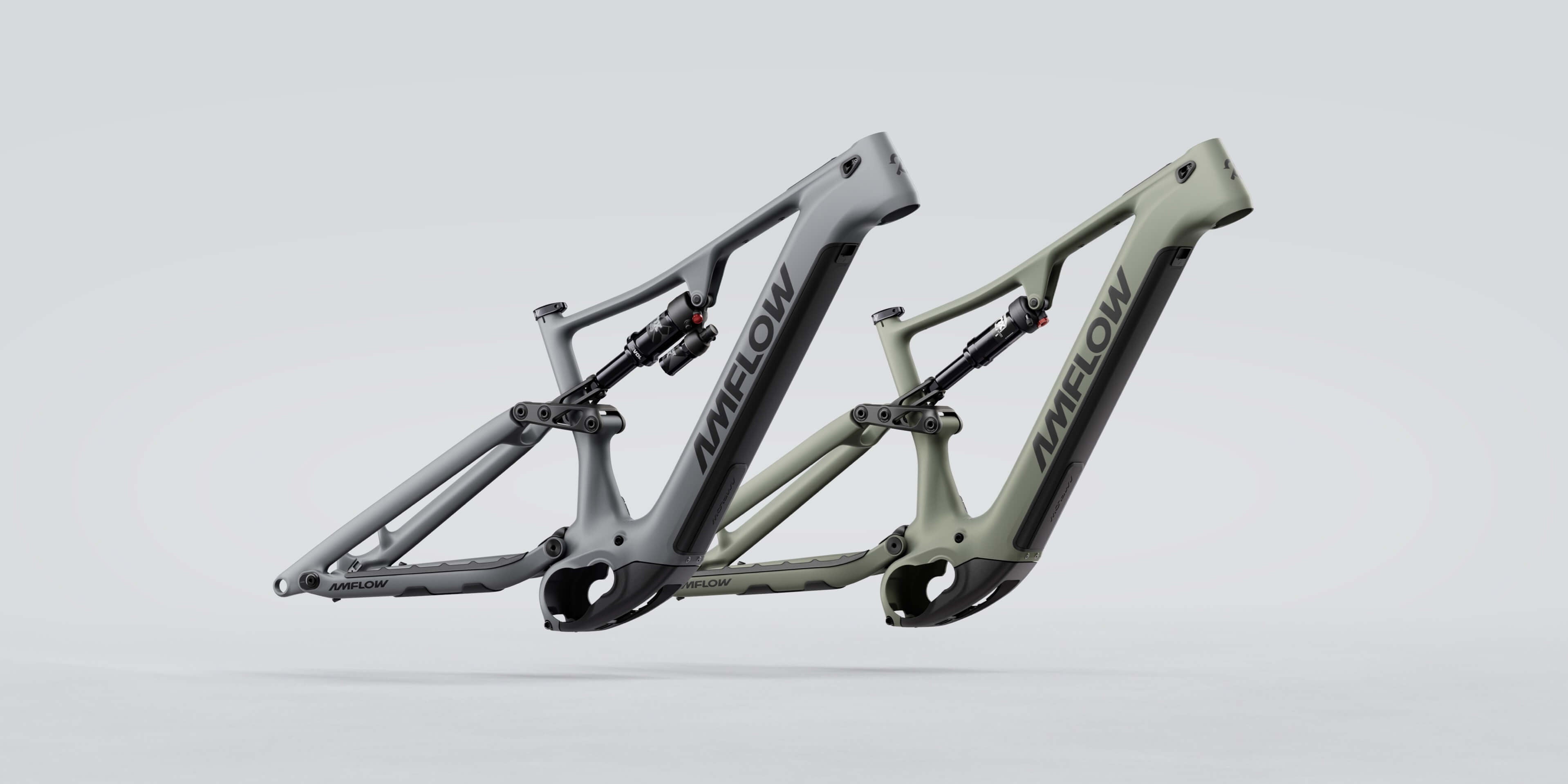

- Approx. 2.9kg ultra-light carbon frame
- FOX 36 Performance fork (160mm, GRIP damper) and FOX Float X Performance shock
- Magura Gustav Pro 4-piston brakes with 203mm Sensor rotors
- SRAM S1000 Eagle Transmission with SmoothShift coasting shifts
- Apple Find My tracking - locate the bike without a 4G network
- Up to 40 geometry configurations
Specifications
| Frame | Amflow PR Carbon Pro Frame, Basalt Grey, approx. 2.9kg |
| Drive Unit | Avinox M2S - nominal 130N-m, peak 150N-m, 2.59kg |
| Battery | Avinox RS800 800Wh removable |
| Charger | Avinox Fast Charger 12A / 508W |
| Display | Avinox 2-inch OLED Control Display |
| Fork | FOX 36 Performance, 160mm, GRIP damper |
| Rear Shock | FOX Float X Performance, 210x55mm |
| Drivetrain | SRAM S1000 Eagle Transmission, XS-1270 10-52T |
| Brakes | Magura Gustav Pro 4-piston, 203mm rotors |
| Wheels | Amflow XMA-30 alloy mullet |
| Tires | Schwalbe Magic Mary Radial 29x2.5 front / Schwalbe Albert Radial 27.5x2.5 rear |
| Head Tube Angle | 64.5 degrees (5-position adjustable) |
| Sizes | M, L, XL, XXL |
Size Chart
Use rider height as your starting point. Where two sizes overlap, reach is the better guide - a longer reach suits a more stretched, aggressive position, a shorter reach suits a more upright one. Riding style, inseam and arm length all matter, so we recommend a fitting in-store before you commit.
| Frame Size | Rider Height | Rider Height (ft/in) |
|---|---|---|
| M | 160 - 176 cm | 5'3" - 5'9" |
| L | 168 - 183 cm | 5'6" - 6'0" |
| XL | 173 - 189 cm | 5'8" - 6'2" |
| XXL | 183 - 199 cm | 6'0" - 6'6" |
Maximum system weight 125 kg / 276 lb (rider, bike and everything carried).
Frame Geometry
| Measurement | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A | Reach | 452mm | 475mm | 500mm | 527mm |
| B | Stack Height | 626mm | 637mm | 649mm | 662mm |
| C | Standover Height | 782.5mm | 788.9mm | 791.5mm | 799.1mm |
| D | Front Center | 787.7mm | 816mm | 846.8mm | 879.9mm |
| E | Fork Length | 576mm | 576mm | 576mm | 576mm |
| F | Wheelbase | 1227.9mm | 1256.2mm | 1287mm | 1320.1mm |
| G | Chainstay Length | 440/452mm | 440/452mm | 440/452mm | 440/452mm |
| H | Bottom Bracket Drop | 10.4/24.5mm | 10.4/24.5mm | 10.4/24.5mm | 10.4/24.5mm |
| I | Bottom Bracket Height | 349.5mm | 349.5mm | 349.5mm | 349.5mm |
| J | Effective Top Tube Length | 596.5mm | 623.5mm | 652.9mm | 684.6mm |
| K | Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| L | Head Tube Length | 111.4mm | 123.6mm | 136.9mm | 151.3mm |
| M | Actual Seat Tube Angle | 70° | 70° | 70° | 70° |
| N | Effective Seat Tube Angle | 77° | 76.9° | 76.7° | 76.6° |
| O | Seat Tube Height | 405mm | 425.3mm | 445mm | 464mm |
Geometry figures are Amflow published values in the default setting. Head tube angle, bottom bracket height and chainstay length are adjustable.
Amflow PR Carbon PRO Electric Mountain Bike
Sale price$6,799.00
Regular price (/)
