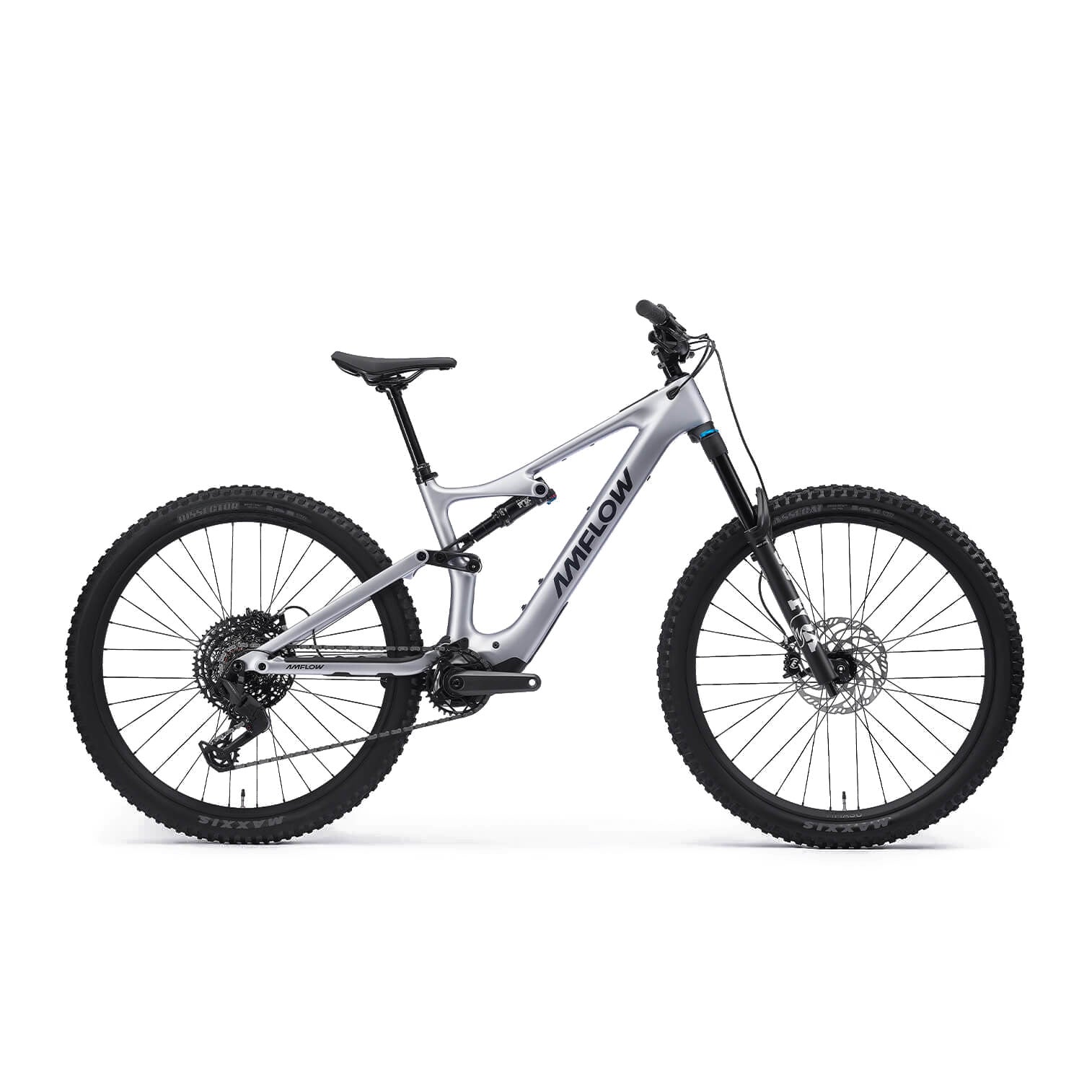

Amflow PL Carbon Electric Mountain Bike
Available through WMR sales. Call, email, or visit our Stuart showroom for pricing, availability, and purchase options.

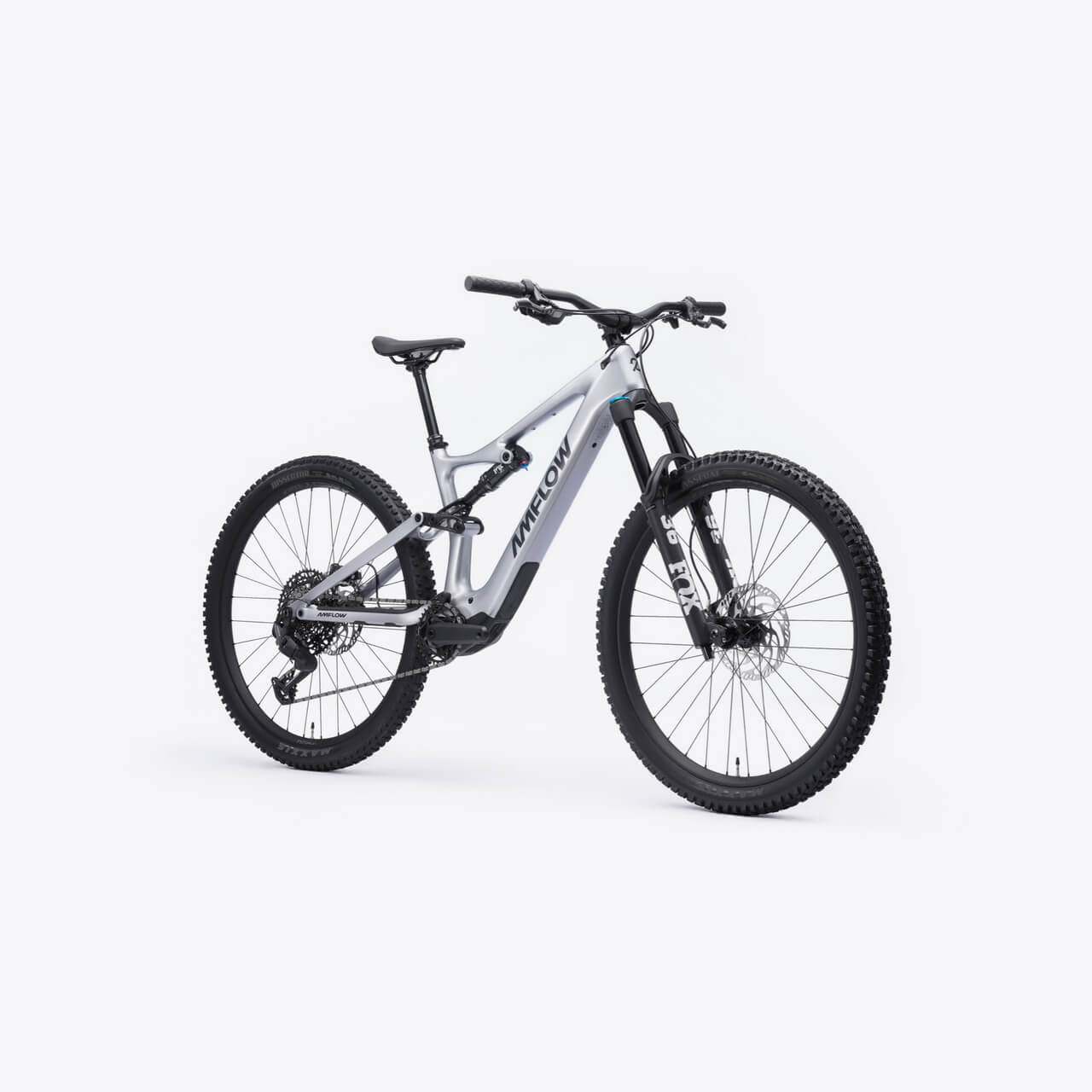

The bike that introduced the Avinox drive system and reset what a lightweight full-power eMTB could be. Finished in Satin Silver with FOX Performance suspension and a SRAM Eagle 70 Transmission drivetrain.
- Avinox M1 Drive Unit: 105 N-m max continuous torque, 120 N-m in Boost mode, 250W rated
- 800Wh integrated battery, up to 157km (98mi) range
- Avinox 508W fast charger - 0 to 75 percent in about 1.5 hours

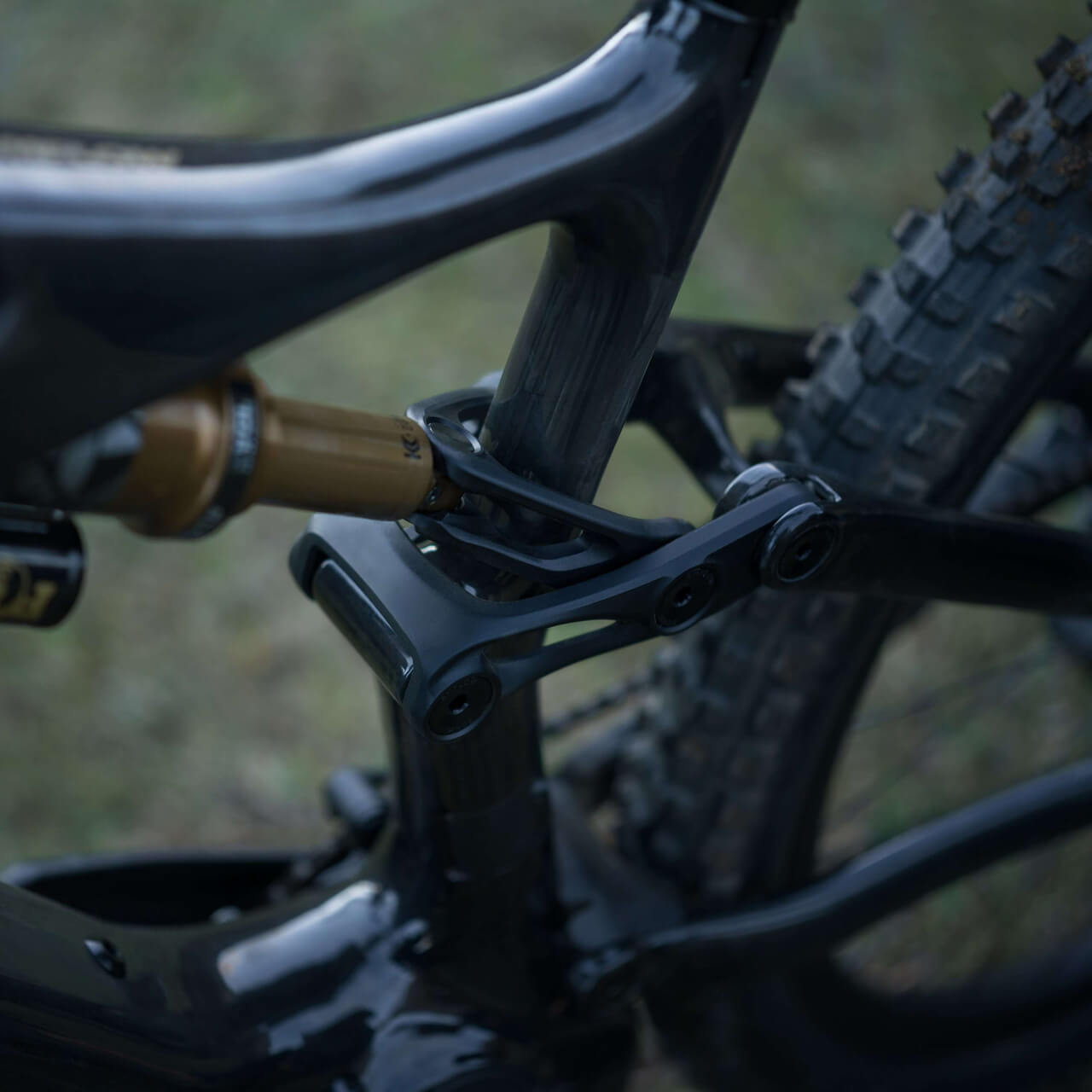

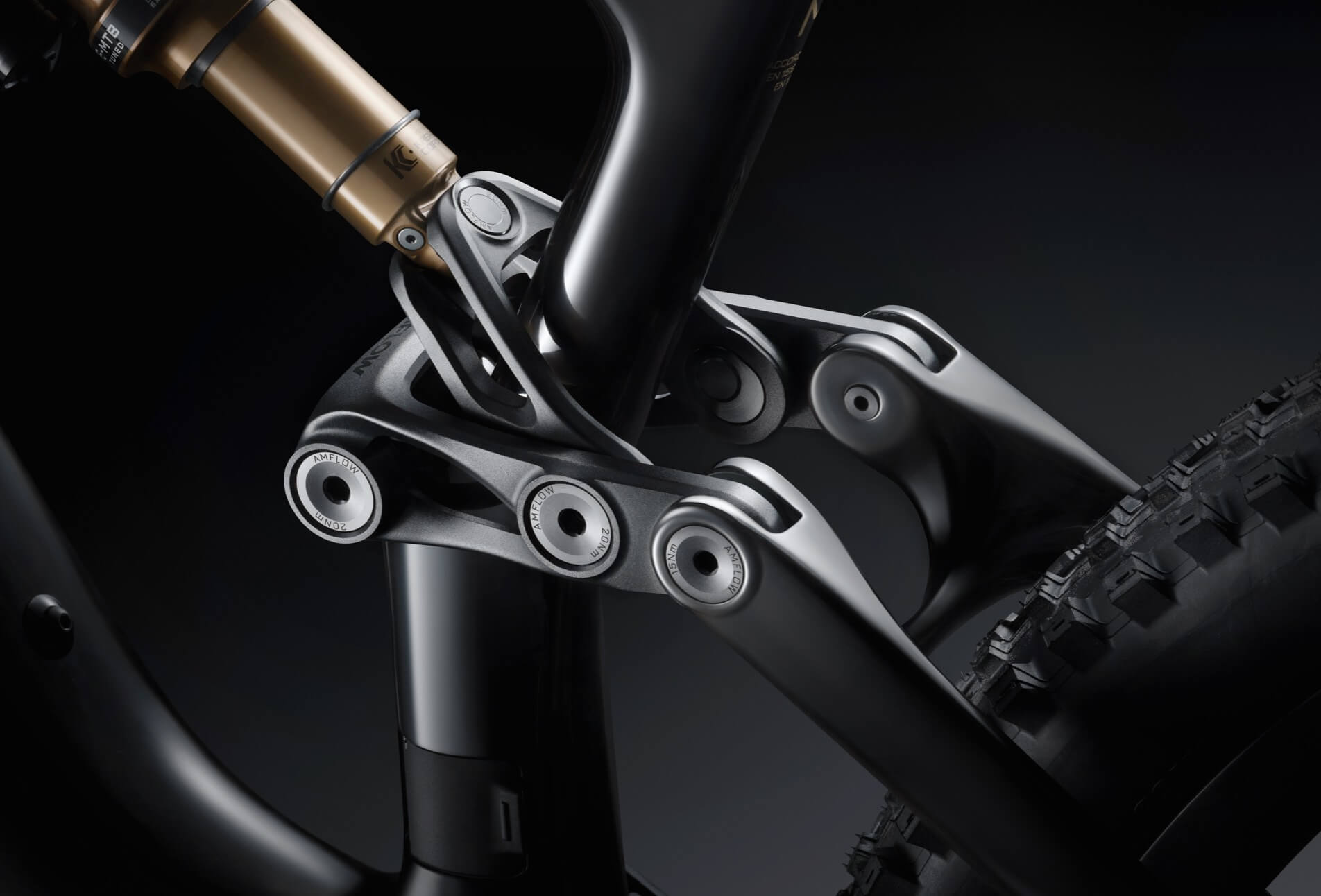

- Ultra-light 2.27kg carbon frame, four-bar linkage, 150mm rear travel
- 160mm FOX 36 fork, 64.5 degree head tube angle, 445mm chainstays
- Runs 29in or 27.5in rear wheel via flip chip with no change to centre of gravity

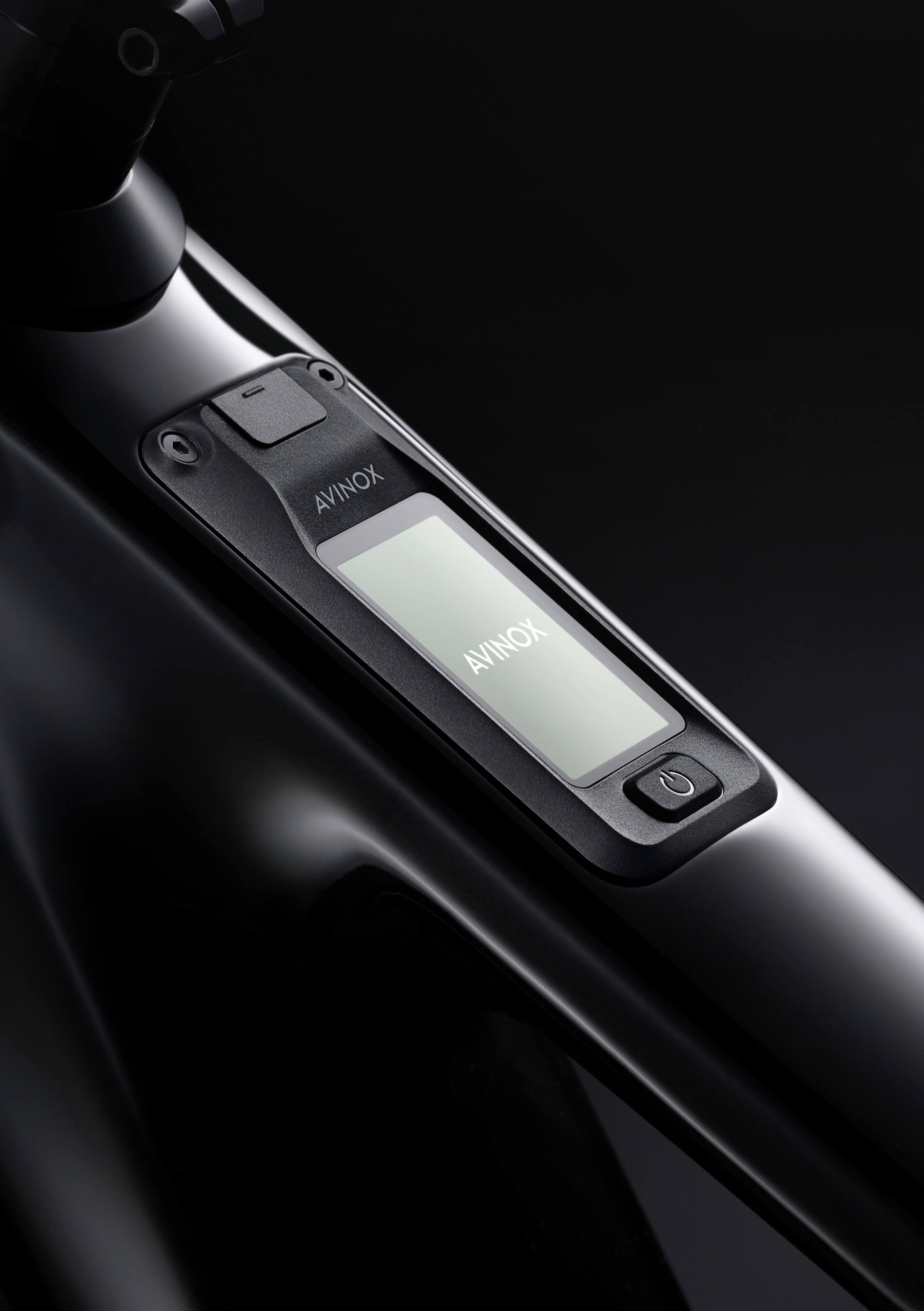

- 2-inch OLED touchscreen display, wireless controllers, Avinox Ride app with Strava sync
- Anti-theft protection with movement alarm, Phone Key and remote locating
Specifications
| Frame | Amflow PL Carbon Frame, Satin Silver, approx. 2.27kg, 150mm travel |

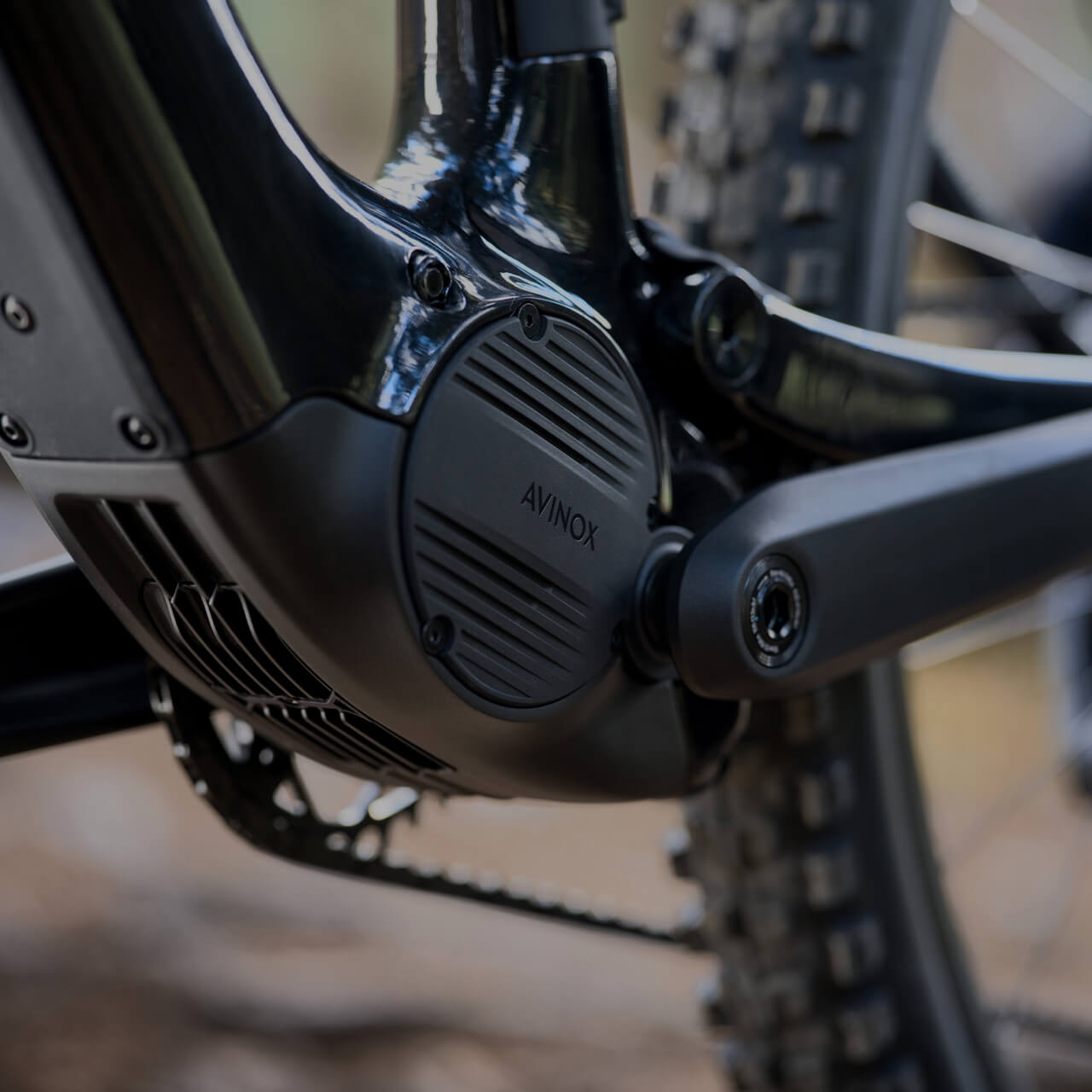

| Drive Unit | Avinox M1 - 105 N-m continuous, 120 N-m Boost, 2.52kg |
| Battery | Avinox 800Wh integrated (non-removable), 3.74kg |
| Charger | Avinox Fast Charger 12A / 508W |

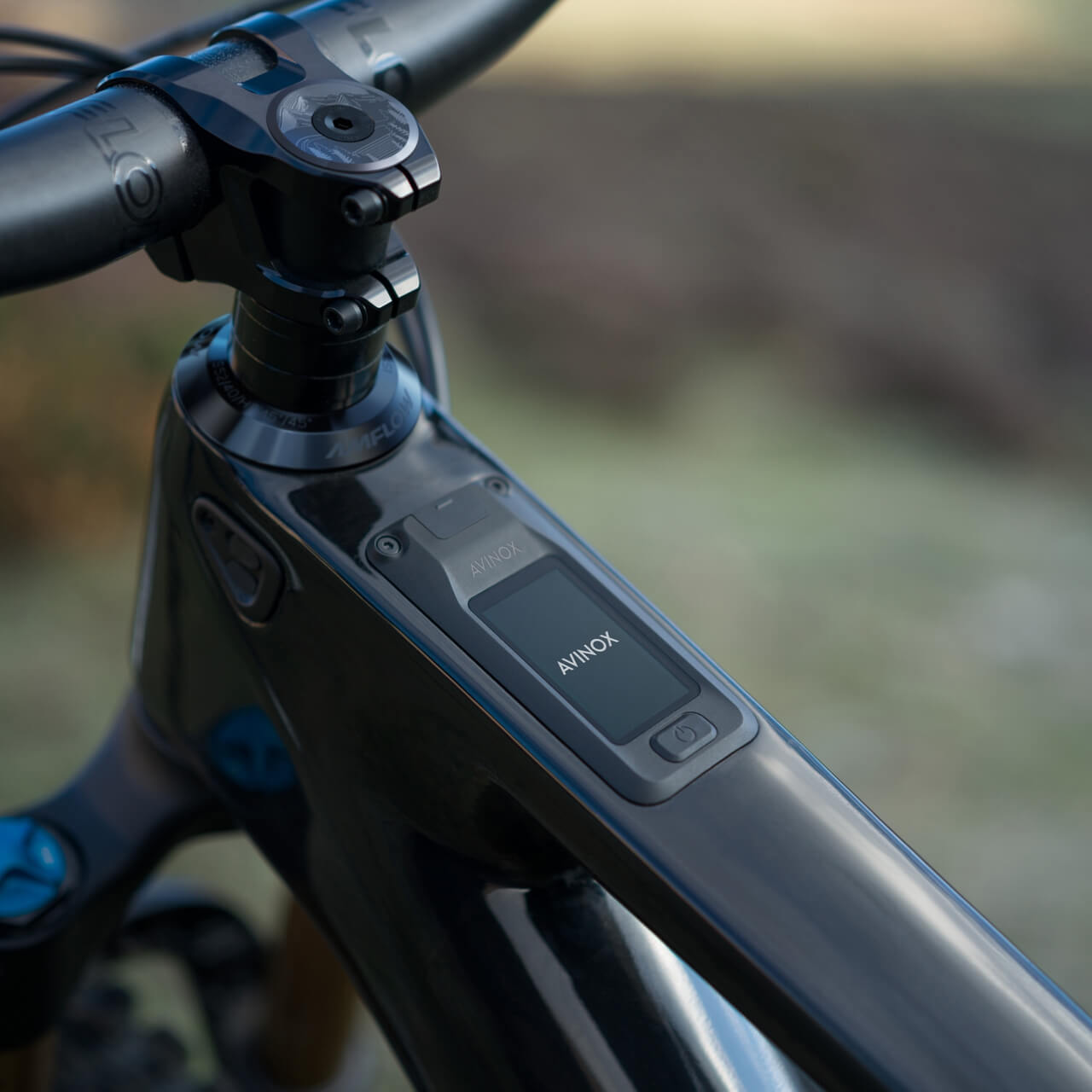

| Display | Avinox 2-inch OLED Control Display |
| Fork | 2026 FOX 36 Performance, 160mm, GRIP damper |
| Rear Shock | 2026 FOX Float Performance, Trunnion 185x55mm |

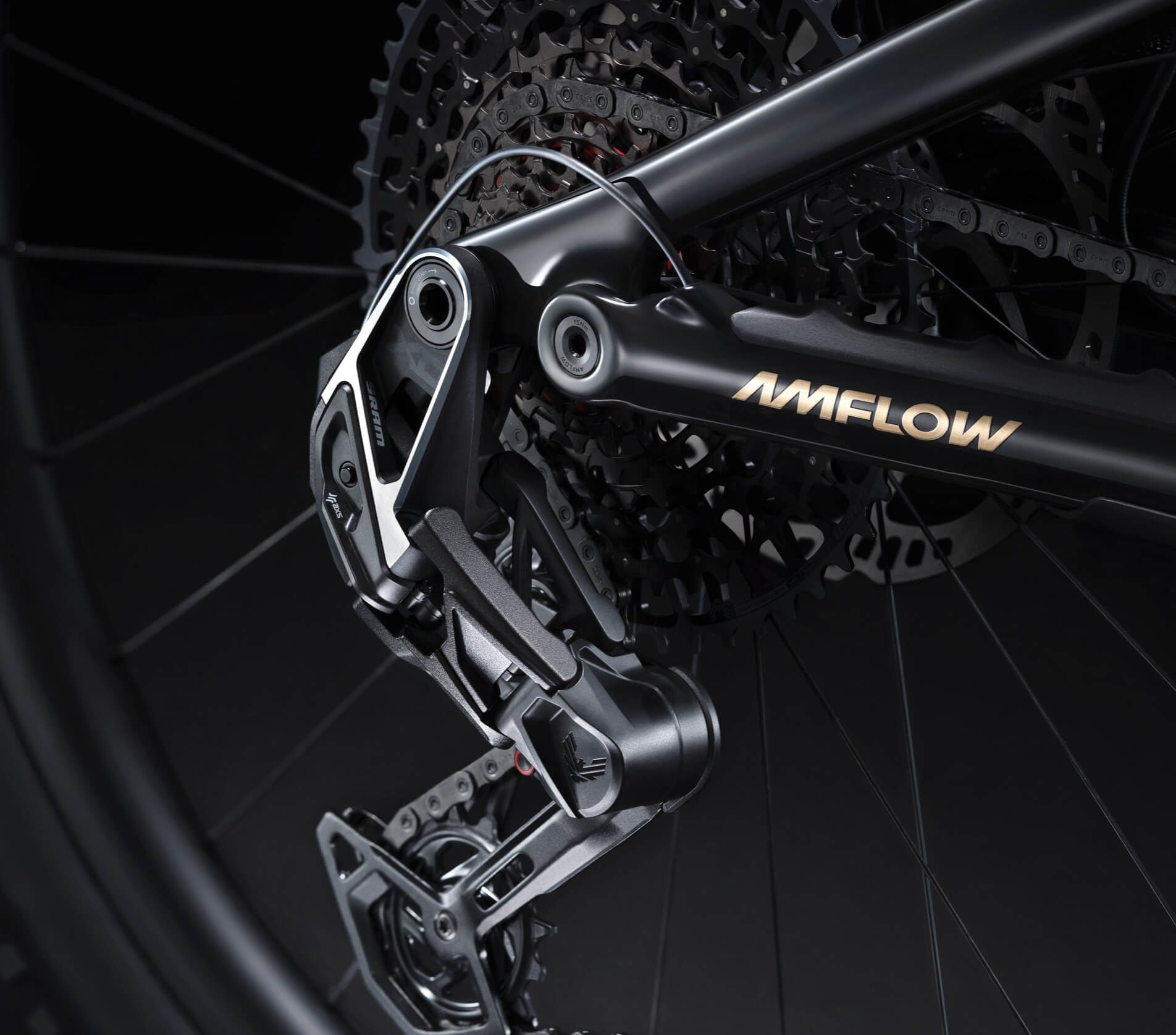

| Drivetrain | SRAM Eagle 70 Transmission, XS-1270 10-52T |

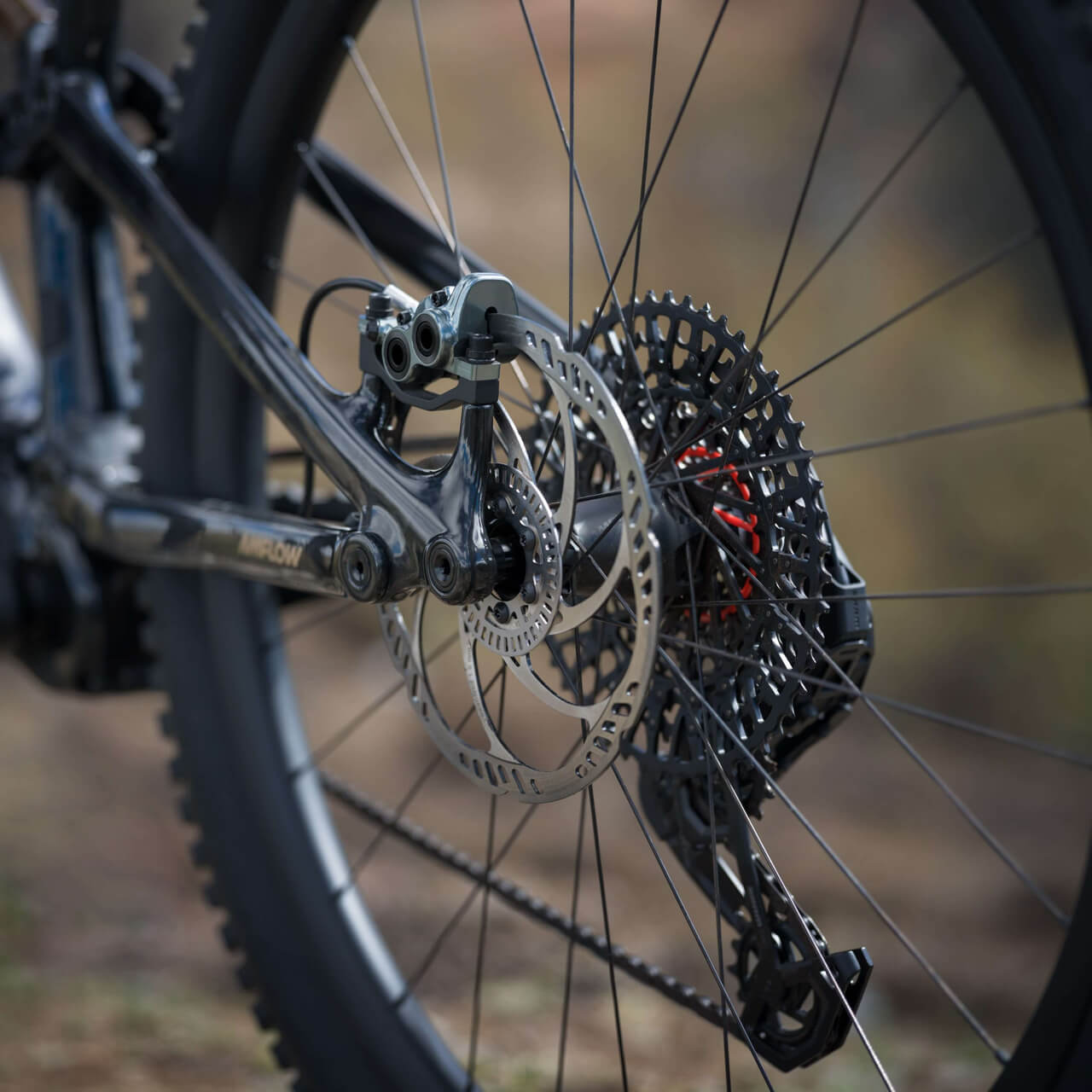

| Brakes | Magura MT5 4-piston, 203mm MDR-C rotors |
| Wheels | Amflow HMA-30 alloy, 29in, 30mm internal |
| Tires | Maxxis Assegai 29x2.5 front / Maxxis Dissector 29x2.4 rear |
| Handlebar | Amflow Enduro Alloy, 800mm, 35mm rise |
| Seatpost | KS Rage-i dropper |
| Sizes | M, L, XL, XXL |
| Complete Bike Weight | 21.1kg / 46.5lb (size M, tubeless) |
Size Chart
Use rider height as your starting point. Where two sizes overlap, reach is the better guide - a longer reach suits a more stretched, aggressive position, a shorter reach suits a more upright one. Riding style, inseam and arm length all matter, so we recommend a fitting in-store before you commit.
| Frame Size | Rider Height | Rider Height (ft/in) |
|---|---|---|
| M | 162 - 178 cm | 5'4" - 5'10" |
| L | 170 - 185 cm | 5'7" - 6'1" |
| XL | 175 - 191 cm | 5'9" - 6'3" |
| XXL | 185 - 201 cm | 6'1" - 6'7" |
Maximum system weight 125 kg / 276 lb (rider, bike and everything carried).
Frame Geometry
| Measurement | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A | Reach | 452mm | 475mm | 500mm | 525mm |
| B | Stack Height | 618mm | 628mm | 641mm | 655mm |
| C | Standover Height | 780mm | 785mm | 790mm | 795mm |
| D | Front Center | 782mm | 810mm | 844mm | 873mm |
| E | Fork Length | 570mm | 570mm | 570mm | 570mm |
| F | Wheelbase | 1227mm | 1255mm | 1289mm | 1318mm |
| G | Chainstay Length | 445mm | 445mm | 445mm | 445mm |
| H | Bottom Bracket Drop | 29mm | 29mm | 29mm | 29mm |
| I | Bottom Bracket Height | 345.5mm | 345.5mm | 345.5mm | 345.5mm |
| J | Effective Top Tube Length | 595mm | 620mm | 648mm | 676mm |
| K | Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| L | Head Tube Length | 105mm | 115mm | 130mm | 145mm |
| M | Actual Seat Tube Angle | 70° | 70° | 70° | 70° |
| N | Effective Seat Tube Angle | 77° | 77° | 77° | 77° |
| O | Seat Tube Height | 430mm | 450mm | 470mm | 500mm |
Geometry figures are Amflow published values. The PL accepts both 29in and 27.5in rear wheels via the flip chip without changing the frame's centre of gravity.
Amflow PL Carbon Electric Mountain Bike
Sale price$7,499.00
Regular price (/)
