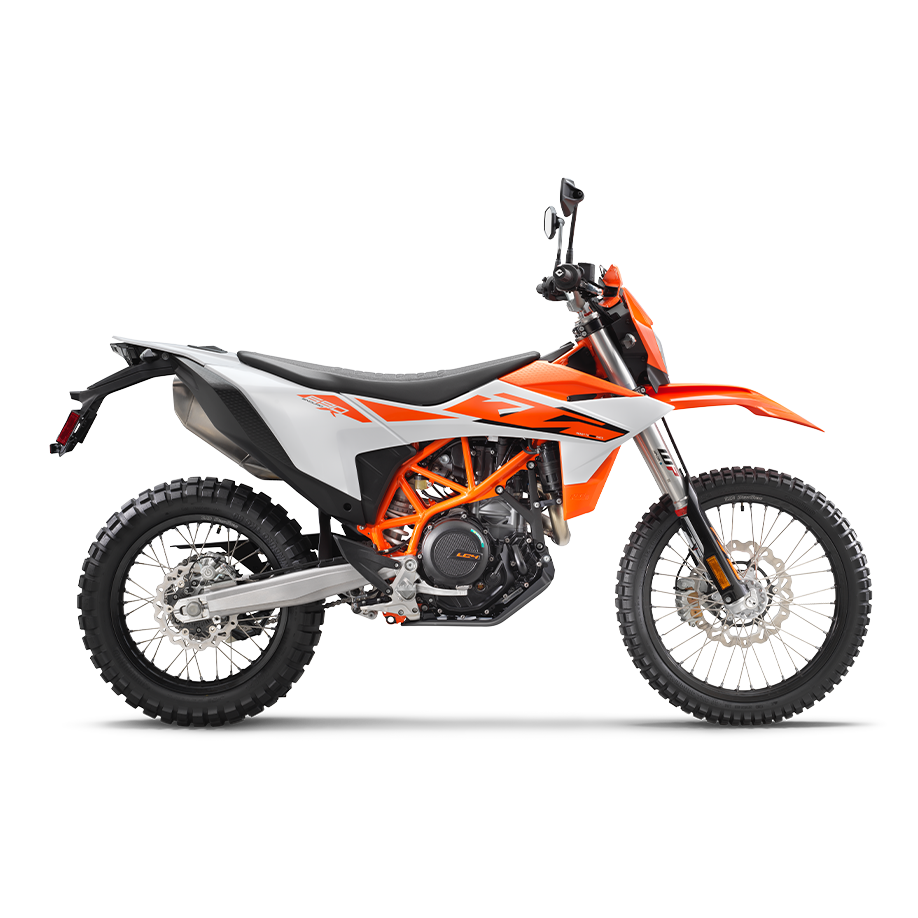

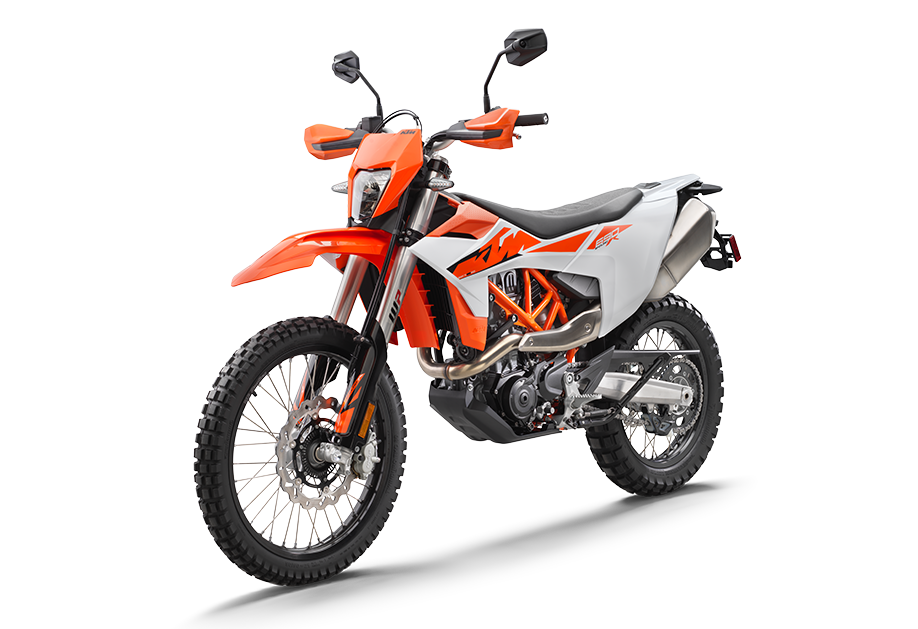

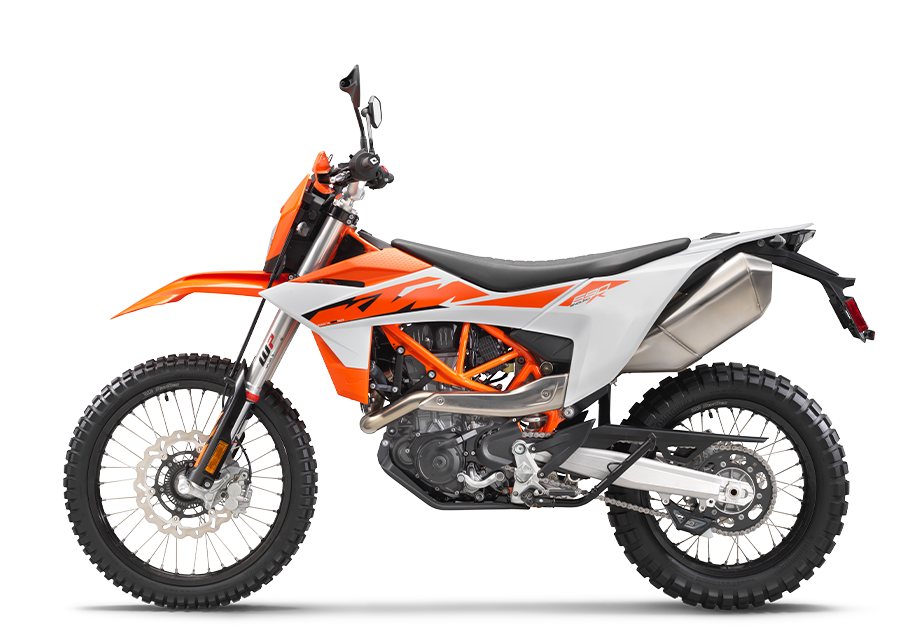

2027 KTM 690 ENDURO R
Lowest prices in the Southeast
Call for Our Best Price
Includes a 4-Year Premium Manufacturer’s Warranty.
*Warranty terms apply; see dealer for details.
*Offers are updated monthly. Contact Kurt for the latest information and full details. Don’t miss out on our latest deals.
*Plus freight: $800
ALL TERRAIN, ALL THE TIME
Imagine this: Your KTM 690 ENDURO R grumbles with the rising revs as suburbia slowly disappears behind you. Upfront, a bright LED beam lights the way into the early morning mist as you hurtle toward the next dirt track. The next moment, you're blasting off into the wilderness, transitioning from asphalt to grit effortlessly, without breaking a sweat. That's the allure of the KTM 690 ENDURO R - versatility beyond boundaries. Available now at WMR Competition Performance in Stuart, FL.
2027 Highlights
- Engine – Next-generation KTM LC4 single-cylinder with improved oil delivery and enhanced performance.
- Adjustability – The bike offers adjustable suspension, brake/clutch levers, and footrests plus an extensive PowerParts catalog.
- TFT Display & Connectivity – The 4.2" bonded glass screen features specialized anti-glare coating with music, navigation, and USB-C charging.
- RALLY Mode – Optional feature enabling additional off-road customization and ride mode memory retention.
- OFFROAD ABS – Allows rear wheel lock-up for dirt control while maintaining ABS disable option.
- Traction Control – Cornering MTC and ABS adapt via 6D sensor; both fully disableable.
Technical Specifications
Engine
| Design | 1-cylinder, 4-stroke engine |
| Displacement | 692.7 cm³ |
| Power | 79 PS |
| Torque | 73 Nm |
| Transmission | 6-speed |
| Cooling | Liquid cooled |
| EMS | Keihin EMS with RBW, twin ignition |
| Engine oil | Motorex Power Synth SAE 10W-50 |
| Silencer | Stainless steel primary and secondary silencer |
| Drive type | Combustion |
| Engine cylinder | Single cylinder |
| Engine stroke | 4-Stroke |
| CO2 emissions | 99 g/km |
Chassis & Suspension
| Frame design | Chromium-Molybdenum steel trellis frame, powder coated |
| Rear subframe design | Self-supporting plastic tank |
| Front suspension | WP XPLOR-USD, Ø 48 mm |
| Rear suspension | WP XPLOR with Pro-Lever linkage |
| Suspension travel (front) | 265 mm |
| Suspension travel (rear) | 250 mm |
| Front suspension adjustment | Compression and rebound adjustable |
| Rear suspension adjustment | Compression (high and low speed), rebound and preload adjustment |
| Steering head angle | 62.3 ° |
| Trail | 120 mm |
Brakes & Wheels
| Front brake | Disc brake |
| Rear brake | Disc brake |
| Front brake disc diameter | 300 mm |
| Rear brake disc diameter | 240 mm |
| Chain | 520 X-Ring |
| Wheels | 1.85 x 21"; 2.5 x 18" |
Dimensions & Weight
| Wheelbase | 1506 mm |
| Ground clearance | 265 mm |
| Seat height | 935 mm |
| Tank capacity | 13.3 l |
| Weight (without fuel) | 152 kg |
| Weight fully fueled | 162 kg |
