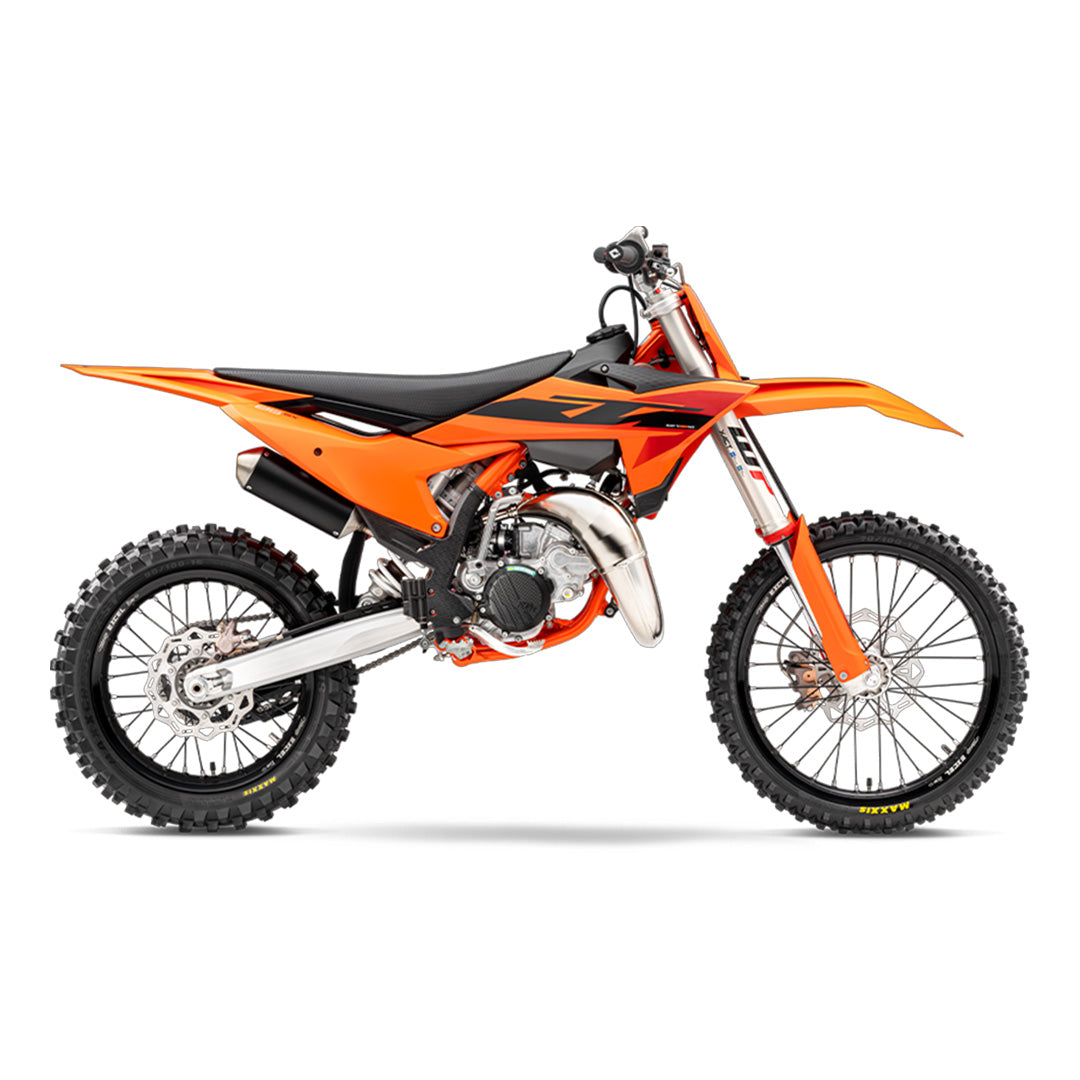

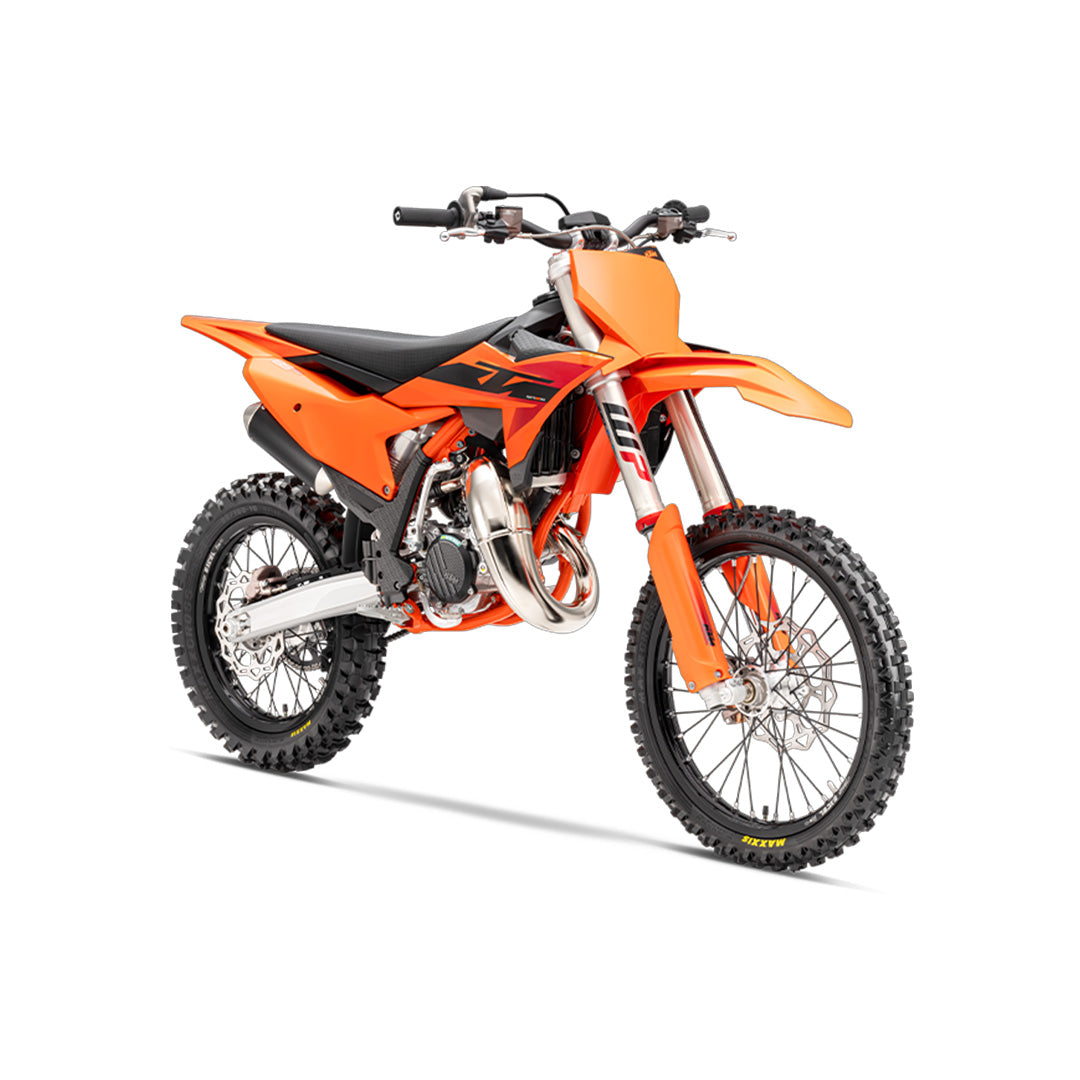

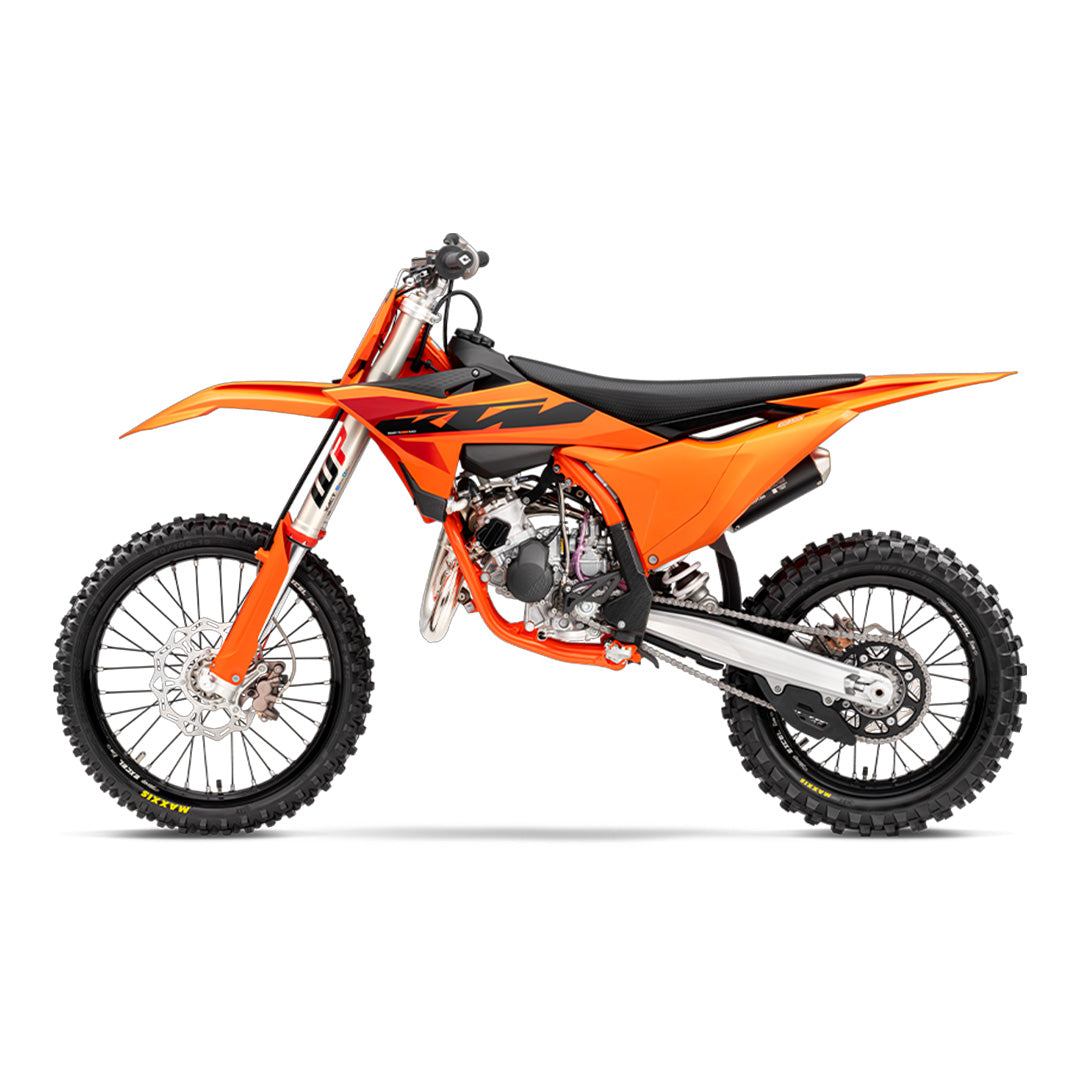

2026 KTM 85 19/16 SX

The last step awaits. The KTM 85 SX 19/16 is ready to raise the speed for you. Developed on track and at an international level, the KTM 85 SX 19/16 boasts significantly enhanced handling, searing power delivery and proven READY TO RACE DNA through its components and pedigree. You spoke, we listened. We developed. Now continue the journey. Fast.

Specifications

Engine

• Design: 1-cylinder, 2-stroke engine

• Displacement: 84.9 cm³

• Transmission: 6-speed

• EMS: Keihin PWK 28

• Engine Oil: Motorex Formula 4T 15W/50

• Primary Drive: 20:64

• Clutch Primary Drive Teeth: 64

• Clutch: Wet, multi-disc clutch with Formula hydraulics

• Cylinder: Single cylinder

• Stroke: 2-stroke

Chassis

• Frame Design: Central-tube frame with double-cradle

• Rear Subframe: Aluminium / Polyamide glass fiber

• Front Brake: Disc brake

• Rear Brake: Disc brake

• Chain: 428, non-sealed

Suspension

• Front Suspension: WP XACT 43 mm Upside-Down fork

• Rear Suspension: WP XACT PDS mono shock

• Front Suspension Travel: 278 mm

• Rear Suspension Travel: 289 mm

• Front Suspension Type: WP XACT

• Front Suspension Adjustment: Compression & rebound adjustable

• Rear Suspension Addition: Preload adjuster

Dimensions

• Seat Height: 871 mm

• Ground Clearance: 333 mm

• Tank Capacity: 5.4 L (approx.)
