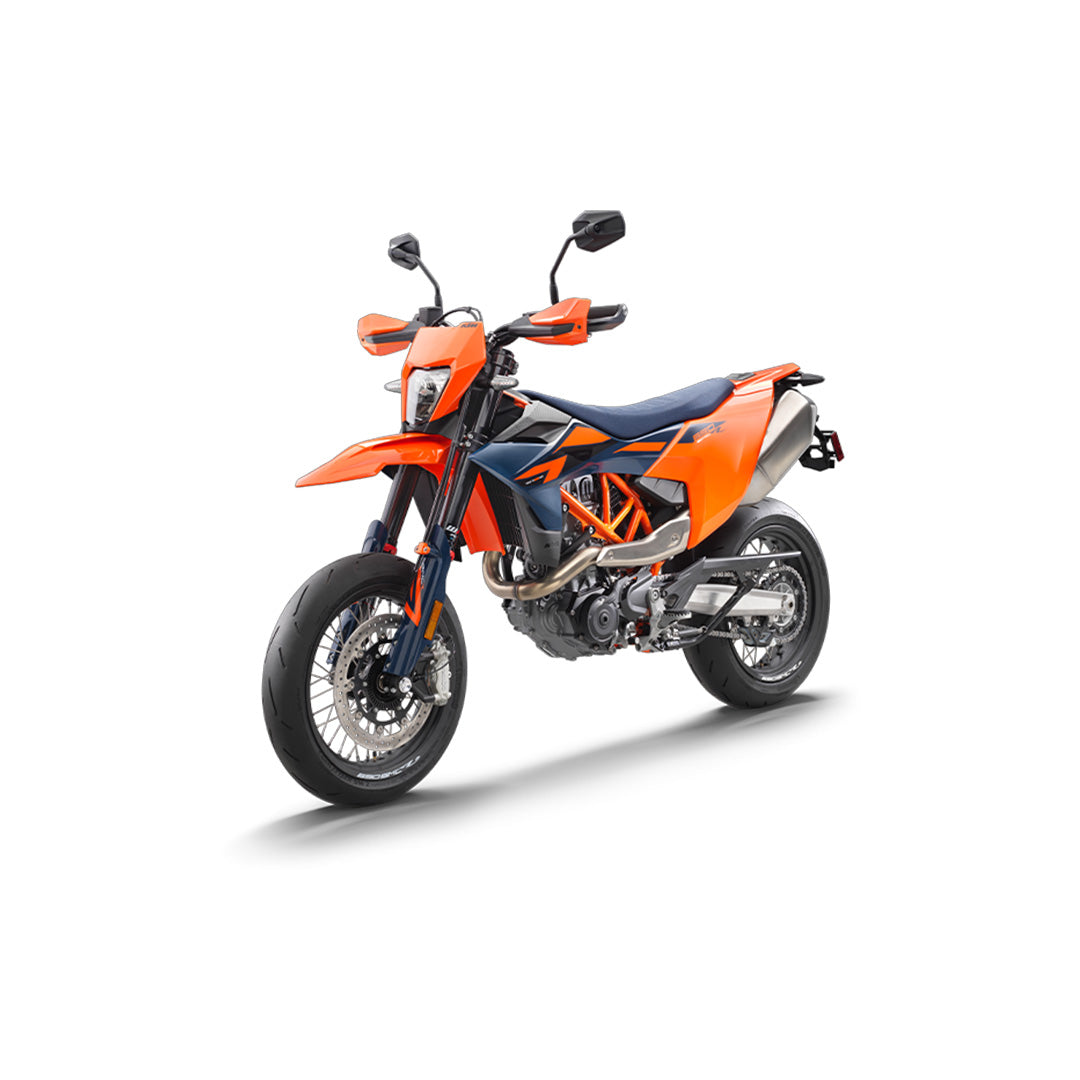

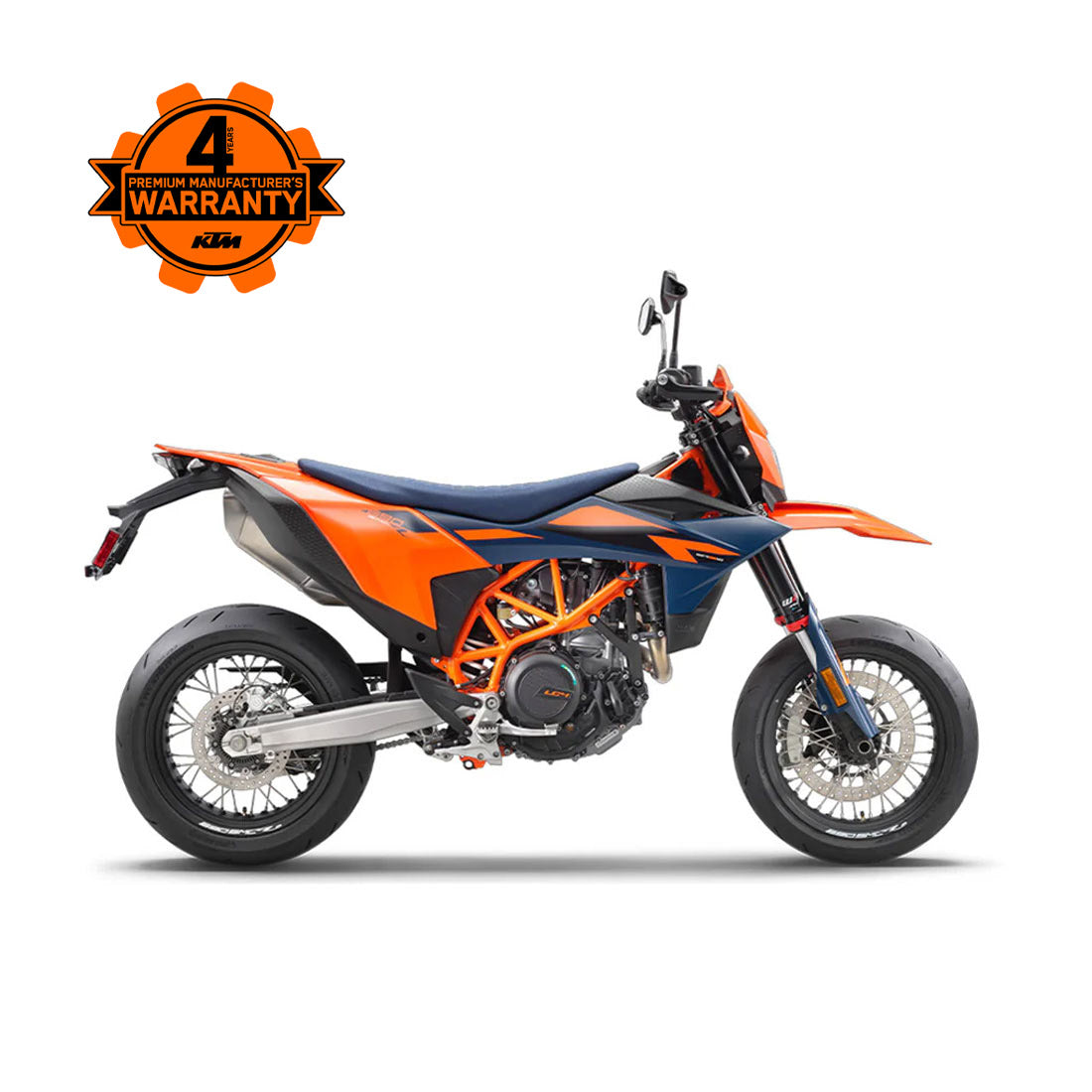

2026 KTM 690 SMC R
Special Tier Finance Rates
Rates subject to credit approval. See WMR for full terms and eligibility.
Special Financing Available!
As low as 3.99% APR for up to 36 Months
*Financing subject to credit approval. Offer valid July 1 – August 31, 2026. Terms and conditions may apply.
*Offers are updated monthly. Contact Kurt for the latest information and full details. Don’t miss out on our latest deals.
*Plus freight: $690.
The KTM 690 SMC R obliterates the competition, proving itself as the undisputed king of its class. Delivering agile handling, best-in-class power, and rider-focused ergonomics, it embodies the notion of READY TO RACE with total dedication to its craft.
From sliding into corners and power-wheelies over crests to hard blasts through tight mountain passes, the king of street supermoto is always on the attack.
Technical Specifications
Engine
| Engine Type | 1-Cylinder, 4-Stroke Engine |
| Displacement | 692.7 cc |
| Maximum Power | 79 PS |
| Maximum Torque | 73 Nm |
| Transmission | 6-Speed |
| Cooling System | Liquid Cooled |
| Fuel Management | Keihin EMS with RBW, Twin Ignition |
| Emissions | CO₂: 96 g/km |
| Engine Oil | Motorex Power Synth SAE 10W-50 |
Chassis & Brakes
| Frame | Chromium-Molybdenum Steel Trellis Frame, Powder-Coated |
| Rear Subframe | Self-Supporting Plastic Tank |
| Front Suspension | WP APEX 48 (Compression & Rebound Adjustable) |
| Rear Suspension | WP APEX with Pro-Lever Linkage + Preload Adjuster |
| Front / Rear Brake Disc | 300 mm / 240 mm |
| Front Brake | Disc Brake, 300 mm |
| Rear Brake | Disc Brake, 240 mm |
| Final Drive | 520 X-Ring Chain |
| Silencer | Stainless Steel Primary & Secondary Silencer |
| Steering Head Angle | 63.6° |
| Trail | 110 mm |
| Wheelbase | 1,476 mm (±15 mm) |
Suspension Travel
| Suspension Travel (Front) | 224 mm |
| Suspension Travel (Rear) | 240 mm |
Dimensions
| Seat Height | 899 mm |
| Ground Clearance | 237 mm |
| Fuel Capacity | 13.3 L (approx.) |
| Weight (Without Fuel) | 153.5 kg |
| Weight (Fully Fueled) | 162 kg |
Wheels
| Front Wheel | 17 in × 3.5 in |
| Rear Wheel | 17 in × 5.0 in |
