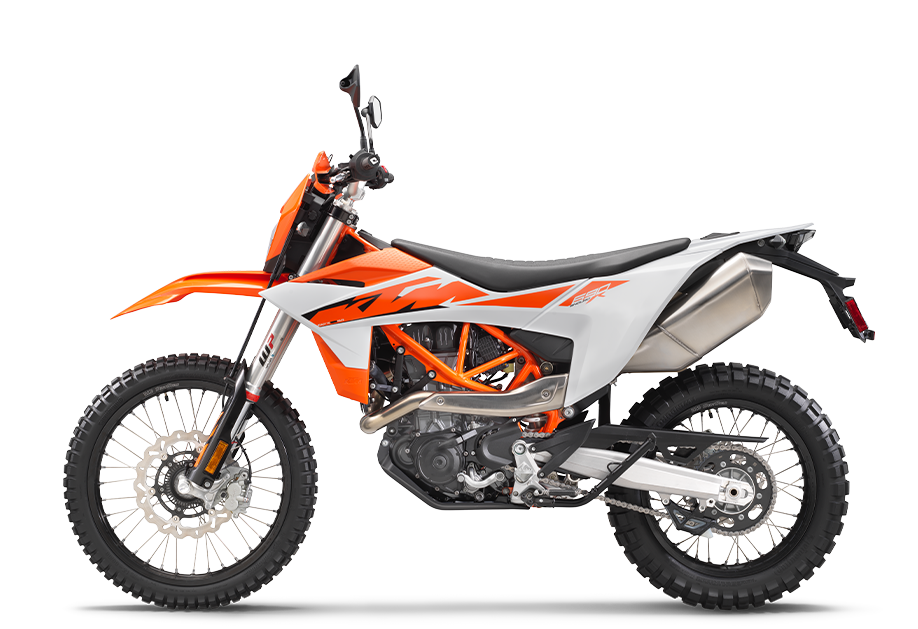

2026 KTM 690 Enduro R
*Offers are updated monthly. Contact Kurt for the latest information and full details. Don’t miss out on our latest deals.
*Plus freight: $750
The KTM 690 ENDURO R delivers versatility beyond boundaries—built to bridge the gap between everyday street riding and serious off-road adventure. With responsive power, confident handling, and modern LED lighting, it’s engineered for riders who want one machine that can do it all.
Imagine this: your KTM 690 ENDURO R growls with rising revs as the city fades behind you. A bright LED headlight cuts through the morning mist, guiding you toward adventure. One moment, you’re carving down asphalt streets, the next you’re blasting across dirt tracks—transitioning from urban commute to rugged wilderness with ease.
That’s the true allure of the KTM 690 ENDURO R: ultimate versatility, endless performance, and an uncompromising spirit built to tackle anything in its path.
Technical Specifications
Engine
| Design | 1-Cylinder, 4-Stroke Engine |
| Displacement | 692.7 cc |
| Power | 79 PS |
| Torque | 73 Nm |
| Transmission | 6-Speed |
| CO₂ Emissions | 99 g/km |
| Cooling | Liquid Cooled |
| Engine Cylinder | Single Cylinder |
| EMS | Keihin EMS with RBW, Twin Ignition |
| Engine Oil | Motorex Power Synth SAE 10W-50 |
| Engine Stroke | 4-Stroke |
| Silencer | Stainless Steel Primary and Secondary Silencer |
Chassis
| Brake Disc Diameters (Front / Rear) | 300 mm / 240 mm |
| Front Brake | Disc Brake |
| Rear Brake | Disc Brake |
| Chain | 520 X-Ring |
| Frame Design | Chromium-Molybdenum Steel Trellis Frame, Powder-Coated |
| Steering Head Angle | 62.3° |
| Rear Subframe Design | Self-Supporting Plastic Tank |
| Trail | 120 mm |
| Wheelbase | 1506 mm |
Suspension
| Front Suspension | WP XPLOR-USD, Ø 48 mm |
| Rear Suspension | WP XPLOR with Pro-Lever Linkage |
| Suspension Travel (Front) | 265 mm |
| Suspension Travel (Rear) | 250 mm |
| Front Suspension Adjustment | Compression & Rebound Adjustable |
| Rear Suspension Adjustment | Compression (High & Low Speed), Rebound, Preload |
Dimensions
| Seat Height | 935 mm |
| Wheelbase | 1506 ± 15 mm |
| Tank Capacity (Approx.) | 13.3 L |
| Ground Clearance | 265 mm |
| Weight (Without Fuel) | 152 kg |
| Weight (Fully Fueled) | 162 kg |
| Front Wheel | 21 in × 1.85 in |
| Rear Wheel | 18 in × 2.5 in |
| Wheels | 1.85 × 21"; 2.5 × 18" |
