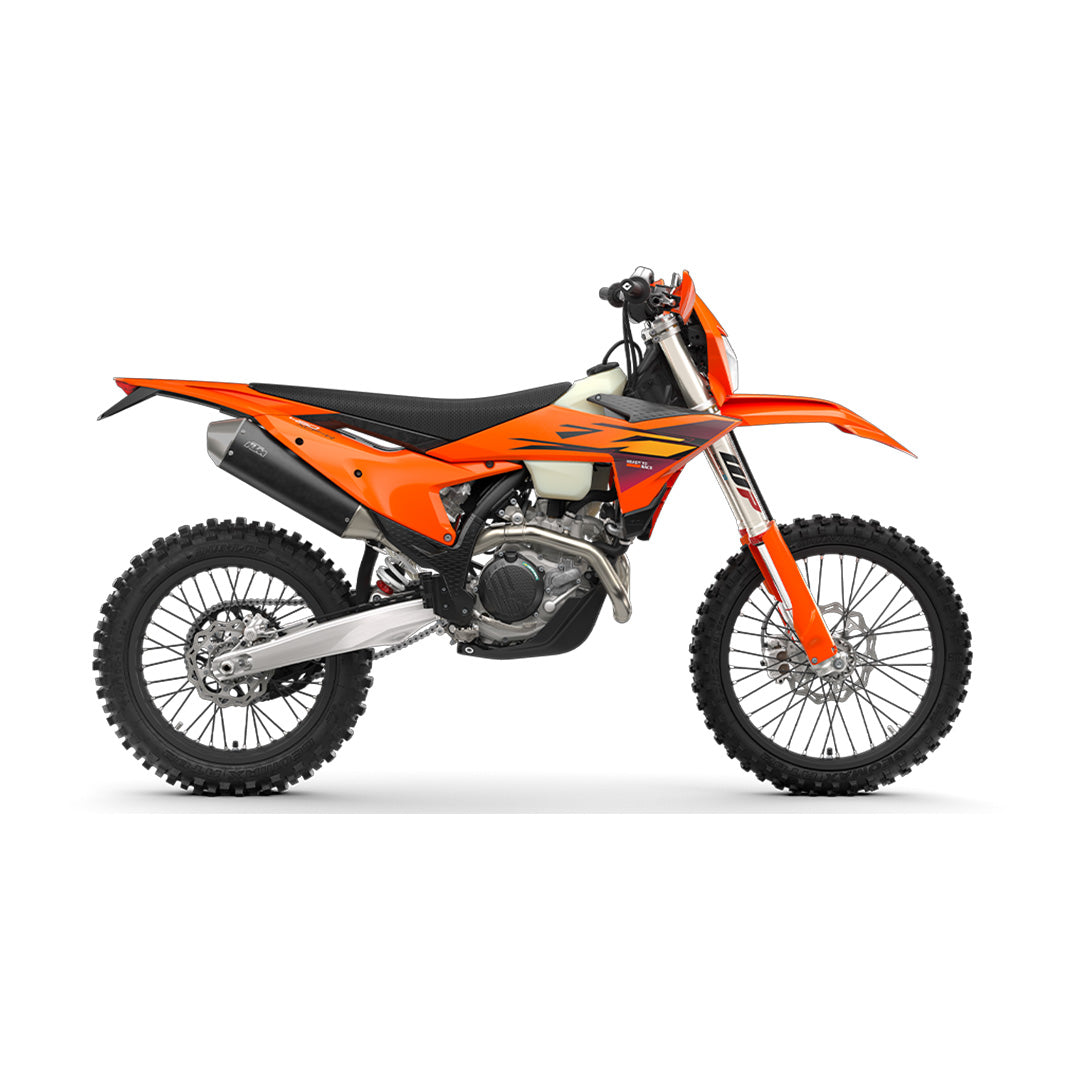

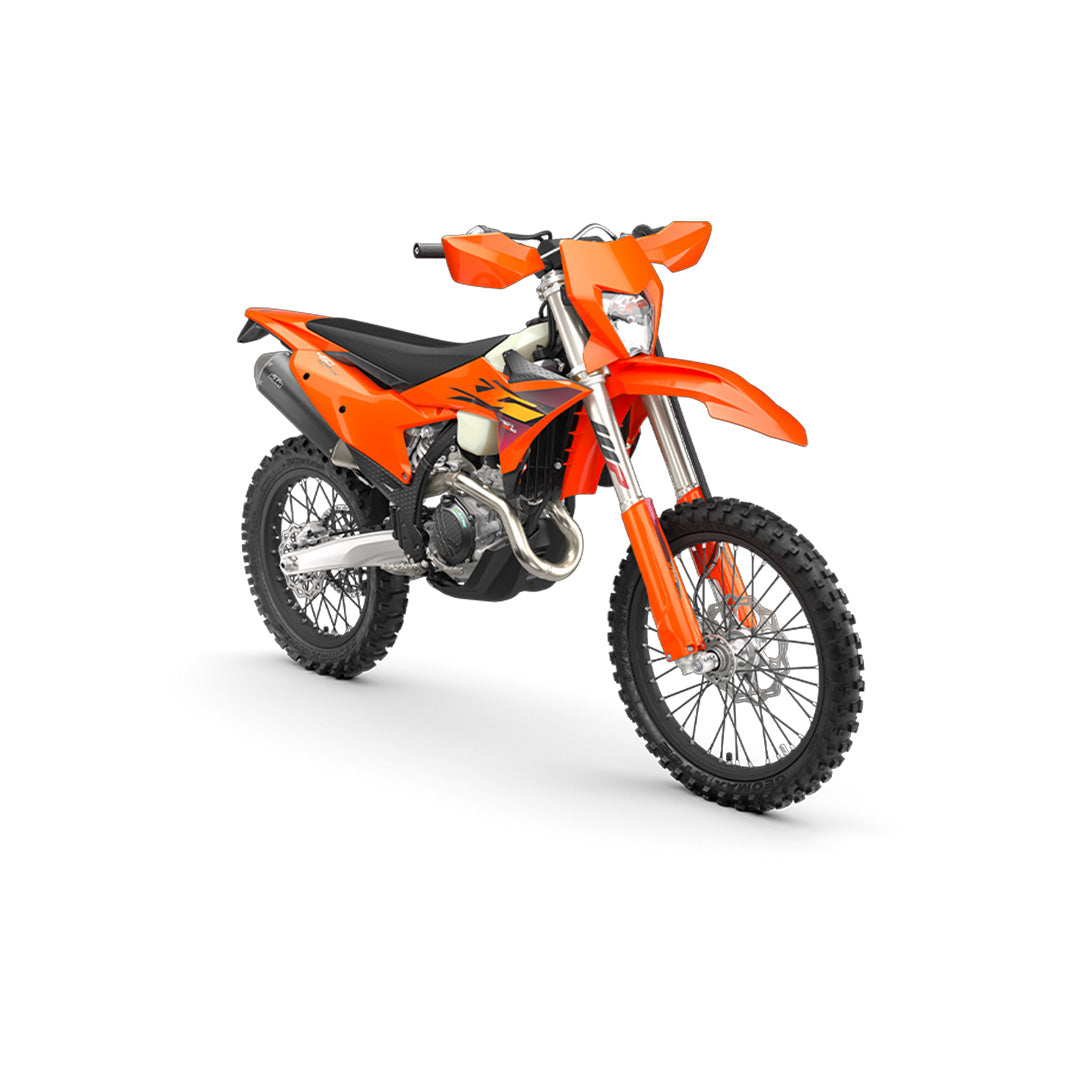

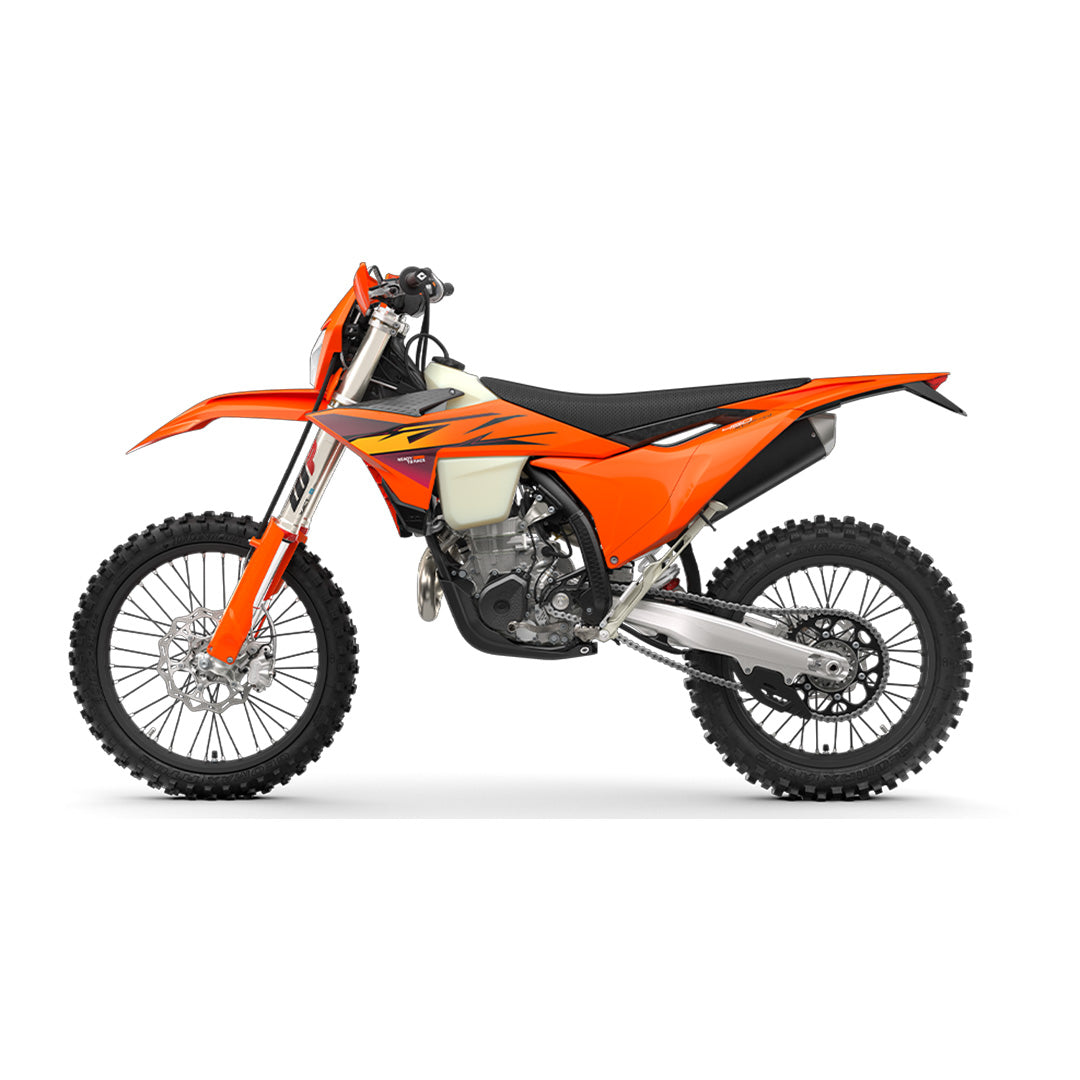

2026 KTM 450 XCF-W

The KTM 450 XCF-W rolls into the open class with a renewed appetite for finding the limit. Boasting a class-leading chassis, unflappable suspension, race-proven bodywork, and rider-focussed ergonomics - not to mention one of the winningest 450 cc engines in the class - the KTM 450 XCF-W is ready to launch off the line with the podium firmly in its sights.

Specifications

Engine

• Design: 1-cylinder, 4-stroke engine

• Displacement: 449.9 cm³

• Transmission: 6-speed

• Fuel System: Keihin EFI, 42 mm throttle body

• EMS: Keihin EMS

• Primary Drive: 29:72

• Clutch Primary Drive Teeth: 72

• Clutch: Wet DDS multi-disc clutch with Brembo hydraulics

• Cylinder: Single cylinder

• Stroke: 4-stroke

Chassis

• Frame: Central double-cradle-type 25CrMo4 steel

• Rear Subframe: Aluminum-reinforced polyamide

• Front Brake: Disc brake

• Rear Brake: Disc brake

• Chain: 520 X-Ring

Suspension

• Front: WP XACT-USD Ø 48 mm

• Rear: WP XPLOR shock absorber with PDS

• Front Travel: 300 mm

• Rear Travel: 310 mm

• Front Adjustment: Compression & rebound adjustable

• Rear Adjustment: Compression & rebound adjustable

Dimensions

• Seat Height: 963 mm

• Ground Clearance: 347 mm

• Tank Capacity: 8.5 L (approx.)
