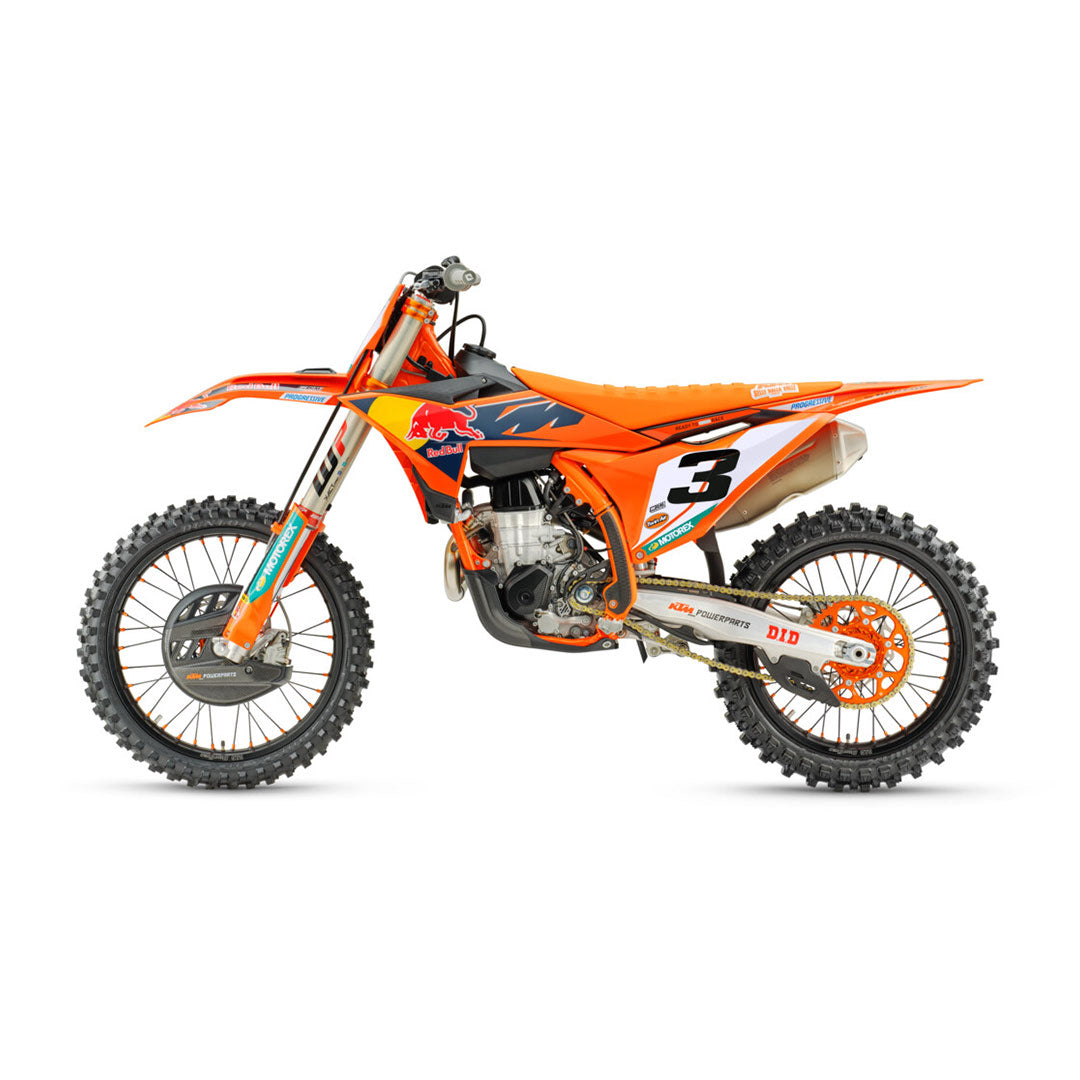

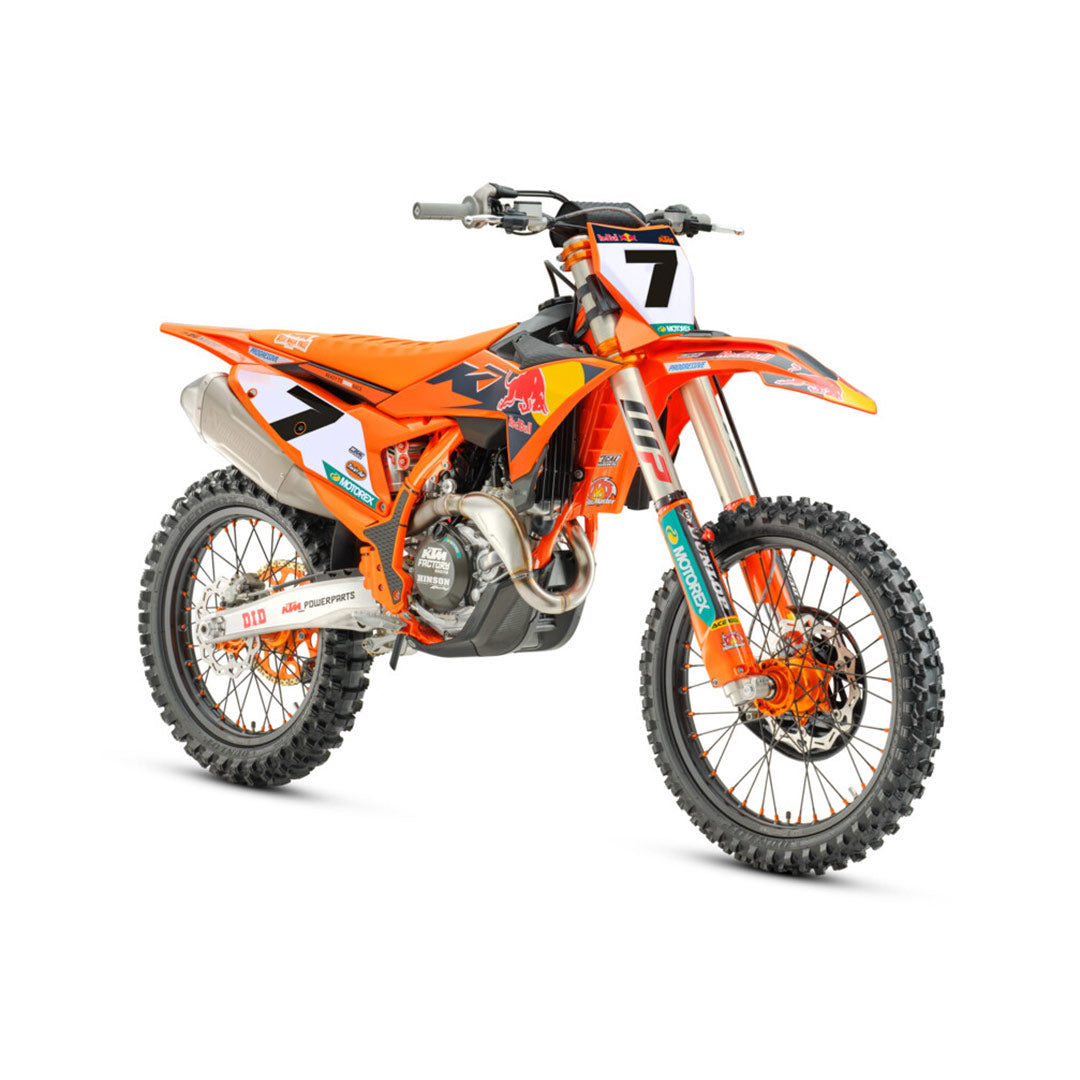

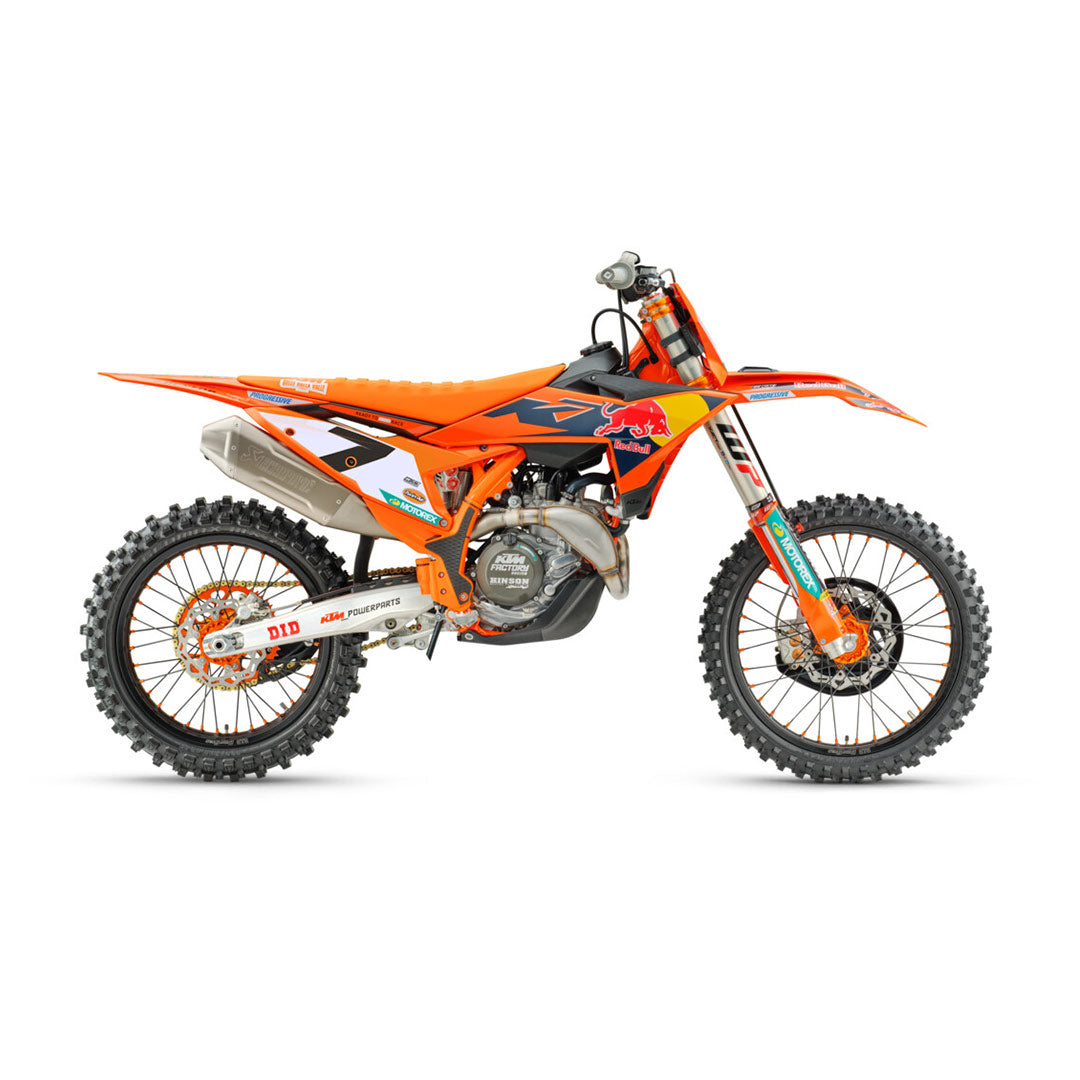

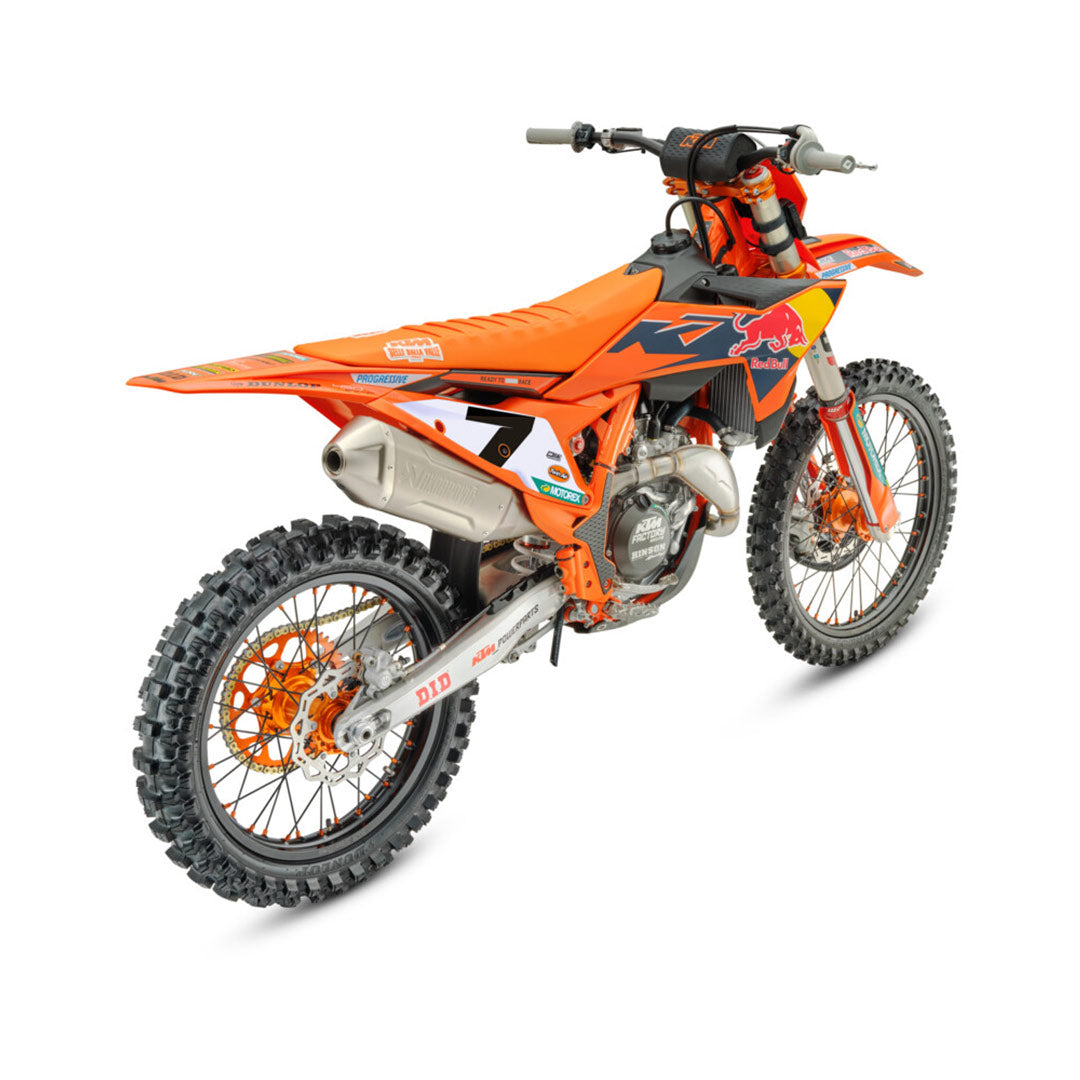

2026 KTM 450 SX-F FACTORY EDITION

2026 KTM 450 SX-F FACTORY EDITION HIGHLIGHTS

• Exclusive 2026 Red Bull KTM Factory Racing graphics with Selle Dalla Valle seat and #7 and #3 sets included.
• Chromoly frame shines in factory orange powder coating.

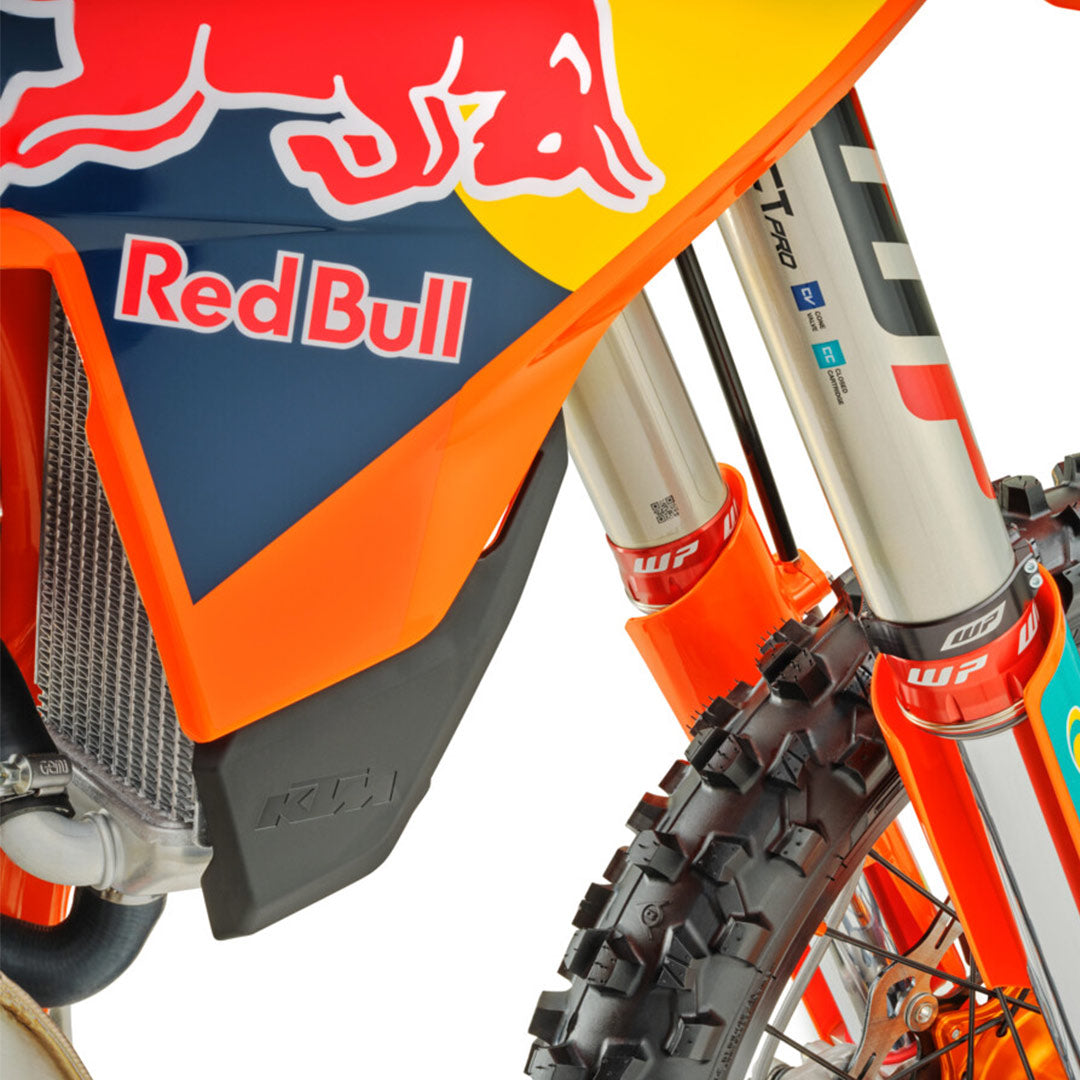

• New WP Pro Components XACT PRO 7548 fork for progressive damping and precise handling.

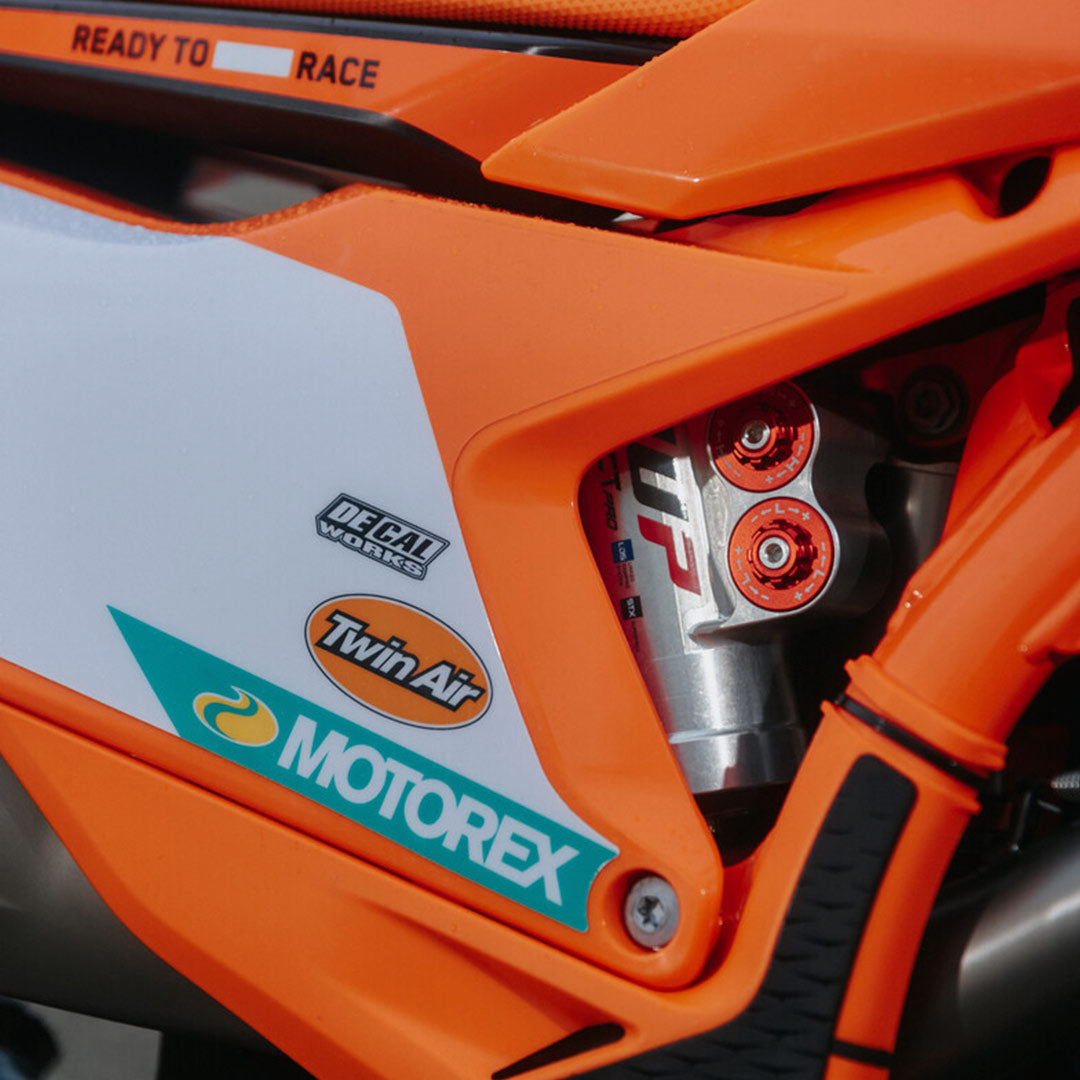

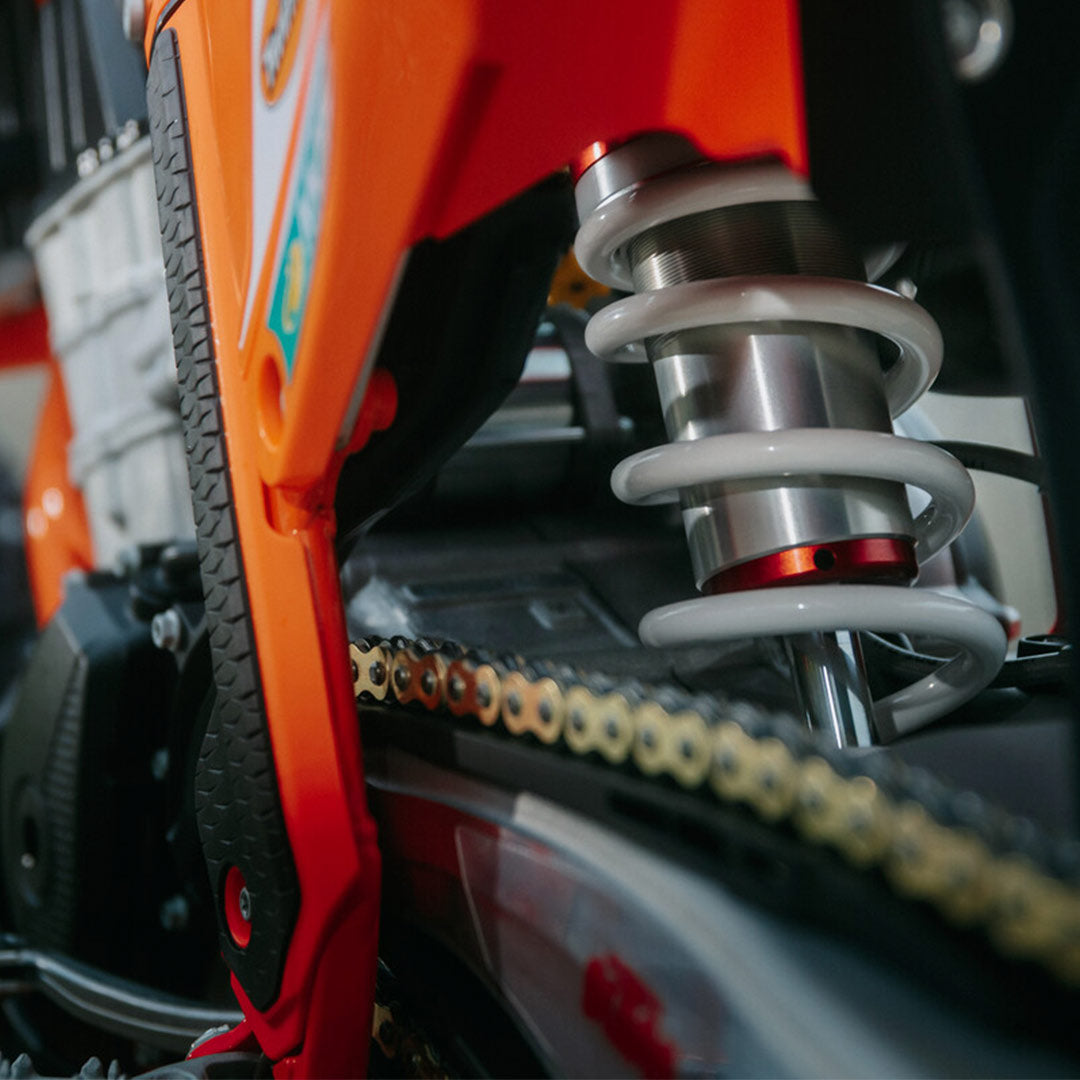

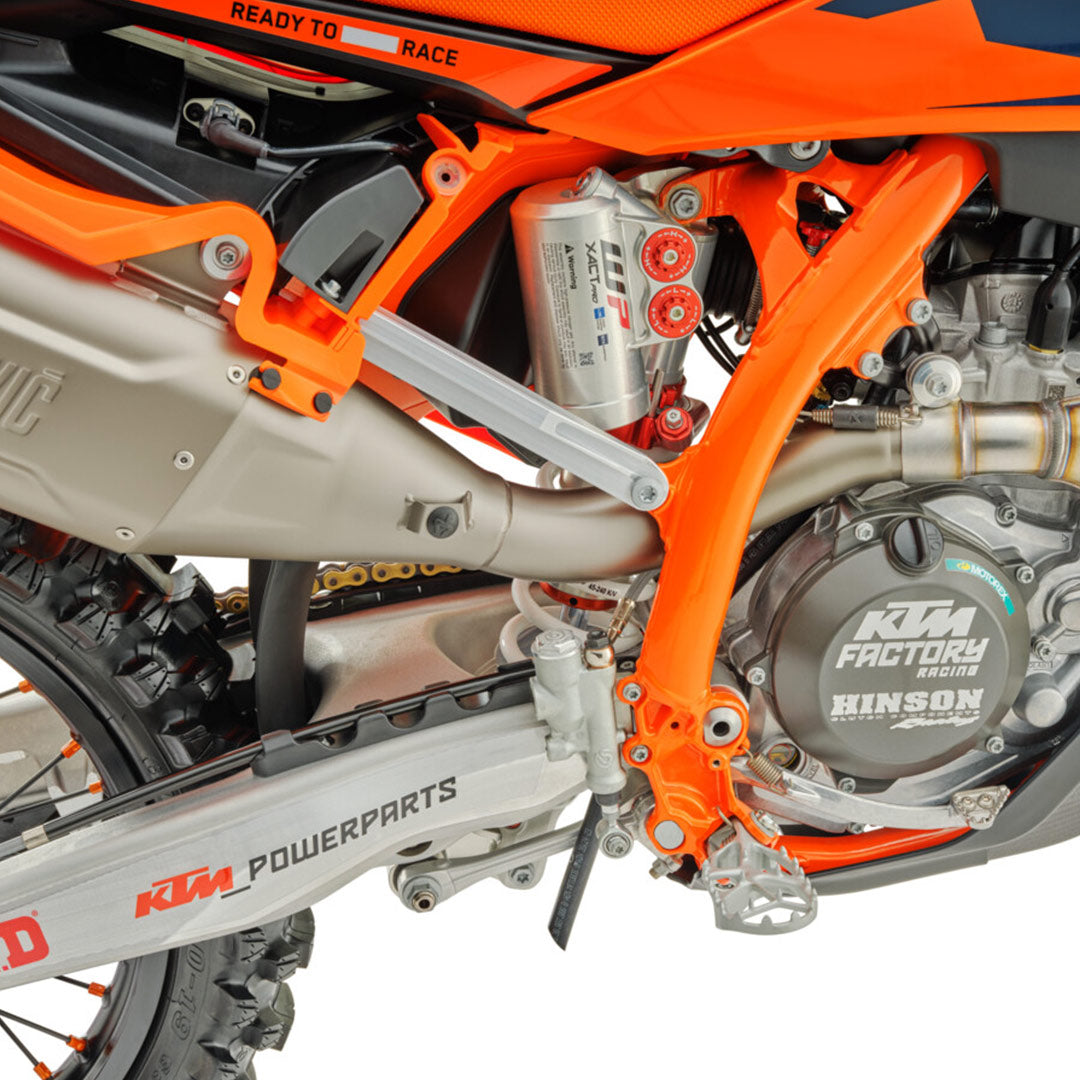

• New WP Pro Components XACT PRO 8950 shock absorber for superior comfort and traction.

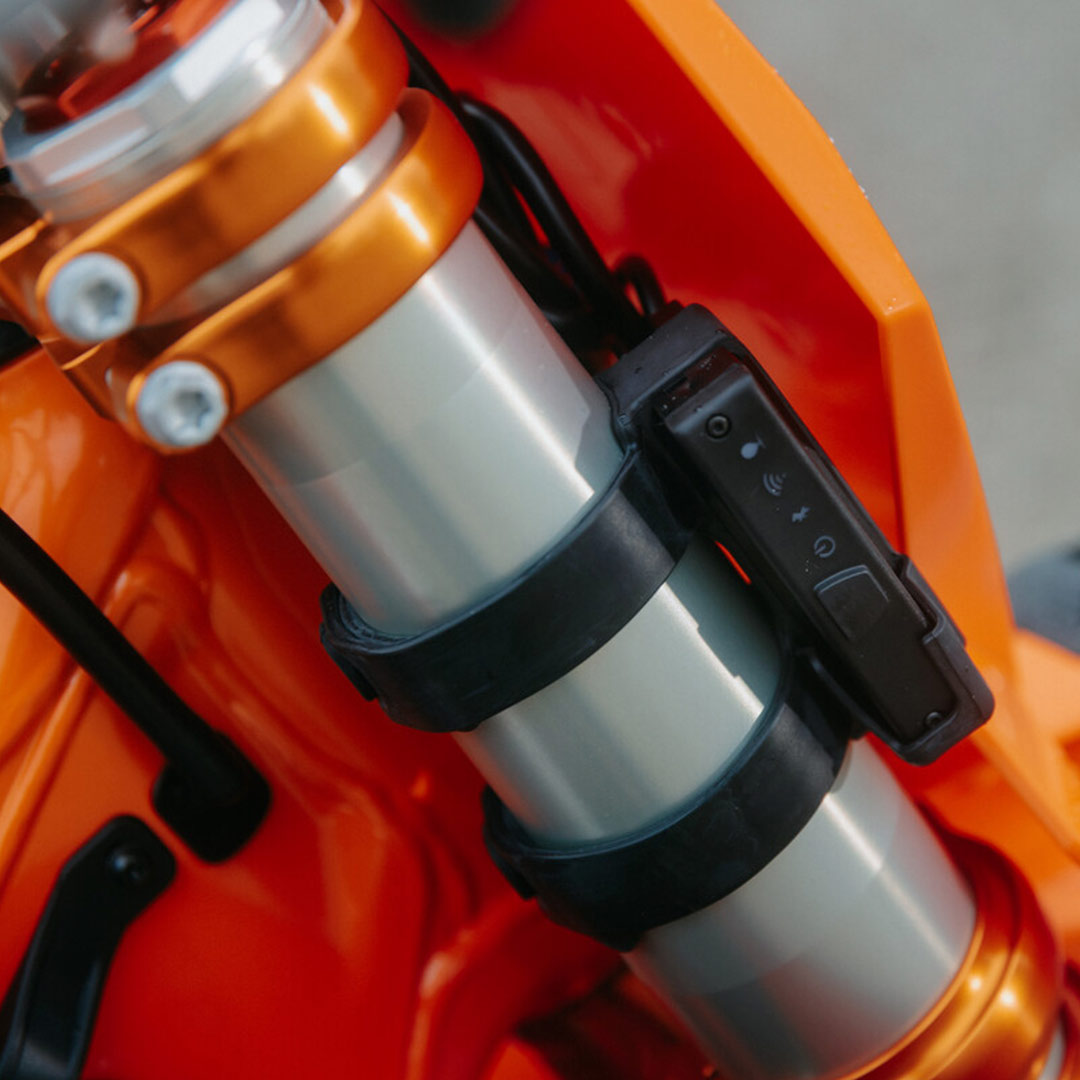

• CUO (Connectivity Unit Offroad) adjusts engine characteristics, assists suspension setup, and features optional LitPro functionality to provide key riding data.
• Dunlop GEOMAX MX34 tires enhance traction, feel, and bump absorption.
• Powerful 450 SOHC engine is light and compact and features a durable Hinson outer clutch cover.

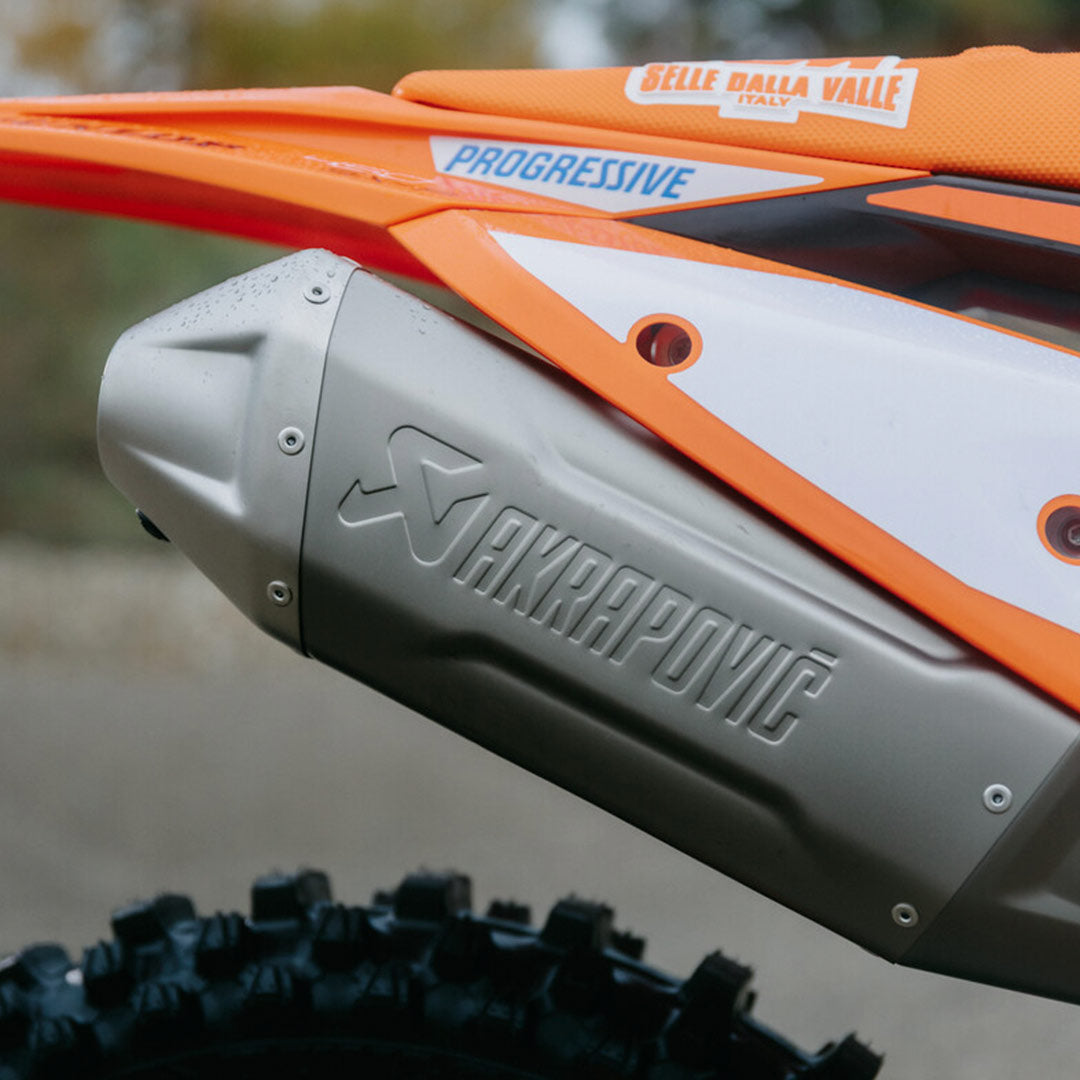

• Akrapovič Slip-On muffler improves low-end grunt while reducing weight thanks to a titanium construction.

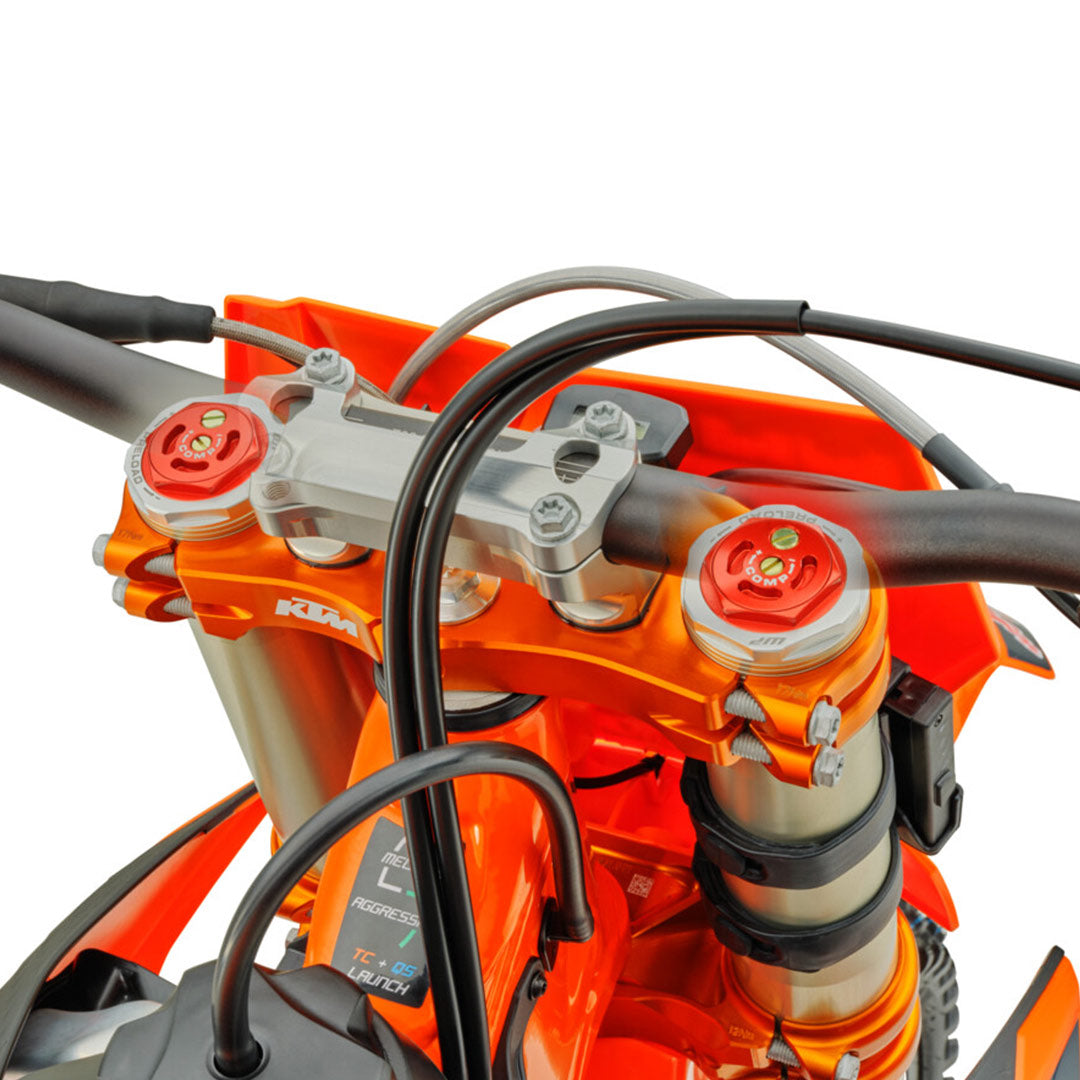

• Factory triple clamps anodized in orange deliver perfect fork clamping for enhanced suspension performance and adjust between 20 or 22 mm offset.
• KTM Factory wheels featuring DID DirtStar rims laced to fully CNC-machined orange anodized hubs.
• Factory holeshot device in the fork guards, carbon composite skid plate, gray ODI lock-on grips, and orange rear aluminum sprocket provide race-ready touches.
• High-tech Brembo brakes combined with a semi-floating front disc, including a carbon composite brake disc guard, offer incredible braking power and feel.
• Map select switch quickly sets Traction Control, Launch Control, Quickshifter, and selects between two maps.
• Selectable Quickshifter function allows clutchless upshifts from 2nd to 5th gear.
• Hydraulic Brembo clutch system offers highly controllable modulation and light operation.

SPECIFICATIONS

Engine Type: Single Cylinder, 4-Stroke

Displacement: 449.9 cc

Bore / Stroke: 95 / 63.4 mm

Compression Ratio: 13.1:1

Starter/Battery: Electric Starter / 12.8V, 2Ah

Transmission: 5 Gears

Fuel System: Keihin EFI, 44 mm Throttle Body

Lubrication: Pressure lubrication with 2 oil pumps

Primary Ratio: 29:72

Final Drive: 13:51

Cooling: Liquid Cooling

Clutch: Wet Multi-Disc DDS-Clutch, Brembo Hydraulics

Ignition: Keihin EMS

Frame: Central Double-Cradle Type 25CrMo4 Steel

Sub Frame: Aluminum reinforced Polyamide

Handlebar: Neken, Aluminum Ø 28/22 mm

Front Suspension: WP XACT PRO 7548, Ø 48 mm

Rear Suspension: WP XACT PRO 8950 with Linkage

Suspension Travel Front/Rear: 300 / 300 mm; 11.81 / 11.81 in

Front/Rear Brakes: Disc Brake 260 mm / 220 mm

Front/Rear Rims: 1.60 x 21'' / 2.15 x 19'' DID DirtStar

Front/Rear Tires: 80/100-21” / 120/80-19” Dunlop MX34

Chain: 520 Gold

Silencer: Akrapovič Slip-On Line

Steering Head Angle: 26.1º

Triple Clamp Offset: 22 mm

Wheelbase: 1,493 mm ± 10 mm / 58.7 ± 0.4 in

Ground Clearance: 343 mm / 13.5 in

Seat Height: 958 mm / 37.7 in

Tank Capacity, Approx: 7.2 L / 1.90 gal

Weight (without fuel), Approx: 106.4 kg / 234.5 lb
