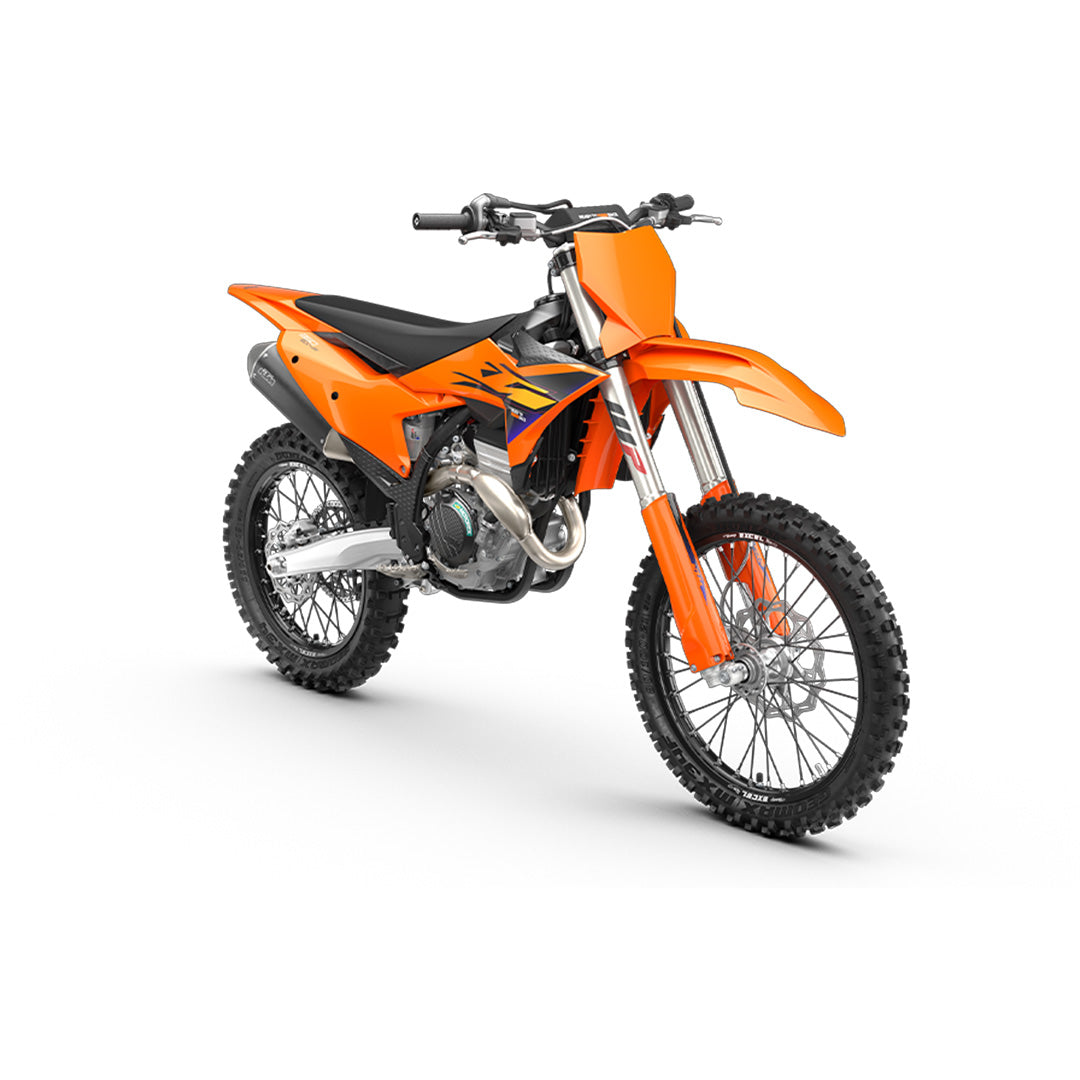

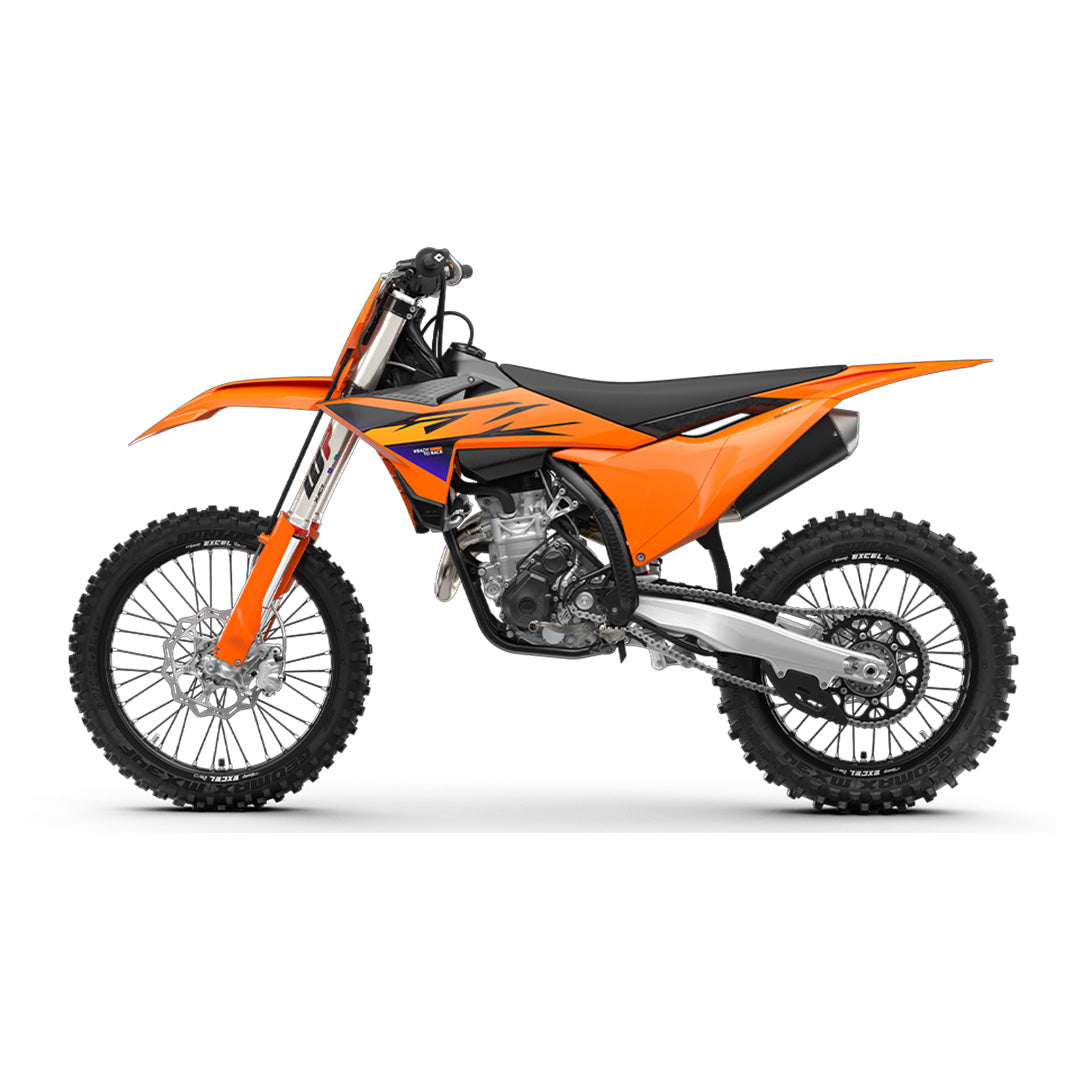

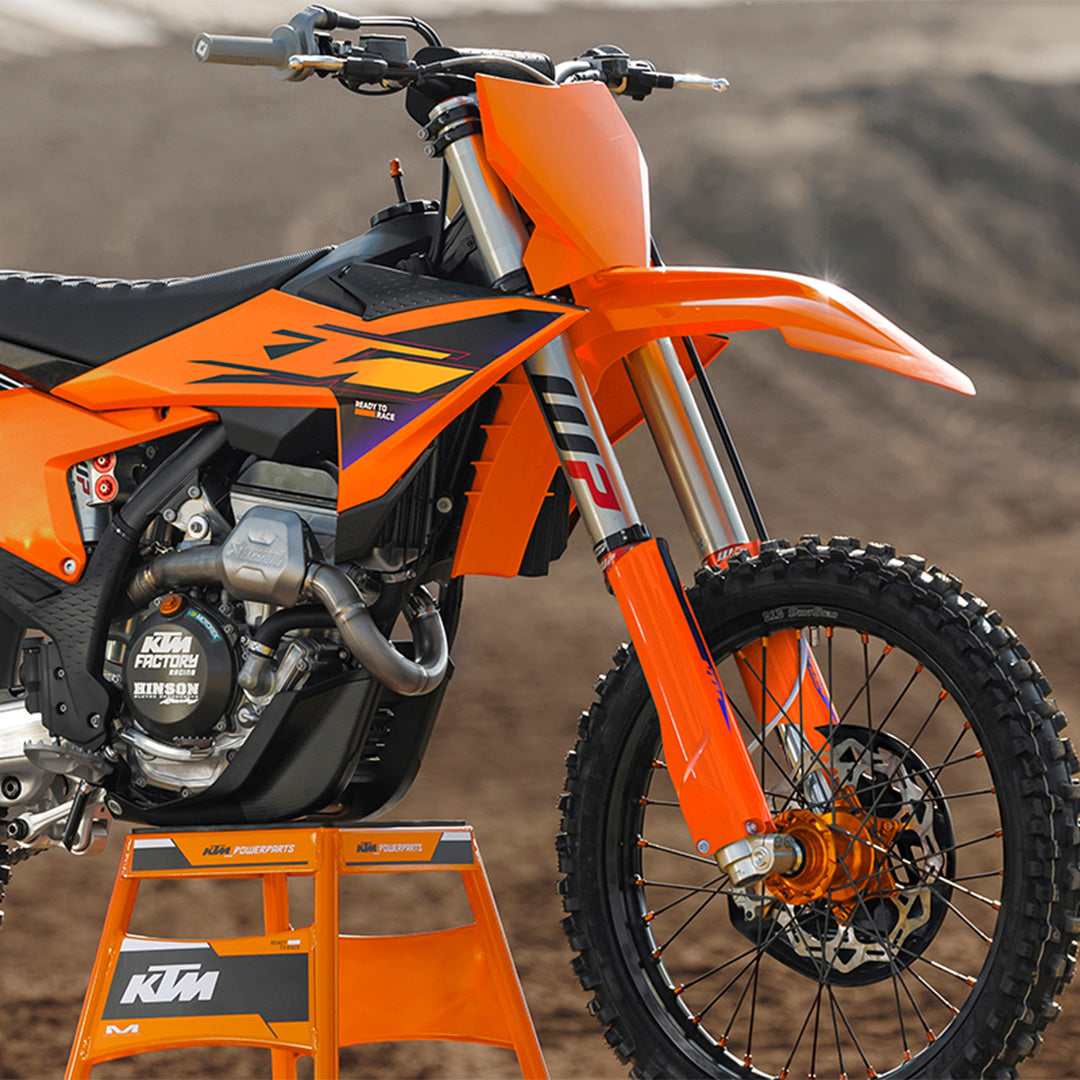

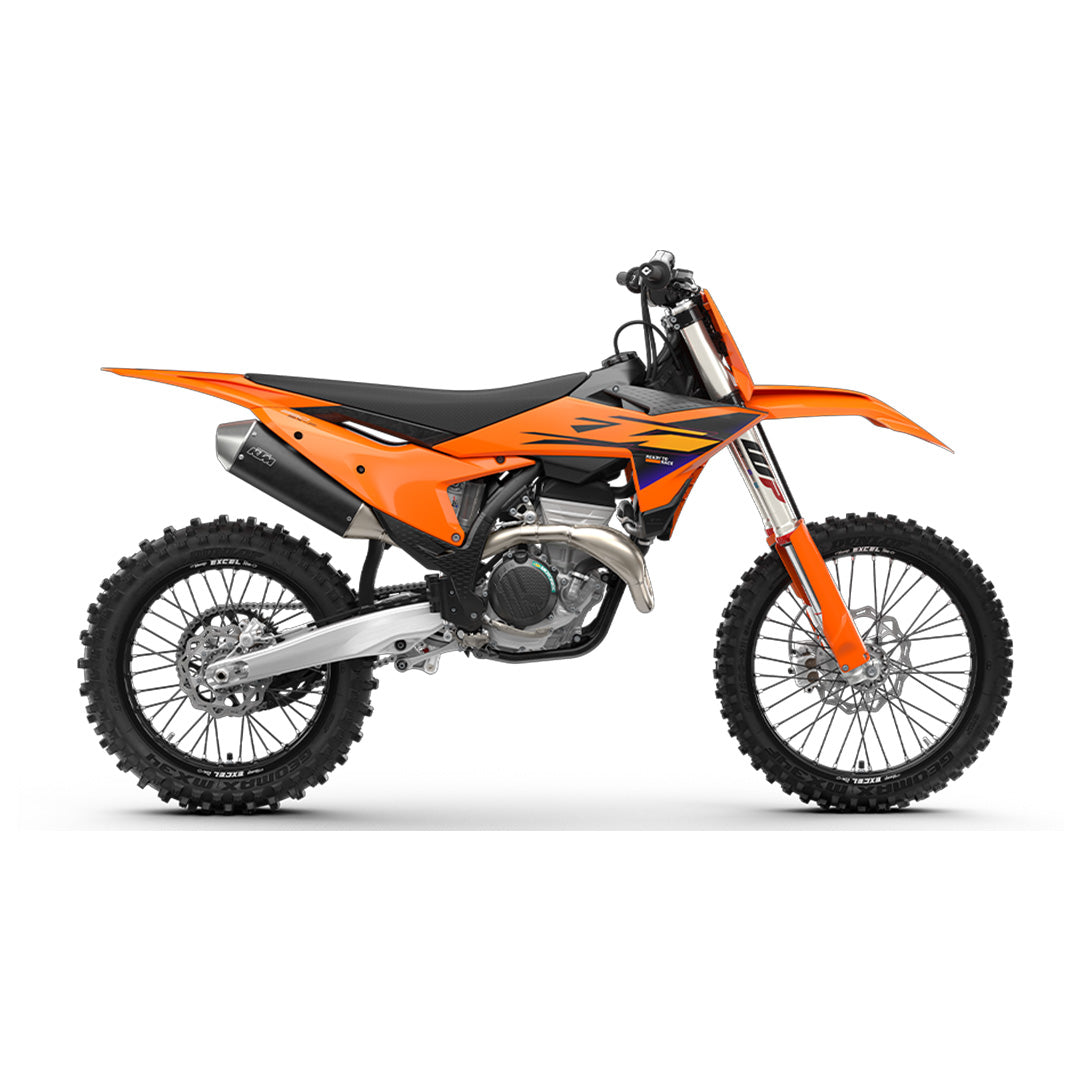

2026 KTM 350 SX-F

With over a decade of racing - and winning - under its seat, the KTM 350 SX-F has long shed its underdog label and proven itself a worthy adversary. Delivering usable power throughout the rev range, unwavering stability at speed, and true championship-winning credentials, the KTM 350 SX-F is once again READY TO RACE.

Specifications

Engine

• Design: 1-cylinder, 4-stroke engine

• Displacement: 349.7 cm³

• Transmission: 5-speed

• Fuel System: Keihin EFI, 44 mm throttle body

• EMS: Keihin EMS

• Primary Drive: 24:72

• Clutch Primary Drive Teeth: 72

• Clutch: Wet multi-disc DS clutch with Brembo hydraulics

• Cylinder: Single cylinder

• Stroke: 4-stroke

Chassis

• Frame Design: Central double-cradle-type 25CrMo4 steel

• Rear Subframe: Aluminum-reinforced polyamide

• Front Brake: Disc brake

• Rear Brake: Disc brake

• Chain: 520, non-sealed

Suspension

• Front Suspension: WP XACT-USD (AER), Ø 48 mm

• Rear Suspension: WP XACT Monoshock with linkage

• Front Suspension Travel: 310 mm

• Rear Suspension Travel: 300 mm

• Front Suspension Adjustment: Compression (high & low speed), rebound

• Rear Suspension Adjustment: Compression & rebound adjustable

Dimensions

• Seat Height: 958 mm

• Ground Clearance: 343 mm

• Tank Capacity: 7.2 L (approx.)
