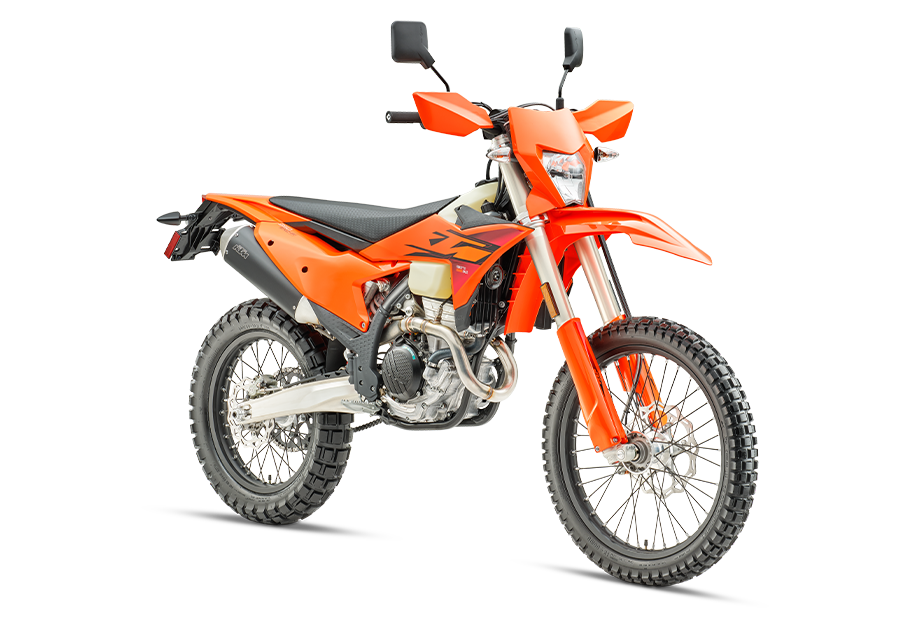

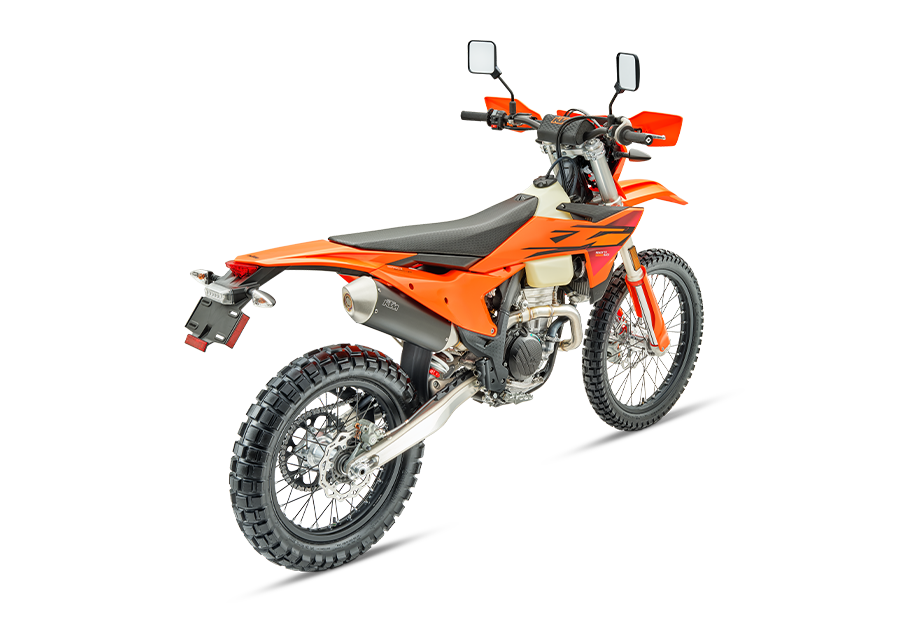

KTM 350 EXC-F – Specifications
Engine
- 1-cylinder, 4-stroke engine
- Displacement: 349.7 cm³
- Transmission: 6-speed
- Fuel-mixture generation: Keihin EFI, 42 mm throttle body
- EMS: Keihin EMS
- Primary drive: 24:72
- Clutch primary drive teeth: 72
- Clutch: Wet, DDS multi-disc clutch, Brembo hydraulics
- Engine stroke: 4-Stroke
- Engine cylinder: Single cylinder
Chassis
- Frame: Central double-cradle-type 25CrMo4 steel
- Rear subframe: Aluminum-reinforced polyamide
- Front brake: Disc brake
- Rear brake: Disc brake
- Chain: 520 X-Ring
Suspension
- Front suspension: WP XACT-USD Ø 48 mm (compression & rebound adjustable)
- Rear suspension: WP XPLOR shock absorber with PDS + preload adjuster
- Suspension travel (front): 300 mm
- Suspension travel (rear): 310 mm
Dimensions
- Seat height: 963 mm
- Ground clearance: 347 mm
- Tank capacity: 8.2 L (approx.)
- Weight (without fuel): 112.8 kg
