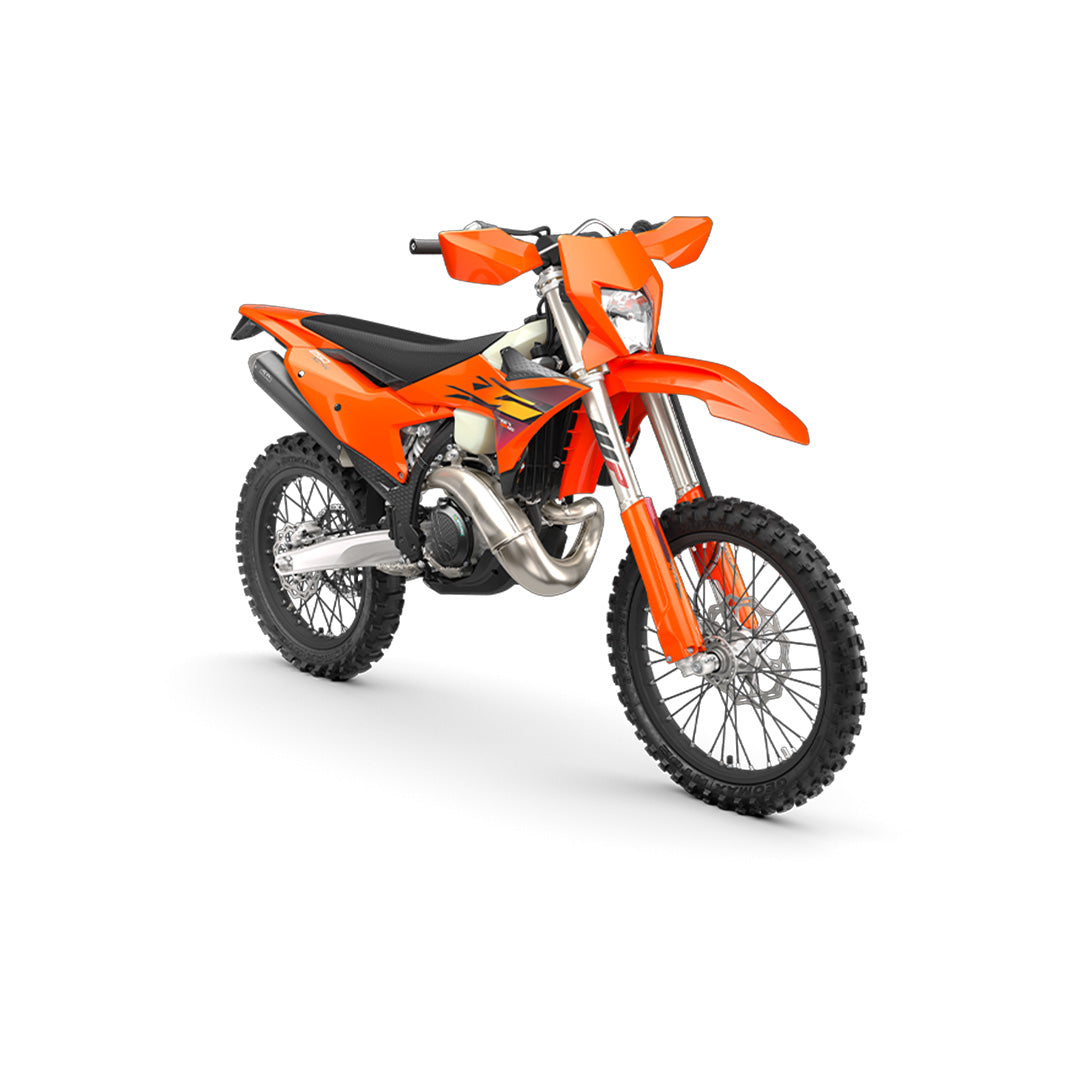

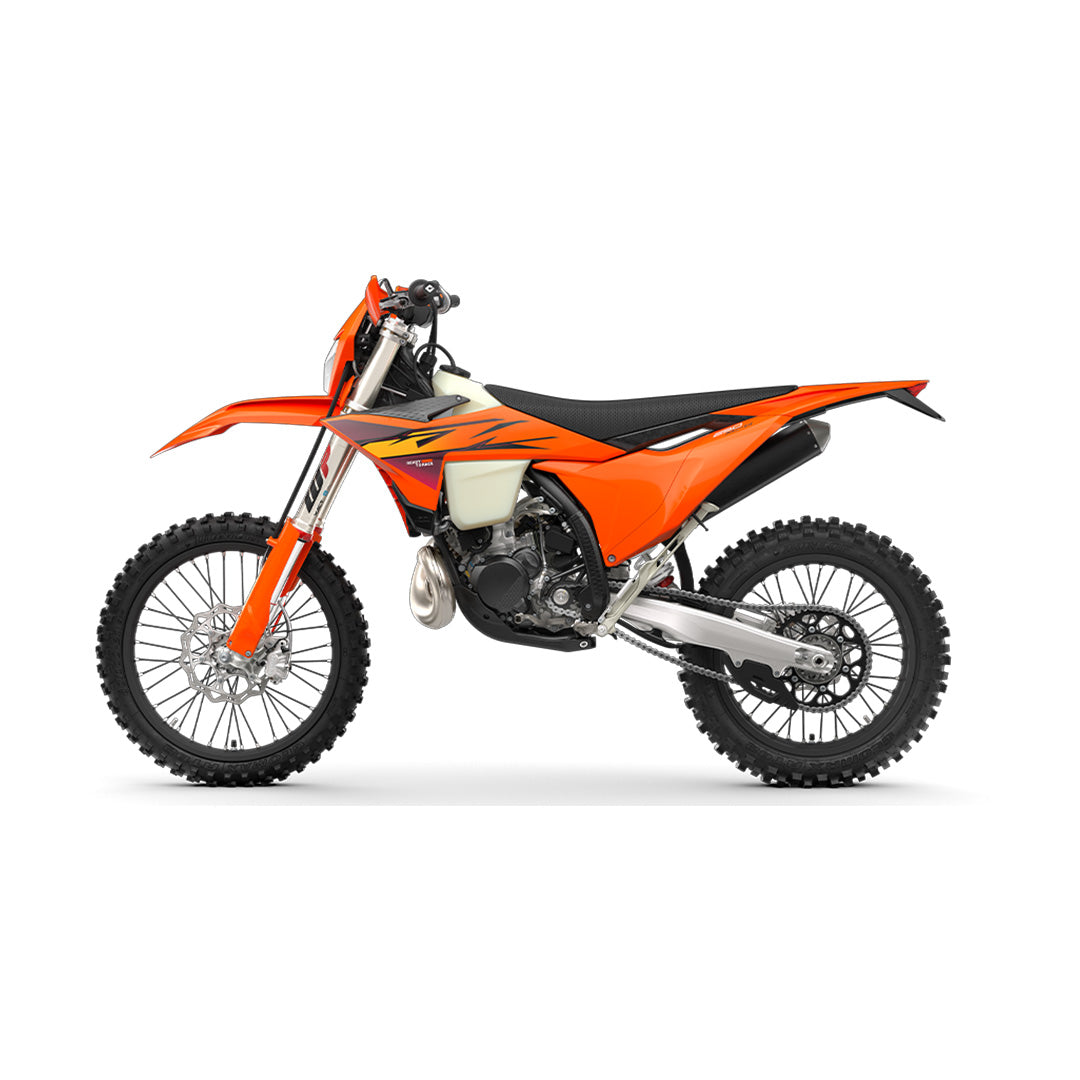

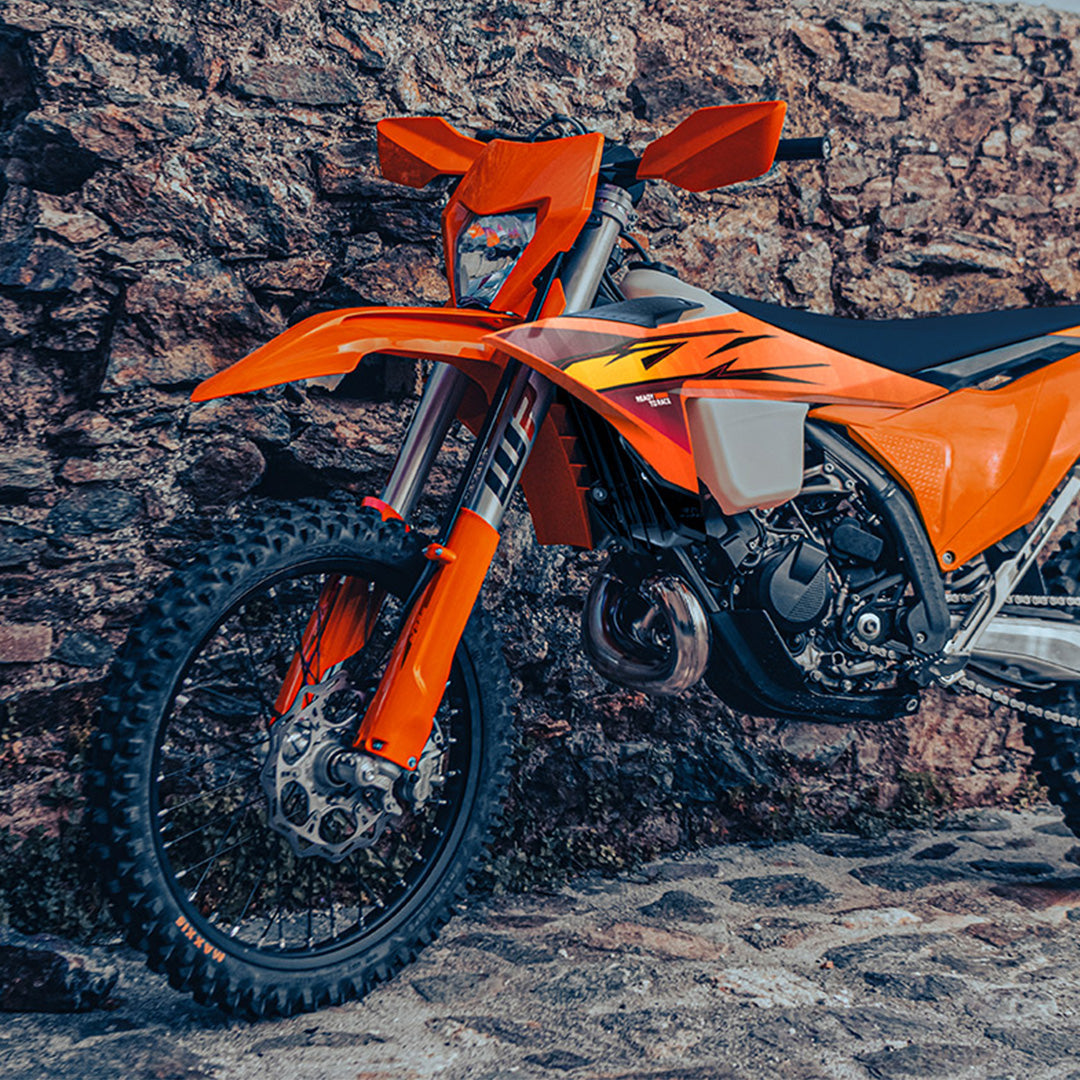

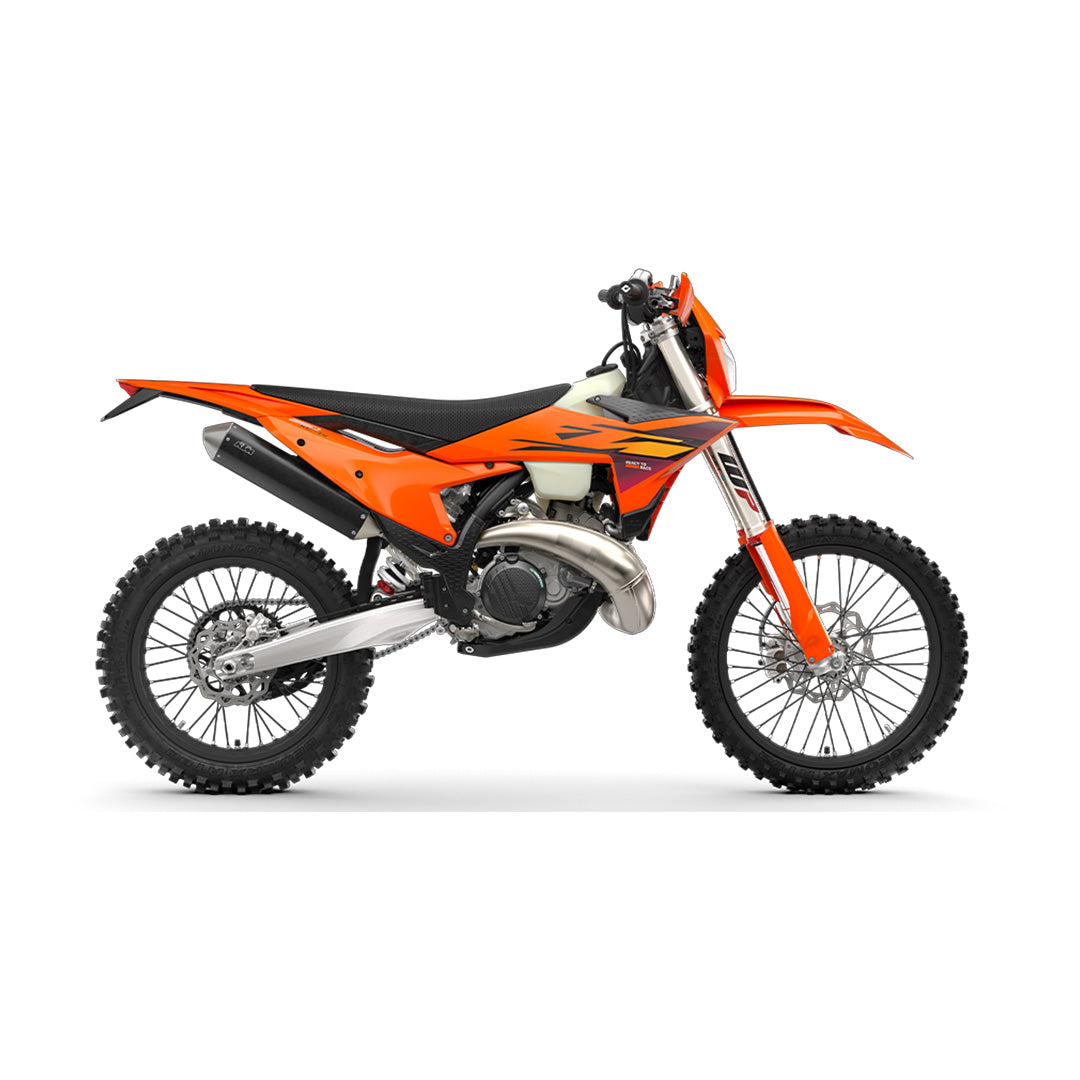

2026 KTM 250 XC-W

The KTM 250 XC-W presents enduro riders with the ultimate combination of power and rideability, setting the benchmark in the highly contested E1 class. Thanks to its groundbreaking frame, updated closed-cartridge suspension, and epic TBI technology, it remains an extreme machine that continues to reach new heights. How far you push, though, is up to you.

Specifications

Engine

• Design: 1-cylinder, 2-stroke engine

• Displacement: 249 cm³

• Transmission: 6-speed

• Fuel System: Keihin EFI, 39 mm throttle body

• EMS: Vitesco Technologies EMS

• Primary Drive: 26:72

• Clutch Primary Drive Teeth: 72

• Clutch: Wet DDS multi-disc clutch with Brembo hydraulics

• Cylinder: Single cylinder

• Stroke: 2-stroke

Chassis

• Frame: Central double-cradle-type 25CrMo4 steel

• Rear Subframe: Aluminum-reinforced polyamide

• Front Brake: Disc brake

• Rear Brake: Disc brake

• Chain: 520 X-Ring

Suspension

• Front: WP XACT-USD Ø 48 mm

• Rear: WP XPLOR shock absorber with PDS

• Front Travel: 300 mm

• Rear Travel: 310 mm

• Front Adjustment: Compression & rebound adjustable

• Rear Adjustment: Compression & rebound adjustable

• Rear Addition: Preload adjuster

Dimensions

• Seat Height: 963 mm

• Ground Clearance: 347 mm

• Tank Capacity: 9 L (approx.)
