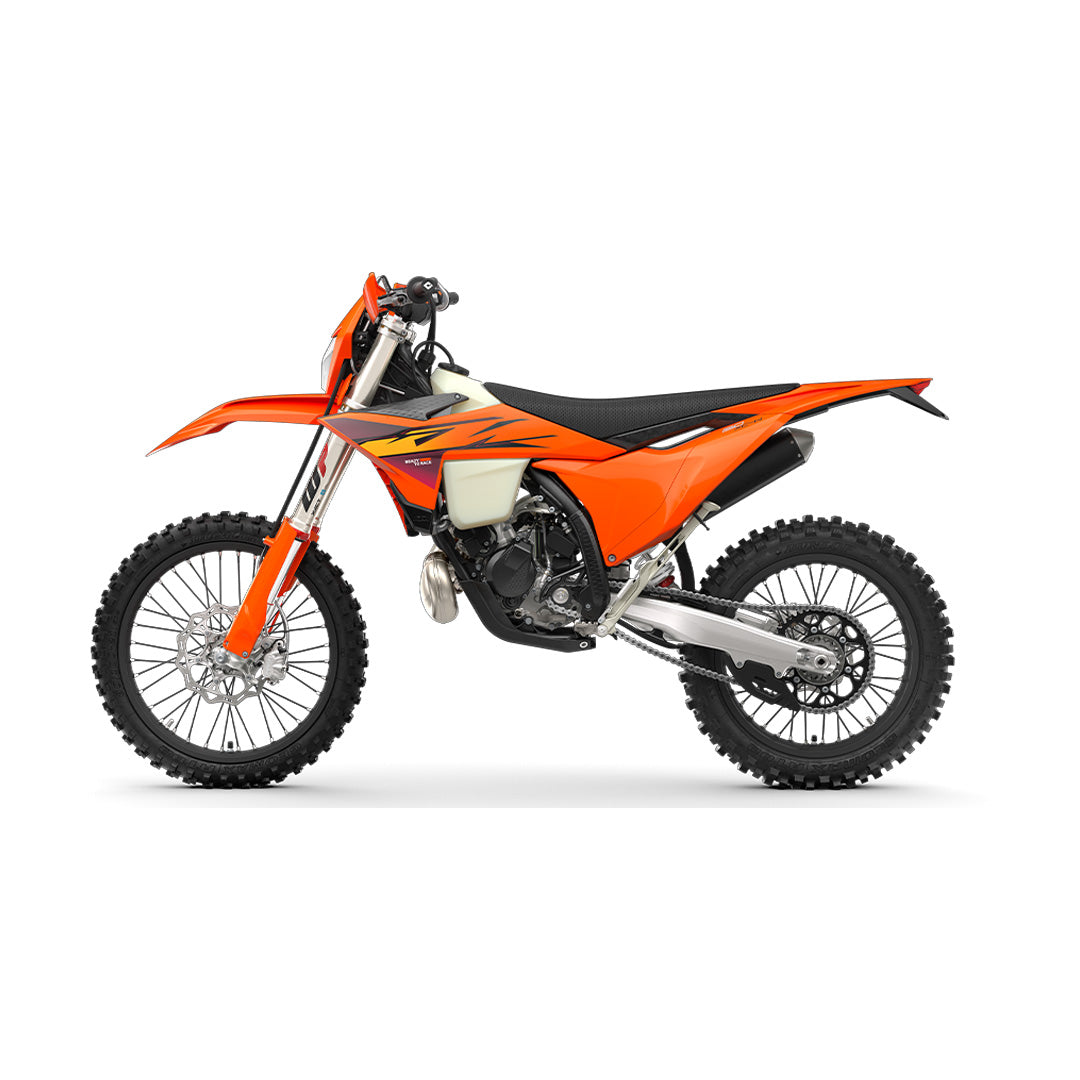

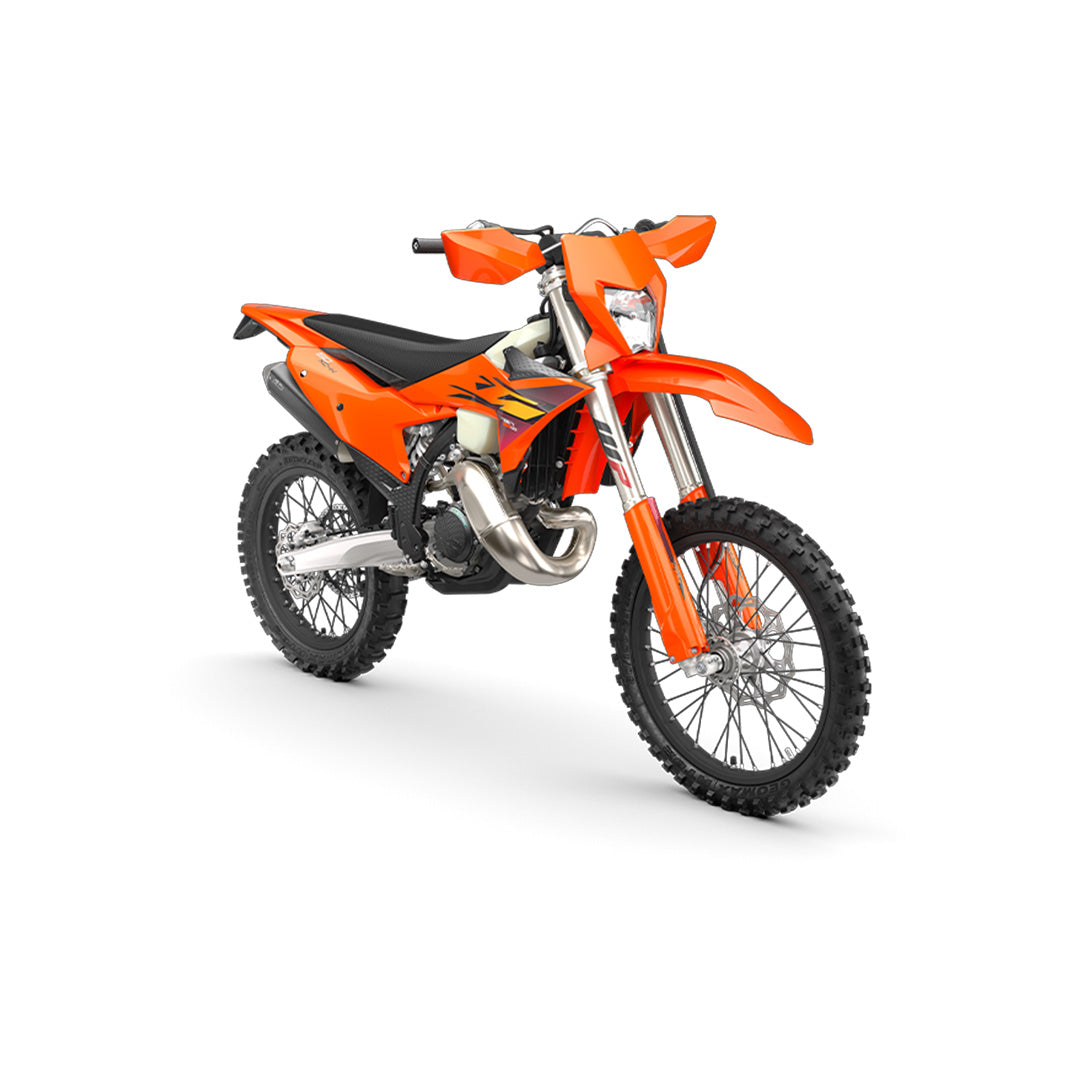

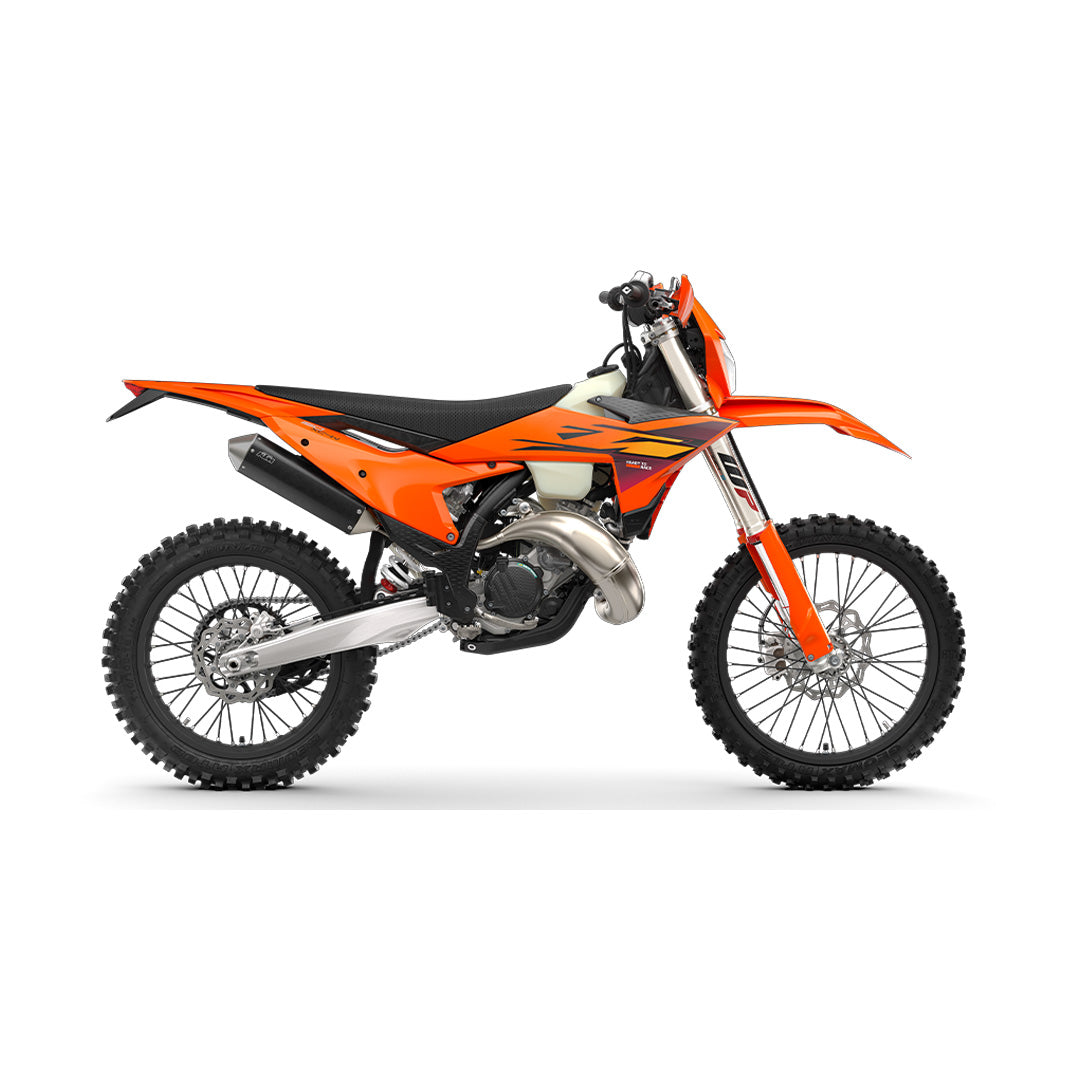

2026 KTM 150 XC-W

The KTM 150 XC-W has earned its place on the hallowed XC-W rostrum. Featuring the same level of equipment as the rest of the KTM Enduro range, it packs enough punch to hang with the big boys while dominating them in the technical bits. With a fiery motor, lightning-fast response, and agile handling, the KTM 150 XC-W remains a worthy competitor on any enduro stage.

Specifications

Engine

• Design: 1-cylinder, 2-stroke engine

• Displacement: 143.99 cm³

• Fuel System: Keihin EFI, 39 mm throttle body

• EMS: Vitesco Technologies EMS

• Primary Drive: 23:73

• Clutch Primary Drive Teeth: 73

• Clutch: DS multi-disc wet clutch, Brembo hydraulics

• Cylinder: Single cylinder

• Stroke: 2-stroke

Chassis

• Frame: Central double-cradle-type 25CrMo4 steel

• Rear Subframe: Aluminum-reinforced polyamide

• Front Brake: Disc brake

• Rear Brake: Disc brake

• Chain: 520 X-Ring

Suspension

• Front: WP XACT-USD Ø 48 mm

• Rear: WP XPLOR shock absorber with PDS

• Front Travel: 300 mm

• Rear Travel: 310 mm

• Front Adjustment: Compression & rebound adjustable

• Rear Adjustment: Compression & rebound adjustable

• Rear Addition: Preload adjuster

Dimensions

• Seat Height: 963 mm

• Ground Clearance: 347 mm

• Tank Capacity: 9 L (approx.)
