After 18 months of dedicated innovation, the Surron R&D team meticulously crafted and perfected hundreds of prototypes, achieving an exceptional lightweight design of just 83.8lbs. Every gram and millimeter reflects our commitment to precision and performance—truly "lightweight excellence in every detail, brilliance in every feature."
Battery swaps are now effortless, taking just 10 seconds thanks to the revolutionary coverless battery design and intuitive 'S-S' locking mechanism. This innovation fuels your adventures with endless inspiration, empowering every ride.
The cutting-edge power system features high-performance 21700 batteries packed with energy, advanced MTPA/MTPV controllers, and an integrated magnetic cylinder longitudinal motor. Paired with a newly designed angular reducer, it delivers smooth and direct power transmission. Striking the perfect balance between powerful performance and refined control, the system is safe, reliable, and built for effortless maintenance.
Specifications

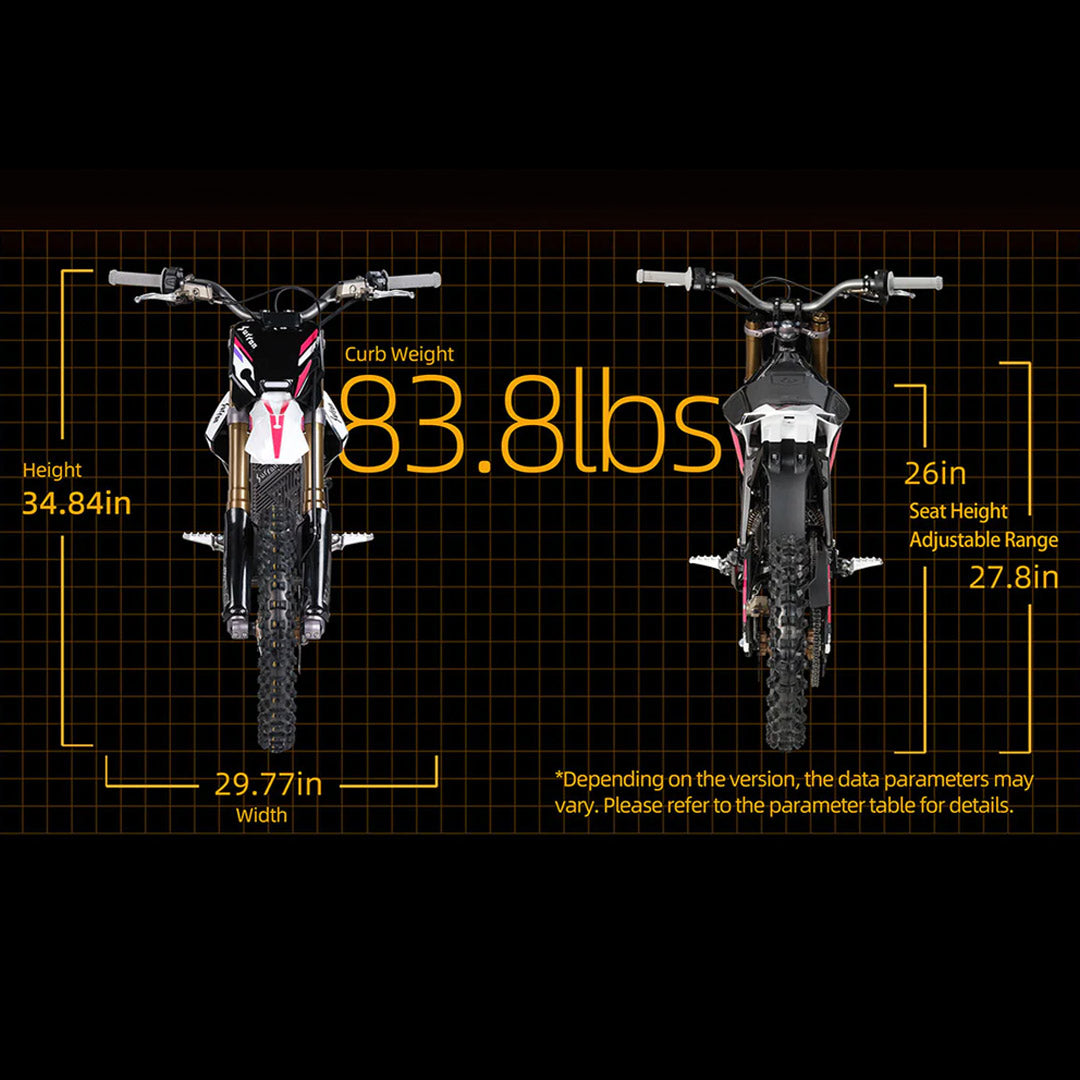

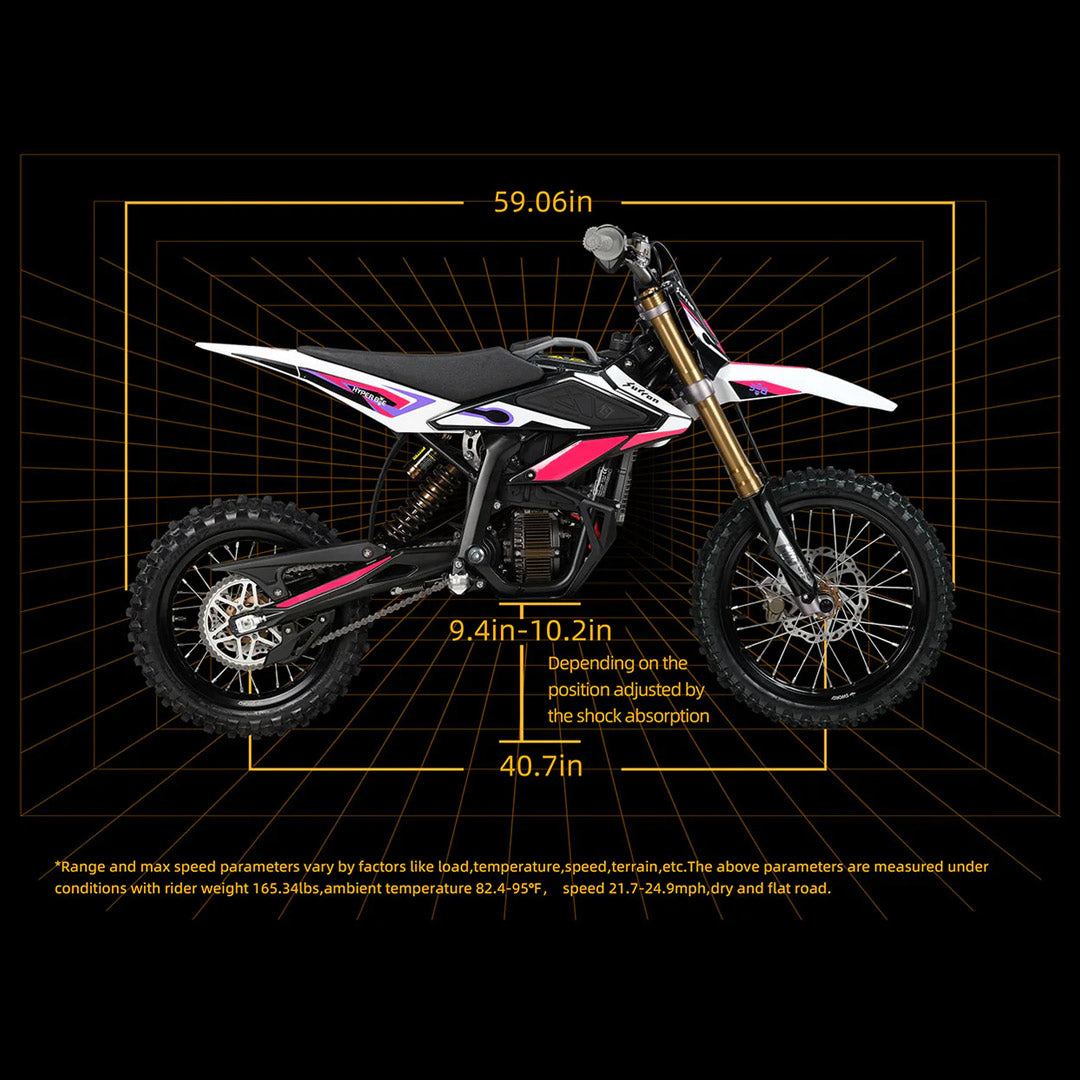

Dimension: 1500mm x 680mm x 885mm
Seat Height: 685mm (adjustable range 665mm-705mm)
Curb Weight: 39kg
Ground Clearance: 240mm-260mm (Depending on the position adjusted by the shock absorption)
Max. Torque (on wheel): 159N.m

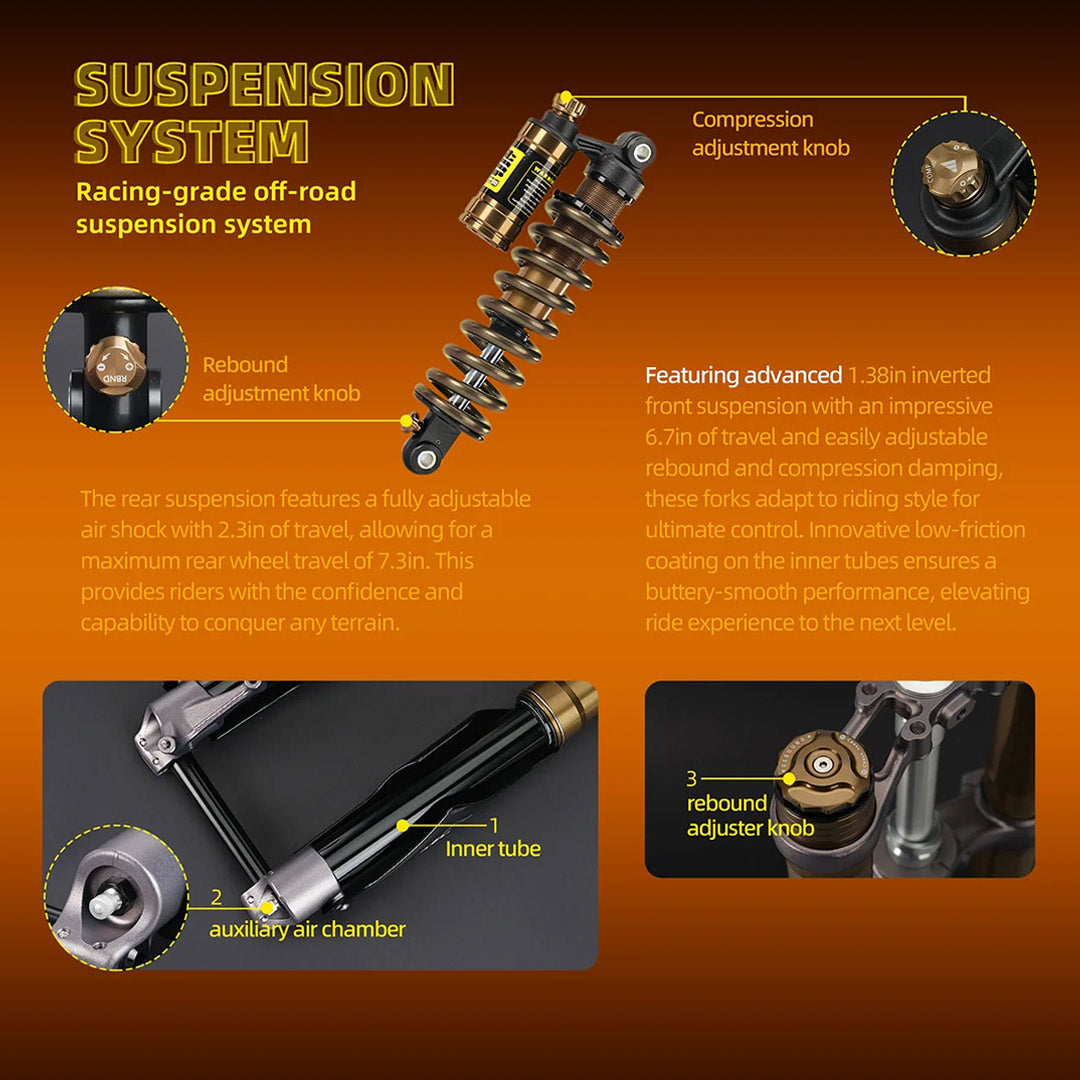

Front Suspension: 35mm inverted dual shoulder – oil spring type – adjustable rebound damping – adjustable compression damping pressure – total length 625mm, stroke 170mm
Rear Suspension: Airbag type adjustable 230mm single rear shock 60mm/185mm
Wheel Base: 1035mm
Carrying Capacity: 65kg
Power System
Motor & Controller: PMSM, MTPA/MTPV Controller
Maximum Power (Motor): 5 kW
Riding Modes: 1 / 2 / 3 / Reverse (R)
Assistance Functions: Sliding energy recovery with three adjustable levels
Battery Type: 50.4V / 25Ah Lithium-ion Battery Pack
Throttle Curve: Three-stage Adjustable
Drive System: Primary gear drive + secondary chain drive
Charging System: Portable charger, magnetic charging, fully sealed
Performance
-
Top Speed: 55 km/h
-
Range (WMTC Road): 50 km @ 40 km/h
-
Charge Time (20%–80%): 2.5 hours
Frame & Tire
Tire Type:
- Front: 60/100-14 Off-Road
- Rear: 70/100-12 Off-Road
Frame Material:
- Forged Aluminium Alloy
Assistant Functions
Remote Control Functions:
- Intercom Function
- Power Mode Setting
Safety Functions:
- Magnetic Emergency Switch
- Remote Emergency Power Off
- Tilt Protection
Sensor:
- Gyroscope Sensor (Can be turned off in feature setting mode)
