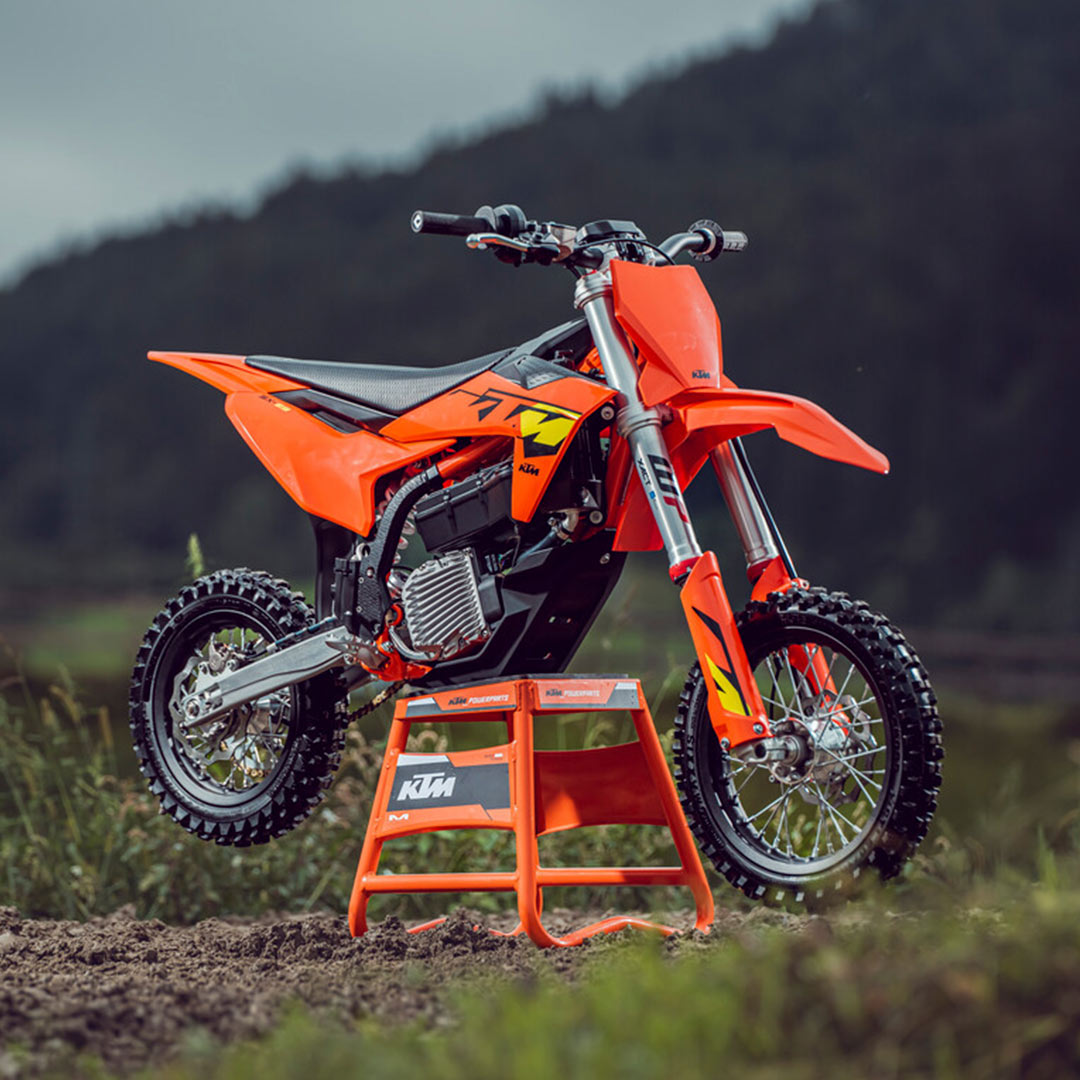

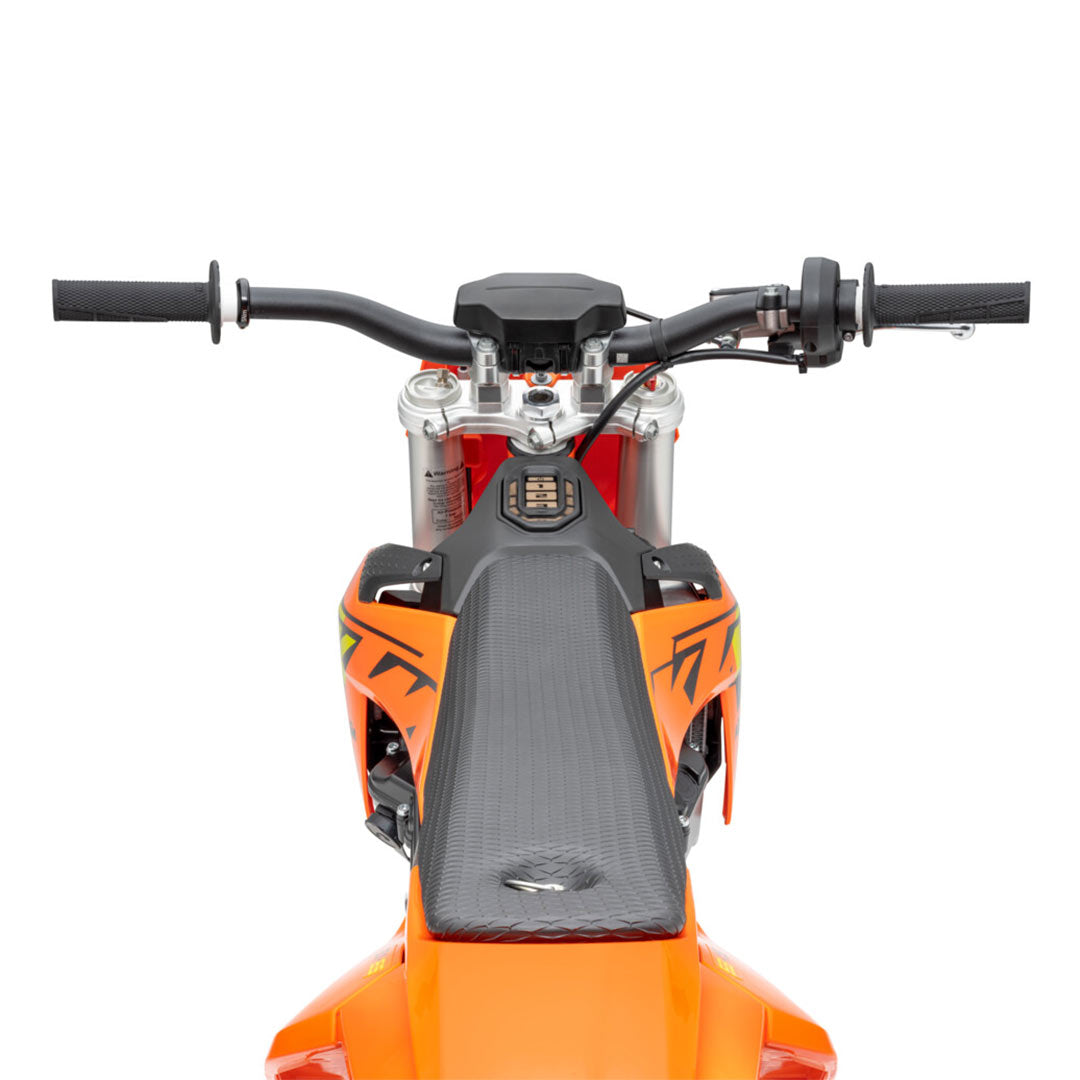

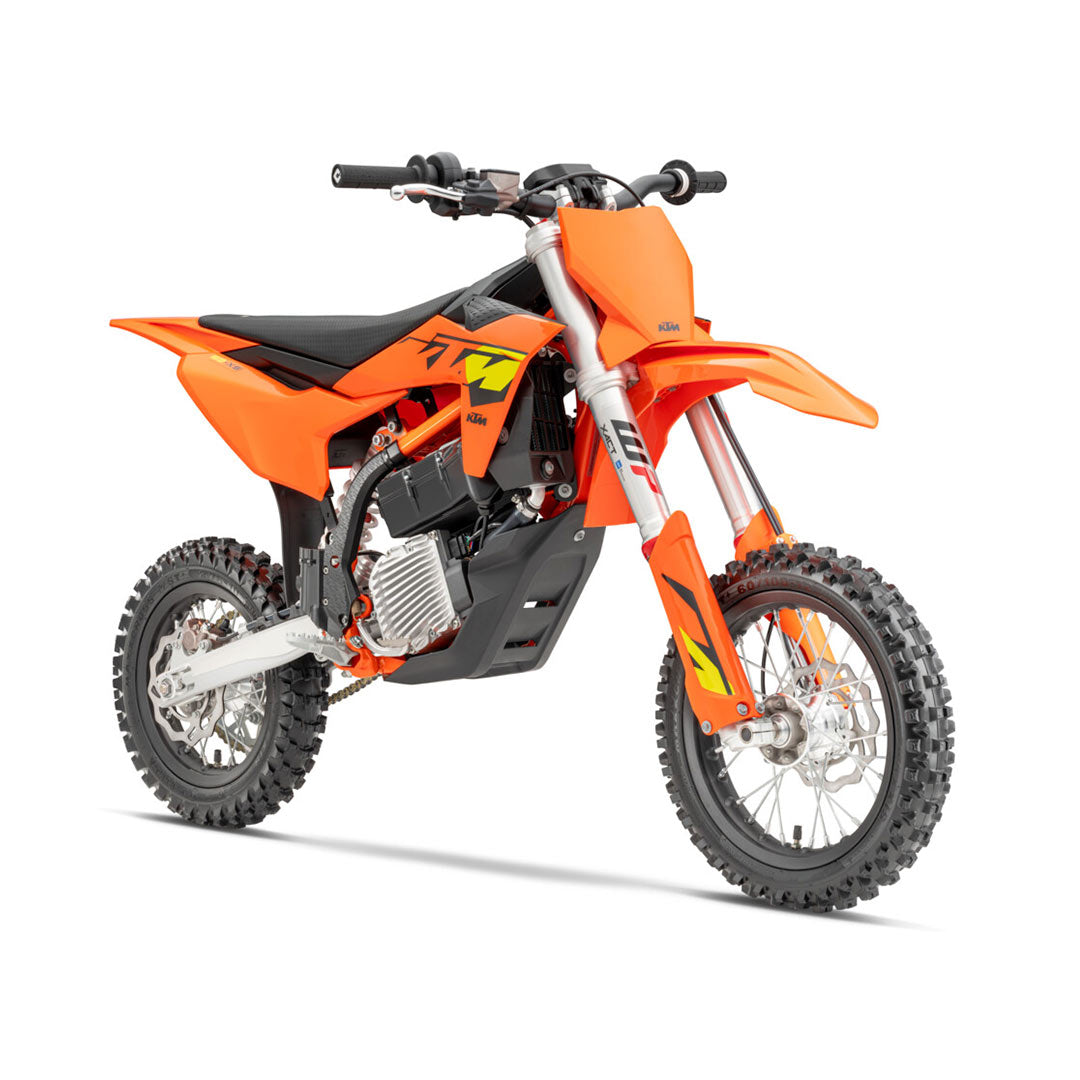

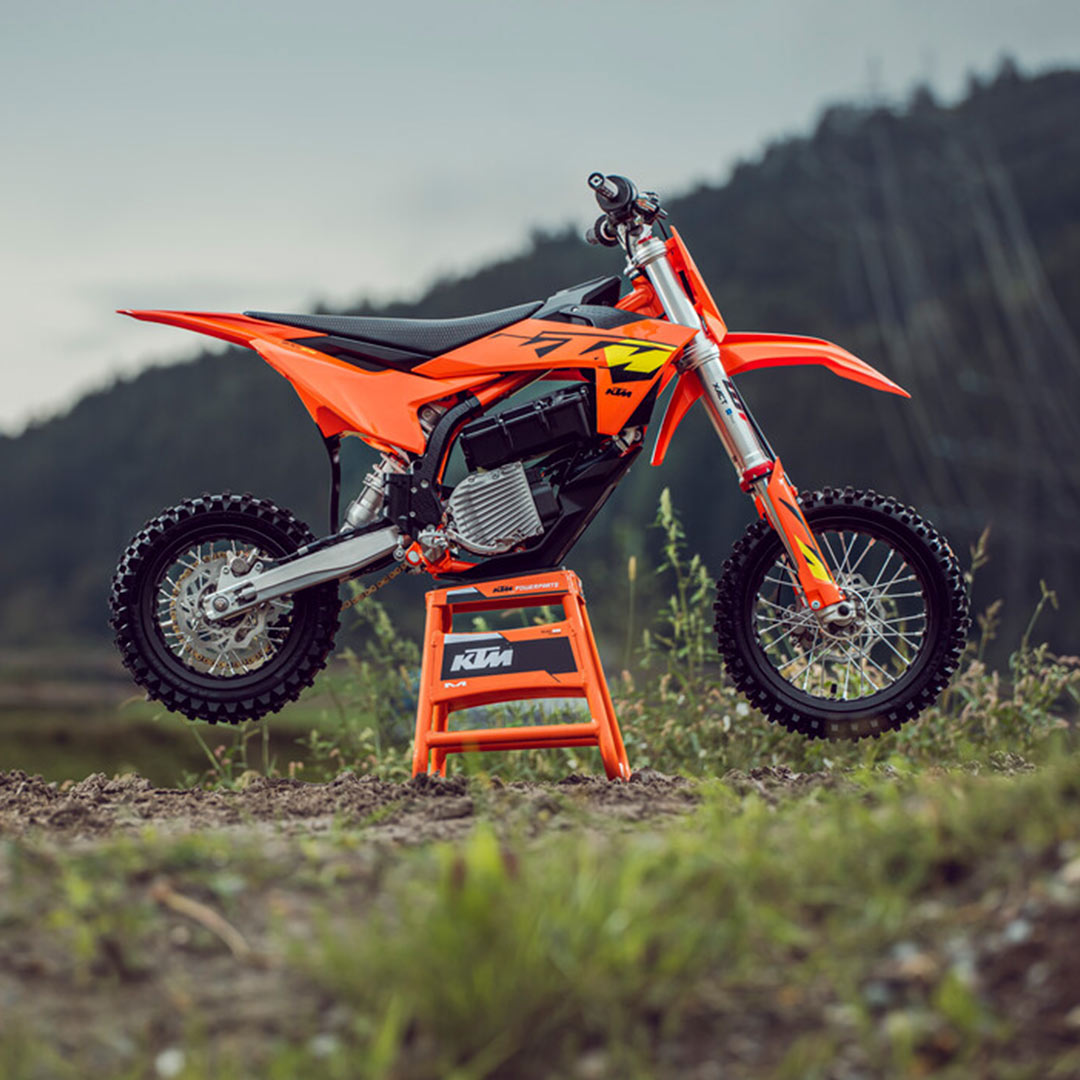

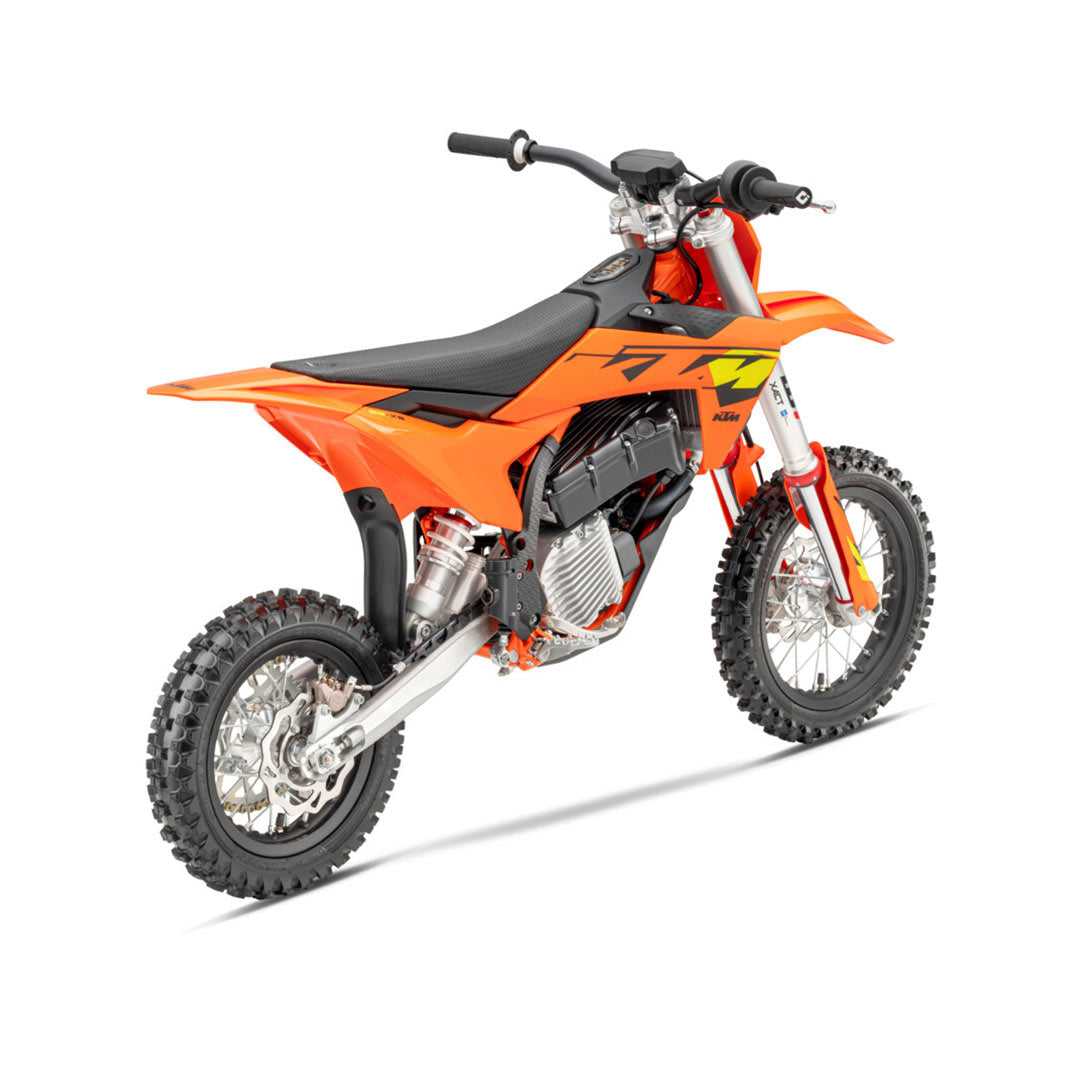

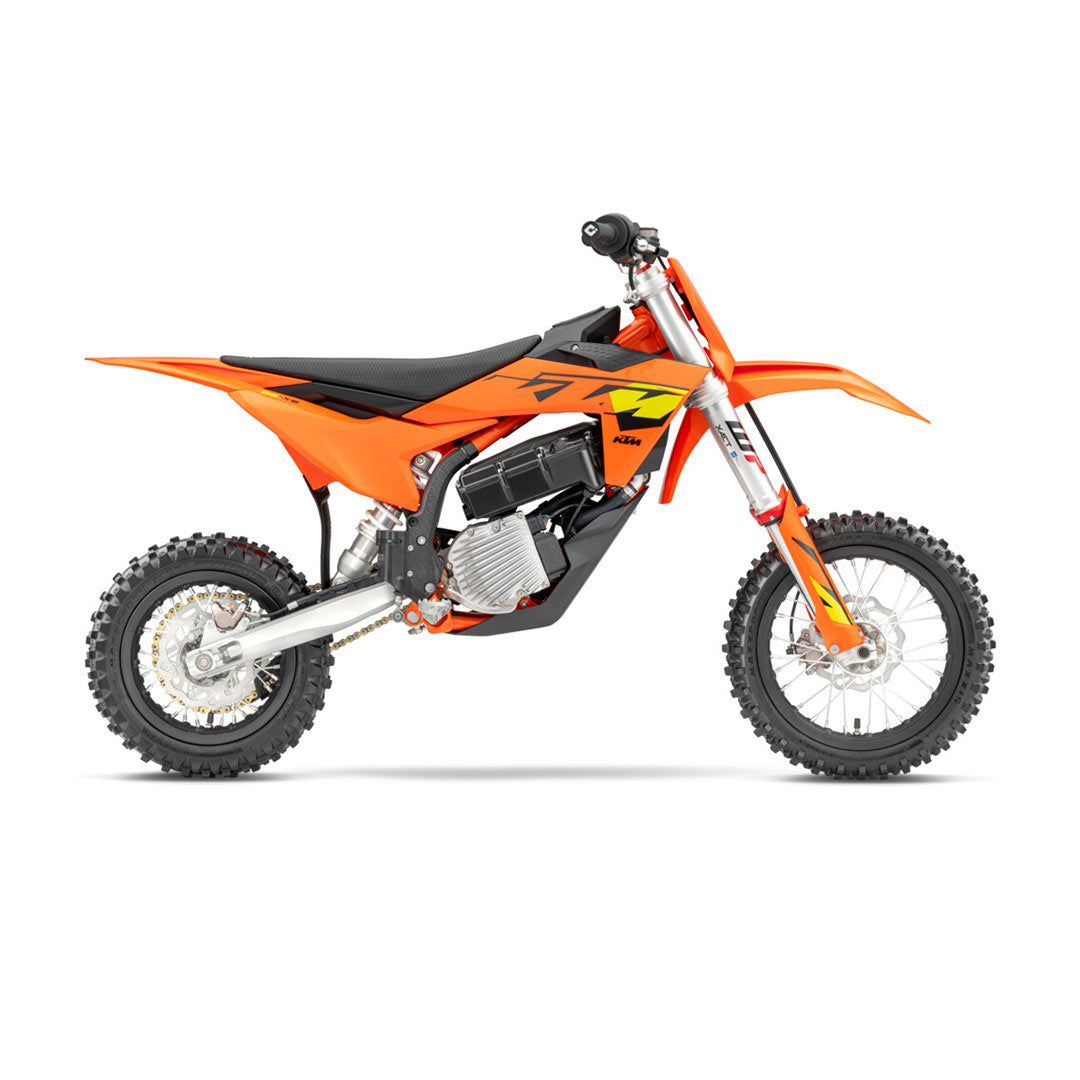

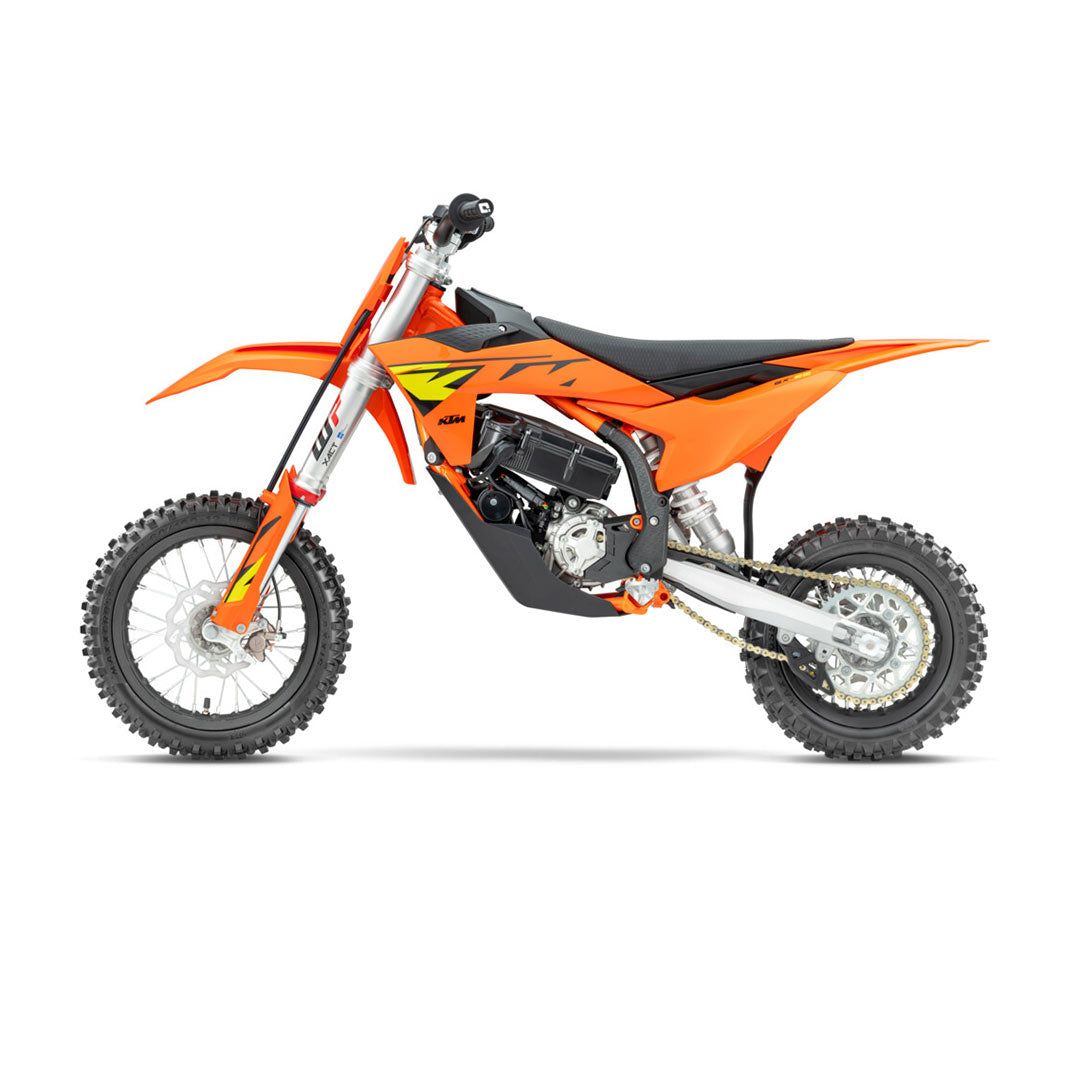

2025 KTM SX-E 5
The KTM SX-E 5 represents a new generation of advanced all-electric mini-cross that will entice and empower the next generation of KTM motorcyclist. Aimed at both beginner and competitive junior racers and with benchmark adjustable ergonomics - allowing the bike to 'grow' with the user - the KTM SX-E 5 is a high-quality and prime real-world READY TO RACE alternative to the gas-powered 50 cc engine. The KTM SX-E 5 is not a toy: this is a bona fide platform for juniors that are finding all the joys of having a throttle in their right hand without the complications of emissions, complex maintenance, and noise. Whether riding, practicing or racing, the fresh KTM SX-E 5 is both everything they ever wanted and everything they'll ever need. This motorcycle is designed, developed, and produced in Austria.
Engine
- Rated output 2 kW / 3,200 rpm
- Torque 13.8 Nm
- Traction battery Lithium-Ion KTM PowerPack
- Battery capacity 21 Ah
- Charger line voltage 80-240 V/50-60 Hz
- Charging input Quick charging 5 A @ 230 V (AC)
- Charging power 900 W
- Charging time 100% 70 min.
- Charging time 80% 45 min.
- Cooling Liquid cooled
- Energy content 0.907 kWh
- Electric motor 48 V - BLDC motor with outer rotor
- Max. motor speed 6000 rpm
- Max. power 5 kW / 3,900 rpm
Chassis
- Weight (without fuel) 40.5 kg
- Wheelbase 1028 mm
- Front brake disc diameter 160 mm
- Rear brake disc diameter 160 mm
- Front brake Disc brake
- Rear brake Disc brake
- Chain 415, Non-sealed
- Frame design Chrome-molybdenum steel central-tube frame
- Front suspension XACT 35 WP Upside-Down fork, Ø 35 mm
- Ground clearance 259 mm
- Handlebar Tapered aluminum Ø 28/22/18 mm
- Rear suspension XACT WP mono shock
- Seat height 682 mm
- Steering head angle 66 °
- Rear subframe design Glass fiber reinforced plastic
- Suspension travel (front) 205 mm
- Suspension travel (rear) 193 mm
