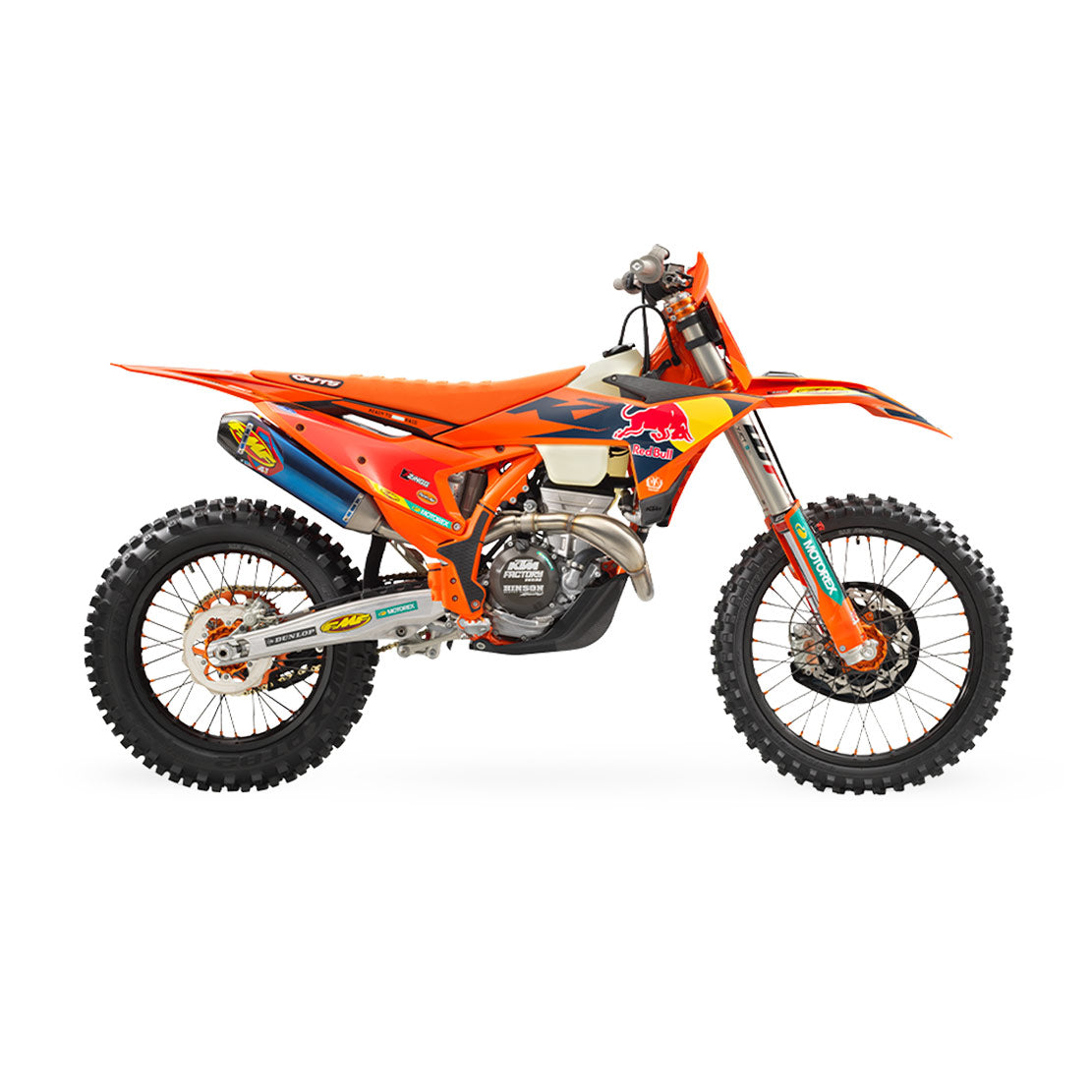

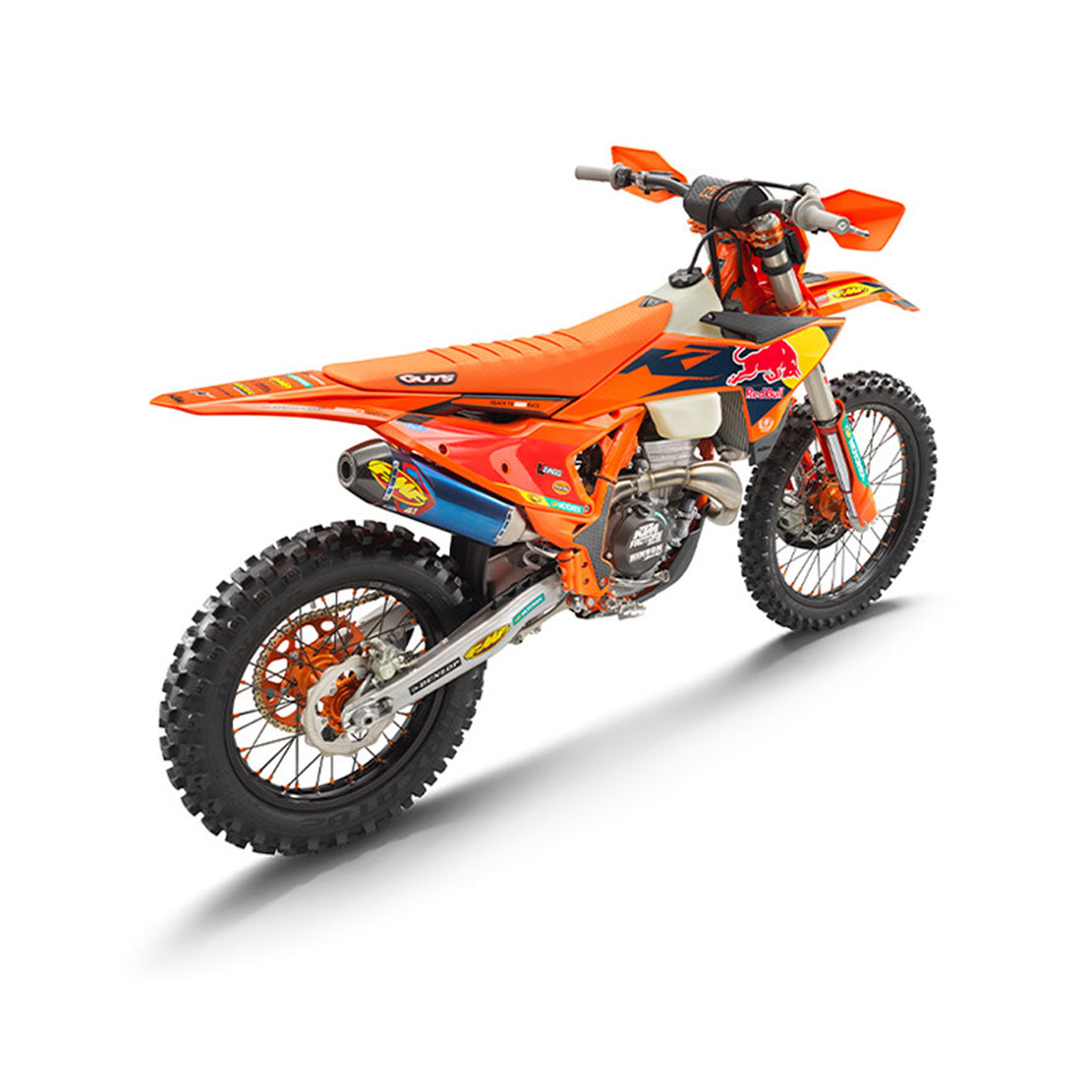

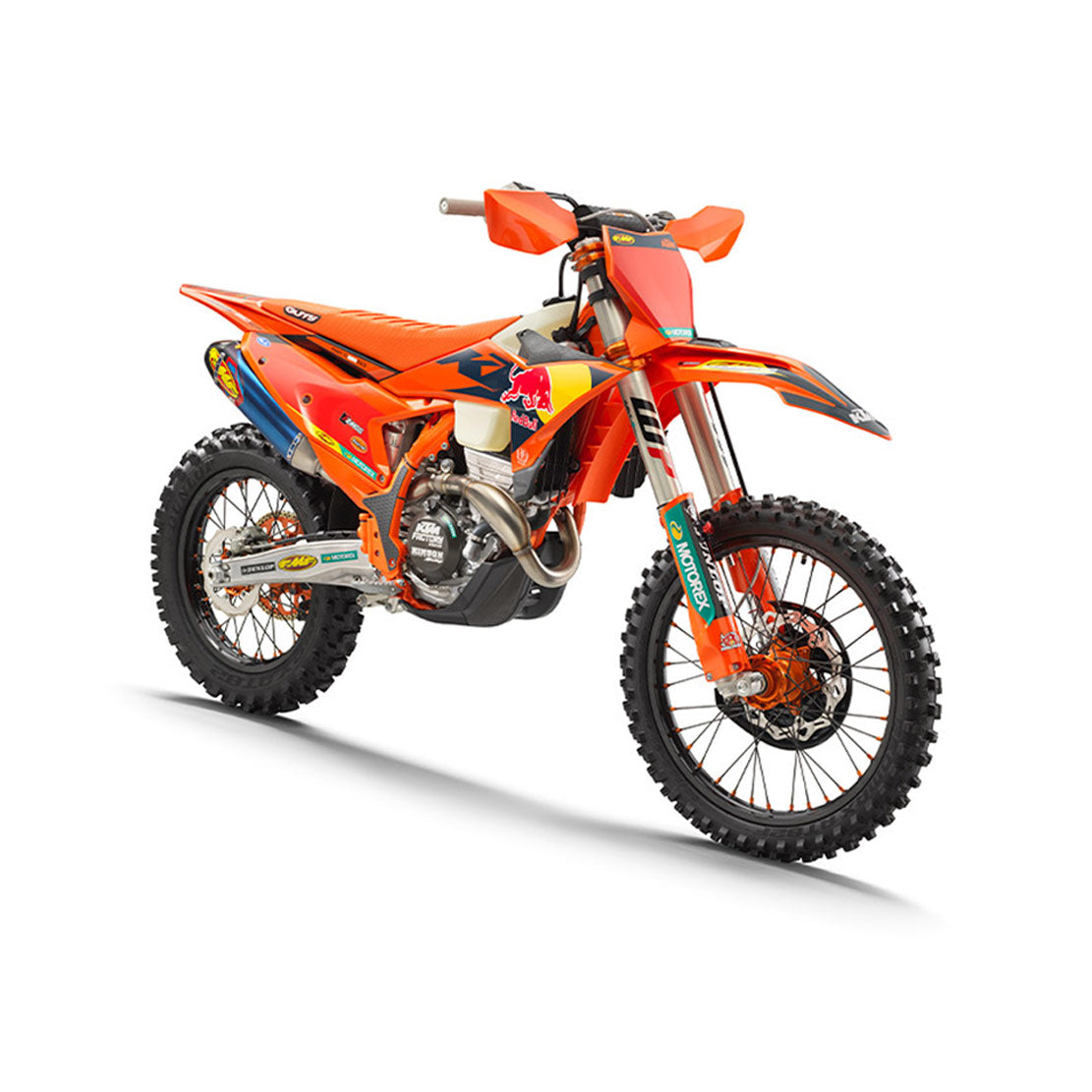

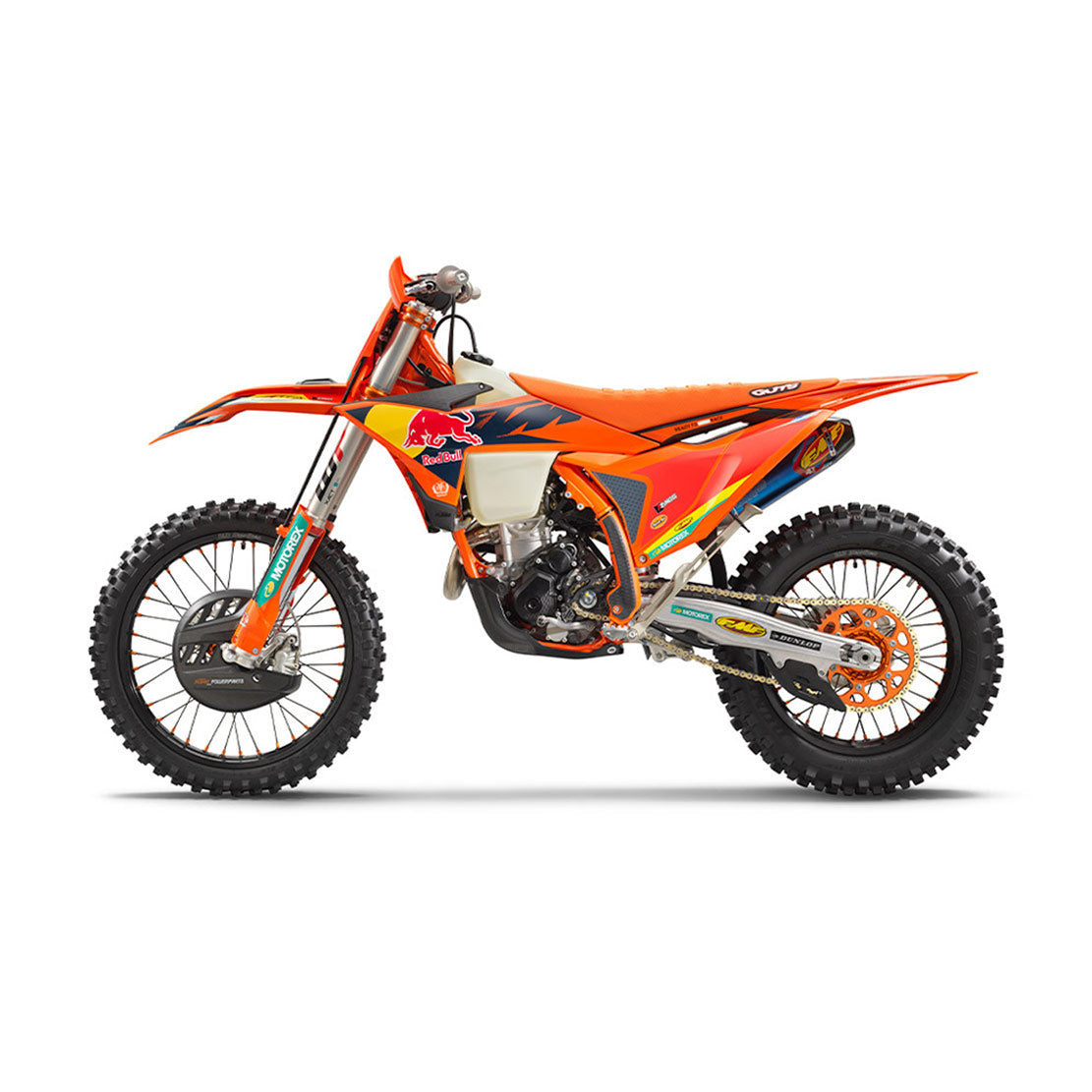

2025 KTM 350 XC-F Factory Edition

Simply put - when it comes to dominating the fast-paced field of the GNCC, the 2025 KTM 350 XC-F FACTORY EDITION means business. Loaded with top-shelf KTM PowerParts, bold new additions, and years of hare-scrambling pedigree, the 2025 KTM 350 XC-F FACTORY EDITION is built to compete at the highest, most flat-out, level.
Model highlights:

• Red Bull FMF KTM FACTORY RACING CTG
• Orange glossy frame
• Factory Racing frame protection set
• Factory Racing seat
• Factory Racing triple clamps
• Factory Wheel Set
• Dunlop AT82 tires front and rear
• Factory-Start device
• Factory skid plate
• Factory Racing Front Brake Disc Cover
• Semi-floating front brake disc
• Solid rear brake disc
• Orange SUPERSPROX rear sprocket
• Hinson outer clutch cover
• FMF FACTORY 4.1 RCT SILENCER
• Connectivity unit GPS fender kit

Engine

• Primary drive 1
• Transmission 6-speed
• Secondary gear ratio 1
• Starter Electric starter
• Stroke 57.5 mm
• Bore 88 mm
• Clutch wet multi-disc clutch, Brembo hydraulics
• Compression ratio 14.6
• Displacement 349.7 cm³
• EMS Keihin EMS
• Design 1-cylinder, 4-stroke engine
• Fuel-mixture generation Keihin EFI, throttle body 44 mm

Chassis

• Weight (without fuel) 104.9 kg
• Tank capacity (approx.) 8.5 l
• Wheelbase 1493 mm
• Front brake disc diameter 260 mm
• Rear brake disc diameter 220 mm
• Front brake Disc brake
• Rear brake Disc brake
• Chain 520 X-Ring
• Frame design Central double-cradle-type 25CrMo4 steel
• Front suspensionWP XACT Closed Cartridge Ø 48 mm
• Ground clearance343 mm
• Handlebar Neken, aluminium Ø 28/22 mm
• Rear suspensionWP XACT Monoshock with linkage
• Seat height954 mm
• SilencerTitanium
• Steering head angle63.9 °
• Rear subframe designAluminum-reinforced polyamide
• Suspension travel (front)300 mm
• Suspension travel (rear)300 mm
• Tire dimensions (front/rear) 1
• Wheels 1
• Wheelbase 1
