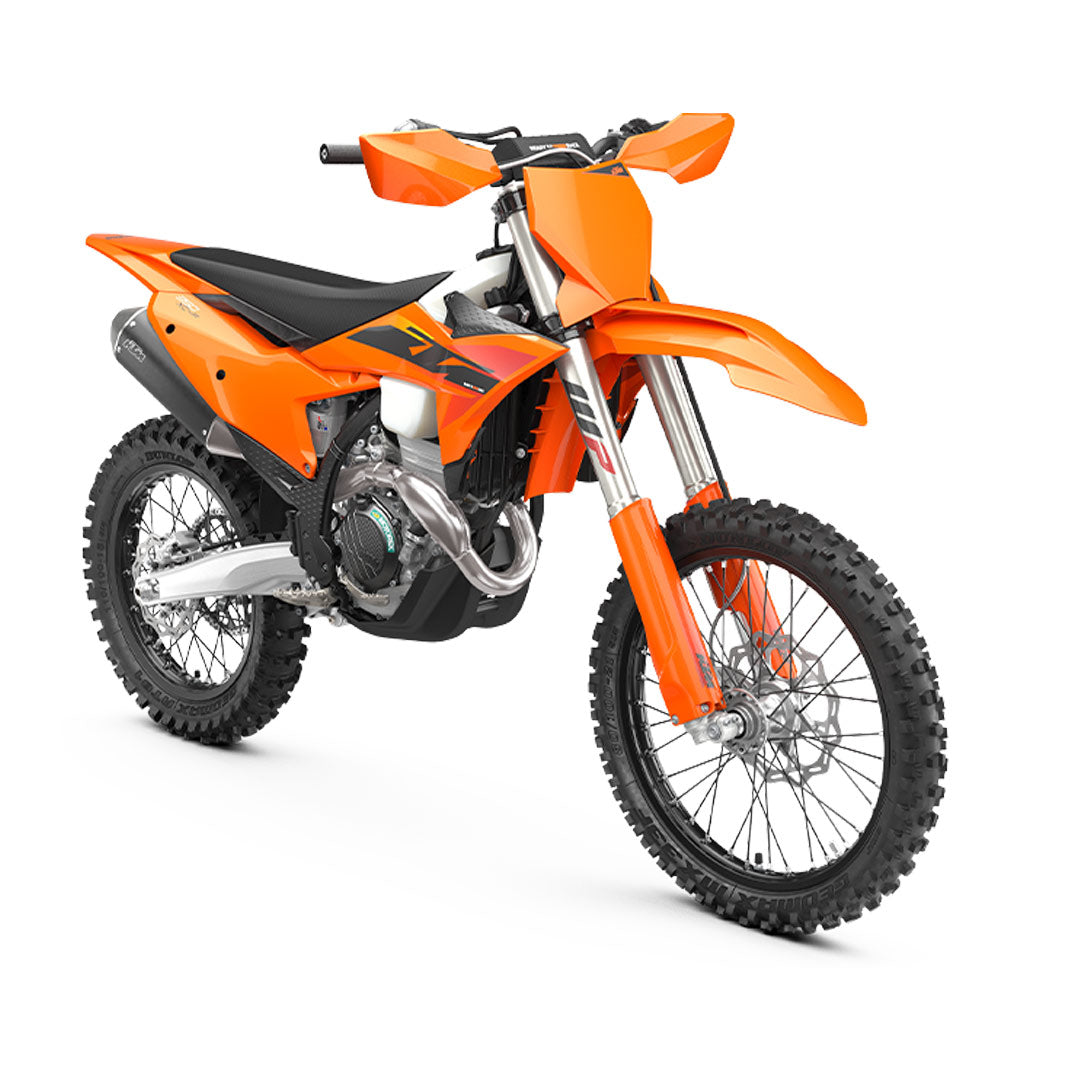

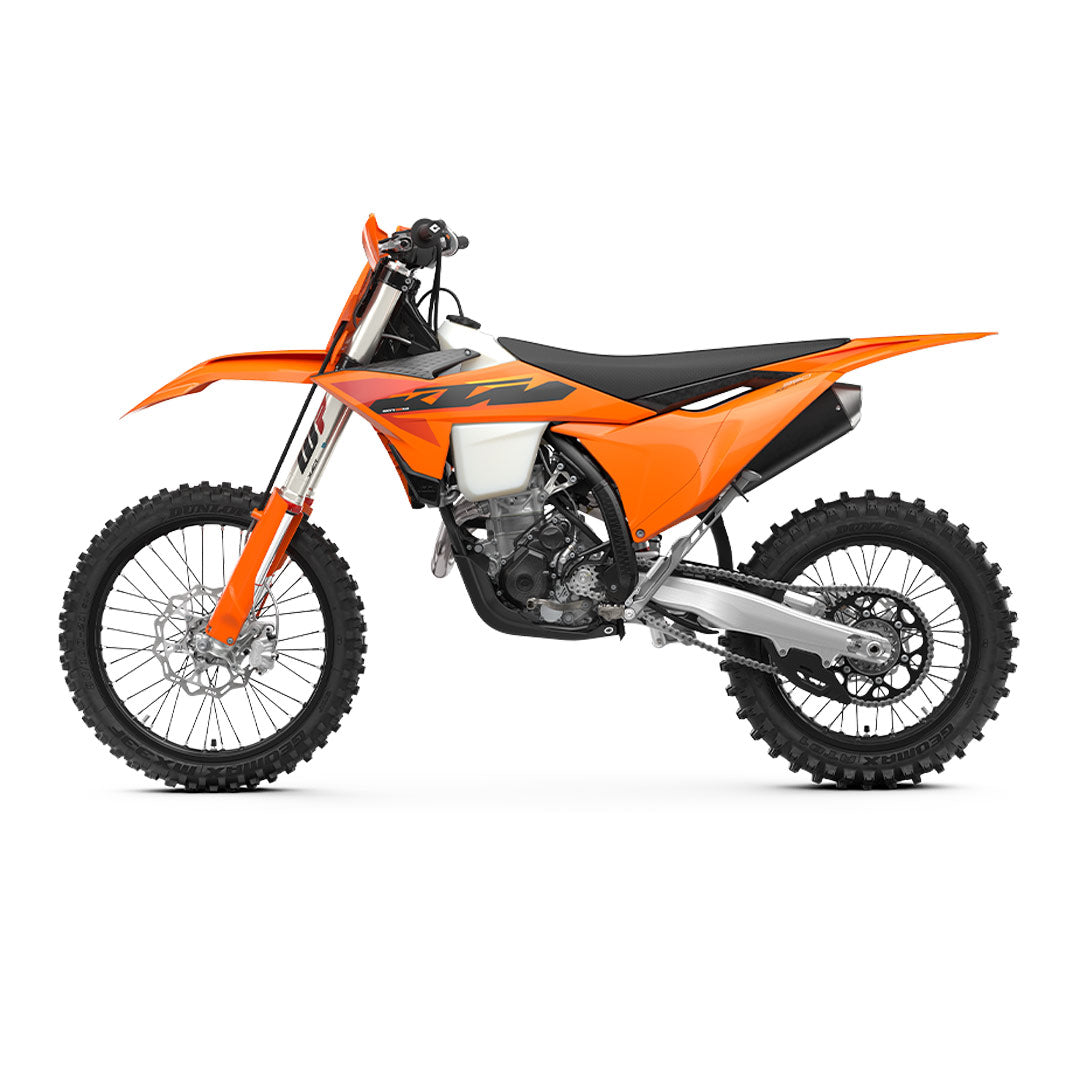

2025 KTM 350 XC-F

Sale price$0.00

What is there to say about the KTM 350 XC-F that hasn't already been said? Well, for starters, the 2025 KTM 350 XC-F takes everything great about previous generations and makes it even better. With a reworked frame, new airbox, new swingarm, improved suspension settings, and the same usable performance, the 2025 KTM 350 XC-F is ready to take up the challenge - and the lead.

ENGINE

  • TRANSMISSION 6-speed
  • STARTER Electric starter
  • STROKE 57.5 mm
  • BORE 88 mm
  • CLUTCH Wet multi-disc DS clutch, Brembo hydraulics
  • COMPRESSION RATIO14.6
  • DISPLACEMENT 349.7 cm³
  • EMS Keihin EMS
  • DESIGN 1-cylinder, 4-stroke engine
  • FUEL-MIXTURE GENERATION Keihin EFI, throttle body 44 mm

CHASSIS

  • WEIGHT (WITHOUT FUEL)104.2 kg
  • TANK CAPACITY (APPROX.) 8.5 l
  • WHEELBASE 1493 mm
  • FRONT BRAKE DISC DIAMETER 260 mm
  • REAR BRAKE DISC DIAMETER 220 mm
  • FRONT BRAKE Disc brake
  • REAR BRAKE Disc brake
  • CHAIN 520 X-Ring
  • FRAME DESIGN Central double-cradle-type 25CrMo4 steel
  • FRONT SUSPENSION WP USD closed cartridge Ø 48 mm
  • GROUND CLEARANCE 343 mm
  • HANDLEBAR Neken, aluminium Ø 28/22 mm
  • REAR SUSPENSION WP XACT Monoshock with linkage
  • SEAT HEIGHT 954 mm
  • SILENCER Aluminium
  • STEERING HEAD ANGLE 63.9 °
  • REAR SUBFRAME DESIGN Aluminum-reinforced polyamide
  • SUSPENSION TRAVEL (FRONT)300 mm
  • SUSPENSION TRAVEL (REAR)300 mm
  • WHEELS Spoked wheels with aluminium rims
