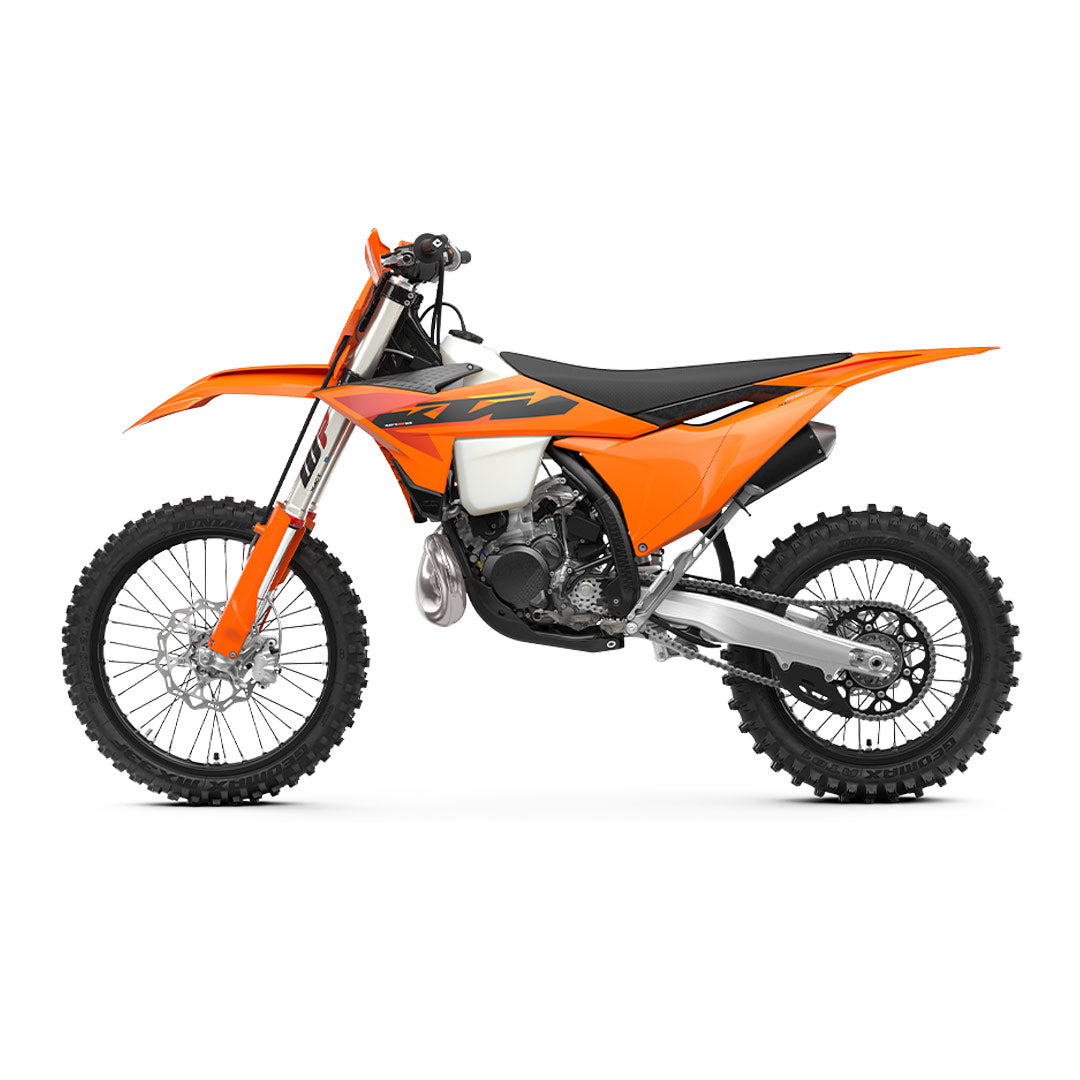

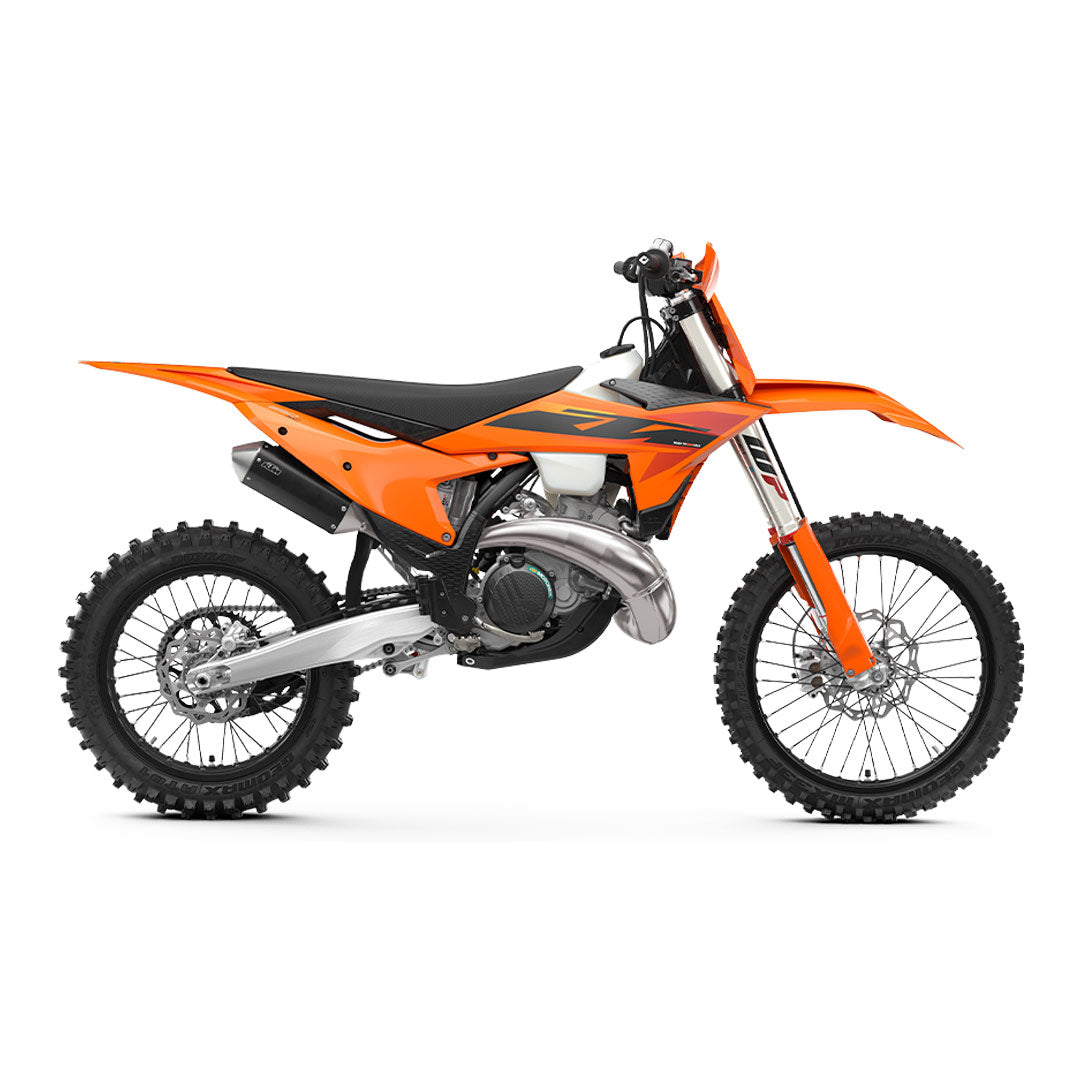

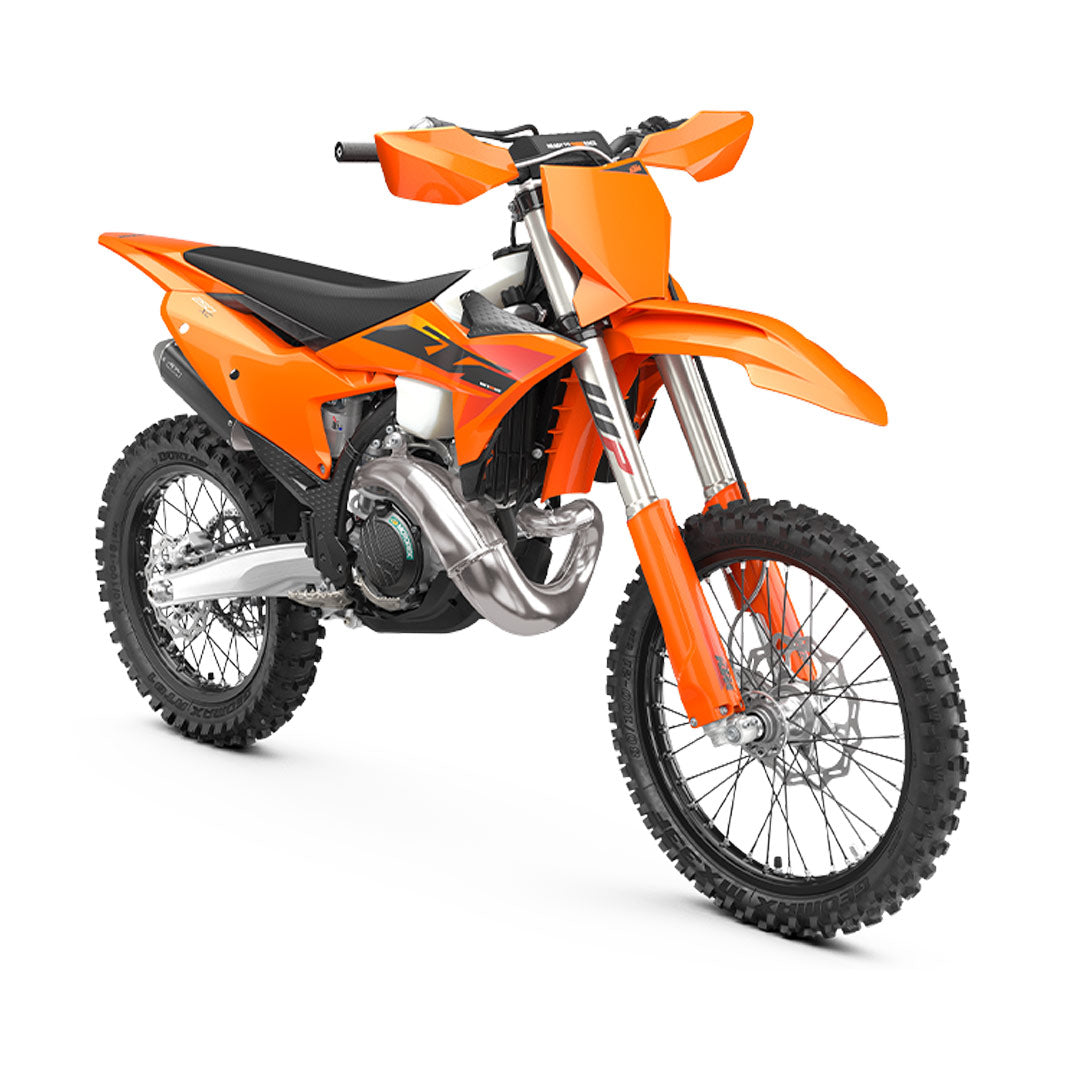

2025 KTM 250 XC

At the sharp end of the cross-country performance stakes, you'll find the 2025 KTM 250 XC. Not only does it boast one of the most potent powerplants around, it now gets upgraded suspension, a reworked chassis, and a new airbox for improved airflow. In simple terms, the 2025 KTM 250 XC is ready to extend its legendary status in the cross-country paddock.

ENGINE

• TRANSMISSION 6-speed
• STARTER Electric starter
• STROKE 72 mm
• BORE 66.4 mm
• CLUTCH Wet, DDS multi-disc clutch, Brembo hydraulics
• DISPLACEMENT 249 cm³
• EMS Vitesco Technologies EMS
• DESIGN 1-cylinder, 2-stroke engine
• FUEL-MIXTURE GENERATION Keihin EFI, throttle body 39 mm

CHASSIS

• WEIGHT (WITHOUT FUEL)101.8 kg
• TANK CAPACITY (APPROX.)9 l
• WHEELBASE 1493 mm
• FRONT BRAKE DISC DIAMETER 260 mm
• REAR BRAKE DISC DIAMETER 220 mm
• FRONT BRAKE Disc brake
• REAR BRAKE Disc brake
• CHAIN 520 X-Ring
• FRAME DESIGN Central double-cradle-type 25CrMo4 steel
• FRONT SUSPENSION WP XACT cartridge Ø 48 mm
• GROUND CLEARANCE 354 mm
• HANDLEBAR Neken, aluminium Ø 28/22 mm
• REAR SUSPENSION WP XACT Monoshock with linkage
• SEAT HEIGHT 954 mm
• SILENCER Aluminium
• STEERING HEAD ANGLE63.9 °
• REAR SUBFRAME DESIGN Aluminum-reinforced polyamide
• SUSPENSION TRAVEL (FRONT)300 mm
• SUSPENSION TRAVEL (REAR)300 mm
• WHEELS Spoked wheels with aluminium rims
