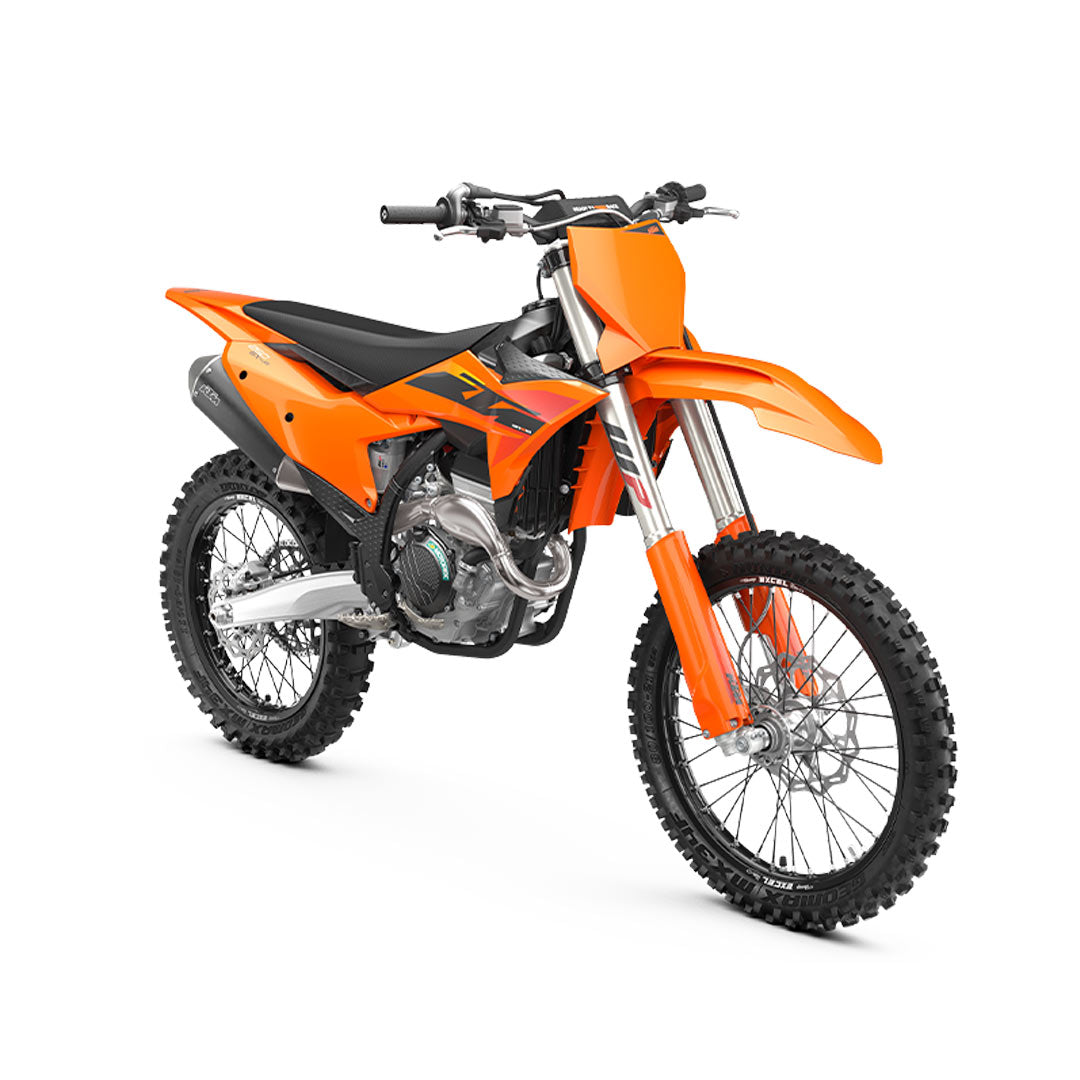

2025 KTM 250 SX-F

The 2025 KTM 250 SX-F is a truly user-friendly package engineered to satisfy all riders, from novice to pro. But don't for one second think that makes it compromised - it is undisputedly READY TO RACE at any level. Delivering a power punch, and an optional electronic uppercut in reserve, the 2025 KTM 250 SX-F is ready to take on the 250 cc class and deliver a knock-out.

ENGINE

• TRANSMISSION 5-speed
• STARTER Electric starter
• STROKE 48.5 mm
• BORE 81 mm
• CLUTCH Wet multi-disc DS clutch, Brembo hydraulics
• COMPRESSION RATIO 14.5
• DISPLACEMENT 249.9 cm³
• EMS Keihin EMS
• DESIGN 1-cylinder, 4-stroke engine
• FUEL-MIXTURE GENERATION Keihin EFI, throttle body 44 mm

CHASSIS

• WEIGHT (WITHOUT FUEL)101 kg
• TANK CAPACITY (APPROX.)7.2 l
• WHEELBASE 1493 mm
• FRONT BRAKE DISC DIAMETER 260 mm
• REAR BRAKE DISC DIAMETER 220 mm
• FRONT BRAKE Disc brake
• REAR BRAKE Disc brake
• CHAIN 520, Non-sealed
• FRAME DESIGN Central double-cradle-type 25CrMo4 steel
• FRONT SUSPENSION WP XACT-USD (AER), Ø 48 mm
• GROUND CLEARANCE 343 mm
• HANDLEBAR Neken, aluminium Ø 28/22 mm
• REAR SUSPENSION WP XACT Monoshock with linkage
• SEAT HEIGHT 958 mm
• SILENCER Aluminium
• STEERING HEAD ANGLE 63.9 °
• REAR SUBFRAME DESIGN Aluminum-reinforced polyamide
• SUSPENSION TRAVEL (FRONT) 310 mm
• SUSPENSION TRAVEL (REAR)300 mm
• WHEELS Spoked wheels with aluminium rims
