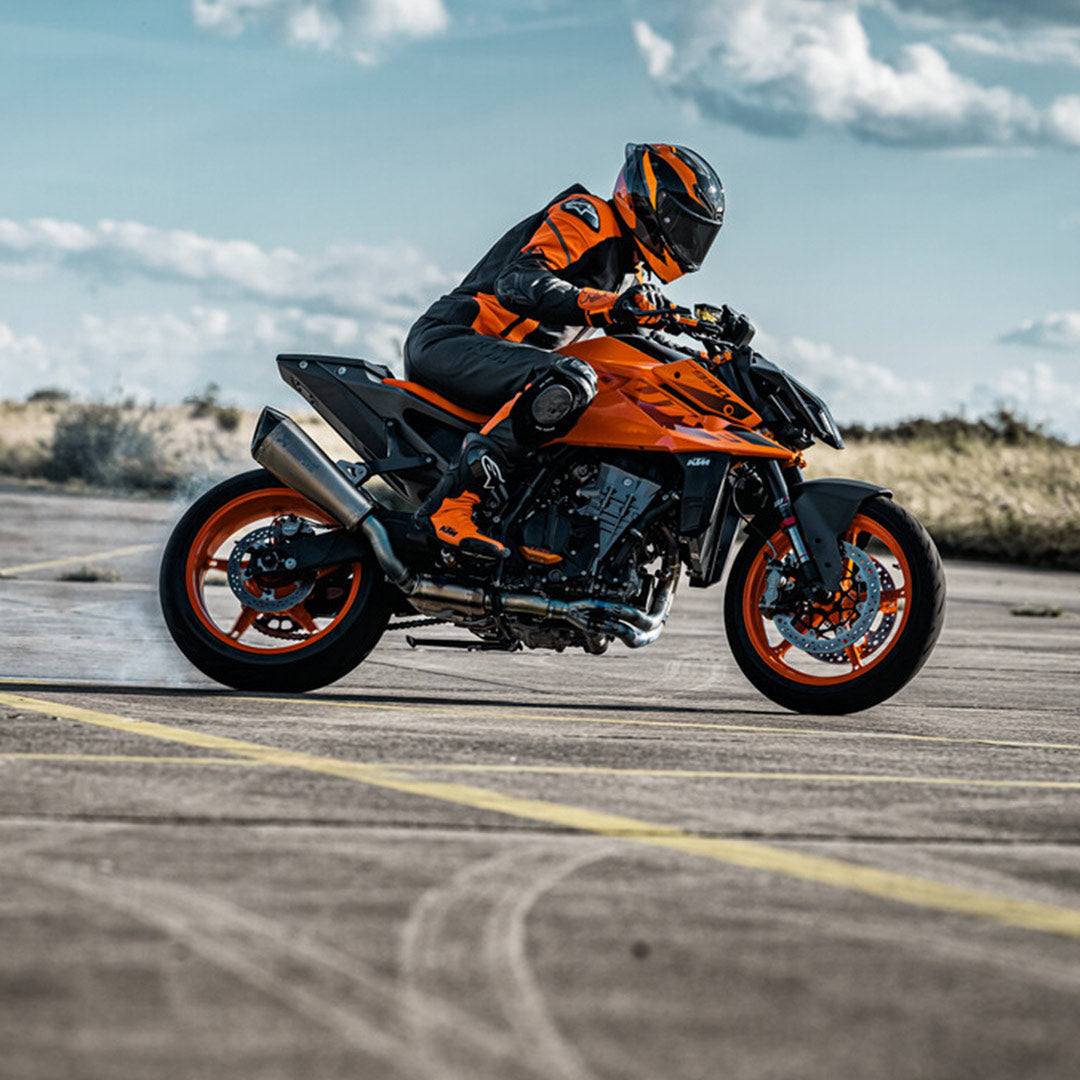

2024 KTM 990 DUKE
With 2024 marking 30 YEARS OF DUKE, the all-new KTM 990 DUKE slots into the line-up like a well-polished round in the chamber. In its quest to be the most performance-focused NAKED machine possible, the KTM 990 DUKE ticks all the right boxes mechanically, while deploying extreme new styling.
The KTM 990 DUKE makes its intentions perfectly clear. Apart from a blisteringly potent engine, an all-new chassis, and swingarm design – not to mention updated ergonomics and technology – it now sizes up to larger capacity motorcycles in both displacement and proportions.

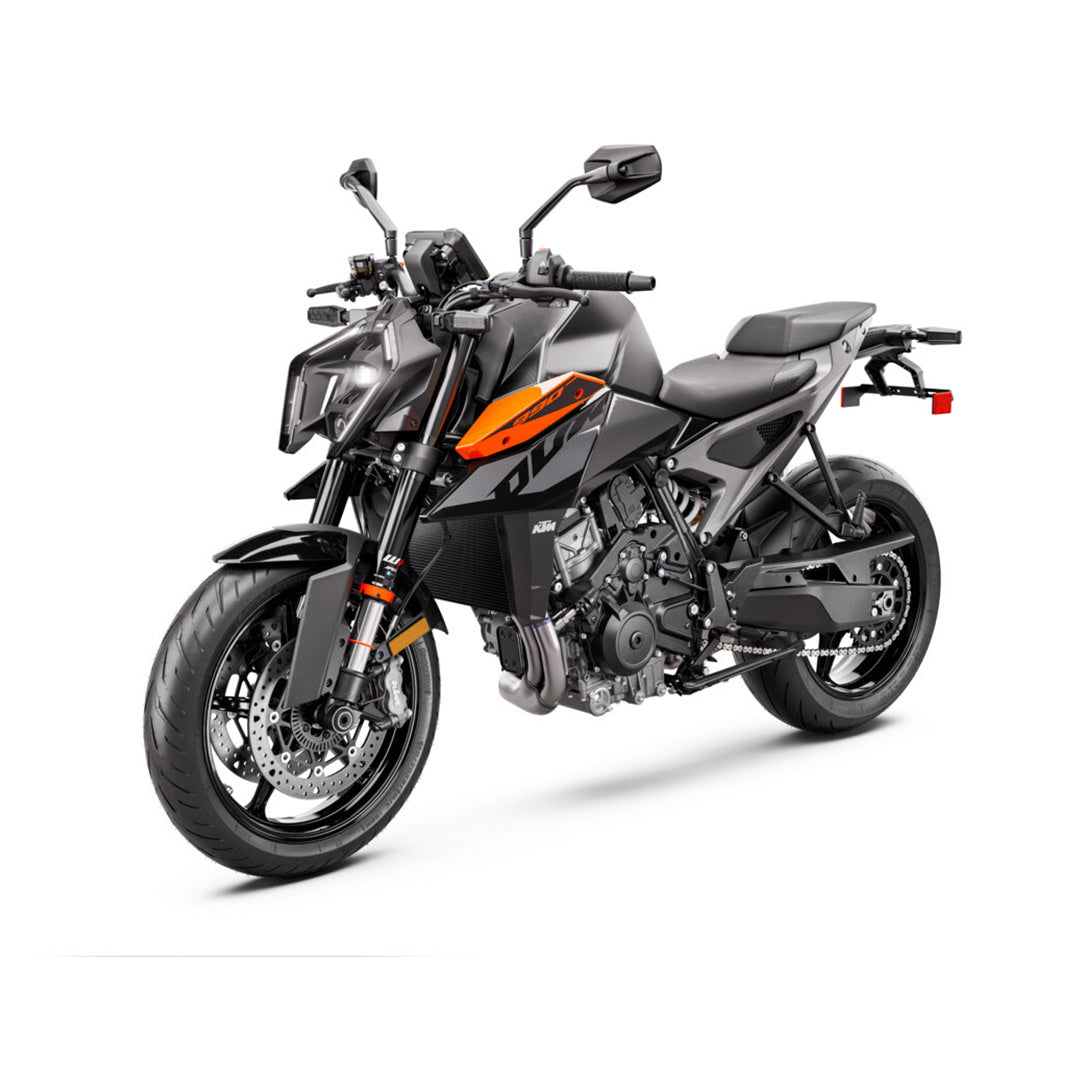

Side-on, the new design has been modeled around the concept of an explosion in a freeze-frame, harnessing extreme energy ready to be released. This new design is further enhanced by two colorway options in Black and Electric Orange – the latter being developed specifically to celebrate 30 YEARS OF DUKE.

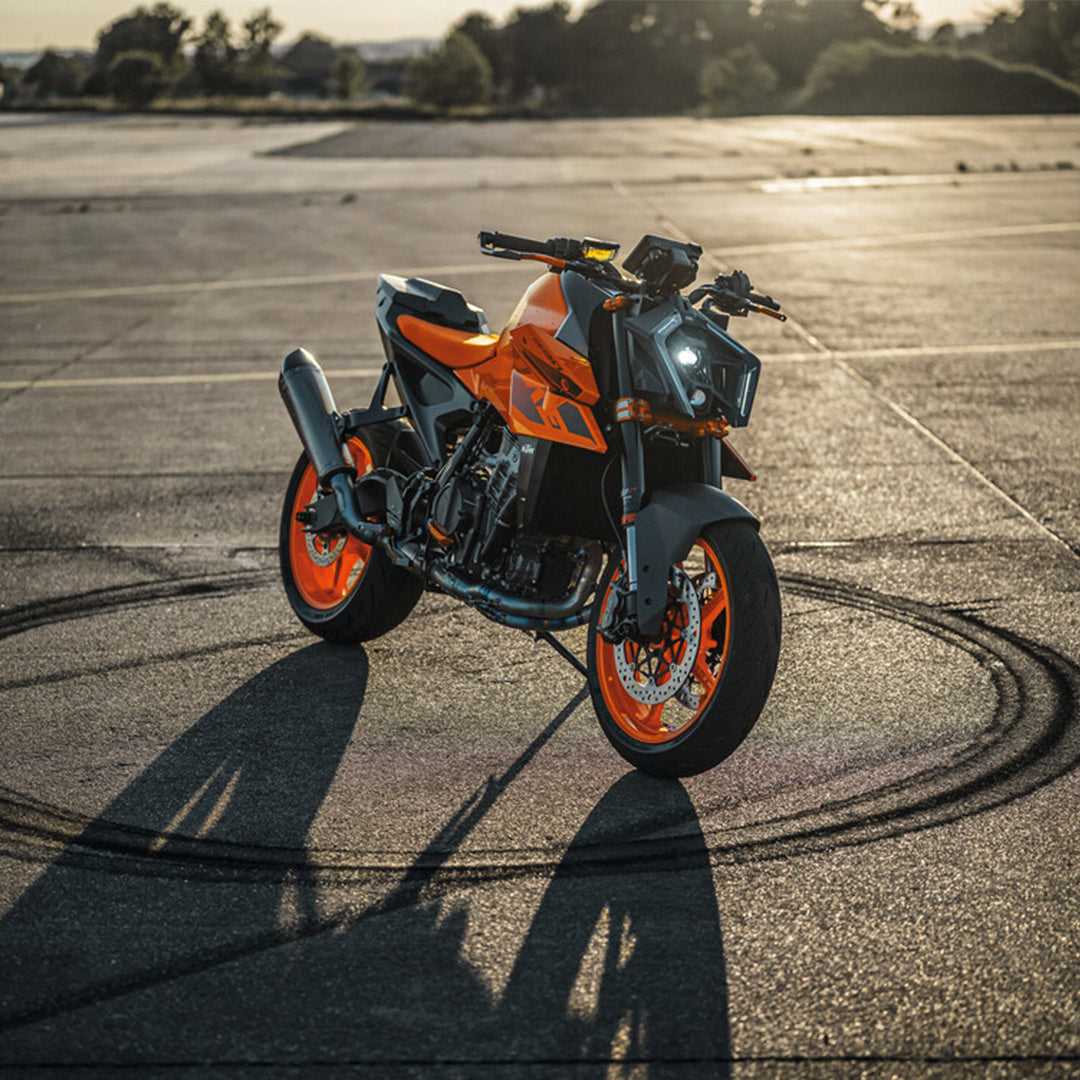

At the face of it, predatory design meets reduced styling with an evolved LED headlight being a stand-out feature of the all-new KTM 990 DUKE. Constructed from a carefully chosen mix of materials, the new design ensures lighting stability in all road conditions. Position and daytime running lights are located on the profile of the headlight, which also auto-adjusts in intensity according to ambient light conditions thanks to a light sensor integrated into the dashboard.
Additionally, the KTM 990 DUKE is fitted with a Coming Home light function as standard. Here, the headlight will remain on after the ignition has been switched off, awarding the rider with a few seconds of light to open doors or for better visibility in the garage.
Power is taken care of by a dramatically updated version of the LC8c engine found in the KTM 890 DUKE R. Boasting 947 cc, the roaring heart of the KTM 990 DUKE receives new pistons, crankshaft, and conrod producing a fire-breathing 123 HP and 103 Nm, with a total motorcycle weight of only 179 kg.
The KTM 990 DUKE takes its DNA from the long lineage of hard-hitting DUKE models that have come before it, adding more verve and aggression. It is a performance-oriented machine at its core, designed around a lightweight, flickable chassis that inspires utmost rider confidence.
SPECIFICATIONS
Engine Type: Parallel Twin, 4-Stroke, DOHC
Displacement: 947 cc
Bore/Stroke: 92.5/70.4 mm
Starter: Electric; 12V 10Ah
Transmission: 6 Gears
Fuel System: DKK Dell’Orto, 46 mm Throttle Body
Lubrication: Pressure Lubrication with 2 Oil Pumps
Cooling: Liquid Cooling with Water/Oil Heat Exchanger
Clutch: PASC (Power Assisted Slipper Clutch), Cable Operated
Ignition: Bosch EMS with Ride-By-Wire
Frame: CroMoly Tubular Steel, Engine as Stressed Member
Subframe: Cast Aluminum
Handlebar: Aluminum, Tapered, Ø 28/22 mm
Front Suspension: WP APEX USD Ø 43 mm
Rear Suspension: WP APEX Monoshock
Suspension Travel Front/Rear: 140 mm/5.5 in; 150 mm/5.9 in
Front/Rear Brakes: Disc Brake 300 mm/240 mm
Front/Rear Wheels: 3.50 x 17”, 5.50 x 17”
Front/Rear Tires: 120/70ZR17”; 180/55ZR17”
Steering Head Angle: 24.2º
Wheelbase: 1,476 mm ± 15 mm / 58.1 ± 0.6 in
Ground Clearance: 195 mm / 7.6 in
Seat Height: 825 mm / 32.4 in
Tank Capacity: 14.8 L / 3.9 gal
Weight (ready to ride), Approx: 179 kg / 394.6 lb
